NSN 4730-00-540-0671 10028A, 1002-8A, 00-540-0671
Product Details | QUICK DISCONNECT COUPLING HALF

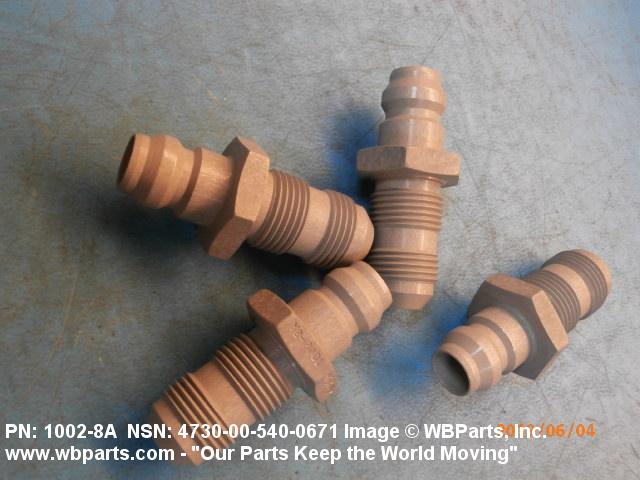

4730-00-540-0671 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 10028A, 1002-8A, 4730-00-540-0671, 00-540-0671, 4730005400671, 005400671
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-0671 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

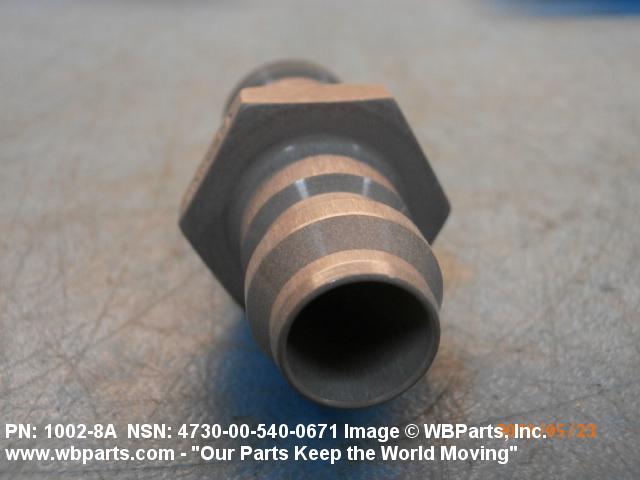

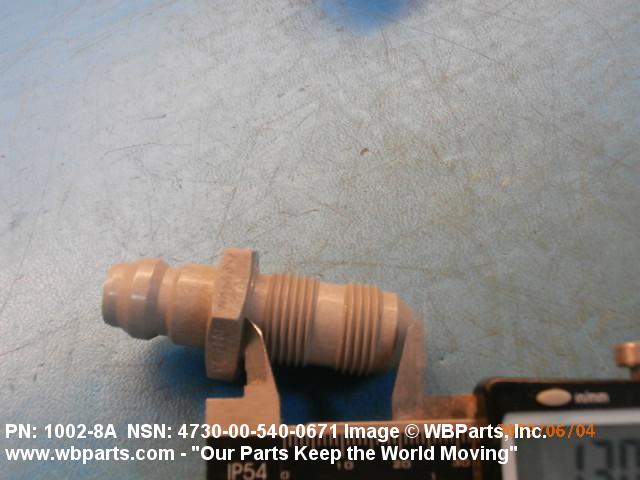

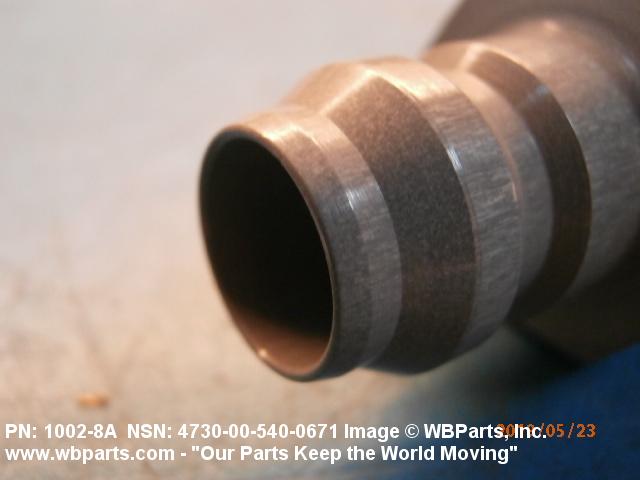

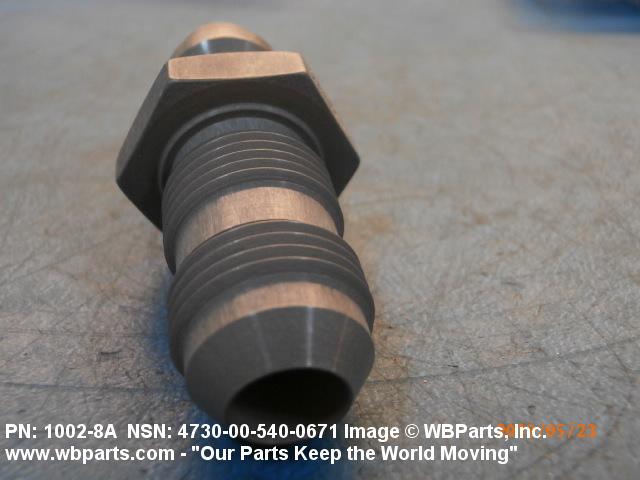

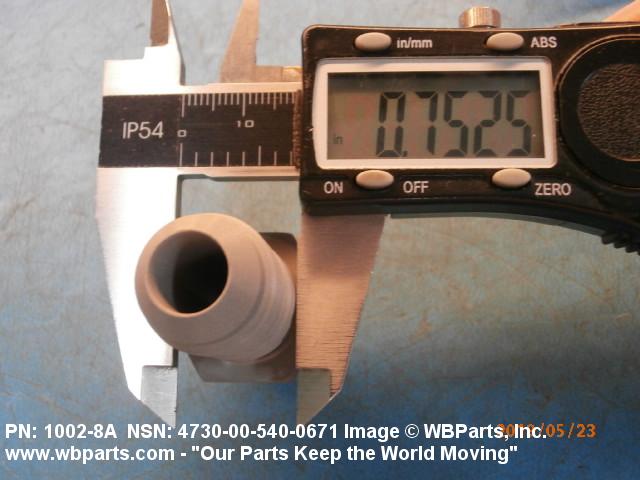

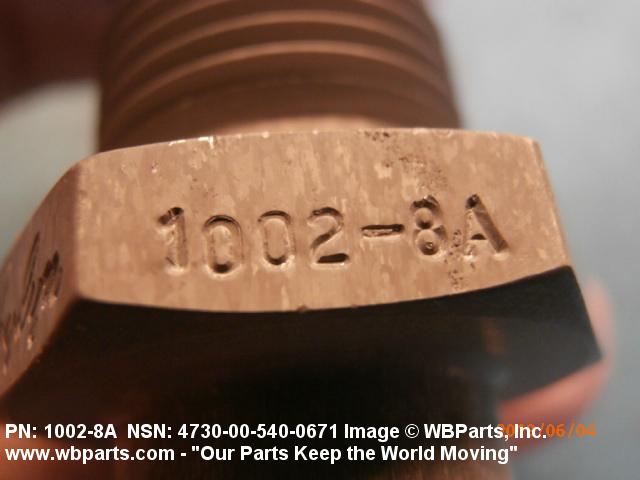

Drawings & Photos | NSN 4730-00-540-0671
Demand History | NSN 4730-00-540-0671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1002-8A | 2024-11-312 | 4 | DIBBS |
| 1002-8A | 2024-11-309 | 3 | DIBBS |
| 1002-8A | 2020-03-91 | 2 | DIBBS |
| 4730-00-540-0671 | 2019-12-357 | 8 | US |
| 10028A | 2019-05-140 | 4 | United States |
| 4730-00-540-0671 | 2019-05-129 | 4 | United States |
| 4730-00-540-0671 | 2019-05-129 | 4 | United States |
Cross Reference | NSN 4730-00-540-0671
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1002-8A | 86831 | ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-540-0671
Technical Data | NSN 4730-00-540-0671

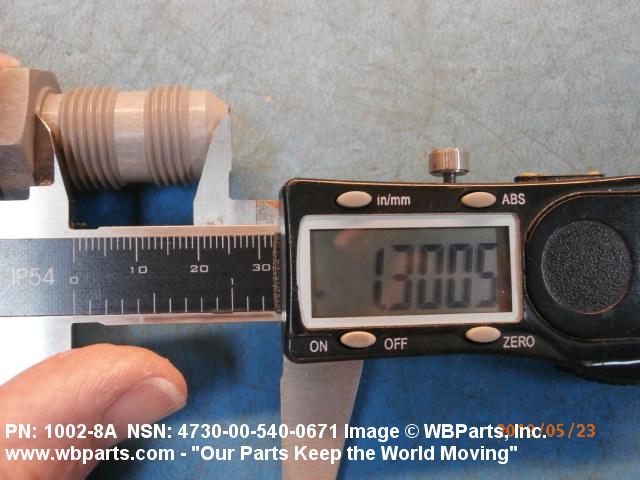

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,ALLOY 2024,T4 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 1.375 INCHES NOMINAL |

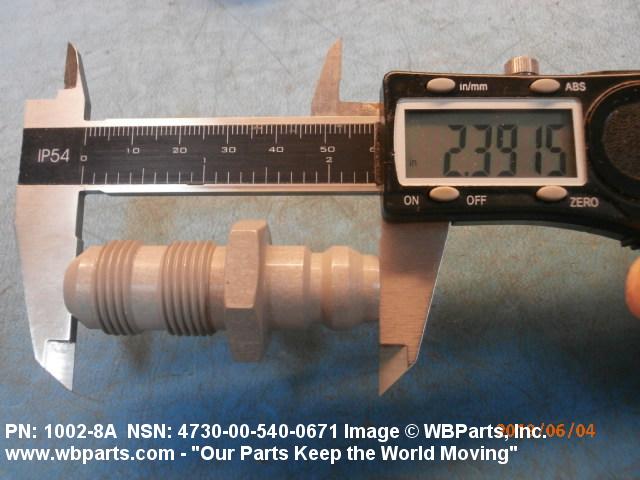

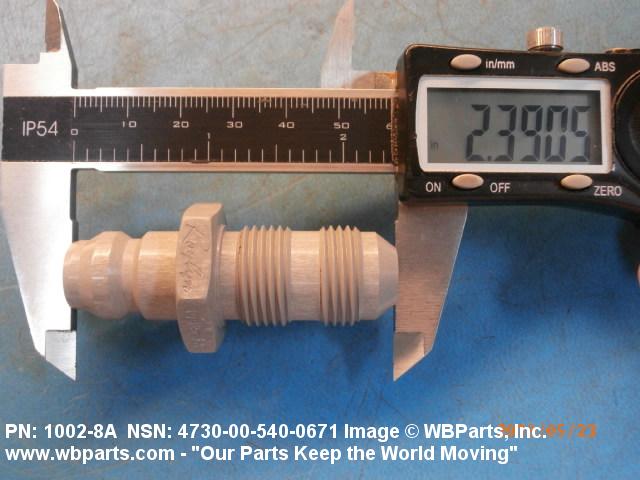

| OVERALL LENGTH | 2.391 INCHES NOMINAL |
