Product Details | TUBE TO BOSS TEE

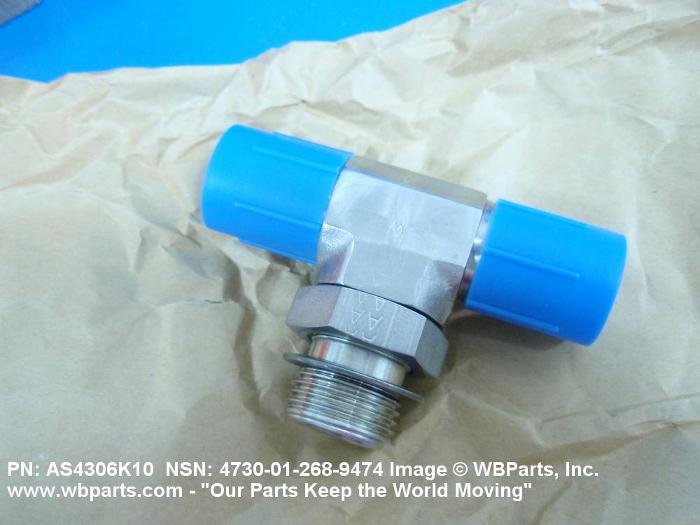

4730-01-268-9474 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AS4306K10, KC111C10, KC111K10, 4730-01-268-9474, 01-268-9474, 4730012689474, 012689474
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 DEC 1987 | 01-268-9474 | 22683 ( TEE, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-268-9474
Demand History | NSN 4730-01-268-9474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4306K10 | 2011-03-63 | 350 | United States |
| AS4306K10 | 2009-03-61 | 10 | United States |
| 4730-01-268-9474 | 2008-10-283 | 10 | United States |
