Product Details | TUBE TO BOSS TEE

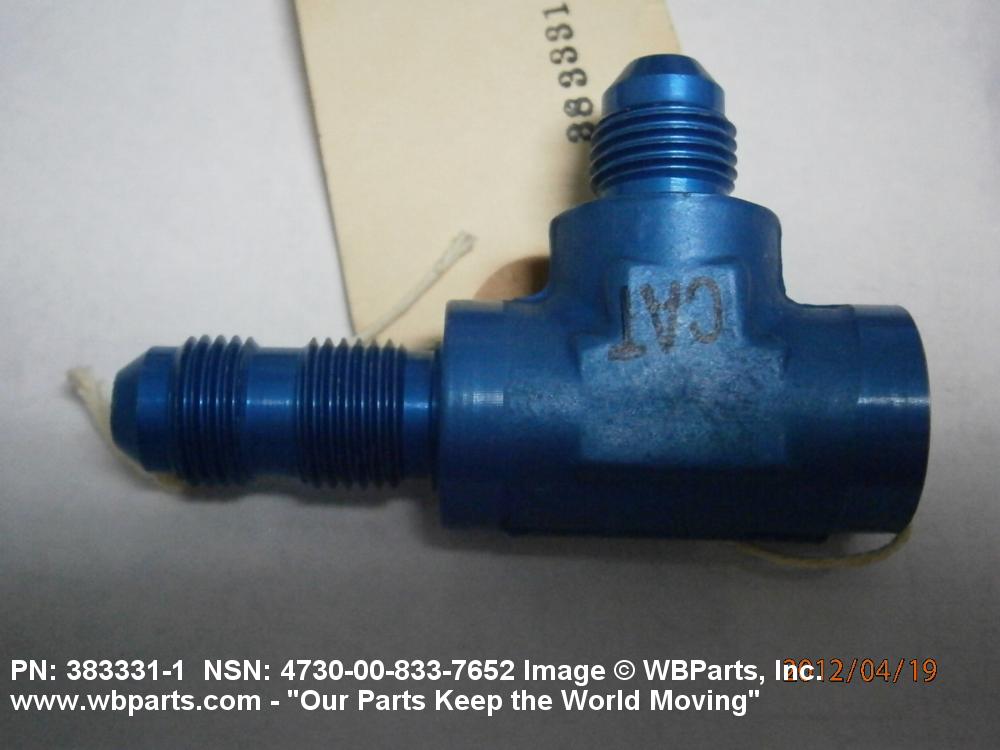

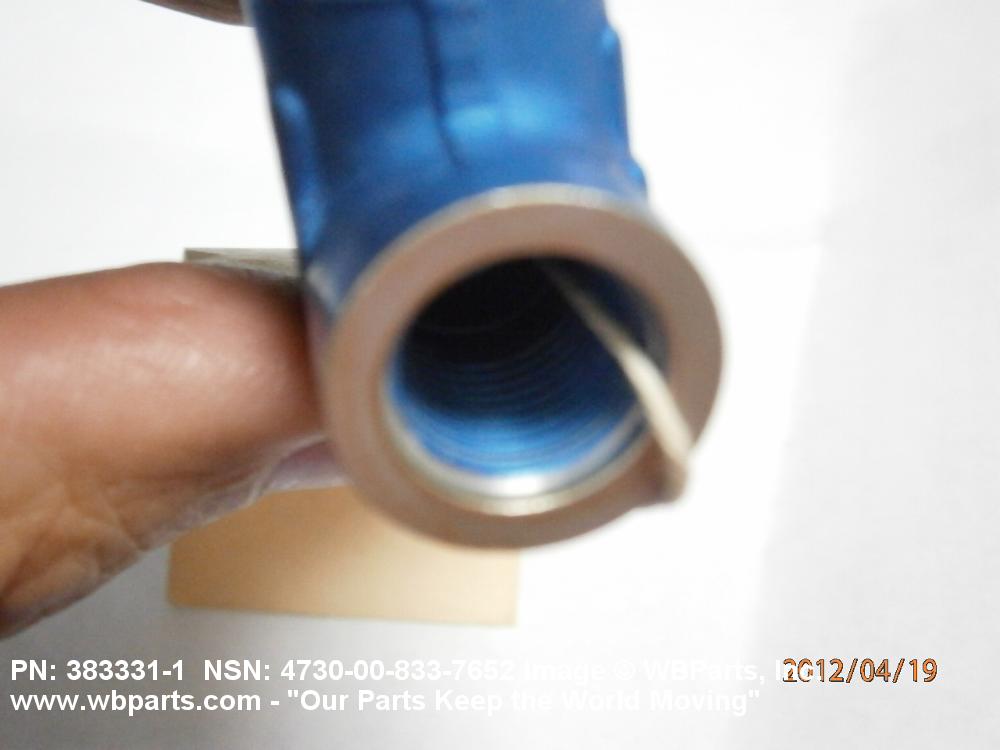

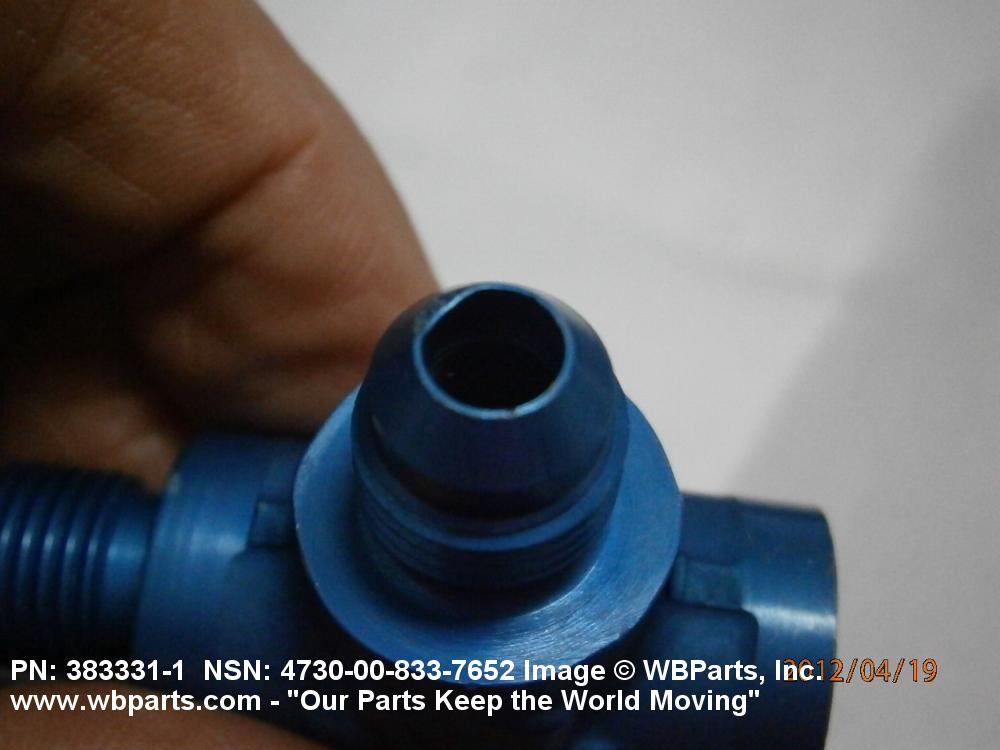

4730-00-833-7652 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 3833311, 383331-1, 4730-00-833-7652, 00-833-7652, 4730008337652, 008337652
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-833-7652 | 22683 ( TEE, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-00-833-7652
Demand History | NSN 4730-00-833-7652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 383331-1 | 2024-09-267 | 25 | DIBBS |
| 383331-1 | 2023-08-222 | 25 | DIBBS |
| 3833311 | 2012-04-103 | 1 | United States |
| 4730-00-833-7652 | 2012-04-93 | 1 | US |
| 383331-1 | 2012-03-82 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-833-7652
Technical Data | NSN 4730-00-833-7652
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED INTERNAL BOSS 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B9 GASKET SEAL 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES 1ST END 0.312 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END UNF 3RD END |
| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.500 INCHES 2ND END 0.500 INCHES 3RD END |
| THREAD CLASS | 3A 1ST END 3A 2ND END 3B 3RD END |
| LEG LENGTH | 1.750 INCHES NOMINAL 1ST END 1.188 INCHES NOMINAL 2ND END 0.713 INCHES NOMINAL 3RD END |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 383331-1 |
