NSN 4730-00-277-5132 AN7846D, AN784-6D, AN784D6
Product Details | TUBE TO BOSS TEE
4730-00-277-5132 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN7846D, AN784-6D, AN784D6, 258N7054003001, 258N7054003-001, 404D3, 4730-00-277-5132, 00-277-5132, 4730002775132, 002775132
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-5132 | 22683 ( TEE, TUBE TO BOSS ) |

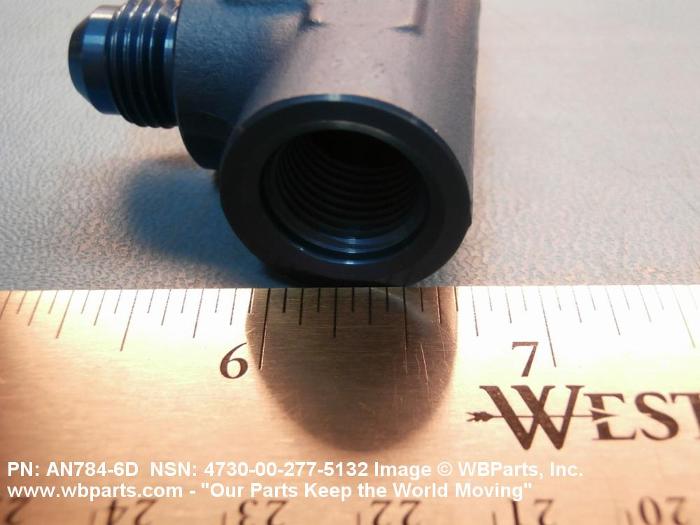

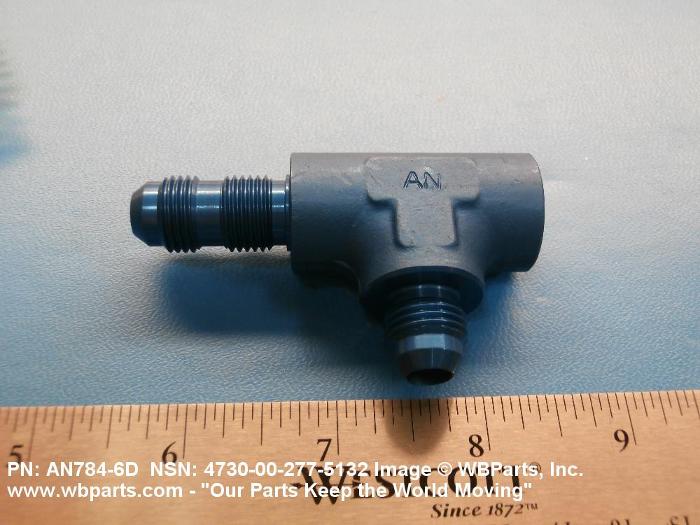

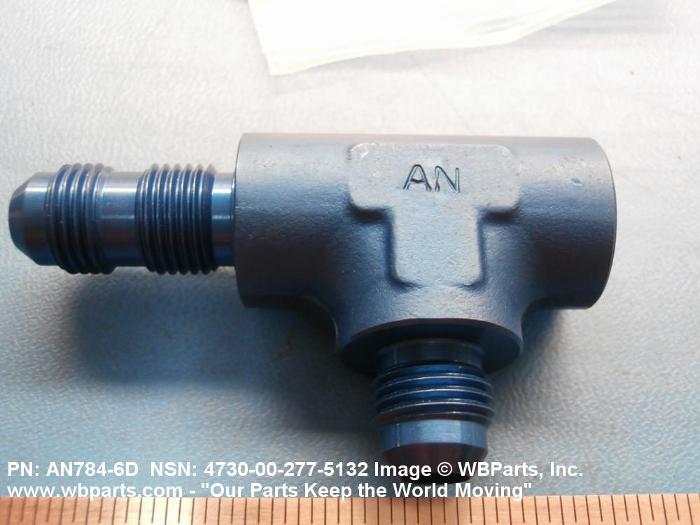

Drawings & Photos | NSN 4730-00-277-5132
Demand History | NSN 4730-00-277-5132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN7846D | 2012-11-27 | 2 | United States |
Cross Reference | NSN 4730-00-277-5132
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 258N7054003-001 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 404D3 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| AN784-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN784D6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN784D6 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN784D6 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN784D6 | 14397 | FABER ENTERPRISES, INC. |
| AN784D6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN784D6 | 22995 | CROWN FITTING CO INC |
| AN784D6 | 30974 | AEROFIT, LLC |
| AN784D6 | 71563 | COLLINS ENGINEERING CORP |
| AN784D6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-5132
Related Products | NSN 4730-00-277-5132
Technical Data | NSN 4730-00-277-5132
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END THREADED EXTERNAL BOSS 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B9 GASKET SEAL 2ND END B81 FLARED W/GASKET SEAL 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS 0.562 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A 1ST END 3B 2ND END 3A 3RD END 3A 1ST END BULKHEAD |
| LEG LENGTH | 2.000 INCHES NOMINAL 1ST END 1.812 INCHES NOMINAL 2ND END 1.250 INCHES NOMINAL 3RD END |
| FURNISHED ITEMS AND QUANTITY | 2 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 88044-AN784 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN784D6 |
Restrictions/Controls & Freight Information | NSN 4730-00-277-5132
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-277-5132
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
