NSN 4730-00-990-9796 AN784C4, 00-990-9796, 009909796
Product Details | TUBE TO BOSS TEE
4730-00-990-9796 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN784C4, 4730-00-990-9796, 00-990-9796, 4730009909796, 009909796
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-990-9796 | 22683 ( TEE, TUBE TO BOSS ) |

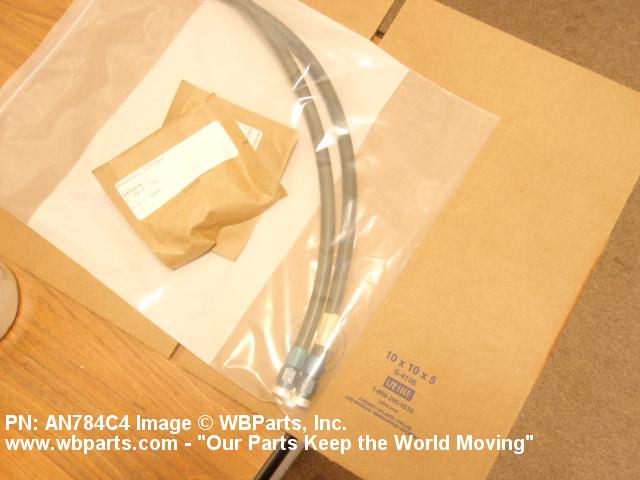

Drawings & Photos | NSN 4730-00-990-9796
Demand History | NSN 4730-00-990-9796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN784C4 | 2009-03-75 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-990-9796
Technical Data | NSN 4730-00-990-9796
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE INSIDE PASSIVATE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END THREADED EXTERNAL BOSS 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B9 GASKET SEAL 2ND END B81 FLARED W/GASKET SEAL 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A 1ST END 3B 2ND END 3A 3RD END 3A 1ST END BULKHEAD |
| LEG LENGTH | 1.750 INCHES NOMINAL 1ST END 0.750 INCHES NOMINAL 2ND END 1.188 INCHES NOMINAL 3RD END |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | CLEANED IN ACCORDANCE W/ABMA-PD-C-472A/SUPPLEMENT NO. 1/ |
| MANUFACTURERS CODE | 04939 |
| DESIGN CONTROL REFERENCE | AN784C4 |
Restrictions/Controls & Freight Information | NSN 4730-00-990-9796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-990-9796
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
