NSN 4730-01-091-8667 MS5189223SS, MS51892-23SS, 4R5USS
Product Details | TUBE TO BOSS TEE

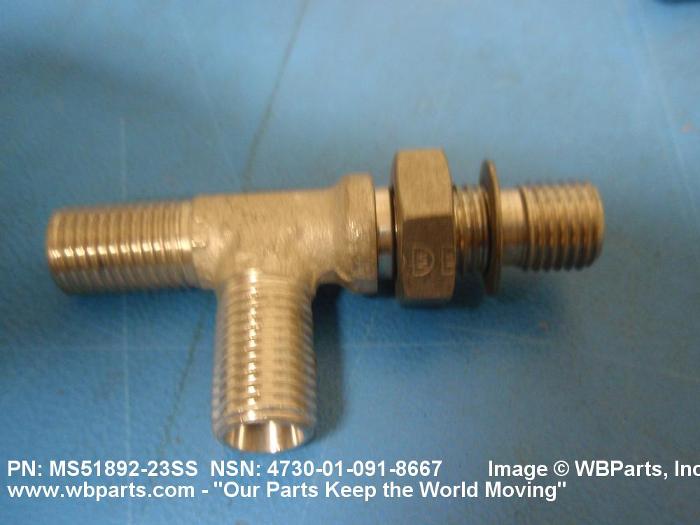

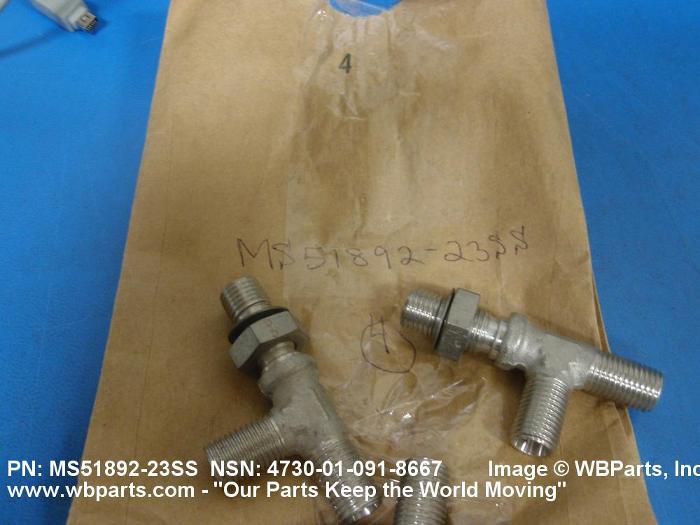

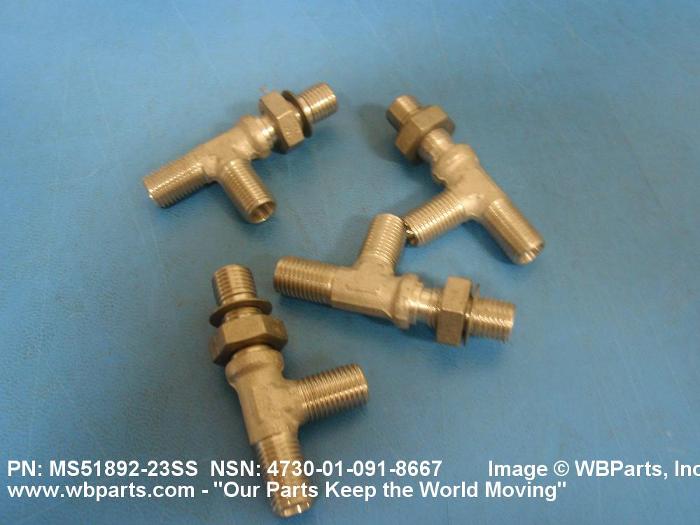

4730-01-091-8667 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS5189223SS, MS51892-23SS, 4R5USS, 4 080428SS, 4080428SS, 4730-01-091-8667, 01-091-8667, 4730010918667, 010918667
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 MAR 1980 | 01-091-8667 | 22683 ( TEE, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-091-8667
Demand History | NSN 4730-01-091-8667
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5189223SS | 2010-04-118 | 2 | US |
| MS5189223SS | 2008-09-246 | 4 | France |
| MS5189223SS | 2008-09-246 | 4 | France |
| MS5189223SS | 2008-06-154 | 4 | France |
| MS5189223SS | 2008-06-154 | 4 | France |
Cross Reference | NSN 4730-01-091-8667
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4 080428SS | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4R5USS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4R5USS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MS51892-23SS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-091-8667
Related Products | NSN 4730-01-091-8667
Technical Data | NSN 4730-01-091-8667
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 347 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE HYDRAULIC FLUID 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT 1ST RESPONSE 250.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END B66 FLARELESS 3RD END |
| SEAT ANGLE | 12.0 DEGREES 1ST END 12.0 DEGREES 3RD END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| LEG LENGTH | 0.891 INCHES NOMINAL 1ST END 1.031 INCHES NOMINAL 2ND END 0.891 INCHES NOMINAL 3RD END |
| SPECIFICATION/STANDARD DATA | 96906-MS51892 GOVERNMENT STANDARD AND 81343-SAE080428 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 27C FIGURE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51892-23SS |
