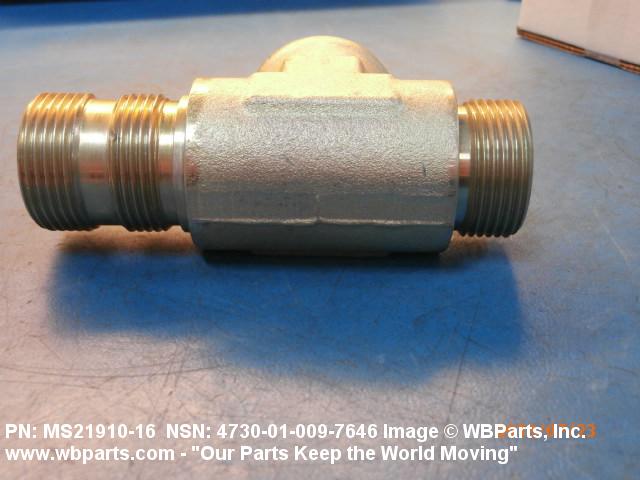

Product Details | TUBE TO BOSS TEE
4730-01-009-7646 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection(s) has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a tube or fitting and a boss or boss fitting on items such as a tank, housing, valve fitting, or the like. See also TEE, TUBE; and TEE, PIPE TO TUBE. Excludes CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2191016, MS21910-16, 4730-01-009-7646, 01-009-7646, 4730010097646, 010097646
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-009-7646 | 22683 ( TEE, TUBE TO BOSS ) |

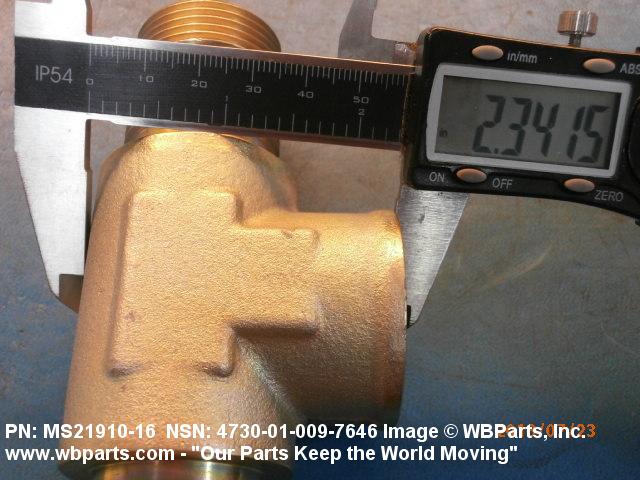

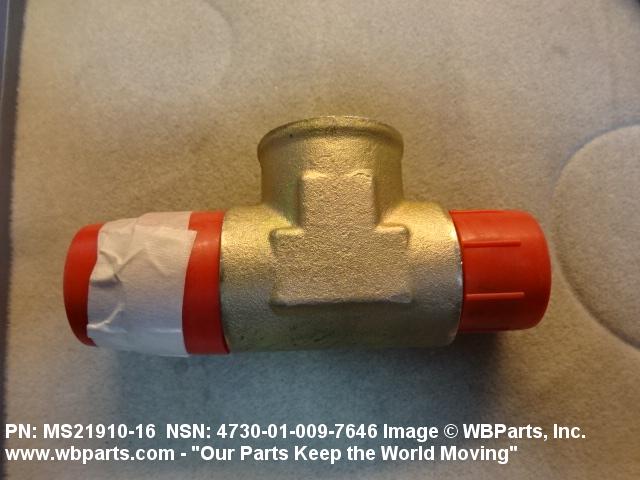

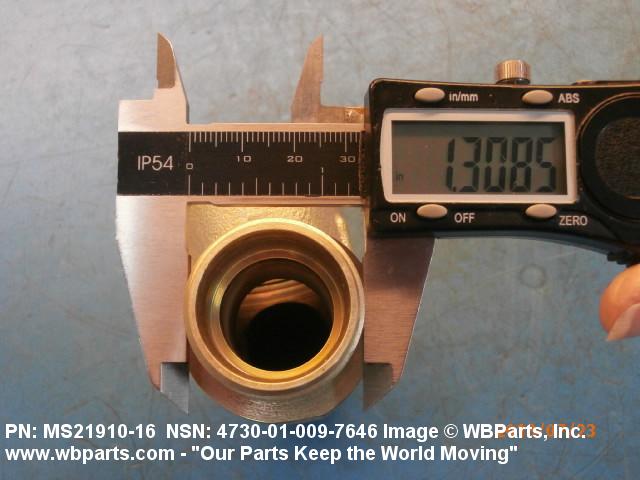

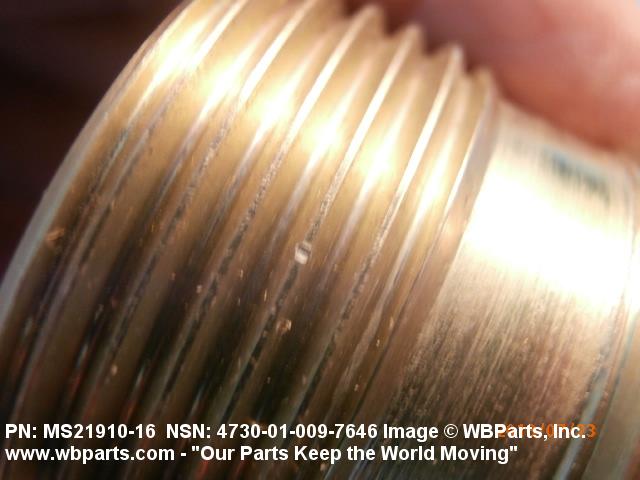

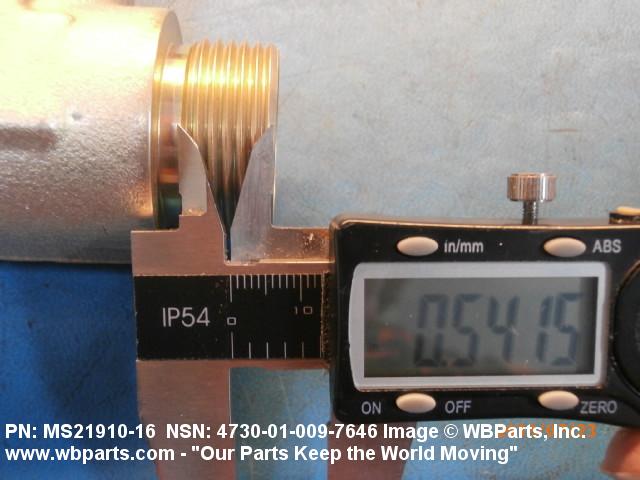

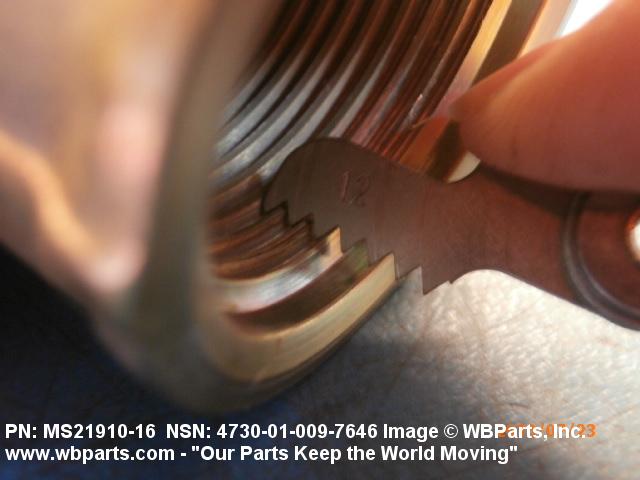

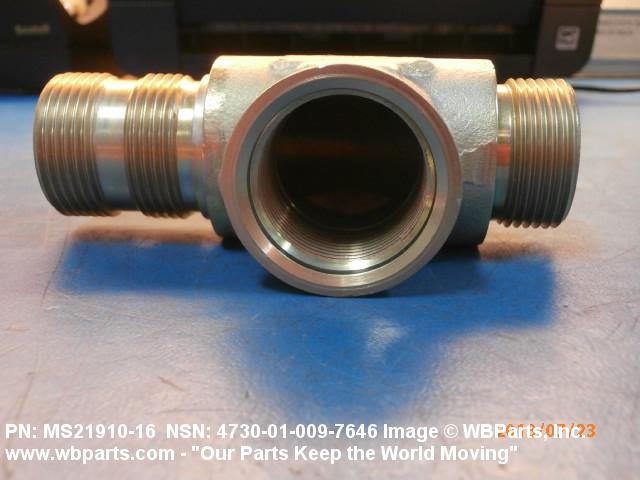

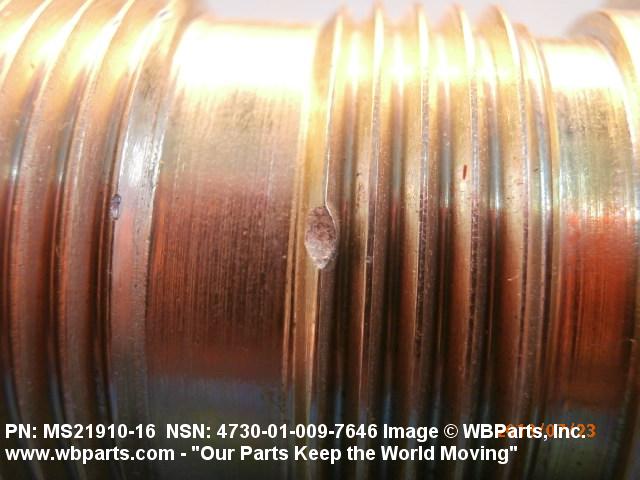

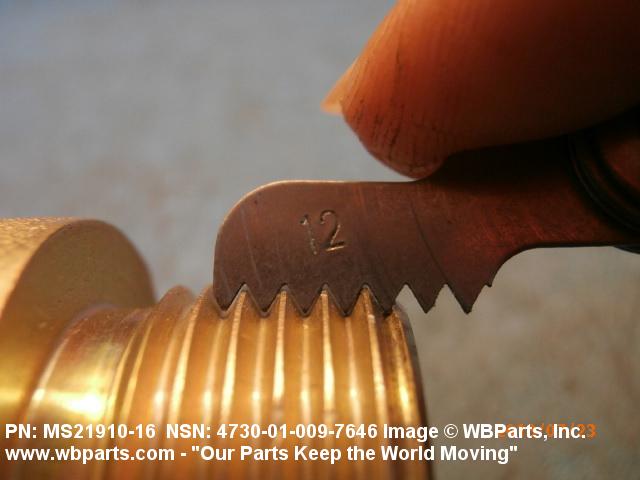

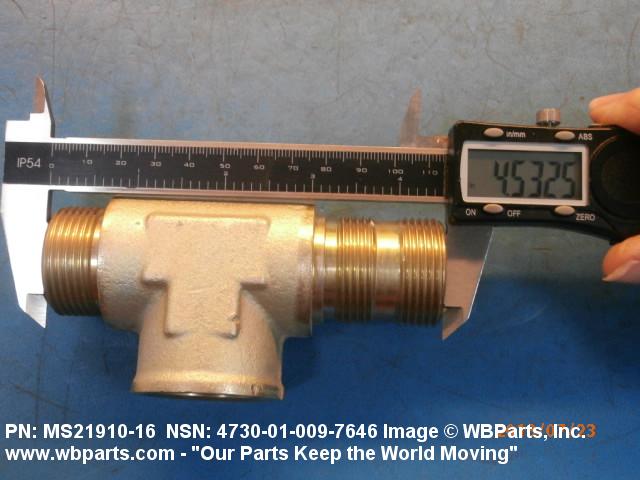

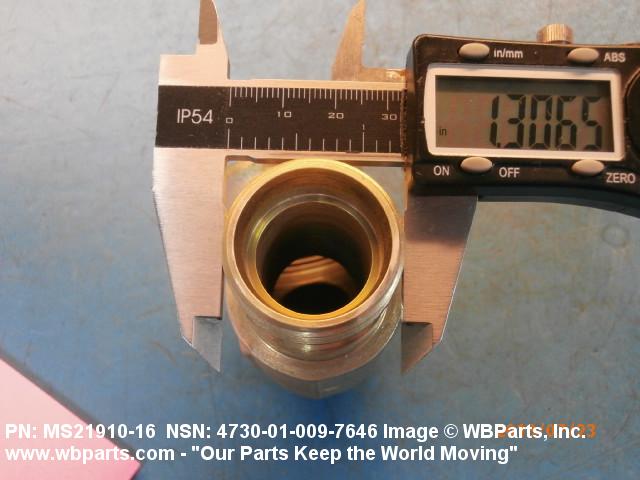

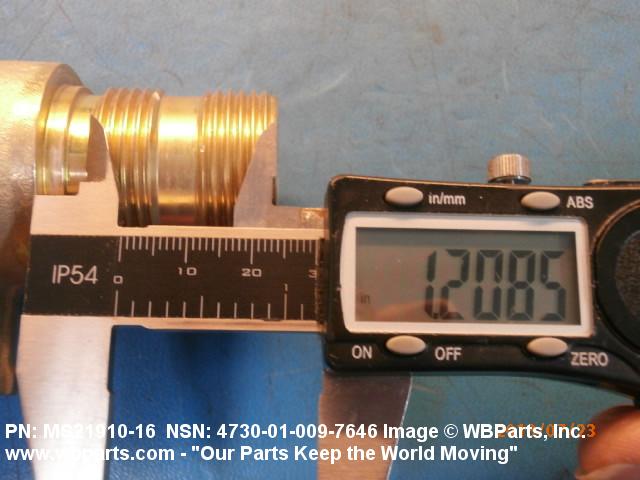

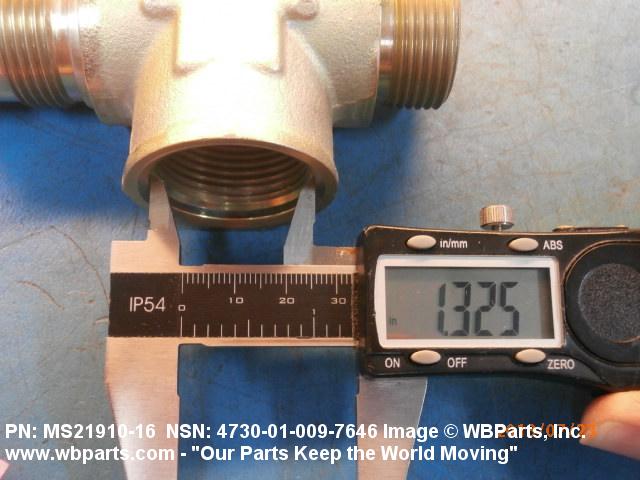

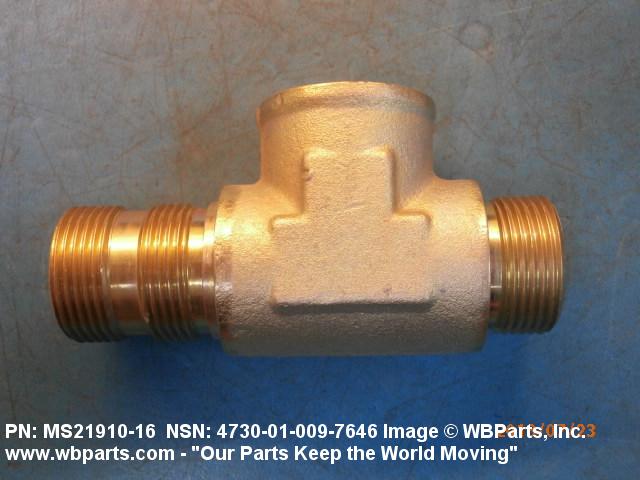

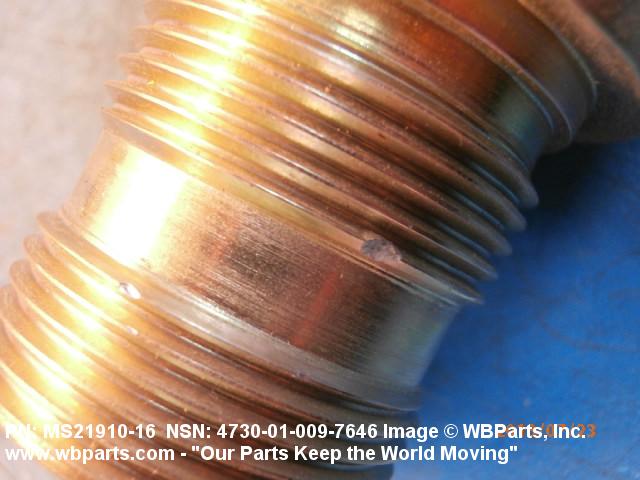

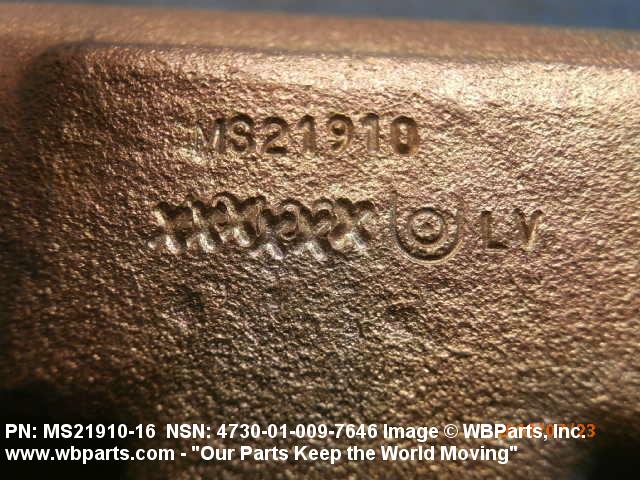

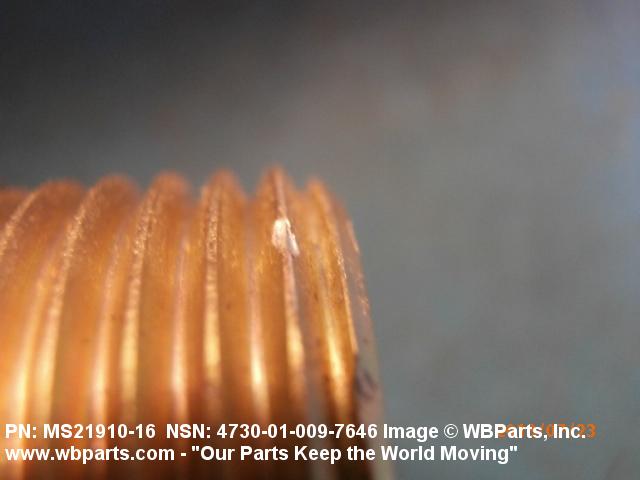

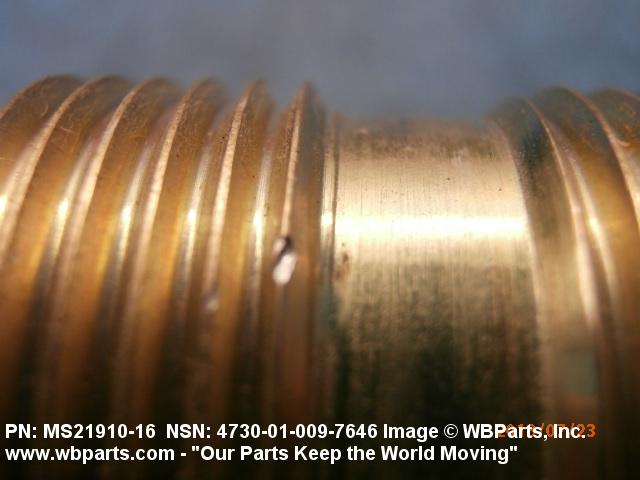

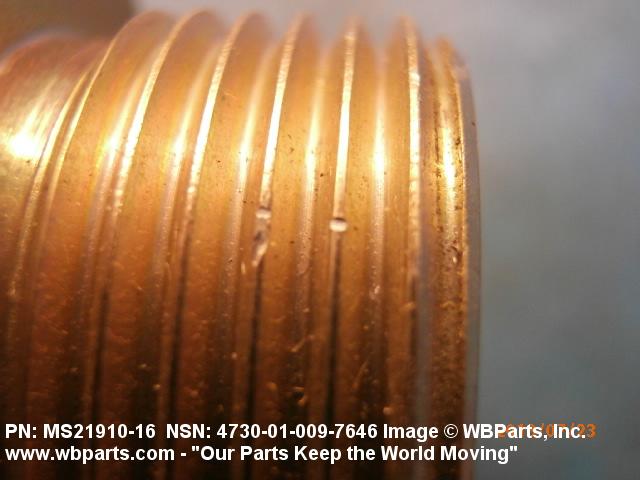

Drawings & Photos | NSN 4730-01-009-7646
Demand History | NSN 4730-01-009-7646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-009-7646 | 2019-08-218 | 1 | Japan |
| 4730-01-009-7646 | 2018-07-186 | 2 | Japan |
| 4730-01-009-7646 | 2018-07-186 | 2 | Japan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-009-7646
Technical Data | NSN 4730-01-009-7646
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END THREADED INTERNAL BOSS 3RD END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END B9 GASKET SEAL 3RD END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS UNJ 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS 1.312 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 1ST END BULKHEAD |
| THREAD CLASS | 3A 1ST END 3A 2ND END 3B 3RD END 3A 1ST END BULKHEAD |
| LEG LENGTH | 2.656 INCHES NOMINAL 1ST END 1.844 INCHES NOMINAL 2ND END 1.531 INCHES NOMINAL 3RD END |
| SPECIFICATION/STANDARD DATA | 96906-MS21910 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21910-16 |
