NSN 4730-00-834-5374 MS244024J, MS24402-4J, MS24402J4
Product Details | TUBE TEE

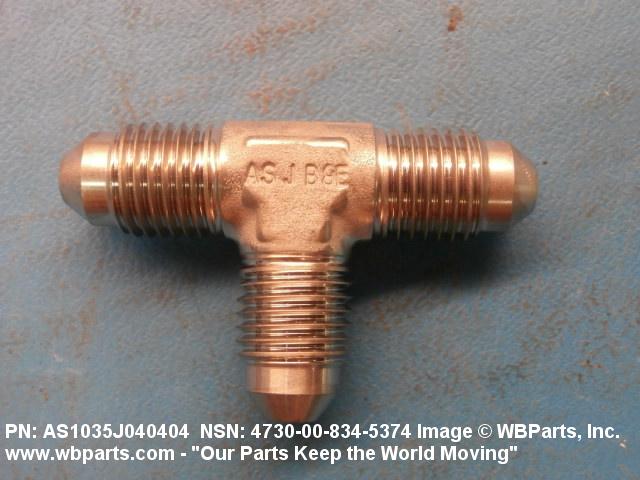

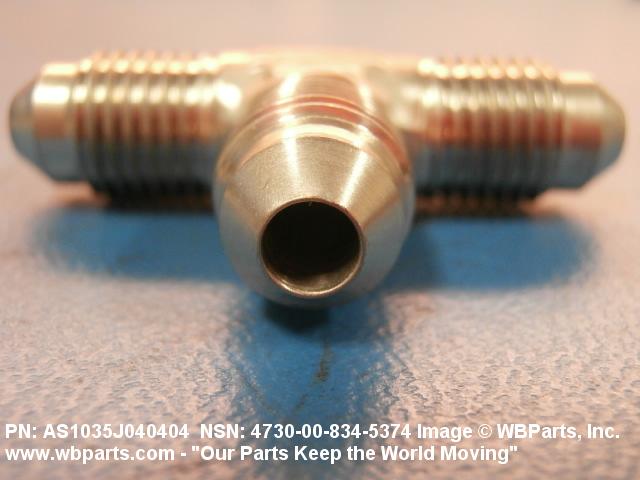

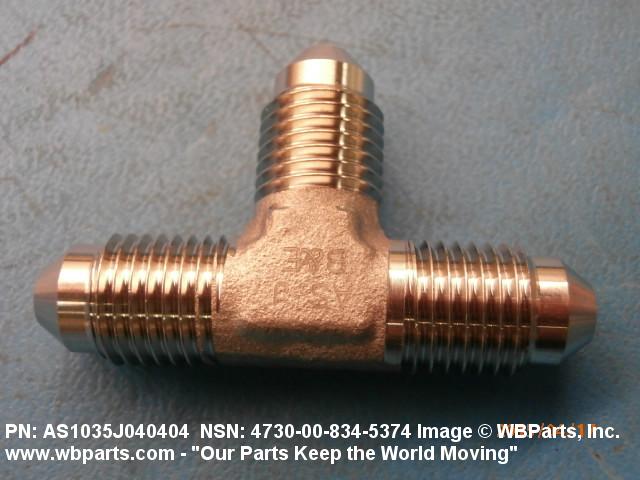

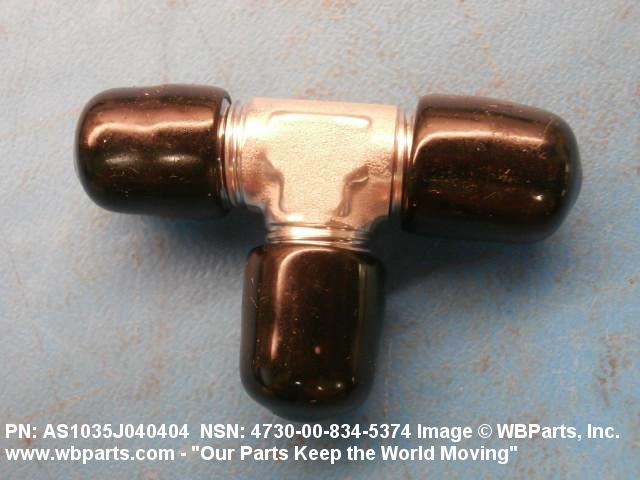

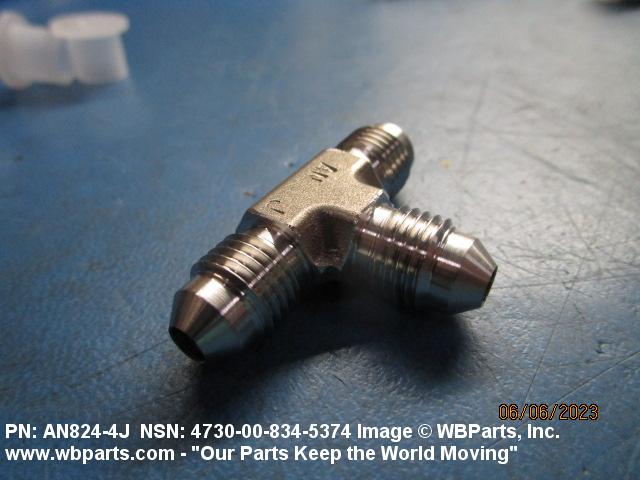

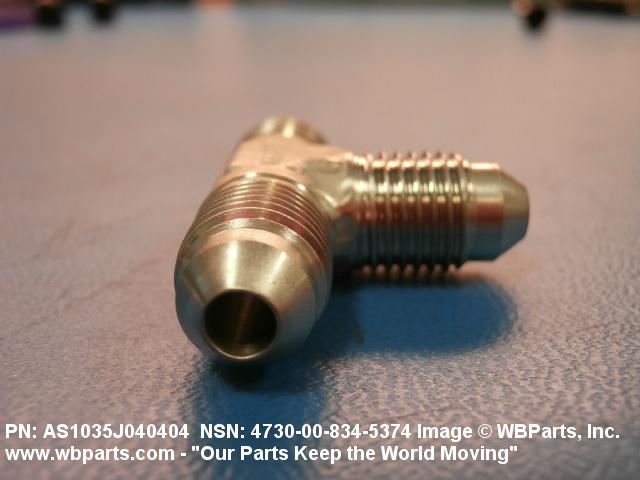

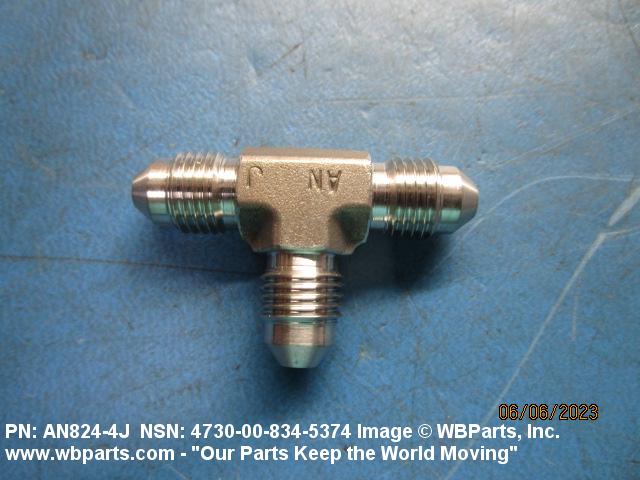

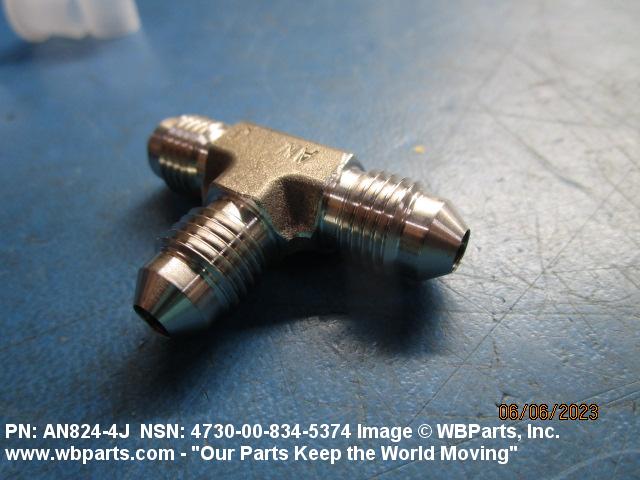

4730-00-834-5374 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS244024J, MS24402-4J, MS24402J4, AN8244J, AN824-4J, AS1035, AS1035J040404, AS4841, 4730-00-834-5374, 00-834-5374, 4730008345374, 008345374
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-834-5374 | 03809 ( TEE, TUBE ) |

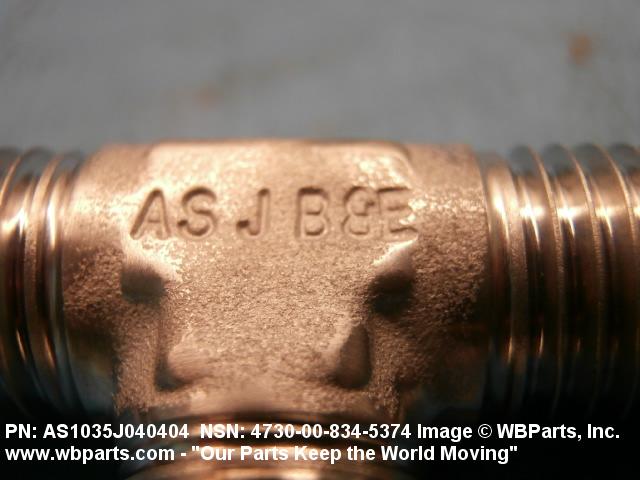

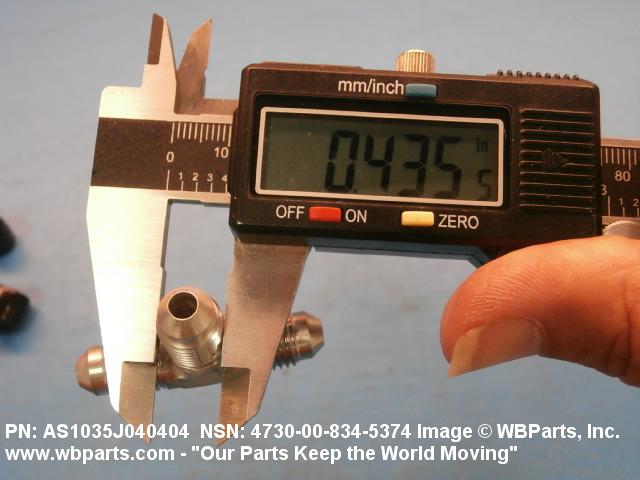

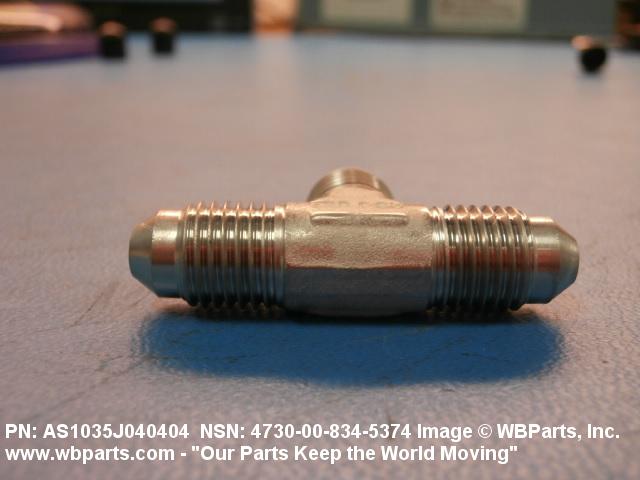

Drawings & Photos | NSN 4730-00-834-5374
Demand History | NSN 4730-00-834-5374
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8244J | 2024-09-262 | 10 | United Arab Emirates |
| 4730-00-834-5374 | 2024-05-134 | 165 | DIBBS |
| 4730-00-834-5374 | 2024-05-123 | 165 | DIBBS |
| 4730-00-834-5374 | 2023-08-236 | 314 | DIBBS |
| 4730-00-834-5374 | 2023-06-153 | 4 | United States |
| 4730-00-834-5374 | 2023-05-121 | 260 | DIBBS |
| 4730-00-834-5374 | 2021-03-85 | 100 | Thailand |
| 4730-00-834-5374 | 2017-03-66 | 542 | DIBBS |
| AN8244J | 2016-11-319 | 55 | us |
| AN8244J | 2016-11-314 | 85 | us |
| 4730-00-834-5374 | 2016-02-36 | 621 | DIBBS |
| AS1035J040404 | 2015-04-96 | 6 | United States |
| AS1035J040404 | 2014-06-171 | 2 | United States |
| AS1035J040404 | 2011-07-192 | 42 | US |
| AS4841 | 2011-03-69 | 8 | |
| AN8244J | 2010-12-347 | 4 | IN |
| 4730-00-834-5374 | 2010-01-12 | 675 | DIBBS |
| 4730-00-834-5374 | 2009-06-156 | 70 | DIBBS |
| AN8244J | 2008-12-339 | 15 | US |
Cross Reference | NSN 4730-00-834-5374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN824-4J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS1035 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS1035J040404 | 59680 | B. & E. MANUFACTURING CO., INC. |
| AS1035J040404 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24402-4J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24402J4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-834-5374
Related Products | NSN 4730-00-834-5374
Technical Data | NSN 4730-00-834-5374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

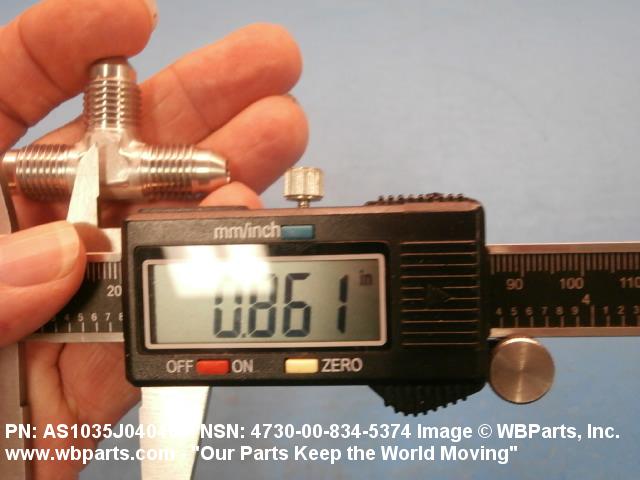

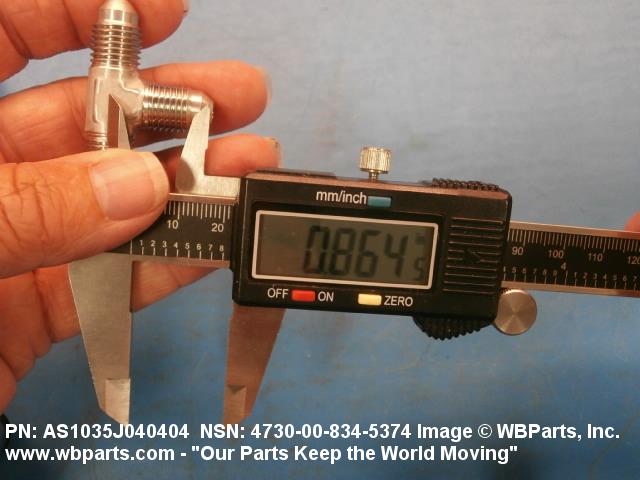

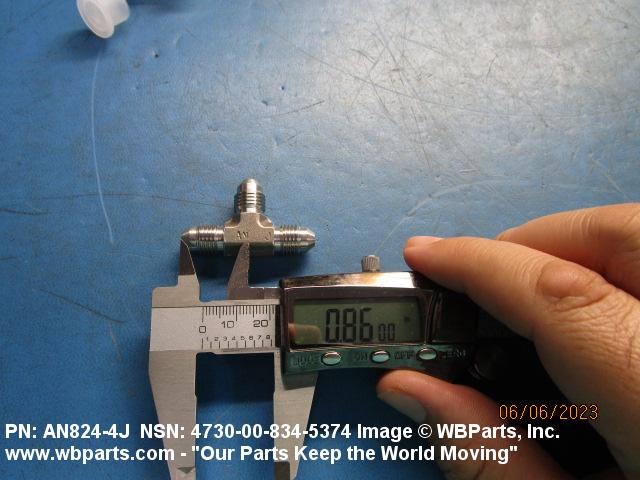

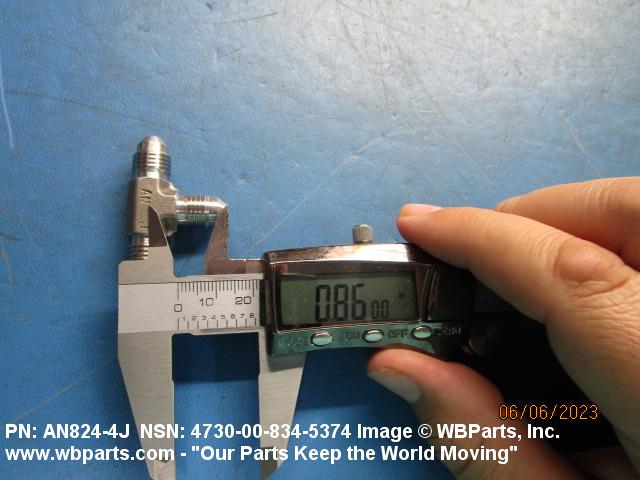

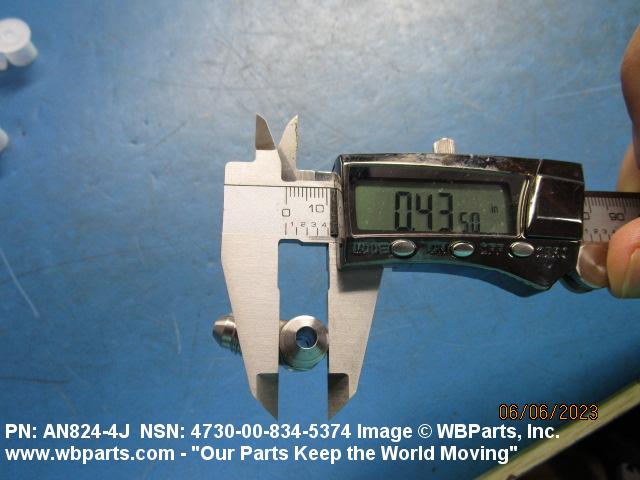

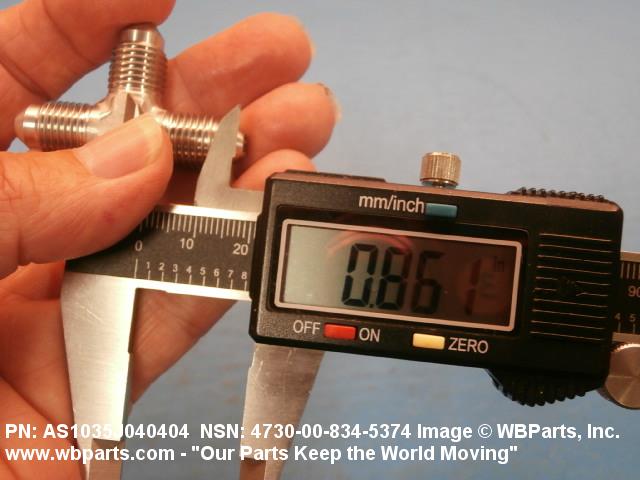

| LEG LENGTH | 0.859 INCHES NOMINAL ALL ENDS |
