Product Details | TUBE TEE

4730-00-931-8312 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.

Part Alternates: NY4003, NY-400-3, NY43TTT4, NY4-3TTT4, S11371, S1137-1, ST7M456N4, H40K832, ZY4003, ZY400-3, ZY43TTT4, ZY4-3TTT4, GT515B4, 5001215N400, 50-012-15N400, 704N0, 70-4N-0, 10189252 , 264N04, 264-N-04, 264N14, 264N1-4, 444JBZNY, 4-4-4JBZ-NY, 4730-00-931-8312, 00-931-8312, 4730009318312, 009318312

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	21 SEP 1966	00-931-8312	03809 ( TEE, TUBE )

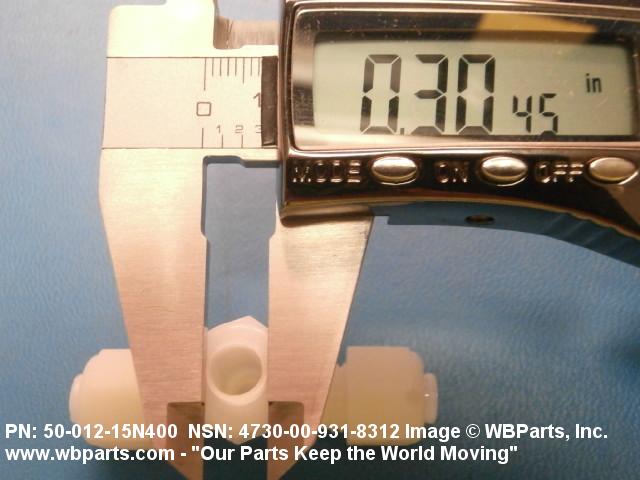

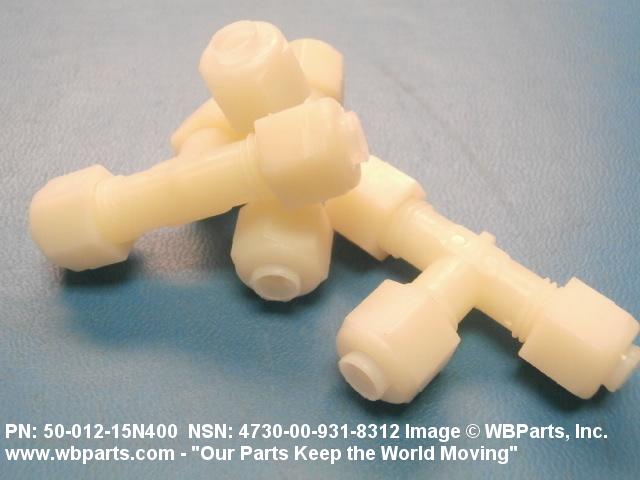

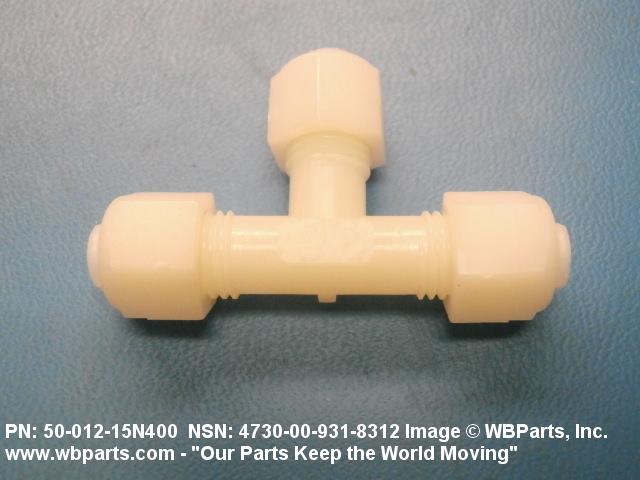

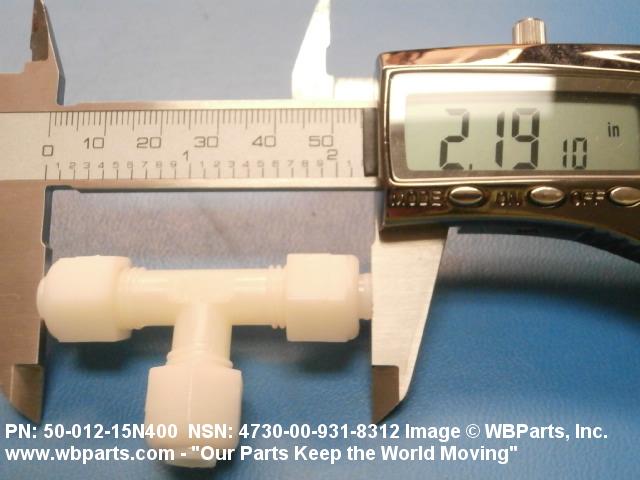

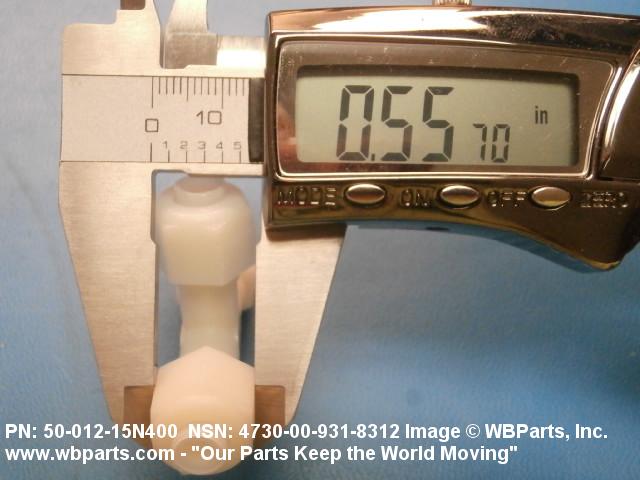

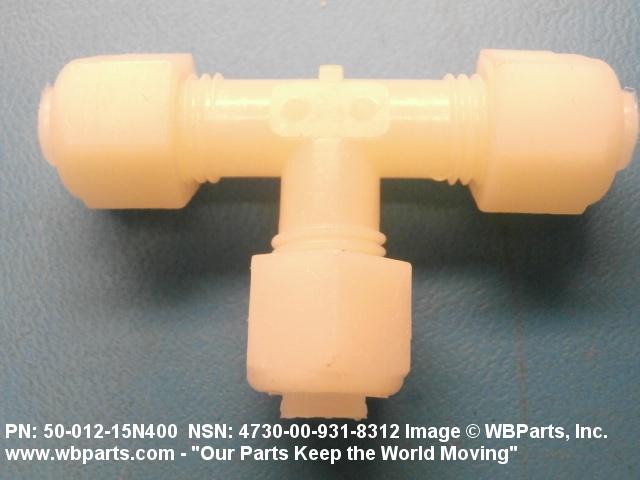

Drawings & Photos | NSN 4730-00-931-8312

Part Number	Request Date	QTY	Origin
70-4N-0	2024-02-39	440	DIBBS
GT515B4	2024-02-39	440	DIBBS
NY-400-3	2024-02-39	440	DIBBS
ST7M456N4	2024-02-39	440	DIBBS
5001215N400	2020-10-303	4	UK
4730-00-931-8312	2018-11-305	374	DIBBS
NY4003	2015-10-286	4	Mexico
NY4003	2015-07-197	4	Mexico
5001215N400	2015-06-181	2	United States
5001215N400	2015-05-134	10	ZA
5001215N400	2015-03-76	3	United States
4730-00-931-8312	2014-09-267	1363	DIBBS
4730-00-931-8312	2014-08-217	100	United States
4730-00-931-8312	2014-03-80	1301	DIBBS
4730-00-931-8312	2014-03-65	1301	DIBBS
5001215N400	2014-02-41	4	Italy
5001215N400	2014-01-29	4	Iran
NY4003	2013-01-22	25	Italy
50-012-15N400	2013-01-07	2	Indonesia
4730-00-931-8312	2012-10-290	939	DIBBS
4730-00-931-8312	2012-07-213	100	United States
264N04	2012-07-206	80	United States
264N14	2012-07-206	100	United States
4730-00-931-8312	2009-11-322	674	DIBBS
4730-00-931-8312	2009-05-134	1007	DIBBS

Cross Reference | NSN 4730-00-931-8312

Part Number	Cage Code	Manufacturer
264-N-04	1G635	SLIGO INC
264-N-04	30327	IMPERIAL
264N1-4	30327	IMPERIAL
4-4-4JBZ-NY	54938	PARKER-HANNIFIN CORPORATION DBA INSTRUMENTATION PRODUCTS DIV
50-012-15N400	97499	BELL HELICOPTER TEXTRON INC.
70-4N-0	52547	JACO MANUFACTURING COMPANY DIV )
GT515B4	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
NY-400-3	02570	SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR
NY-400-3	U6751	SWAGELOK UK LTD
NY4-3TTT4	14971	TYLOK INTERNATIONAL INC.
S1137-1	71379	CESSNA AIRCRAFT COMPANY
ST7M456N4	76301	BOEING COMPANY, THE DBA BOEING
ZY4-3TTT4	14971	TYLOK INTERNATIONAL INC.
ZY400-3	02570	SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-931-8312

Compare

Related Products | NSN 4730-00-931-8312

4730-00-931-8341, 4730-00-931-8415, 4730-00-931-8501, 4730-00-931-8502, 4730-00-931-8537

Technical Data | NSN 4730-00-931-8312

Characteristic	Specifications
MATERIAL	PLASTIC OVERALL
MAXIMUM OPERATING PRESSURE	1700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	200.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B66 FLARELESS ALL ENDS
SEAT ANGLE	20.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.437 INCHES ALL ENDS
THREAD CLASS	2A ALL ENDS
LEG LENGTH	1.031 INCHES NOMINAL ALL ENDS
FURNISHED ITEMS AND QUANTITY	6 FERRULE SLEEVE AND 3 TUBE COUPLING NUT
MANUFACTURERS CODE	97499
MFR SOURCE CONTROLLING REFERENCE	50-012-15N400
