NSN 4730-00-834-5386 MS24404J4, AN8064J, AN806-4J

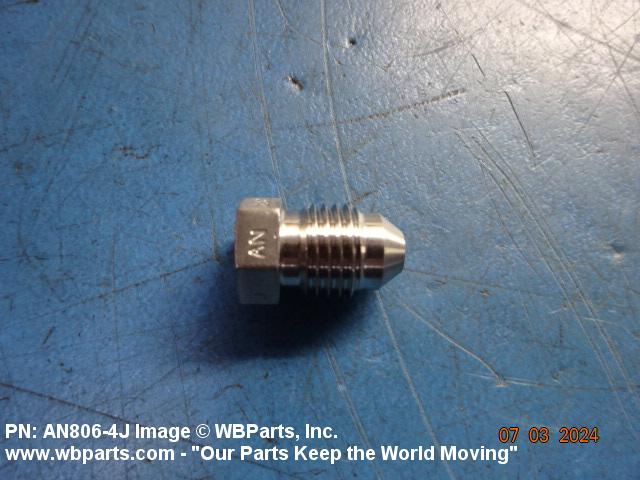

Product Details | THREADED TUBE FITTING PLUG
4730-00-834-5386 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS24404J4, AN8064J, AN806-4J, 10B03005003, 10B03005-003, 4730-00-834-5386, 00-834-5386, 4730008345386, 008345386
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-834-5386 | 28613 ( PLUG, TUBE FITTING, THREADED ) |
Drawings & Photos | NSN 4730-00-834-5386
Demand History | NSN 4730-00-834-5386
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8064J | 2024-08-226 | 200 | United States |
| AN8064J | 2024-06-180 | 50 | United States |
| AN8064J | 2024-06-158 | 50 | United States |
| MS24404J4 | 2015-07-209 | 1 | US |
| AN8064J | 2011-01-19 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-834-5386
Related Products | NSN 4730-00-834-5386
Technical Data | NSN 4730-00-834-5386
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304L OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |
| HEAD HEIGHT | 0.188 INCHES NOMINAL |
| OVERALL LENGTH | 0.734 INCHES NOMINAL |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | UNJF EXTERNAL |
| NOMINAL THREAD SIZE | 0.438 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS24404 GOVERNMENT STANDARD |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24404J4 |
