NSN 4730-00-278-4997 AN80610, AN806-10, AS4841
Product Details | THREADED TUBE FITTING PLUG
4730-00-278-4997 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN80610, AN806-10, AS4841, AS5168, AS516810, AS5168-10, 4730-00-278-4997, 00-278-4997, 4730002784997, 002784997
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-278-4997 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

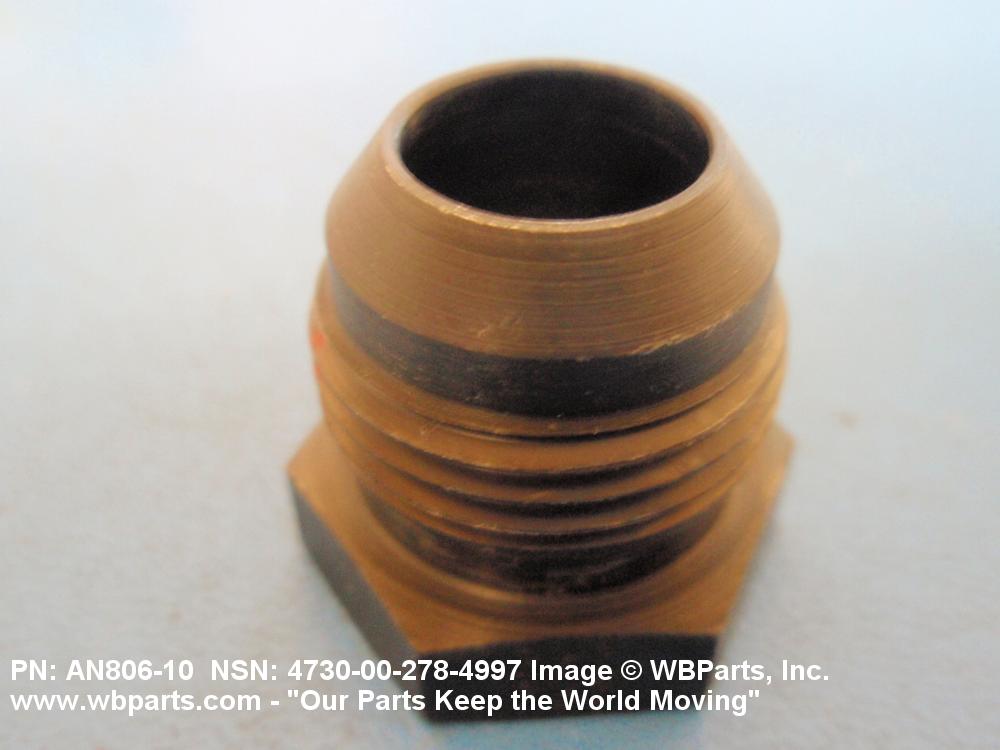

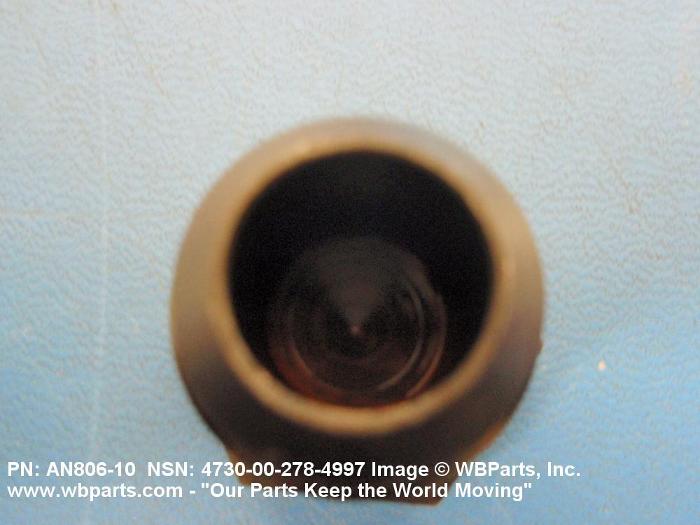

Drawings & Photos | NSN 4730-00-278-4997
Demand History | NSN 4730-00-278-4997
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN80610 | 2020-04-99 | 3 | United States |
| 4730-00-278-4997 | 2018-04-99 | 477 | DIBBS |
| 4730-00-278-4997 | 2018-03-88 | 477 | DIBBS |
| 4730-00-278-4997 | 2017-07-199 | 1473 | DIBBS |
| AN80610 | 2017-06-158 | 25 | US |
| 4730-00-278-4997 | 2017-05-128 | 1471 | DIBBS |
| 4730-00-278-4997 | 2017-04-116 | 1471 | DIBBS |
| 4730-00-278-4997 | 2017-04-93 | 1473 | DIBBS |
| 4730-00-278-4997 | 2016-03-88 | 855 | DIBBS |
| 4730-00-278-4997 | 2016-03-77 | 855 | DIBBS |
| 4730-00-278-4997 | 2016-02-40 | 727 | DIBBS |
| AS516810 | 2014-09-273 | 6 | United States |
| AN80610 | 2011-06-158 | 80 | United States |
| 4730-00-278-4997 | 2011-06-153 | 20 | United States |
| AS4841 | 2011-03-69 | 8 |
Cross Reference | NSN 4730-00-278-4997
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN806-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN806-10 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN806-10 | 13897 | REINER ALLEN J AND CO INC |
| AN806-10 | 14397 | FABER ENTERPRISES, INC. |
| AN806-10 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN806-10 | 22995 | CROWN FITTING CO INC |
| AN806-10 | 30974 | AEROFIT, LLC |
| AN806-10 | 71563 | COLLINS ENGINEERING CORP |
| AN806-10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN806-10 | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-278-4997
Technical Data | NSN 4730-00-278-4997
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |
| HEAD HEIGHT | 0.351 INCHES NOMINAL |
| OVERALL LENGTH | 1.109 INCHES NOMINAL |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | UNJF EXTERNAL |
| NOMINAL THREAD SIZE | 0.875 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4730-00-278-4997
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
