NSN 4730-00-278-5000 MS2440412, MS24404-12, AN74A6

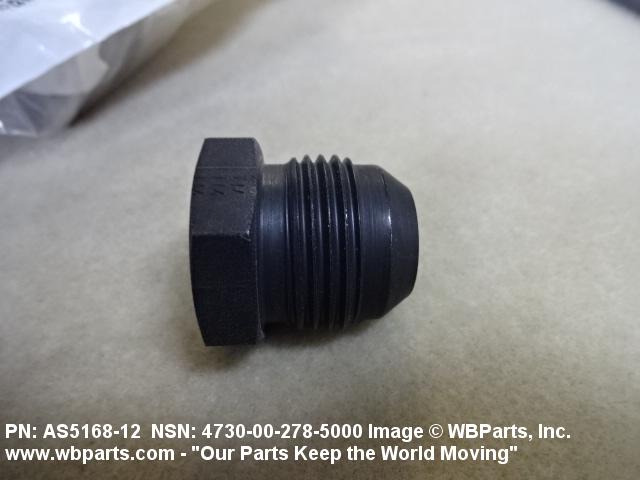

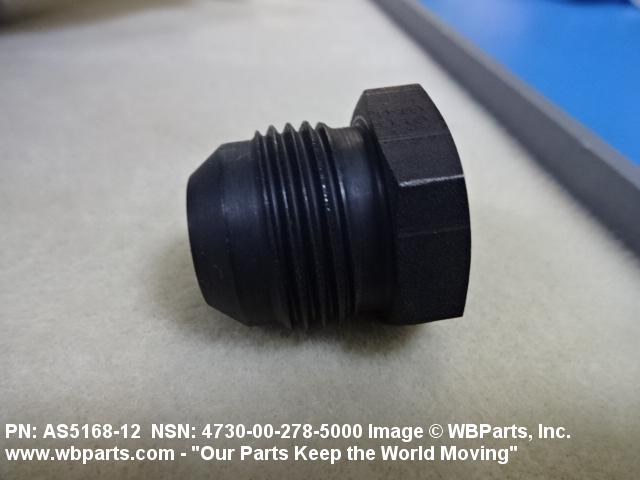

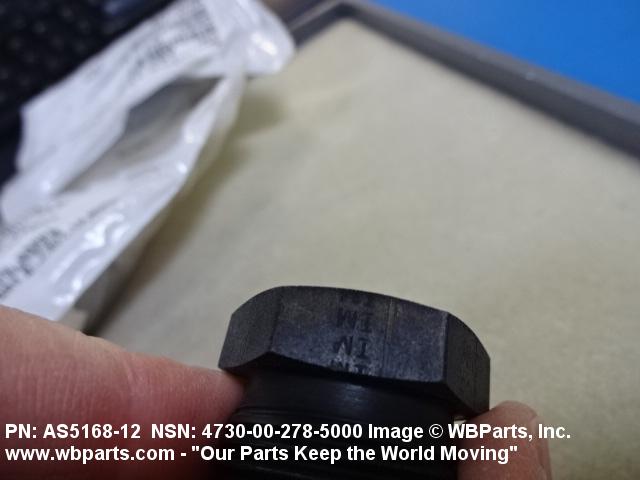

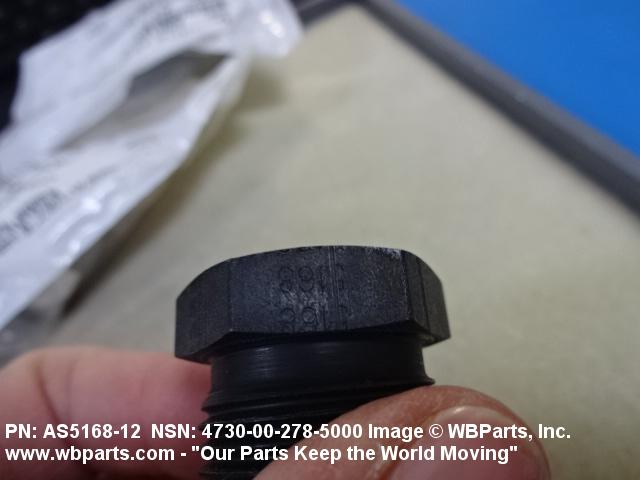

Product Details | THREADED TUBE FITTING PLUG

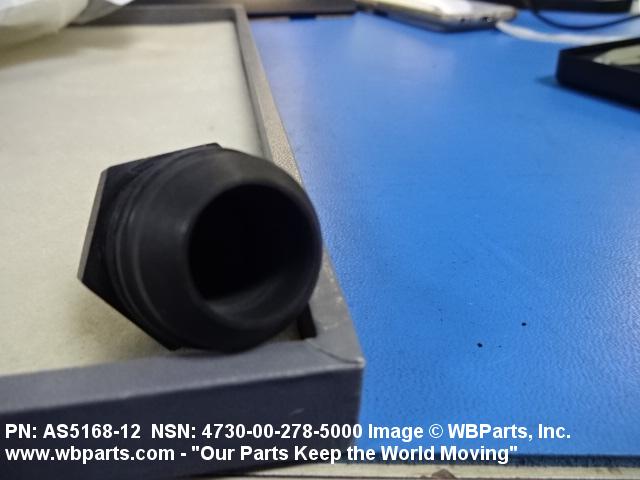

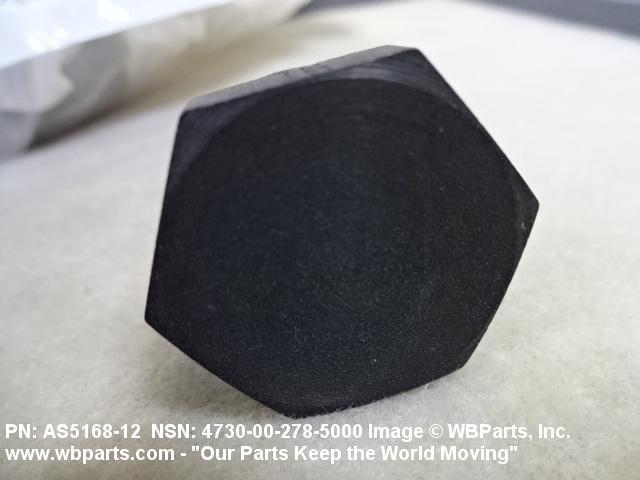

4730-00-278-5000 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS2440412, MS24404-12, AN74A6 , AN80612, AN806-12, AN9294, AN929-4 , AN9294D, AN929-4D , AN9294DL, AN929-4DL , AS4841, AS516812, AS5168-12, MILF5509, MIL-F-5509 , 10082485 , 21000429P1, 3112484 , 336D7, 4-0801/2C , 408012C, J514 , 4C, 58884, 5888-4 , 69557181, 69-55718-1 , 71274, 7127-4 , 7129X4 , 8531309, 8805963 , 946.29.15.803 , 9462915803, 99401, 4730-00-278-5000, 00-278-5000, 4730002785000, 002785000
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 01 JAN 1961 | 00-278-5000 | 28613 ( PLUG, TUBE FITTING, THREADED ) |
Demand History | NSN 4730-00-278-5000
Part Number | Request Date | QTY | Origin |
---|---|---|---|
AN9294 | 2024-03-66 | 1 | US |
4730-00-278-5000 | 2024-01-11 | 542 | DIBBS |
4730-00-278-5000 | 2023-10-283 | 542 | DIBBS |
AN9294 | 2023-09-248 | 50 | Croatia |
AN9294 | 2023-05-122 | 20 | US |
4730-00-278-5000 | 2023-04-109 | 2 | us |
AN9294D | 2022-10-290 | 2 | United States |
4730-00-278-5000 | 2020-01-30 | 566 | DIBBS |
AN9294 | 2018-12-351 | 1000 | US |
MILF5509 | 2018-07-201 | 6 | United States |
AN9294 | 2018-05-135 | 315 | United States |
AN9294 | 2018-04-116 | 20 | United States |
4730-00-278-5000 | 2018-04-113 | 1000 | DIBBS |
4730-00-278-5000 | 2018-04-100 | 1000 | DIBBS |
AN9294 | 2018-02-47 | 300 | CA |
AN9294D | 2017-09-257 | 10 | United States |
AN9294D | 2017-08-221 | 3 | United States |
AN9294 | 2017-07-195 | 300 | Canada |
AN9294 | 2016-10-291 | 1 | United States |
AN9294 | 2016-08-242 | 10 | Malaysia |
4730-00-278-5000 | 2016-08-230 | 1062 | DIBBS |
AN9294D | 2016-08-222 | 2 | Serbia |
AN80612 | 2016-01-15 | 1 | US |
4730-00-278-5000 | 2015-03-75 | 1372 | DIBBS |
J514 | 2015-02-48 | 1 | us |
AN80612 | 2015-01-12 | 2 | United States |
AS516812 | 2014-10-302 | 1 | United States |
AN9294D | 2014-02-34 | 5 | US |
AN9294D | 2013-08-232 | 375 | United States |
AN9294D | 2013-08-232 | 3 | United States |
4730-00-278-5000 | 2013-05-128 | 646 | DIBBS |
4730-00-278-5000 | 2013-04-113 | 646 | DIBBS |
AN80612 | 2012-10-292 | 2 | United States |
AN929-4 | 2012-07-187 | 140 | KR |
AN9294 | 2012-06-174 | 15 | Italy |
AN80612 | 2011-06-158 | 80 | United States |
AN9294 | 2011-06-158 | 80 | United States |
4730-00-278-5000 | 2011-06-153 | 20 | United States |
AN9294 | 2011-06-152 | 1 | us |
AS4841 | 2011-03-69 | 8 | |
AN9294D | 2011-01-19 | 25 | US |
J514 | 2010-02-47 | 20 | us |
AN9294 | 2009-12-348 | 2 | United States |
MILF5509 | 2009-10-301 | 1 | PK |
MILF5509 | 2009-02-55 | 100 | US |
4730-00-278-5000 | 2009-01-29 | 1728 | DIBBS |
AN74A6 | 2008-12-339 | 15 | US |
4730-00-278-5000 | 2008-11-316 | 1363 | DIBBS |
AN9294D | 2006-07-201 | 20 | United States |
Cross Reference | NSN 4730-00-278-5000
Part Number | Cage Code | Manufacturer |
---|---|---|
21000429P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
21000429P1 | 24446 | GENERAL ELECTRIC CO |
4790002785000 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
8531309 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
AN806-12 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
AS5168-12 | 0TP31 | CURTIS PRESTON ENTERPRISES, INC. DBA ATLAS SPECIALTY PRODUCTS |
AS5168-12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
MS24404-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 4730-00-278-5000
Technical Data | NSN 4730-00-278-5000
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | CADMIUM OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |

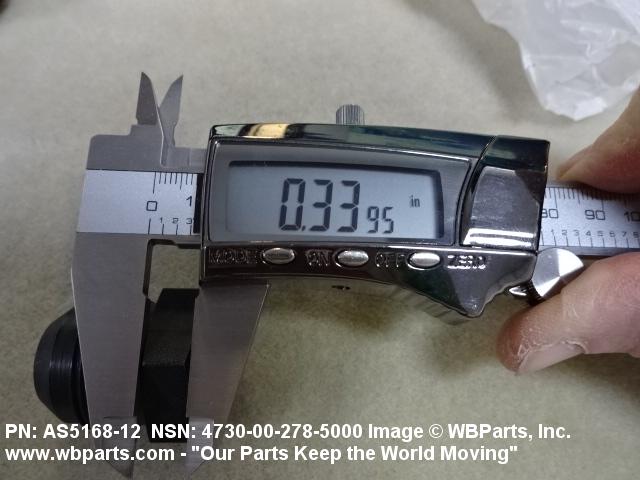

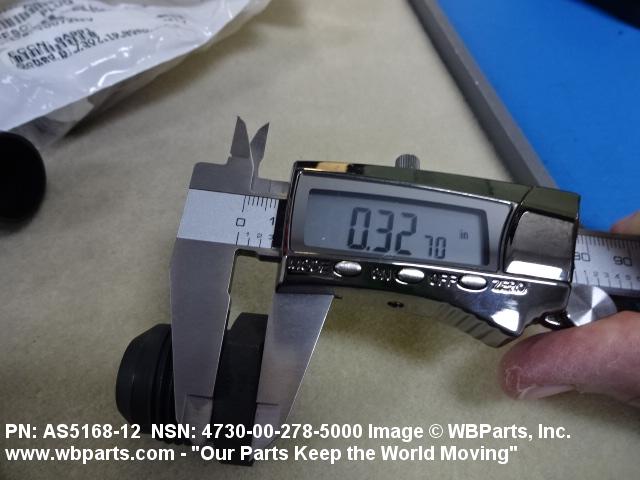

HEAD HEIGHT | 0.339 INCHES NOMINAL |

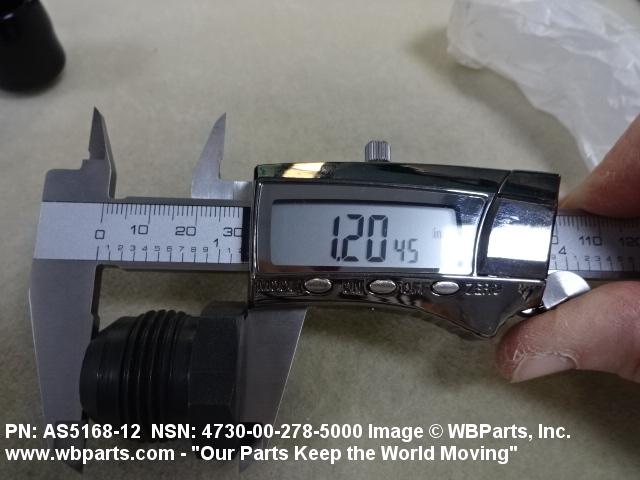

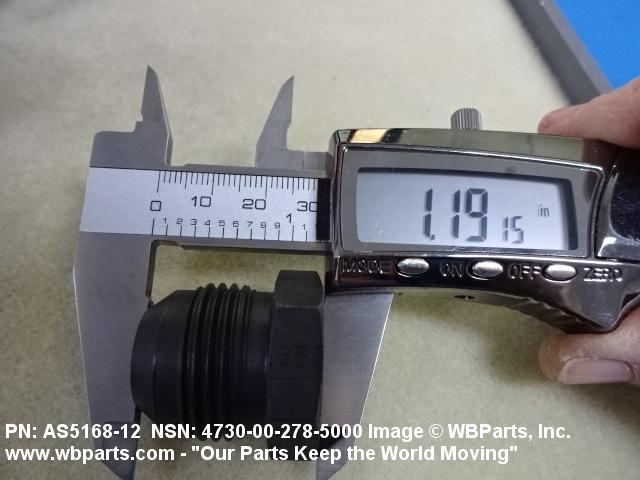

OVERALL LENGTH | 1.203 INCHES NOMINAL |
CONNECTION STYLE | J4 FLARED |
THREAD SERIES DESIGNATOR | UNJ EXTERNAL |

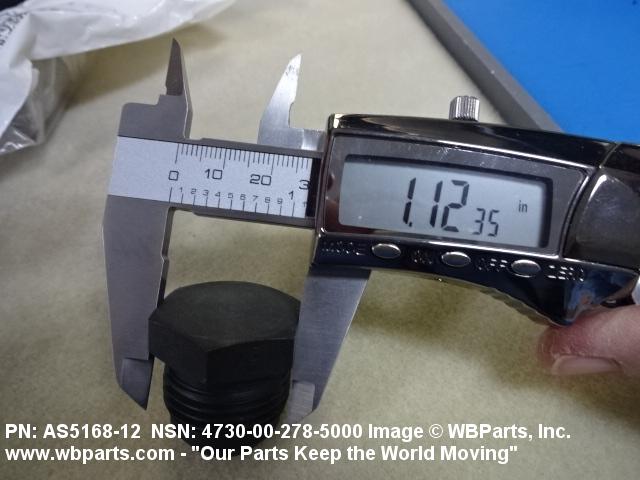

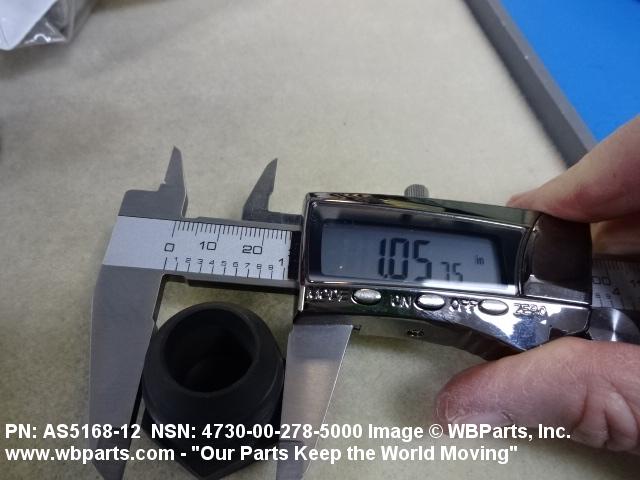

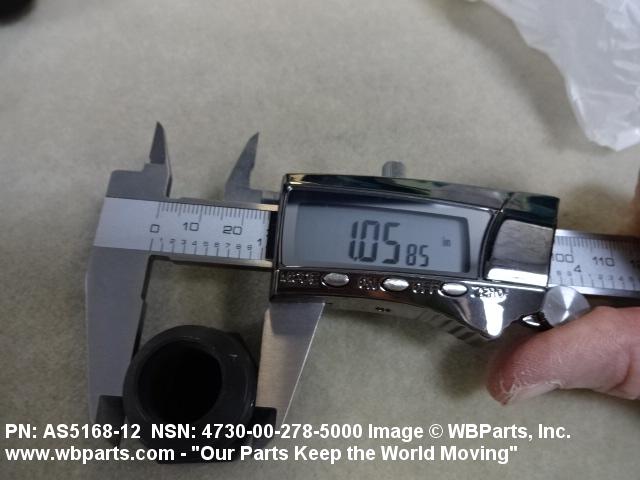

NOMINAL THREAD SIZE | 1.062 INCHES EXTERNAL |
THREAD QUANTITY PER INCH | 12 EXTERNAL |
THREAD CLASS | 3A EXTERNAL |
THREAD DIRECTION | RIGHT-HAND EXTERNAL |
SEAT ANGLE | 37.0 DEGREES |
SPECIFICATION/STANDARD DATA | 96906-MS24404 GOVERNMENT STANDARD |
III END ITEM IDENTIFICATION | GRUMMAN AIRCRAFT,MODEL A-10 |
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
Restrictions/Controls & Freight Information | NSN 4730-00-278-5000
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 576 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-278-5000
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 1 | Combat Essential End Item. End item equipments whose availability in a combat ready condition is essential for execution of the combat and training missions of the command. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | B | Consumable Repair Parts |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
