NSN 4730-00-278-5006 AN74A6, AN9294, AN929-4
Product Details | TUBE CAP
4730-00-278-5006 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN74A6, AN9294, AN929-4, AN9294D, AN929-4D, AN9294DL, AN929-4DL, AS4841, MILF5509, MIL-F-5509, 3112484, 336D7, 4-0801/2C, 408012C, J514, 4C, 58884, 5888-4, 69557181, 69-55718-1, 71274, 7127-4, 7129X4, 8805963, 946.29.15.803, 9462915803, 99401, 4730-00-278-5006, 00-278-5006, 4730002785006, 002785006
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-278-5006 | 06074 ( CAP, TUBE ) |

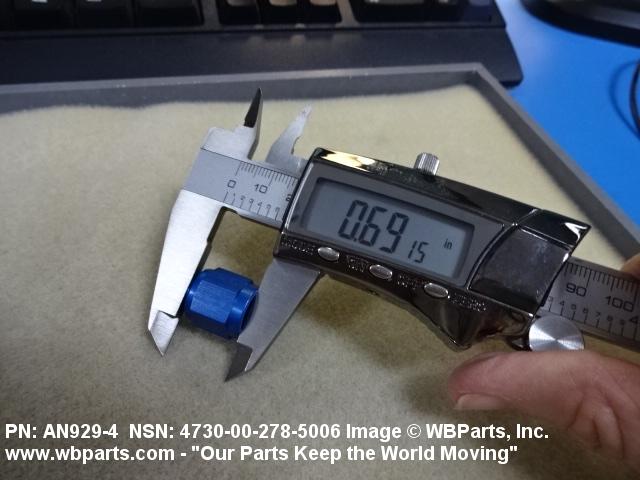

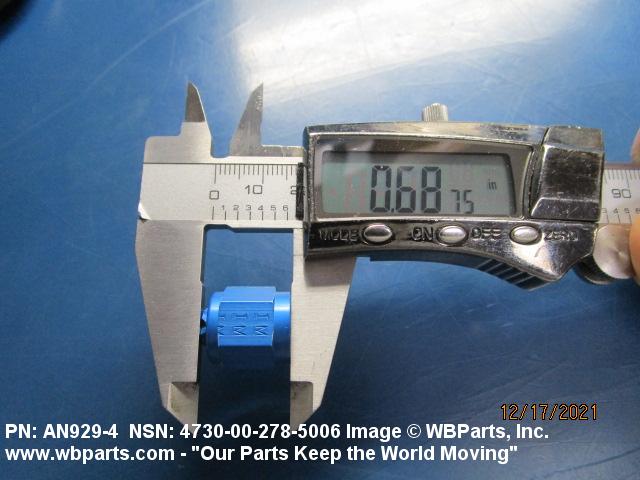

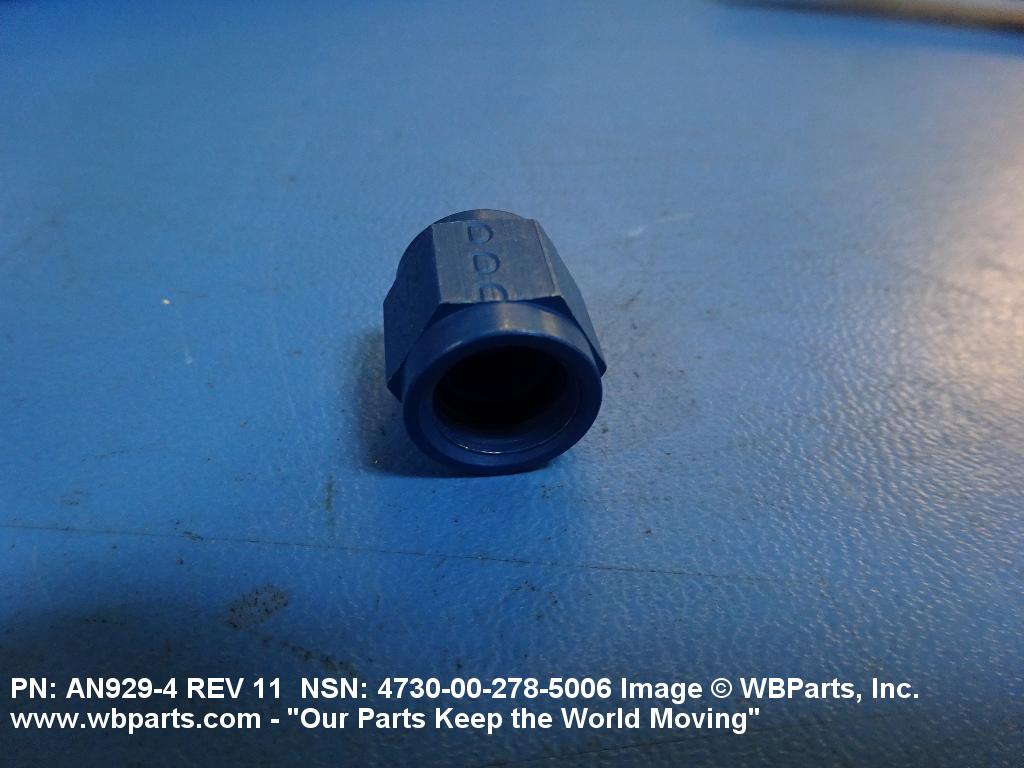

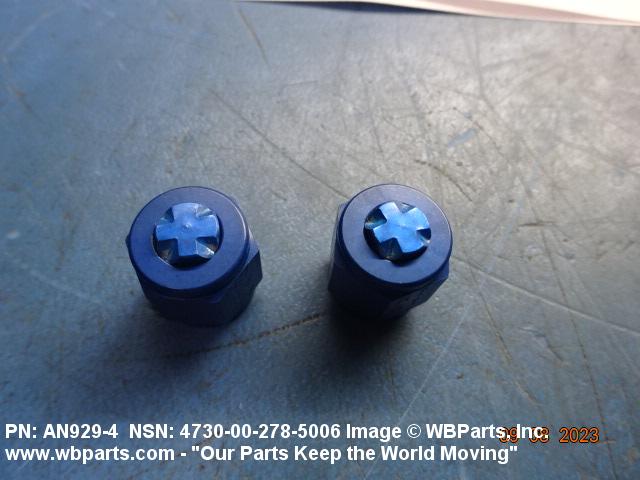

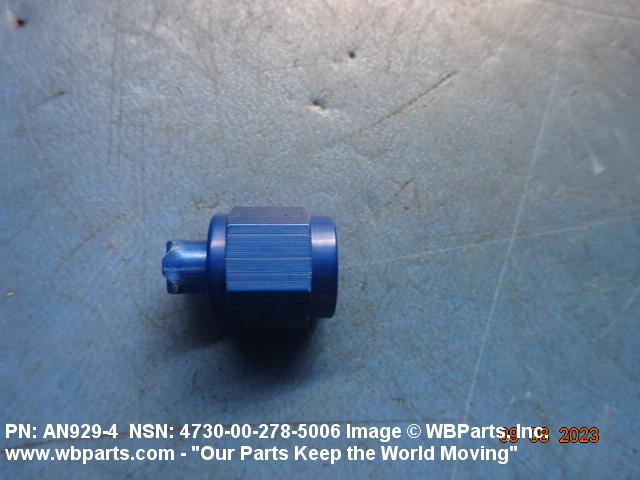

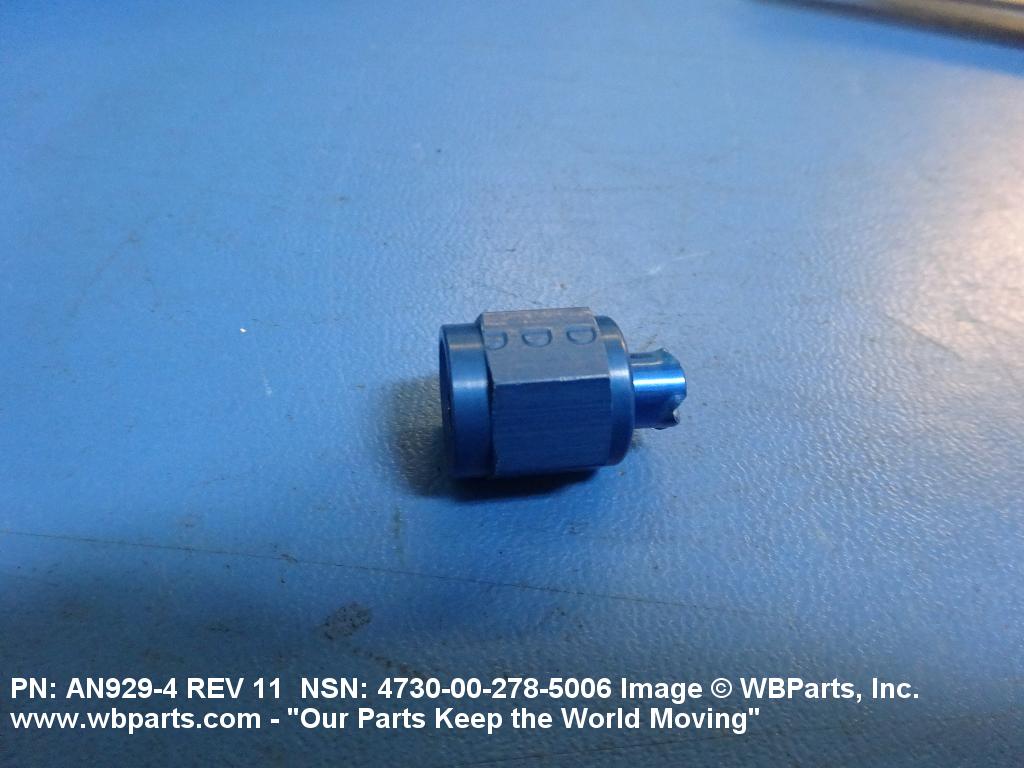

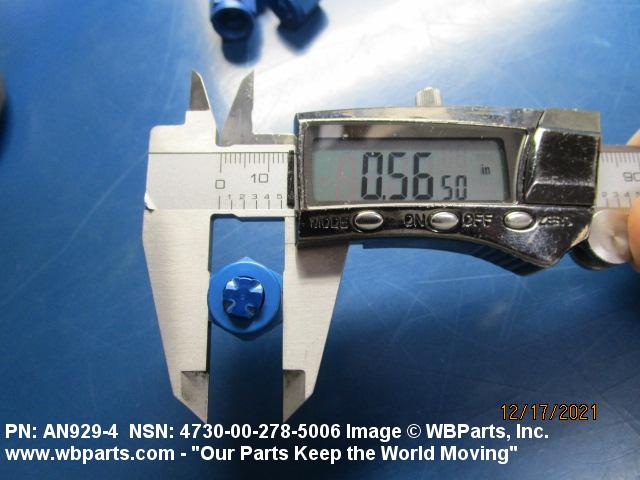

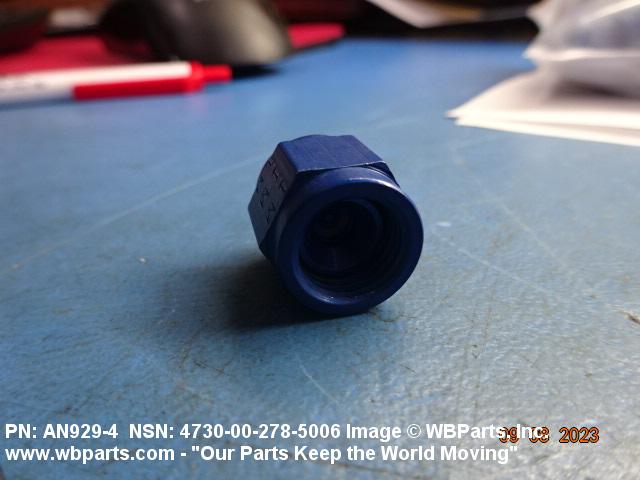

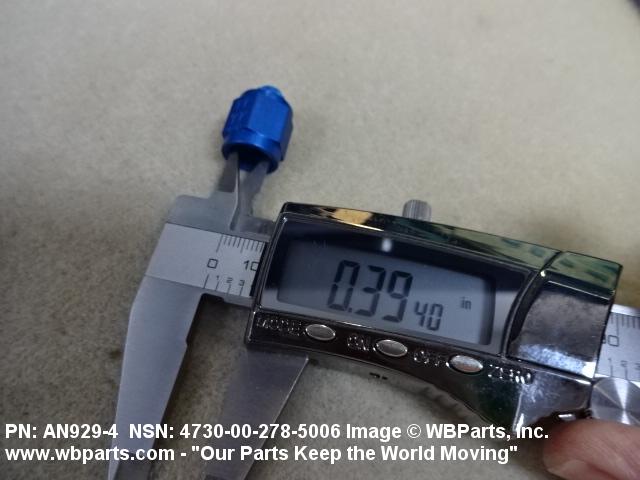

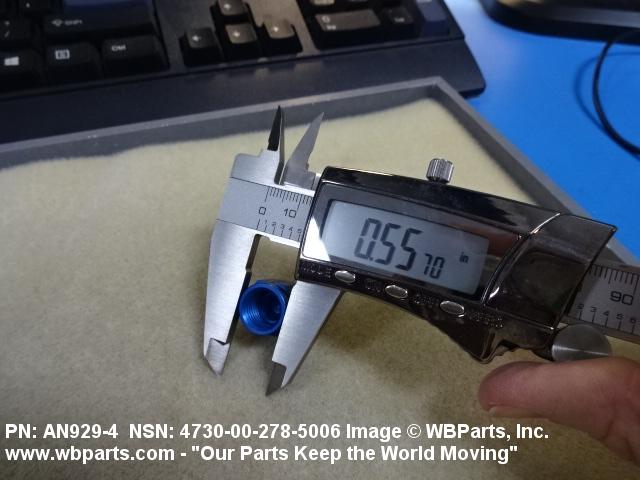

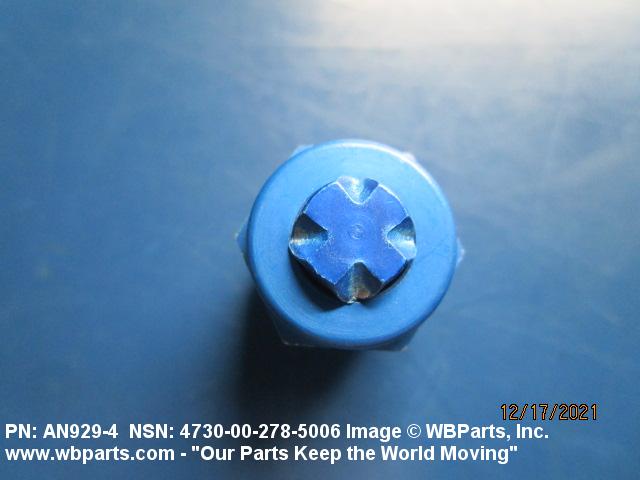

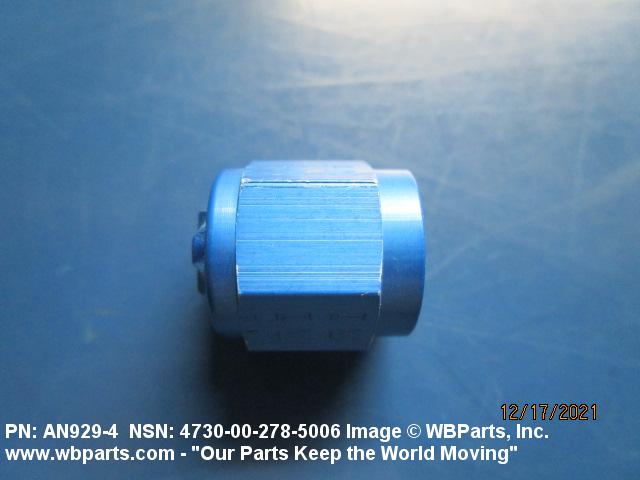

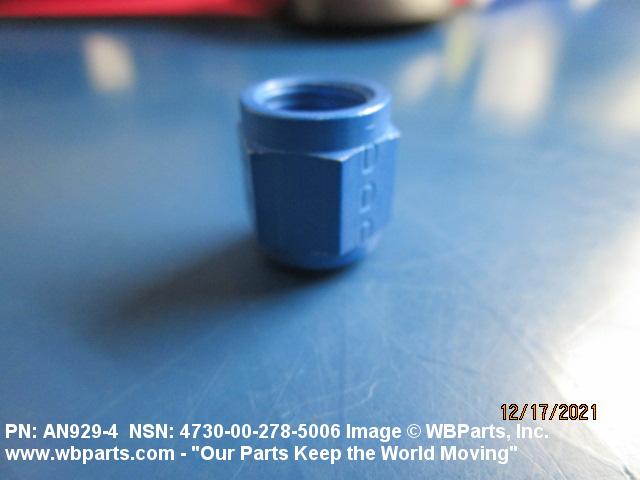

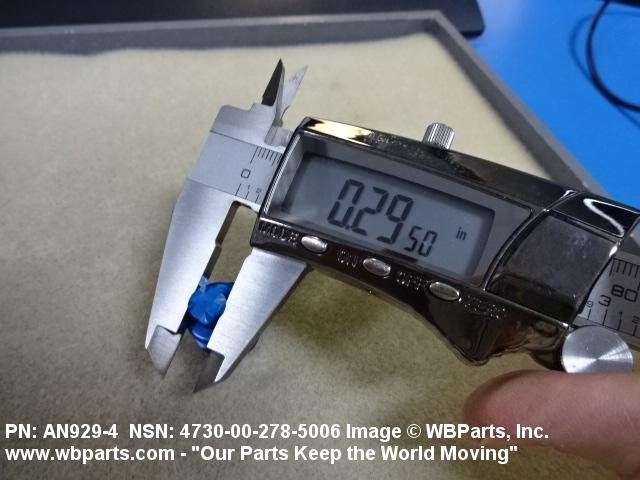

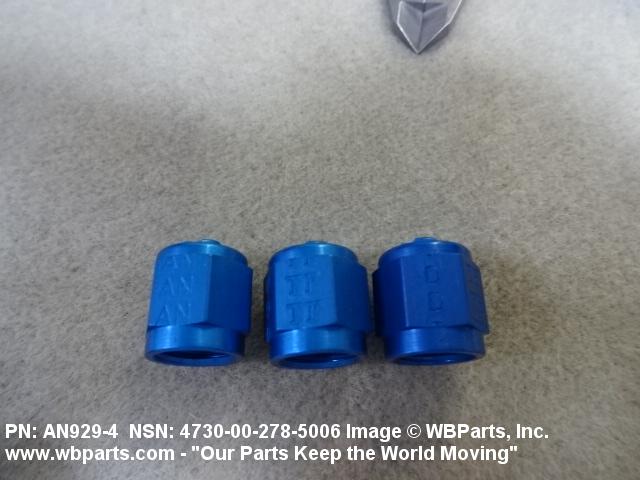

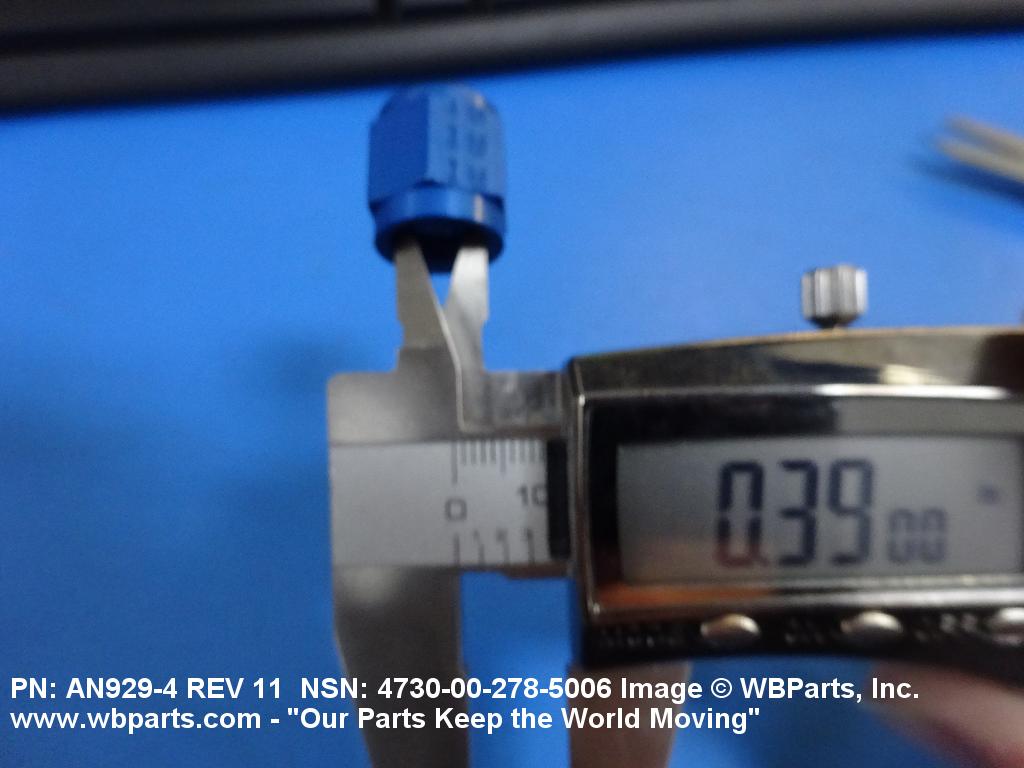

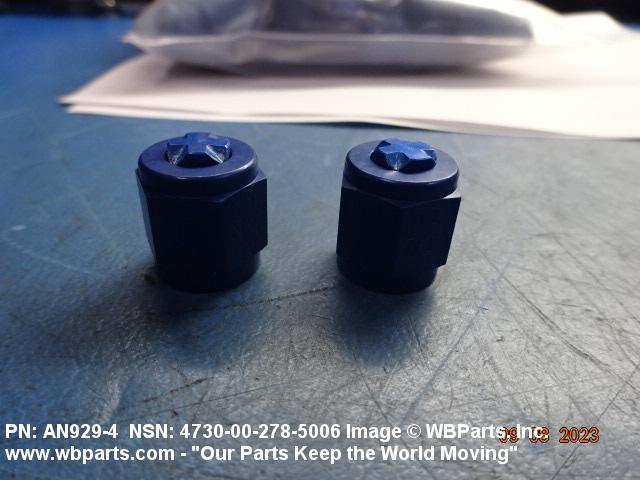

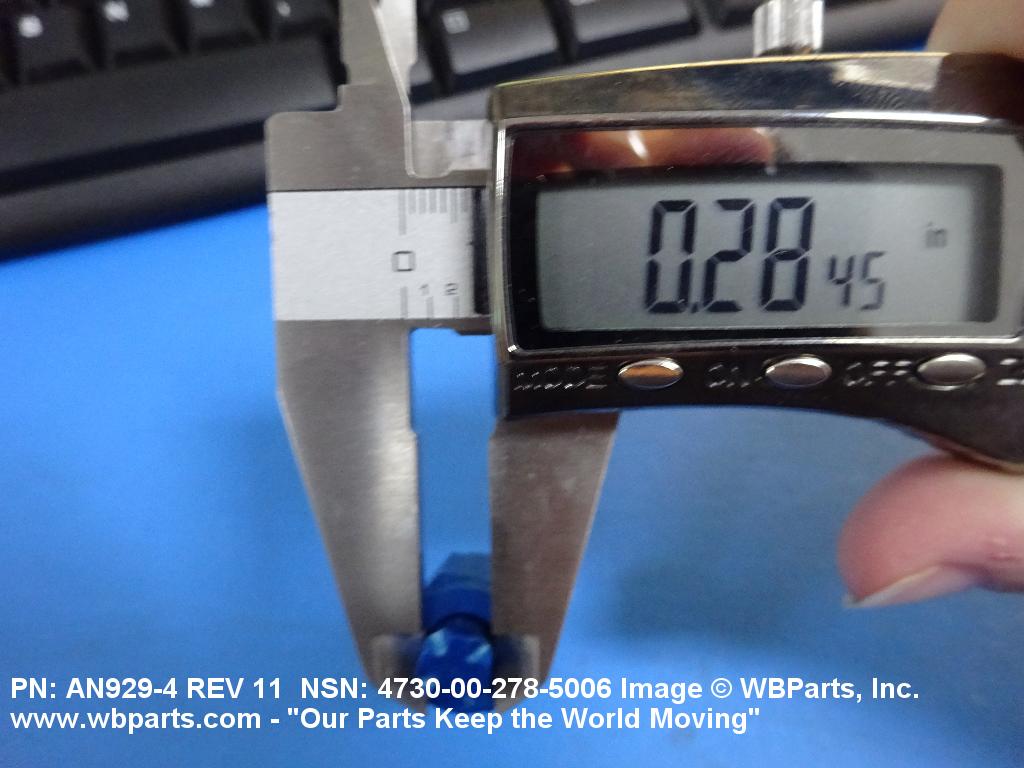

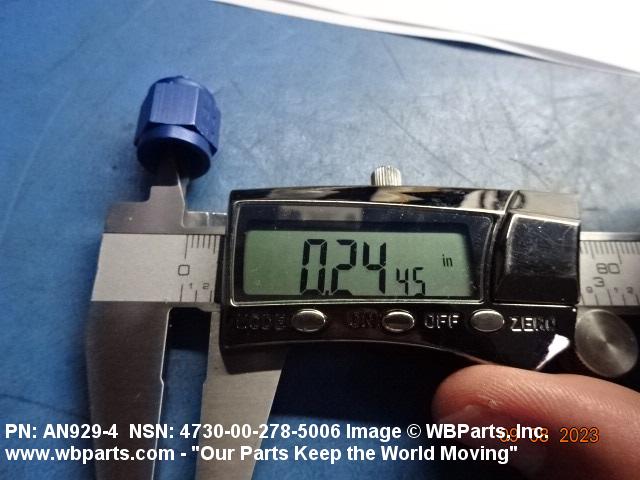

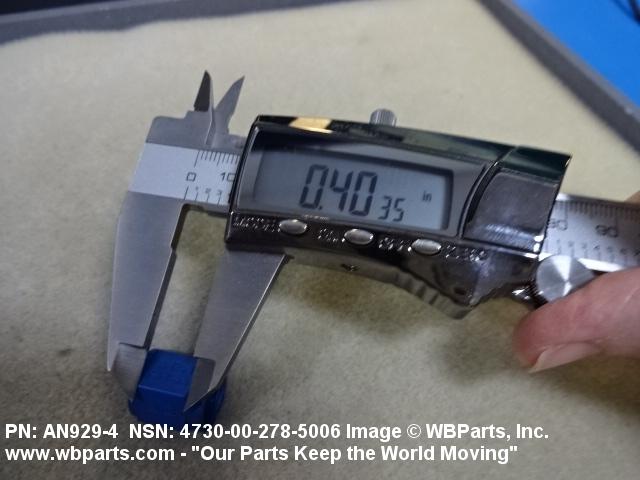

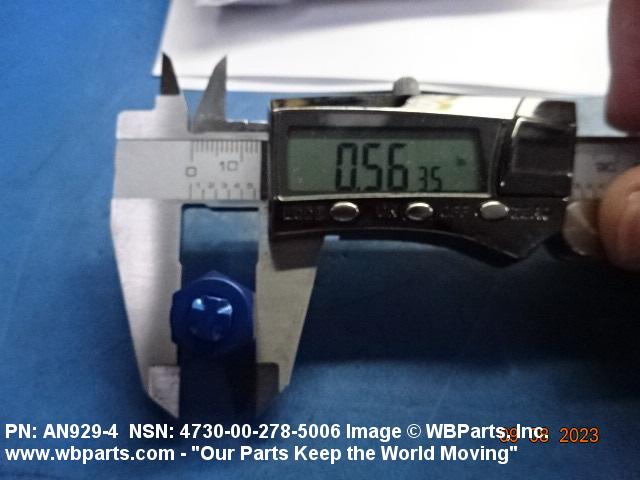

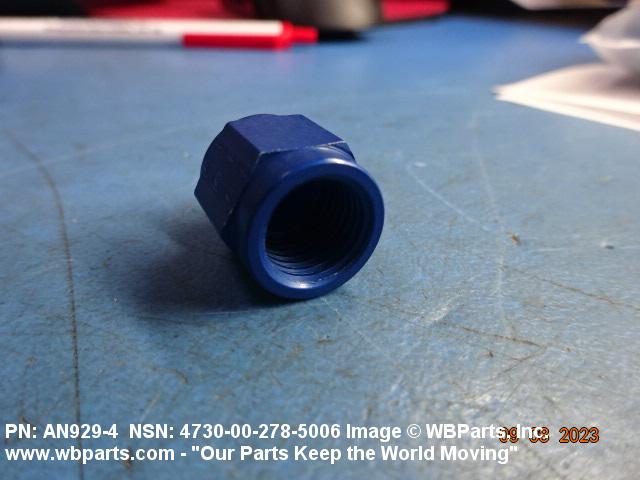

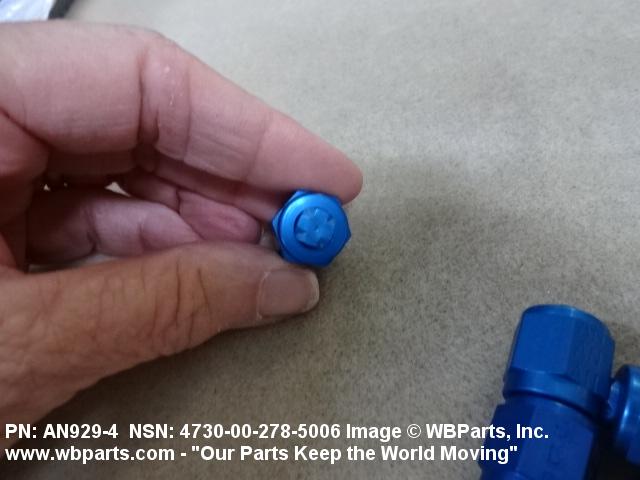

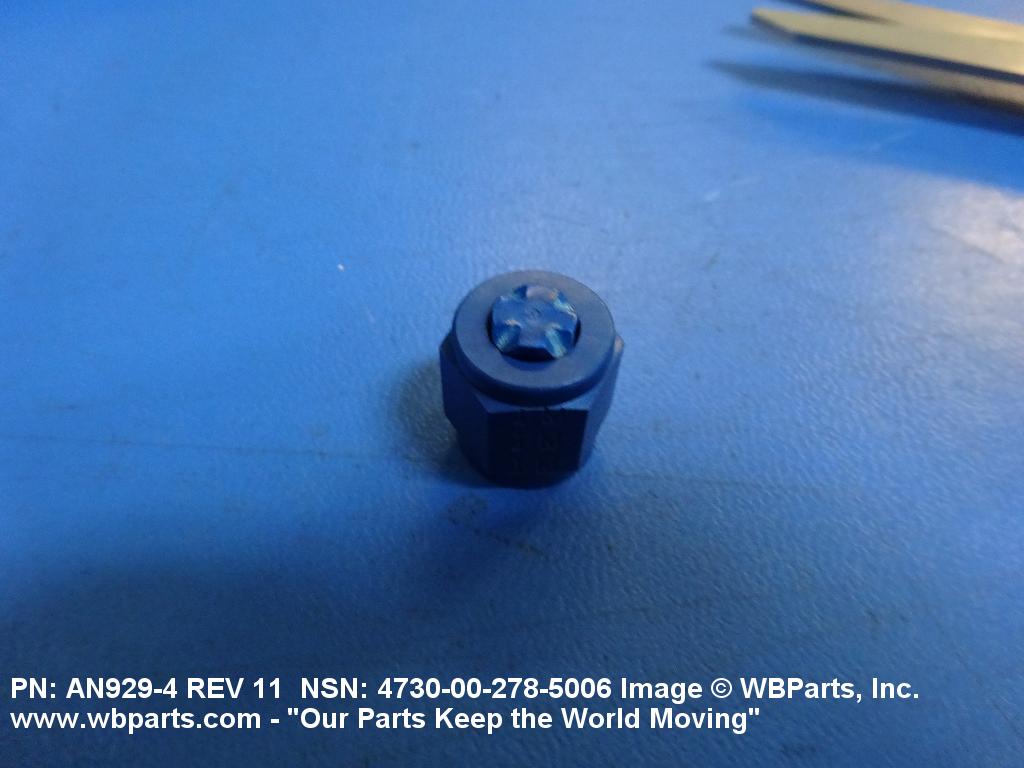

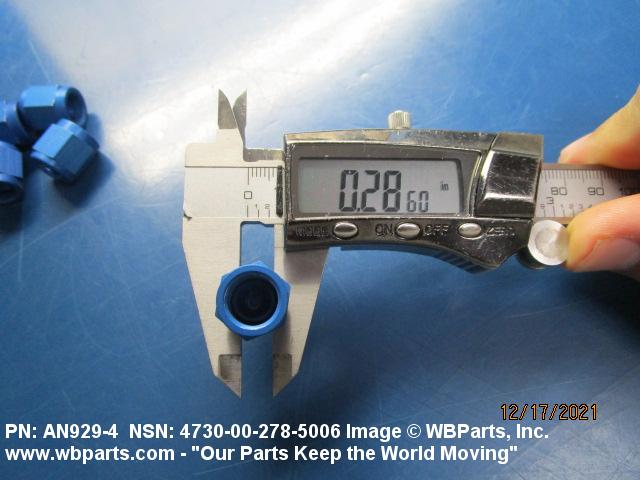

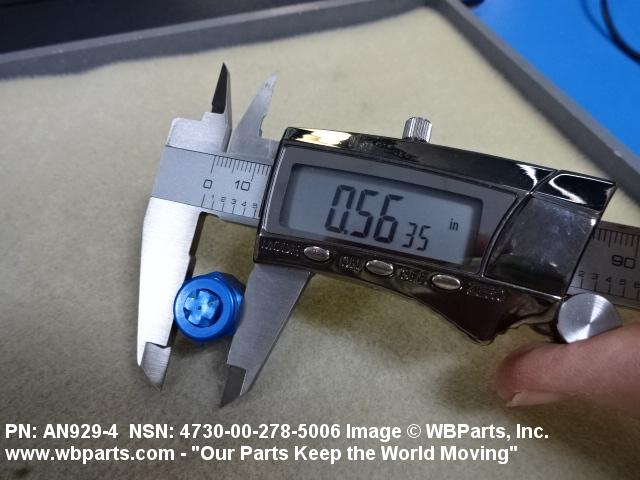

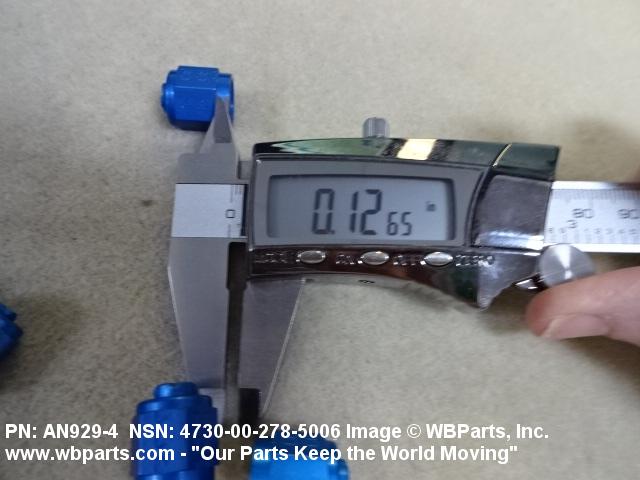

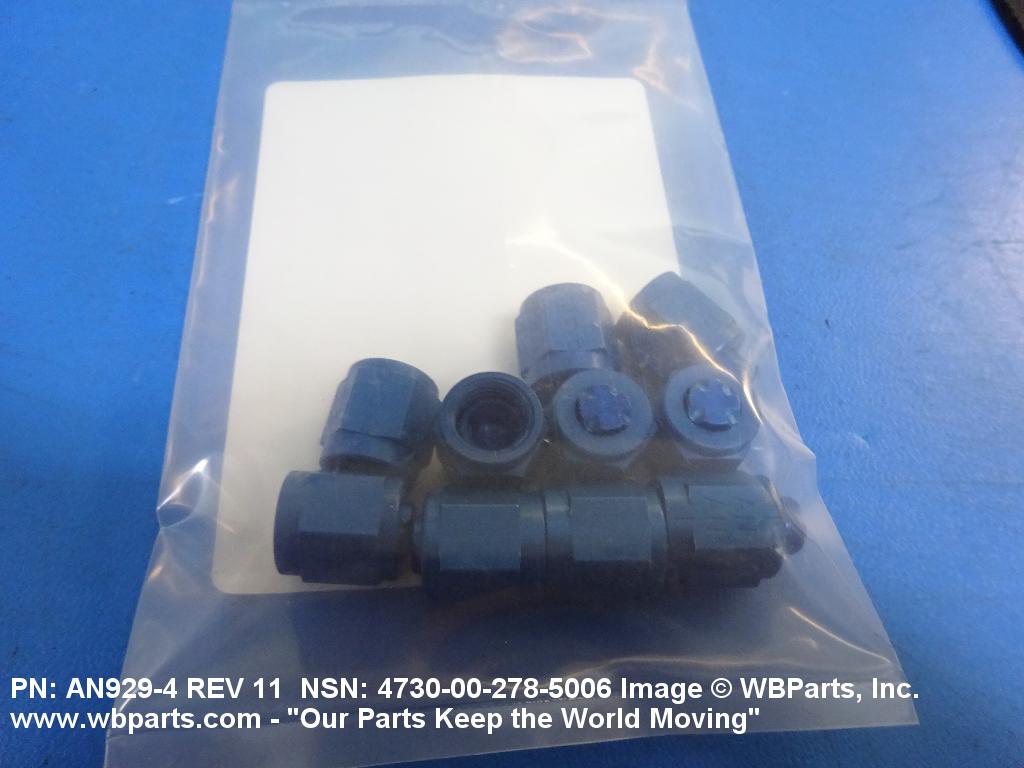

Drawings & Photos | NSN 4730-00-278-5006
Demand History | NSN 4730-00-278-5006
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9294 | 2024-03-66 | 1 | US |
| AN9294 | 2023-09-248 | 50 | Croatia |
| AN9294 | 2023-05-122 | 20 | US |
| AN9294D | 2022-10-290 | 2 | United States |
| 4730-00-278-5006 | 2022-02-45 | 10 | United States |
| 4730-00-278-5006 | 2021-05-146 | 600 | Singapore |
| 4730-00-278-5006 | 2021-05-146 | 600 | Singapore |
| 4730-00-278-5006 | 2020-02-48 | 1 | US |
| AN9294 | 2018-12-351 | 1000 | US |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN9294 | 2018-05-135 | 315 | United States |
| AN9294 | 2018-04-116 | 20 | United States |
| AN9294 | 2018-02-47 | 300 | CA |
| AN9294D | 2017-09-257 | 10 | United States |
| AN9294D | 2017-08-221 | 3 | United States |
| AN9294 | 2017-07-195 | 300 | Canada |
| 4730-00-278-5006 | 2017-01-25 | 6 | Malaysia |
| AN9294 | 2016-10-291 | 1 | United States |
| AN9294 | 2016-08-242 | 10 | Malaysia |
| 4730-00-278-5006 | 2016-08-238 | 1 | United States |
| AN9294D | 2016-08-222 | 2 | Serbia |
| 4730-00-278-5006 | 2015-09-252 | 50 | Canada |
| 4730-00-278-5006 | 2015-04-110 | 10 | DIBBS |
| 4730-00-278-5006 | 2015-04-91 | 50 | CA |
| 4730-00-278-5006 | 2015-03-78 | 150 | DIBBS |
| J514 | 2015-02-48 | 1 | us |
| AN9294D | 2014-02-34 | 5 | US |
| AN9294D | 2013-08-232 | 375 | United States |
| AN9294D | 2013-08-232 | 3 | United States |
| 4730-00-278-5006 | 2013-02-58 | 80176 | DIBBS |
| 4730-00-278-5006 | 2013-02-42 | 81634 | DIBBS |
| 4730-00-278-5006 | 2013-02-35 | 0 | DIBBS |
| 4730-00-278-5006 | 2012-11-324 | 59217 | DIBBS |
| 4730-00-278-5006 | 2012-07-187 | 34665 | DIBBS |
| AN929-4 | 2012-07-187 | 140 | KR |
| AN9294 | 2012-06-174 | 15 | Italy |
| 4730-00-278-5006 | 2011-08-215 | 11645 | DIBBS |
| 4730-00-278-5006 | 2011-06-166 | 10027 | DIBBS |
| AN9294 | 2011-06-158 | 80 | United States |
| AN9294 | 2011-06-152 | 1 | us |
| AS4841 | 2011-03-69 | 8 | |
| AN9294D | 2011-01-19 | 25 | US |
| J514 | 2010-02-47 | 20 | us |
| AN9294 | 2009-12-348 | 2 | United States |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
| AN74A6 | 2008-12-339 | 15 | US |
| 4730-00-278-5006 | 2008-11-326 | 10 | US |
| 4730-00-278-5006 | 2008-11-316 | 49148 | DIBBS |
| 4730-00-278-5006 | 2008-06-178 | 20 | Colombia |
| AN9294D | 2006-07-201 | 20 | United States |
Cross Reference | NSN 4730-00-278-5006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3112484 | 001JK | EMBRAER S/A |
| 3112484 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 3112484 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 336D7 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 4-0801/2C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4C | 81904 | G T I CORP CLOVER INDUSTRIES DIV |
| 5888-4 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 69-55718-1 | 81205 | THE BOEING COMPANY DBA BOEING |
| 7127-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 7129X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 8805963 | 19203 | PICATINNY ARSENAL |
| 946.29.15.803 | S4080 | PILATUS AIRCRAFT LTD |
| 99401 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 99401 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 99401 | R1120 | SATAIR A/S |
| AN74A6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN929-4 | 22995 | CROWN FITTING CO INC |
| AN929-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-4 | 8N202 | TRI-FITTING MFG COMPANY DBA TRI-FITTING MFG |
| AN929-4D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN929-4D | 32382 | ARLINGTON AIR PARTS INC |
| AN929-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-4DL | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-278-5006
Related Products | NSN 4730-00-278-5006
Technical Data | NSN 4730-00-278-5006
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A12 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNF INTERNAL |
| NOMINAL THREAD SIZE | 0.438 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 88044-AN929 GOVERNMENT STANDARD AND 81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 32 FIGURE |
| III END ITEM IDENTIFICATION | GRUMMAN AIRCRAFT,MODEL A-10 |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-4 |
Restrictions/Controls & Freight Information | NSN 4730-00-278-5006
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-278-5006
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
