NSN 4730-01-115-5983 16A241047, 16A2410-47, 01-115-5983

Product Details | THREADED TUBE FITTING PLUG

4730-01-115-5983 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.

Part Alternates: 16A241047, 16A2410-47, 4730-01-115-5983, 01-115-5983, 4730011155983, 011155983

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	10 JUL 1981	01-115-5983	28613 ( PLUG, TUBE FITTING, THREADED )

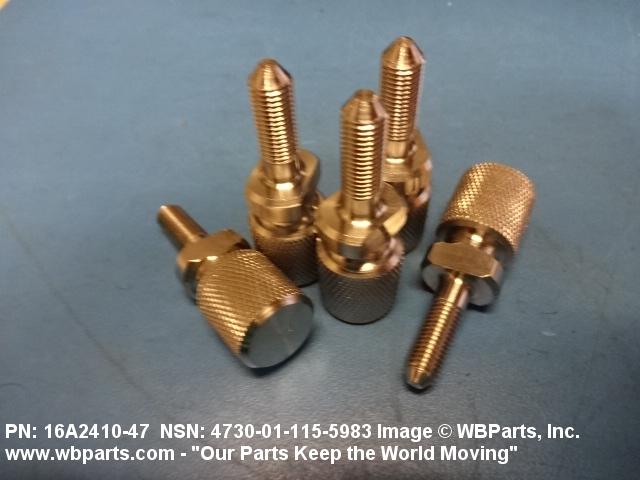

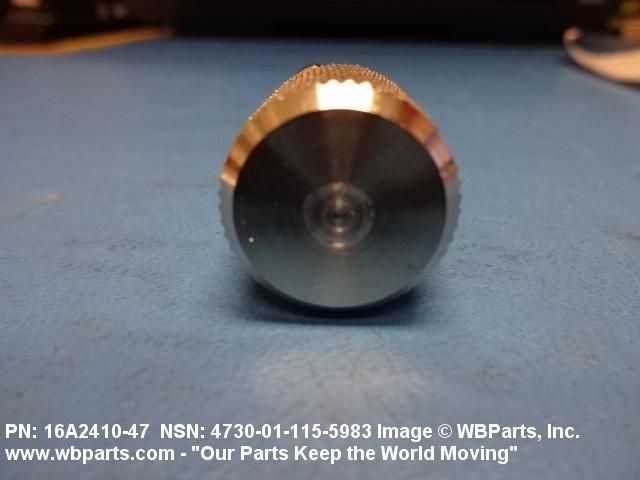

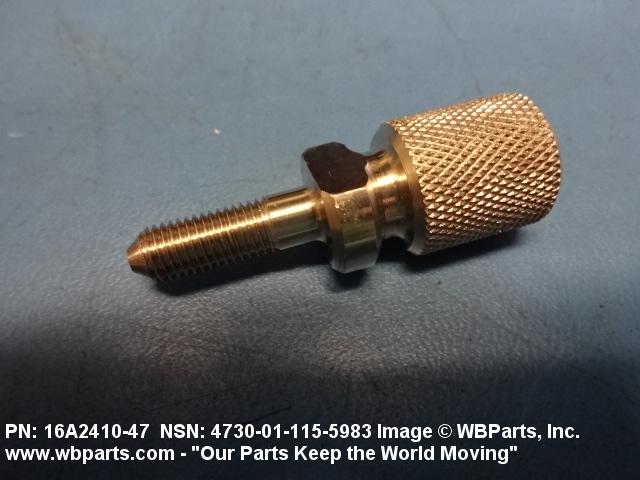

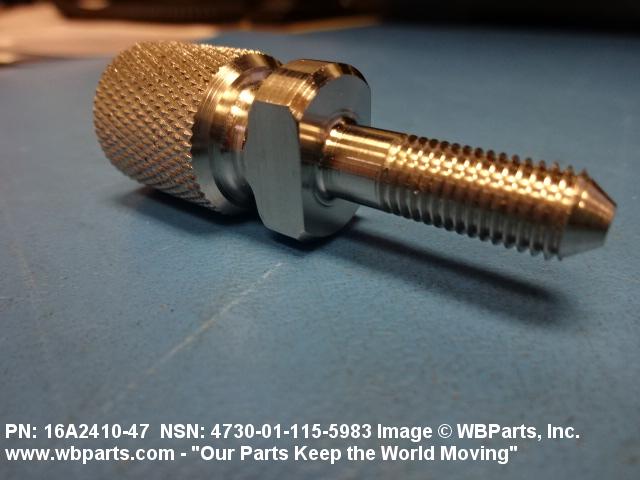

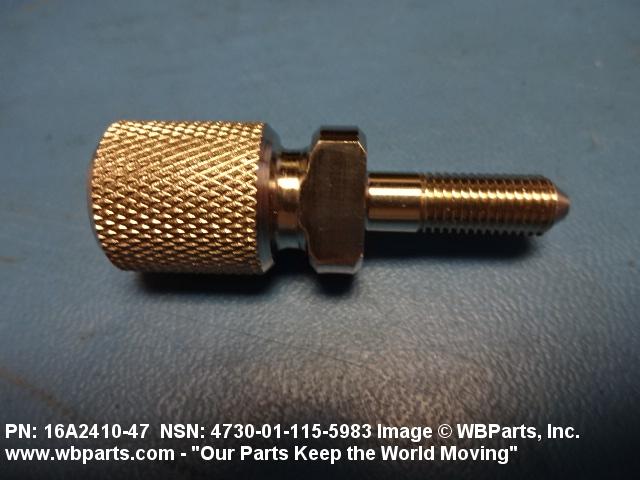

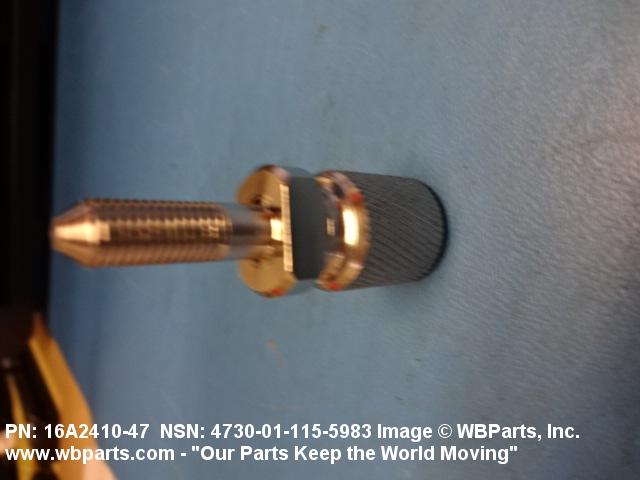

Drawings & Photos | NSN 4730-01-115-5983

Part Number	Request Date	QTY	Origin
16A2410-47	2019-09-268	24	DIBBS
16A2410-47	2019-05-128	24	DIBBS
16A2410-47	2019-04-92	3	DIBBS
16A2410-47	2019-03-65	1	DIBBS
16A2410-47	2019-02-34	1	DIBBS
4730-01-115-5983	2018-10-303	1	DIBBS
4730-01-115-5983	2018-01-18	5	United States
4730-01-115-5983	2018-01-11	5	DIBBS
4730-01-115-5983	2017-03-75	1	United States
4730-01-115-5983	2017-02-45	1	DIBBS
4730-01-115-5983	2016-10-278	1	DIBBS
4730-01-115-5983	2013-04-120	2	DIBBS
4730-01-115-5983	2013-04-105	2	DIBBS
16A241047	2013-01-15	1	United States
4730-01-115-5983	2011-08-230	1	DIBBS
4730-01-115-5983	2010-06-157	2	DIBBS
4730-01-115-5983	2009-07-211	2	DIBBS

Cross Reference | NSN 4730-01-115-5983

Part Number	Cage Code	Manufacturer
16A2410-47	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-115-5983

Compare

Related Products | NSN 4730-01-115-5983

4730-01-115-6259, 4730-01-115-6385, 4730-01-115-6643, 4730-01-115-6644, 4730-01-115-6646

Technical Data | NSN 4730-01-115-5983

Characteristic	Specifications
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL

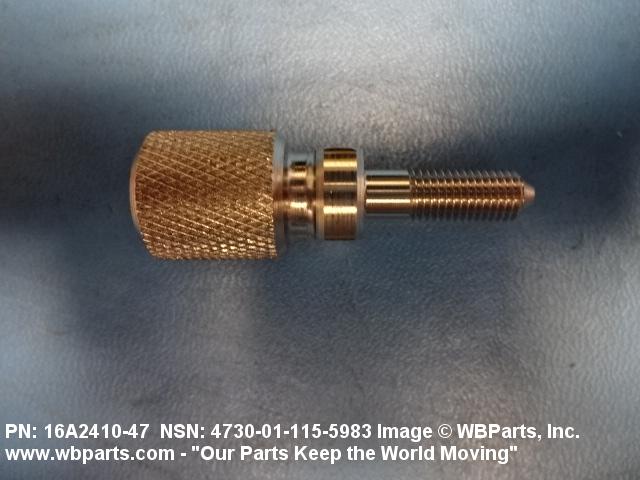

STYLE DESIGNATOR	C42A PLUG, TUBE FITTING FLARED, W/BLEEDER HOLE

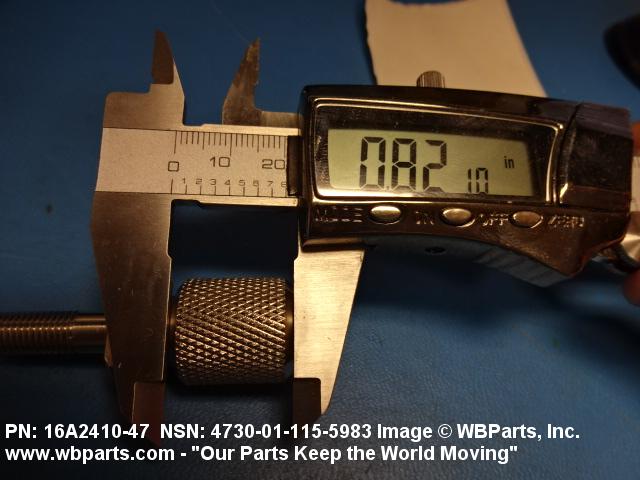

HEAD HEIGHT	0.820 INCHES NOMINAL

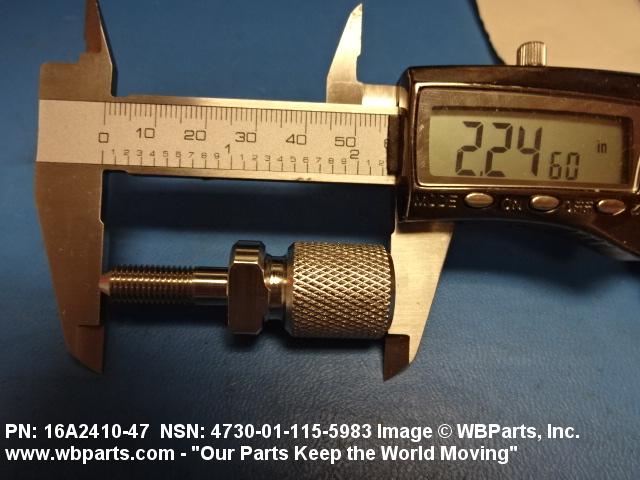

OVERALL LENGTH	2.250 INCHES NOMINAL
