Product Details | TUBE FITTING LOCKNUT

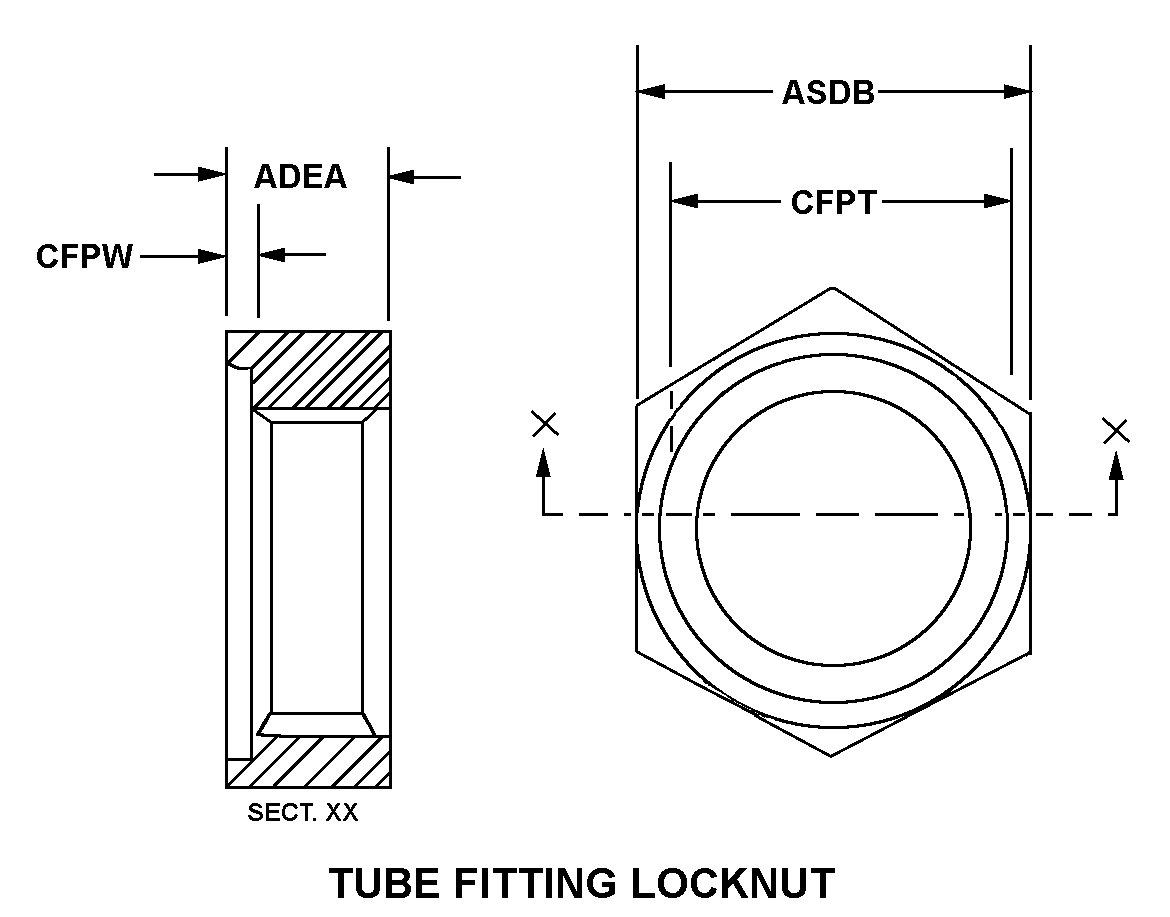

4730-00-540-2018 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.
Part Alternates: AN628916C, AN6289-16C, AN6289C16, AN6289J16, AS4841, AS5179, AS5179J16, 4730-00-540-2018, 00-540-2018, 4730005402018, 005402018
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-540-2018 | 17645 ( LOCKNUT, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-540-2018
Demand History | NSN 4730-00-540-2018
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-540-2018 | 2024-02-32 | 135 | DIBBS |
| 4730-00-540-2018 | 2021-04-105 | 331 | DIBBS |
| 4730-00-540-2018 | 2021-03-69 | 292 | DIBBS |
| 4730-00-540-2018 | 2018-06-155 | 1 | United States |
| AN6289J16 | 2018-05-122 | 1 | United States |
| 4730-00-540-2018 | 2017-06-163 | 503 | DIBBS |
| 4730-00-540-2018 | 2017-06-159 | 298 | DIBBS |
| 4730-00-540-2018 | 2017-05-131 | 298 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-540-2018 | 2010-11-309 | 246 | DIBBS |
| 4730-00-540-2018 | 2009-01-05 | 271 | DIBBS |
Cross Reference | NSN 4730-00-540-2018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN6289-16C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6289C16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6289J16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN6289J16 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN6289J16 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN6289J16 | 14397 | FABER ENTERPRISES, INC. |
| AN6289J16 | 14728 | PRECISION FORM RIVET INC |
| AN6289J16 | 22995 | CROWN FITTING CO INC |
| AN6289J16 | 30974 | AEROFIT, LLC |
| AN6289J16 | 71563 | COLLINS ENGINEERING CORP |
| AN6289J16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6289J16 | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5179 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5179J16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-2018
Related Products | NSN 4730-00-540-2018
Technical Data | NSN 4730-00-540-2018
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.312 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 11-S-763,CLASS 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A391 TUBE FITTING LOCKNUT |
| NUT HEIGHT | 0.438 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.625 INCHES NOMINAL |
| PACKING RECESS DIAMETER | 1.541 INCHES NOMINAL |
| PACKING RECESS DEPTH | 0.054 INCHES NOMINAL |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.000 INCHES |
| III END ITEM IDENTIFICATION | FBN SPRUANCE CLASS DD (963) |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN6289J16 |
