Product Details | FLARED TUBE FITTING CONICAL SEAL

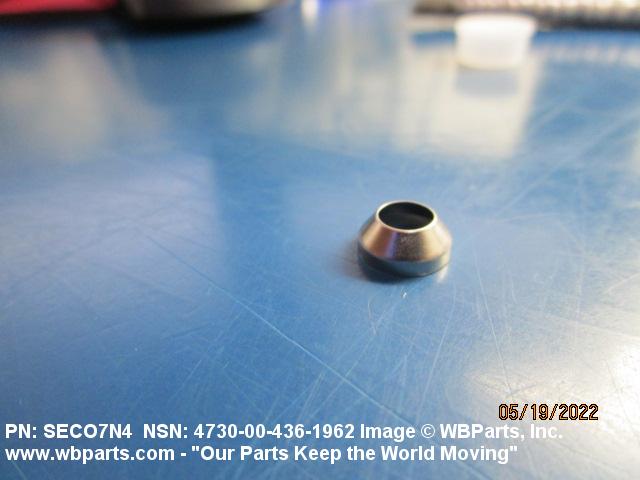

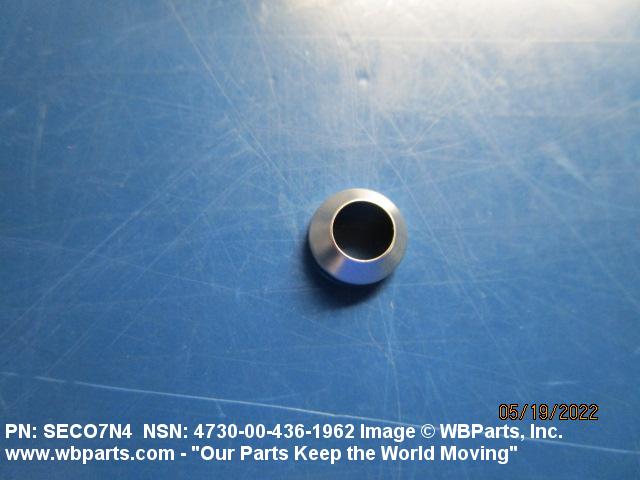

4730-00-436-1962 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.

Part Alternates: AS328204, AS3282-04, SEC07N4, SECO 7-N-4, SECO7N4, VS1015N4, VSF1015N4, DY90N4L, DY90-N-4L, GS570AB, GS570AB N4, GS570ABN4, DY90, 7N4, 1063010385, 10630103-85, 4730-00-436-1962, 00-436-1962, 4730004361962, 004361962

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 24 MAR 1969 00-436-1962

Drawings & Photos | NSN 4730-00-436-1962


Demand History | NSN 4730-00-436-1962

Part Number Request Date QTY Origin
VSF1015N4 2024-12-337 2 US
4730-00-436-1962 2024-10-289 10 GR
VSF1015N4 2024-10-282 20 Japan
VSF1015N4 2024-08-219 3 Japan
VSF1015N4 2024-08-219 3 Japan
4730-00-436-1962 2024-07-183 420 PR
4730-00-436-1962 2024-01-02 3234 US
4730-00-436-1962 2023-05-141 952 DIBBS
4730-00-436-1962 2023-05-121 676 DIBBS
4730-00-436-1962 2023-04-109 180 TW
SECO7N4 2022-05-126 100 United States
4730-00-436-1962 2022-03-85 16 TW
SECO7N4 2022-02-59 200 United States
4730-00-436-1962 2021-05-130 1200 United States
4730-00-436-1962 2018-12-344 1000 United States
4730-00-436-1962 2018-09-249 4694 DIBBS
4730-00-436-1962 2018-05-151 2875 DIBBS
4730-00-436-1962 2017-04-96 3555 DIBBS
4730-00-436-1962 2016-07-189 4956 DIBBS
4730-00-436-1962 2016-06-166 4911 DIBBS
4730-00-436-1962 2015-09-258 1838 DIBBS
4730-00-436-1962 2015-09-246 1838 DIBBS
4730-00-436-1962 2014-08-226 1702 DIBBS
4730-00-436-1962 2013-06-170 100 US
4730-00-436-1962 2012-06-170 2759 DIBBS
4730-00-436-1962 2012-02-32 662 DIBBS
4730-00-436-1962 2012-02-32 1544 DIBBS
VSF1015N4 2011-11-334 25 United States
4730-00-436-1962 2011-11-322 1544 DIBBS
4730-00-436-1962 2011-09-273 662 DIBBS
4730-00-436-1962 2011-07-190 980 DIBBS
4730-00-436-1962 2009-01-23 50 IT
VSF1015N4 2009-01-21 12 IT

Cross Reference | NSN 4730-00-436-1962

Part Number Cage Code Manufacturer
10630103-85 18876 U S ARMY AVIATION AND MISSILE COMMAND
7N4 33447 SECO SEALS, INC.
DY90 64162 DEL AEROSPACE, INC.
DY90-N-4L 1G528 AIR DISTRIBUTORS DIV OF DUCOMMUN INC
DY90-N-4L 64162 DEL AEROSPACE, INC.
GS570AB 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GS570AB N4 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
SEC07N4 33447 SECO SEALS, INC.
SECO 7-N-4 U3371 HYDRASUN GROUP LTD
VS1015N4 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VSF1015N4 66776 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VSF1015N4 83324 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VSF1015N4 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-436-1962

Technical Data | NSN 4730-00-436-1962

Characteristic Specifications
MATERIAL NICKEL COPPER ALLOY
METALLIC HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED
HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 0.250 INCHES NOMINAL
STYLE DESIGNATOR M5 SEAL

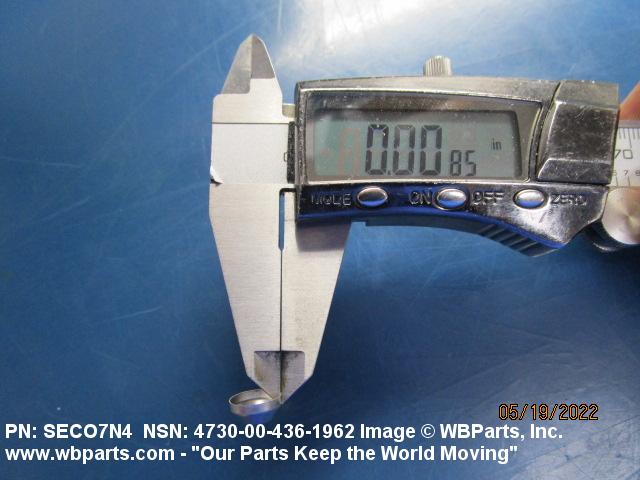

WALL THICKNESS 0.005 INCHES NOMINAL

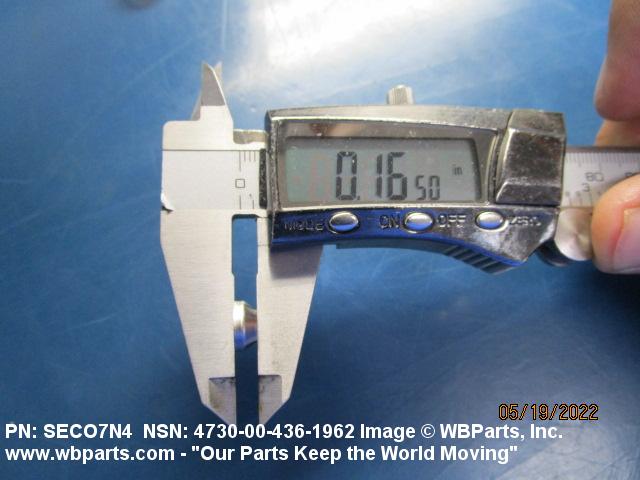

OVERALL LENGTH 0.172 INCHES NOMINAL

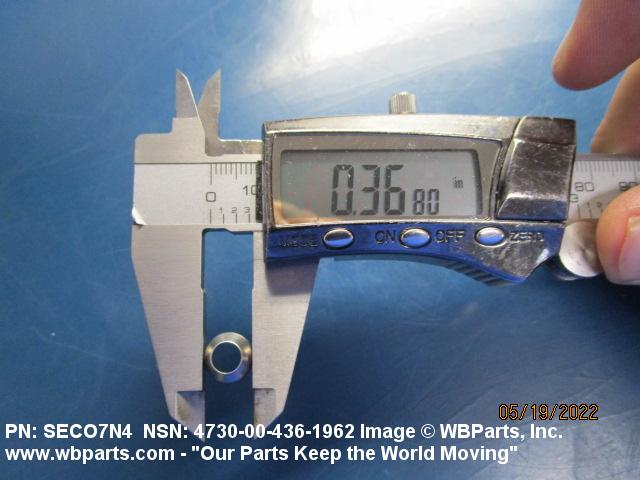

OUTSIDE DIAMETER 0.369 INCHES NOMINAL
BODY LENGTH 0.075 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
SEAT ANGLE IN DEG 37.0
SPECIAL FEATURES PARTS CODED "L" AFTER DASH WILL BE LOX CLEANED IN ACCORDANCE WITH LOX CLEAN SPEC
III END ITEM IDENTIFICATION LOW ALTITUDE NAVIGATION AND TARGETING INFRARED SYSTEM

Restrictions/Controls & Freight Information | NSN 4730-00-436-1962

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
