Product Details | FLARED TUBE FITTING CONICAL SEAL

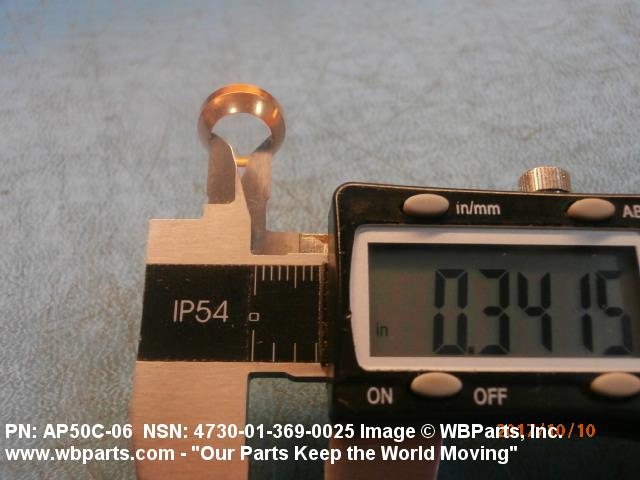

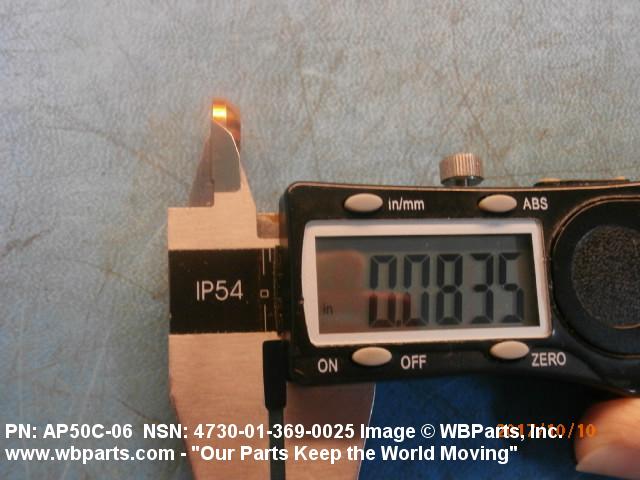

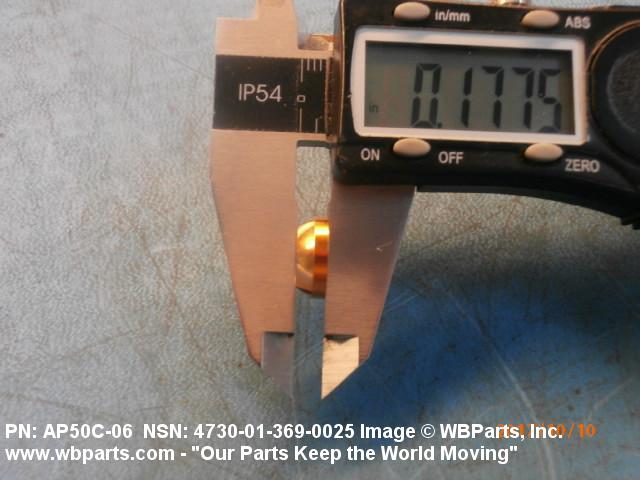

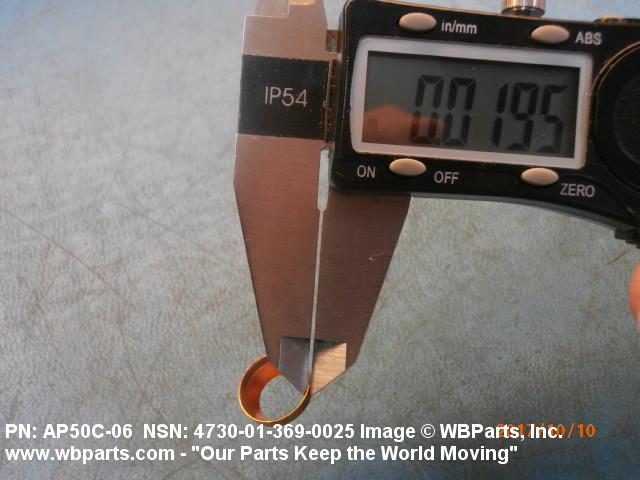

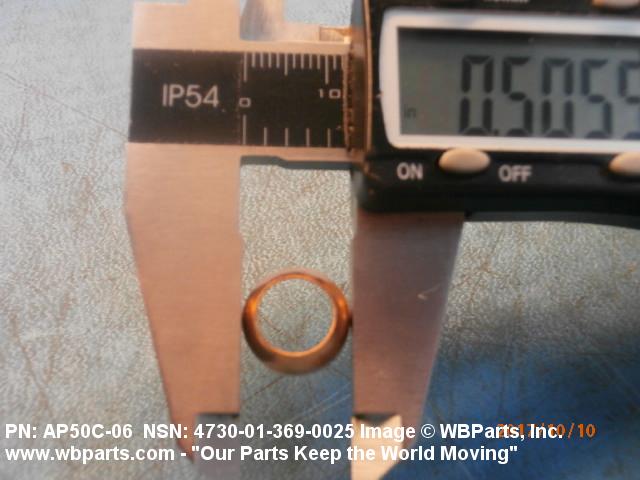

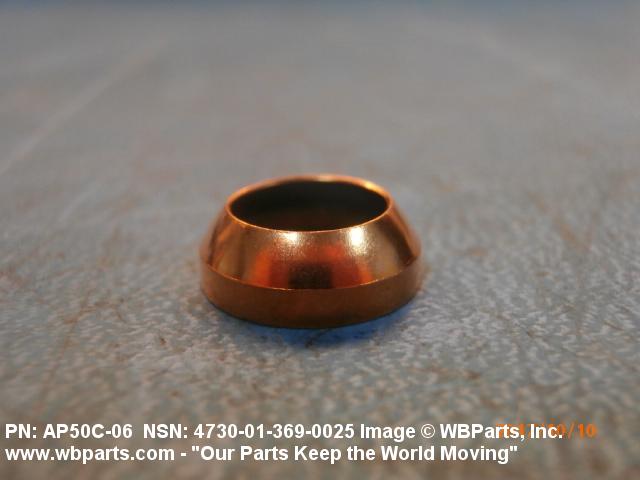

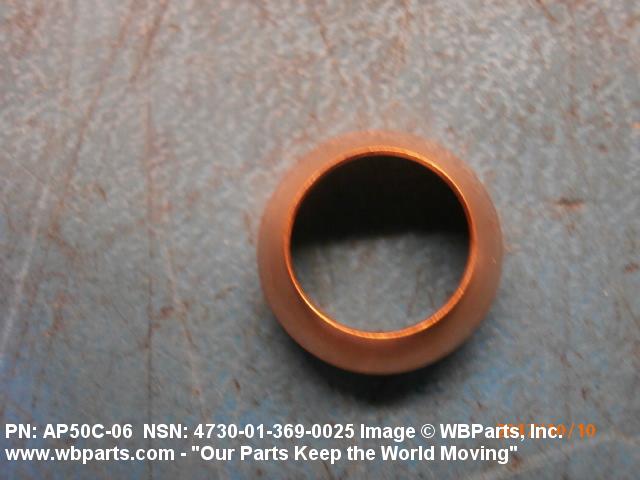

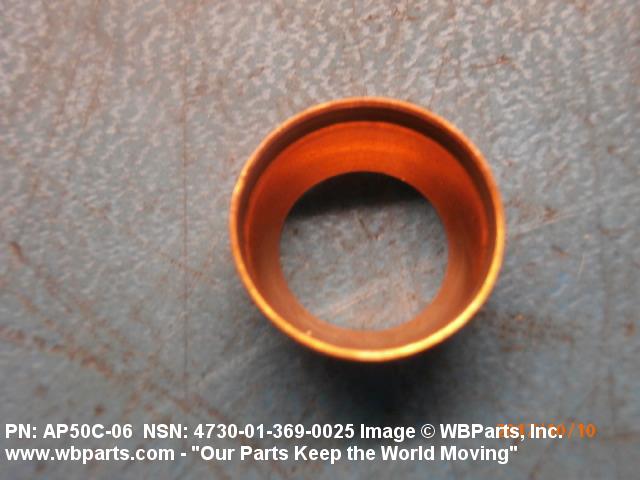

4730-01-369-0025 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.

Part Alternates: AP50C06, AP50C-06, AP50C6, AP50C-6, 8431398, 84313982, 8431398-2, 4730-01-369-0025, 01-369-0025, 4730013690025, 013690025

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 12 DEC 1992 01-369-0025

Drawings & Photos | NSN 4730-01-369-0025


Demand History | NSN 4730-01-369-0025

Part Number Request Date QTY Origin
AP50C-06 2024-08-242 255 DIBBS
4730-01-369-0025 2023-09-265 800 TW
AP50C6 2023-09-262 820 Taiwan
AP50C6 2023-09-256 800 TW
4730-01-369-0025 2023-08-229 800 TW
AP50C-06 2023-02-33 150 DIBBS
4730-01-369-0025 2021-04-106 3000 United States
4730-01-369-0025 2020-12-349 20 United States
AP50C6 2020-11-318 300 TW
AP50C-06 2020-11-314 344 DIBBS
AP50C-06 2020-10-303 344 DIBBS
4730-01-369-0025 2020-08-223 254 United States
AP50C-6 2020-08-217 254 DIBBS
AP50C-6 2020-07-203 254 DIBBS
AP50C-6 2020-05-142 134 DIBBS
AP50C-6 2020-03-72 101 DIBBS
AP50C-6 2019-10-288 56 DIBBS
AP50C-6 2019-10-276 56 DIBBS
AP50C06 2018-11-325 3100 TW
AP50C06 2018-11-323 3100 US
4730-01-369-0025 2018-01-15 156 DIBBS
4730-01-369-0025 2018-01-04 150 DIBBS
4730-01-369-0025 2017-09-271 1508 DIBBS
4730-01-369-0025 2017-09-262 50 Sweden
4730-01-369-0025 2013-10-304 1396 DIBBS
4730-01-369-0025 2013-08-218 905 DIBBS
4730-01-369-0025 2013-07-202 905 DIBBS
AP50C6 2013-03-70 200 TW
4730-01-369-0025 2013-01-14 180 Taiwan
4730-01-369-0025 2008-12-353 797 DIBBS

Cross Reference | NSN 4730-01-369-0025

Part Number Cage Code Manufacturer
8431398 98752 WARNER ROBINS AIR LOGISTICS CENTER
8431398-2 98752 WARNER ROBINS AIR LOGISTICS CENTER
AP50C-06 01673 SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
AP50C-6 01673 SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-369-0025

Technical Data | NSN 4730-01-369-0025

Characteristic Specifications
MATERIAL COPPER, QQ-C-502
CASEHARDENING INDICATOR NOT CASEHARDENED
HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 0.375 INCHES NOMINAL
STYLE DESIGNATOR M5 SEAL
WALL THICKNESS 0.021 INCHES NOMINAL
OVERALL LENGTH 0.158 INCHES MINIMUM AND 0.207 INCHES MAXIMUM
OUTSIDE DIAMETER 0.502 INCHES NOMINAL
BODY LENGTH 0.085 INCHES NOMINAL
SEAT ANGLE IN DEG 37.0
