NSN 4730-01-395-6595 AS328206, AS3282-06, AS4824
Product Details | FLARED TUBE FITTING CONICAL SEAL
4730-01-395-6595 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: AS328206, AS3282-06, AS4824, AS4824N06, 4730-01-395-6595, 01-395-6595, 4730013956595, 013956595
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 SEP 1994 | 01-395-6595 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

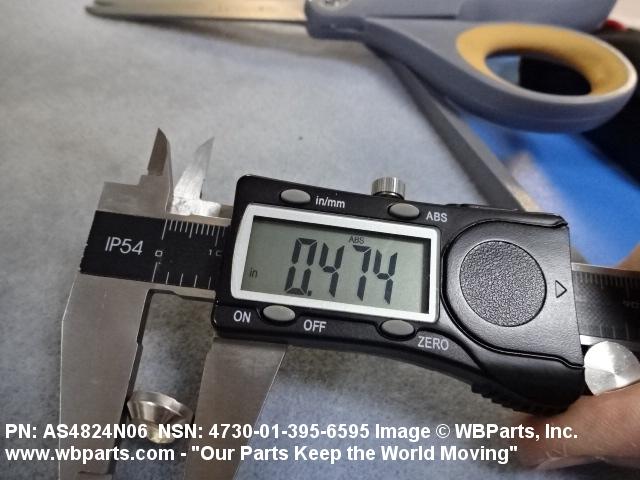

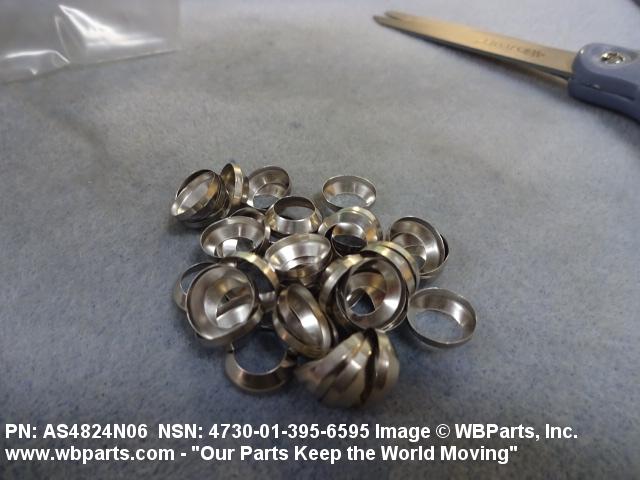

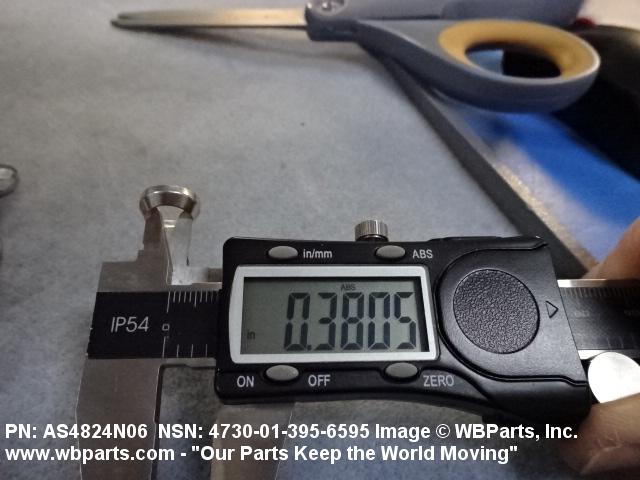

Drawings & Photos | NSN 4730-01-395-6595
Demand History | NSN 4730-01-395-6595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-395-6595 | 2024-01-11 | 9228 | DIBBS |
| 4730-01-395-6595 | 2023-07-192 | 8987 | DIBBS |
| 4730-01-395-6595 | 2022-05-142 | 10604 | DIBBS |
| 4730-01-395-6595 | 2022-03-66 | 4474 | DIBBS |
| 4730-01-395-6595 | 2022-02-55 | 4474 | DIBBS |
| 4730-01-395-6595 | 2021-10-287 | 3332 | DIBBS |
| 4730-01-395-6595 | 2021-04-95 | 3754 | DIBBS |
| 4730-01-395-6595 | 2021-03-83 | 3754 | DIBBS |
| AS4824N06 | 2020-05-122 | 2 | US |
| AS4824N06 | 2020-05-122 | 5 | US |
| AS4824N06 | 2020-05-122 | 10 | US |
| AS4824N06 | 2020-05-122 | 16 | US |
| AS4824N06 | 2020-05-122 | 25 | US |
| AS4824N06 | 2020-05-122 | 50 | US |
| AS4824N06 | 2020-05-122 | 100 | US |
| 4730-01-395-6595 | 2018-09-268 | 6945 | DIBBS |
| 4730-01-395-6595 | 2018-09-256 | 5450 | DIBBS |
| 4730-01-395-6595 | 2017-12-341 | 5469 | DIBBS |
| 4730-01-395-6595 | 2016-08-234 | 4423 | DIBBS |
| AS4824N06 | 2016-04-120 | 100 | Italy |
| 4730-01-395-6595 | 2015-09-256 | 3937 | DIBBS |
| AS4824N06 | 2015-05-148 | 1 | CN |
| 4730-01-395-6595 | 2015-05-147 | 6643 | DIBBS |
| 4730-01-395-6595 | 2014-08-226 | 4226 | DIBBS |
| 4730-01-395-6595 | 2014-02-49 | 3959 | DIBBS |
| 4730-01-395-6595 | 2014-02-34 | 3959 | DIBBS |
| 4730-01-395-6595 | 2013-10-303 | 3029 | DIBBS |
| 4730-01-395-6595 | 2011-07-201 | 0 | DIBBS |
| 4730-01-395-6595 | 2011-04-102 | 1789 | DIBBS |
| 4730-01-395-6595 | 2010-10-291 | 2596 | DIBBS |
| 4730-01-395-6595 | 2010-04-105 | 2545 | DIBBS |
| 4730-01-395-6595 | 2009-10-292 | 2135 | DIBBS |
| 4730-01-395-6595 | 2009-07-183 | 1786 | DIBBS |
| 4730-01-395-6595 | 2009-06-152 | 1467 | DIBBS |
| AS328206 | 2009-05-134 | 10 | US |
| 4730-01-395-6595 | 2009-03-79 | 1423 | DIBBS |
Cross Reference | NSN 4730-01-395-6595
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-395-6595
Related Products | NSN 4730-01-395-6595
Technical Data | NSN 4730-01-395-6595
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL COPPER ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | M5 SEAL |
| OUTSIDE DIAMETER | 0.476 INCHES NOMINAL |
| BODY LENGTH | 0.060 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
| SPECIAL FEATURES | TYPE N02201 COLD-ROLLDED ANNEALED NICKEL SHEET OR STRIP PER ASTM B 162 OR AMS 5553 |
Restrictions/Controls & Freight Information | NSN 4730-01-395-6595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | 80 | NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-395-6595
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
