NSN 4730-00-436-2646 6167114, 00-436-2646, 004362646
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-436-2646 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 6167114, 4730-00-436-2646, 00-436-2646, 4730004362646, 004362646
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 MAY 1974 | 00-436-2646 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-436-2646
Demand History | NSN 4730-00-436-2646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-436-2646 | 2021-04-118 | 18 | DIBBS |
Cross Reference | NSN 4730-00-436-2646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6167114 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-436-2646
Related Products | NSN 4730-00-436-2646
Technical Data | NSN 4730-00-436-2646
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY, QQ-C-390 |

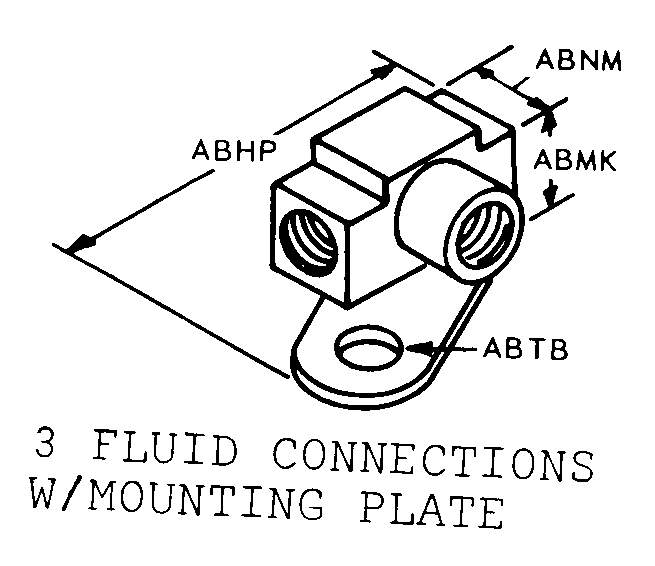

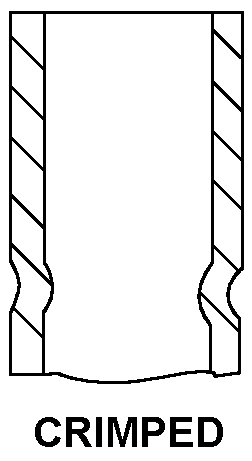

| STYLE DESIGNATOR | D33 3 FLUID CONNECTIONS W/MOUNTING PLATE |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| THICKNESS | 1.125 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 1 1 |
| CONNECTION STYLE | F8 PLAIN F8 PLAIN E5 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | TUBE 0.500 IN. SQUARE W/BEVELED CORNERS 0.627 IN. WIDE ACROSS FLATS; TUBE 0.250 IN. DIA CENTERED ON BOSS 0.500 IN. DIA X 0.125 IN. H 1.438 IN. FROMEND; TUBE 0.875-14UNC-3B X 0.563 IN. DEEP |
| THREAD PROVISION | UNTHREADED UNTHREADED UNTHREADED |
| THREAD SIZE | 7/8 IN.-14 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | NOT INCLUDED |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
| SPECIAL FEATURES | MTG HOLES CSK 80 DEG TO 0.500 DIAW/BOSSES 0.750 DIA X 0.125 H |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 6167114 |
