NSN 4730-00-277-5107 AN8304D, AN830-4D, AN8344D

Product Details | TUBE TEE

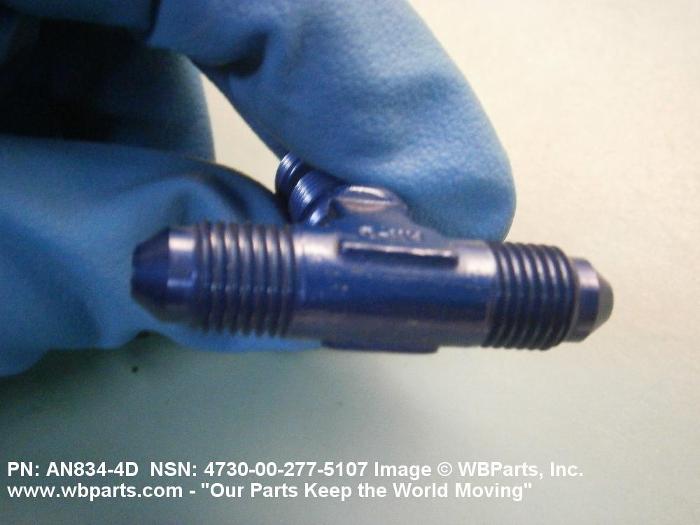

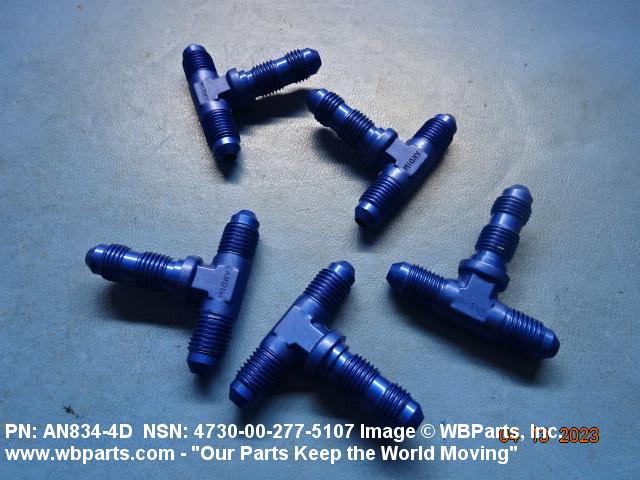

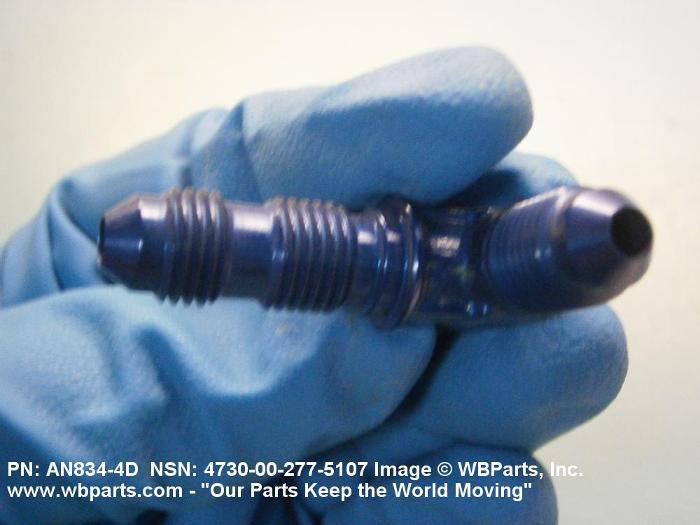

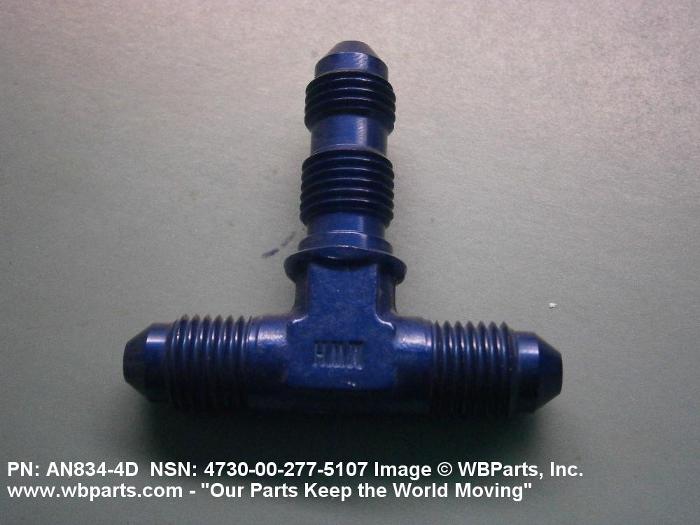

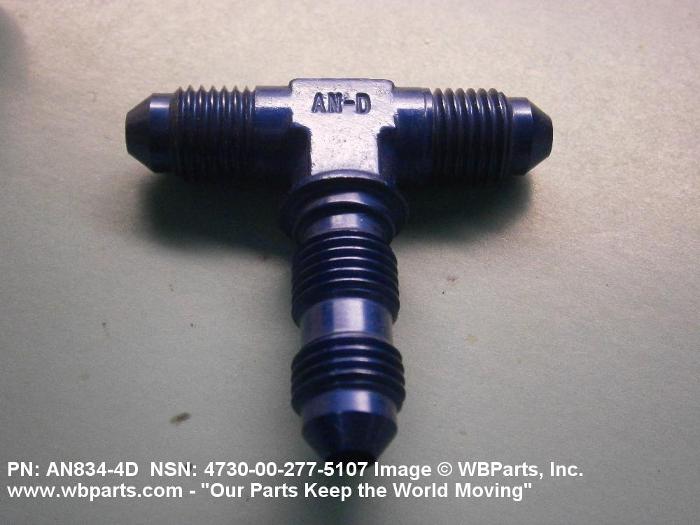

4730-00-277-5107 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.

Part Alternates: AN8304D, AN830-4D, AN8344D, AN834-4D, AS1039 , AS1039D040404, AS4841 , 10108317 , 3111157, 488 383, 488383, 7M637, 7M637BX4D, 7M637BX-4D, 946.23.65.553, 9462365553, 4730-00-277-5107, 00-277-5107, 4730002775107, 002775107

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-277-5107	03809 ( TEE, TUBE )

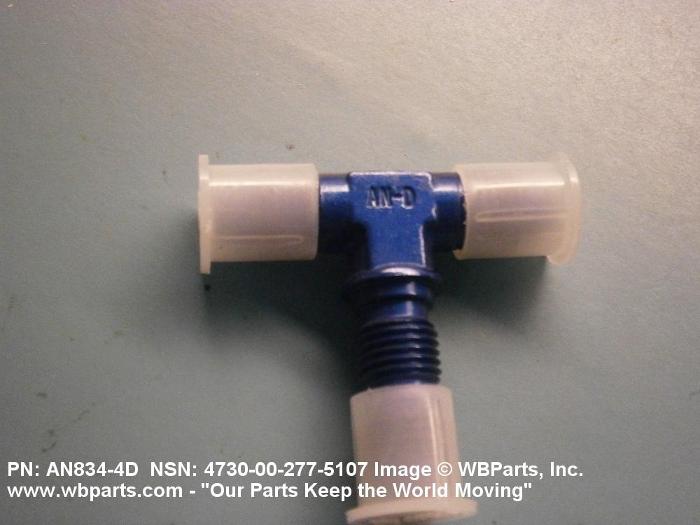

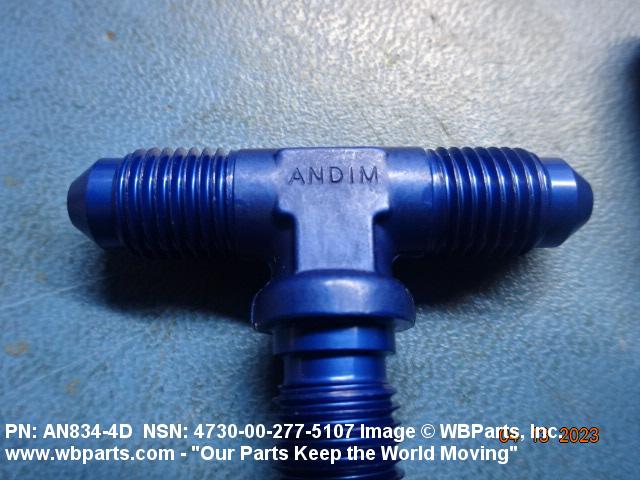

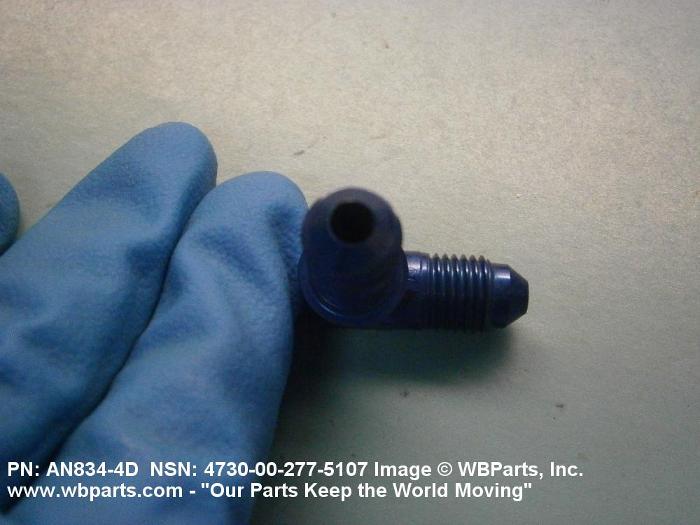

Drawings & Photos | NSN 4730-00-277-5107

Part Number	Request Date	QTY	Origin
AN8344D	2024-11-316	300	US
AN8344D	2024-11-311	20	United States
AN8344D	2024-11-310	20	United States
AN8344D	2024-04-110	20	United States
AN8344D	2024-04-110	20	United States
AN8344D	2024-03-81	1	AE
AN8344D	2024-03-80	3	US
AN8344D	2023-12-354	20	United States
AN8344D	2023-12-352	15	United States
AN8344D	2023-09-264	17	United States
AN8344D	2023-09-249	17	United States
AN8344D	2023-06-177	375	US
AN8344D	2023-04-96	5	United States
9462365553	2018-09-249	2	IN
AN8344D	2018-02-40	5	United States
4730-00-277-5107	2017-11-334	5	US
4730-00-277-5107	2017-11-334	5	US
AN8344D	2017-11-312	1719	United States
AN8344D	2017-11-307	5	TH
4730-00-277-5107	2017-11-306	1719	DIBBS
4730-00-277-5107	2017-05-143	557	DIBBS
AN8344D	2016-10-302	10	United States
488383	2015-06-178	1	IN
4730-00-277-5107	2014-01-30	444	DIBBS
4730-00-277-5107	2013-01-22	572	DIBBS
AN8344D	2012-06-178	75	United States
AN834-4D	2012-04-115	2	IN
4730002775107	2012-01-30	1	AE
4730-00-277-5107	2012-01-17	364	DIBBS
4730-00-277-5107	2011-06-180	402	DIBBS
AS4841	2011-03-69	8
4730-00-277-5107	2011-01-18	270	DIBBS
4730-00-277-5107	2011-01-06	6	FR
4730-00-277-5107	2009-07-209	590	DIBBS
AN8344D	2007-10-302	15	US
4730-00-277-5107	2007-08-227	2	United Kingdom
4730-00-277-5107	2007-06-175	10	United Kingdom

Cross Reference | NSN 4730-00-277-5107

Part Number	Cage Code	Manufacturer
3111157	001JK	EMBRAER S/A
3111157	FB459	EMBRAER AVIATION INTERNATIONAL
3111157	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
488 383	77294	PIPER AIRCRAFT INC.
7M637	76301	BOEING COMPANY, THE DBA BOEING
7M637BX-4D	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
7M637BX-4D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
7M637BX-4D	14397	FABER ENTERPRISES, INC.
7M637BX-4D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
7M637BX-4D	52930	NELSON AERO SPACE, INC.
7M637BX-4D	76301	BOEING COMPANY, THE DBA BOEING
946.23.65.553	S4080	PILATUS AIRCRAFT LTD
AN830-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN834-4D	22995	CROWN FITTING CO INC
AN834-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS1039	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1039D040404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-5107

Compare

Related Products | NSN 4730-00-277-5107

4730-00-277-5108, 4730-00-277-5109, 4730-00-277-5110, 4730-00-277-5112, 4730-00-277-5113

Technical Data | NSN 4730-00-277-5107

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS

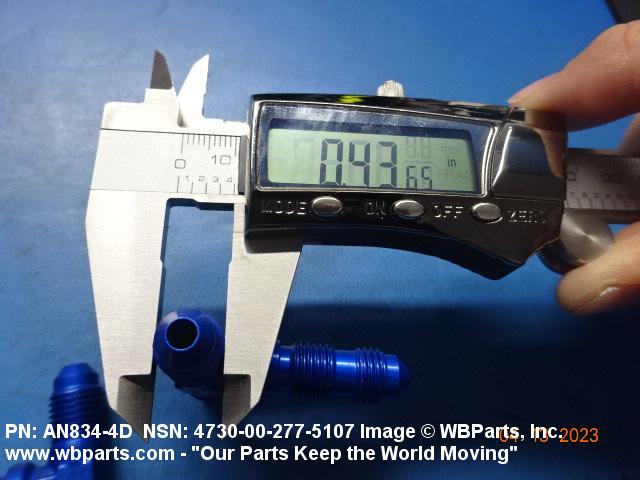

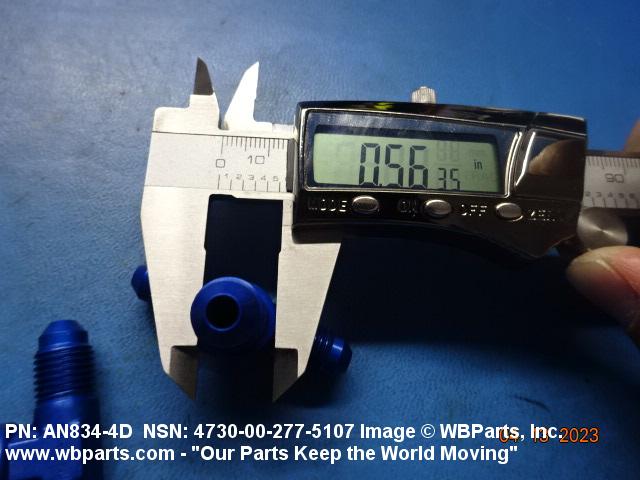

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS UNF 3RD END BULKHEAD
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS 0.438 INCHES 3RD END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 3RD END BULKHEAD

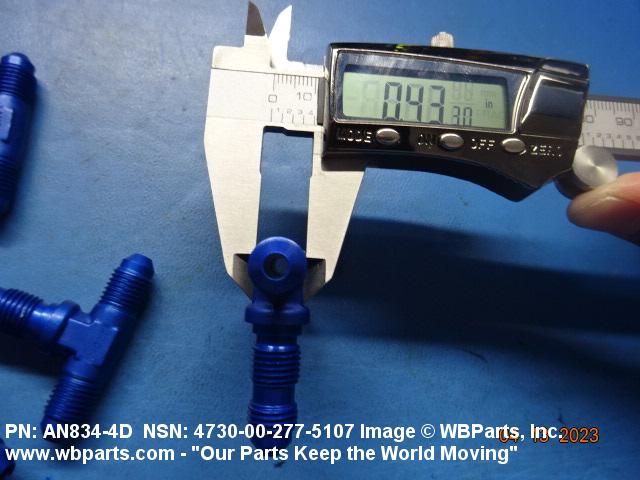

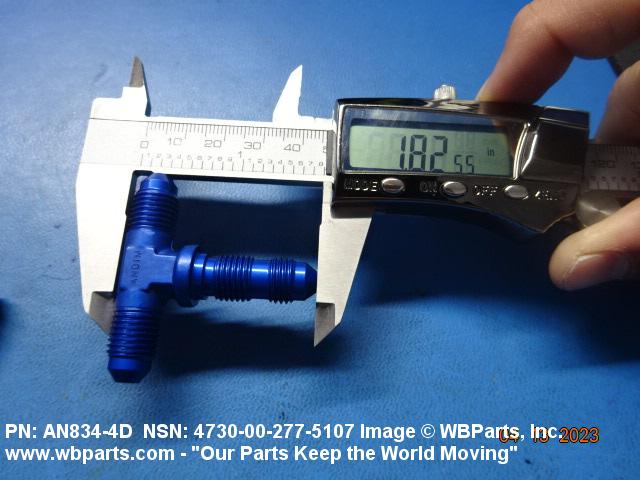

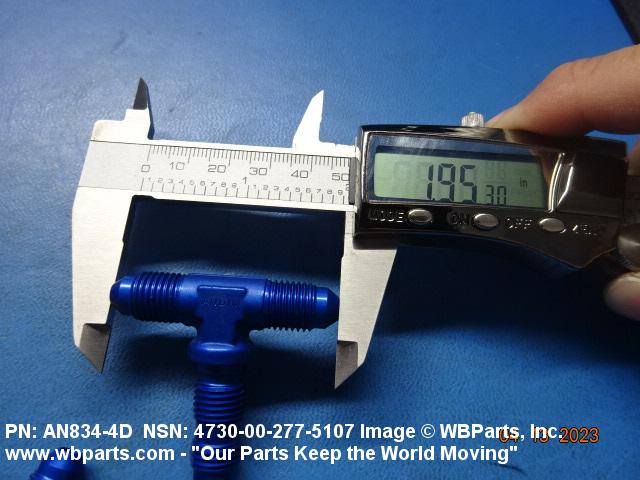

LEG LENGTH	0.953 INCHES NOMINAL 1ST END 0.953 INCHES NOMINAL 2ND END 1.578 INCHES NOMINAL 3RD END
