NSN 4730-00-277-5109 AN8305D, AN830-5D, AN8345D
Product Details | TUBE TEE

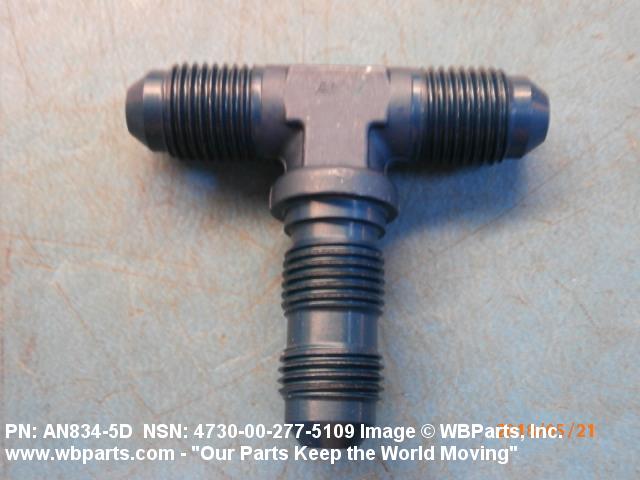

4730-00-277-5109 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: AN8305D, AN830-5D, AN8345D, AN834-5D, AS1039D050505 , AS1039F, AS4841 , 4730-00-277-5109, 00-277-5109, 4730002775109, 002775109
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-5109 | 03809 ( TEE, TUBE ) |

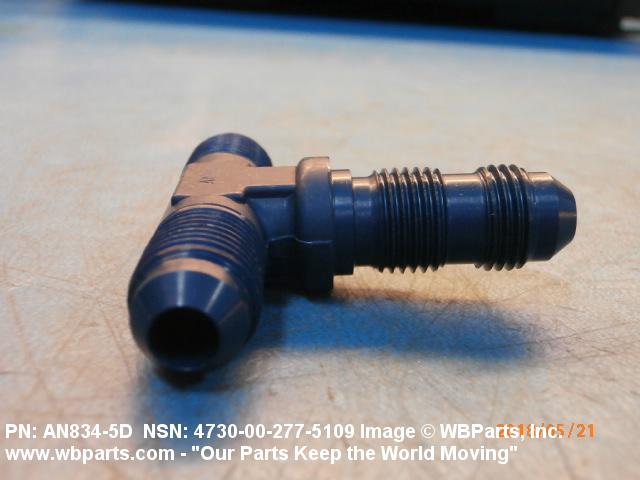

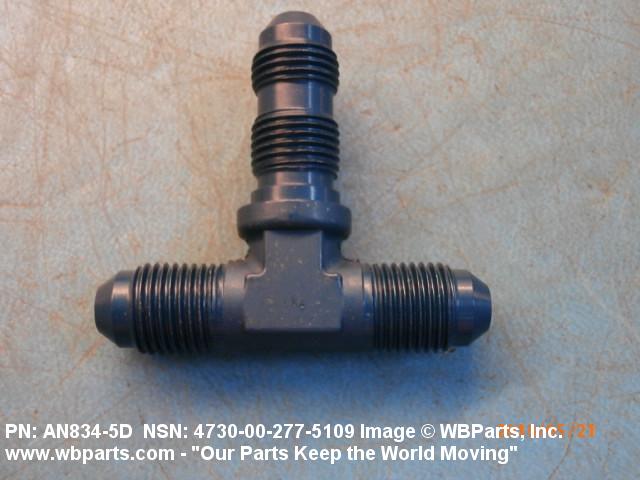

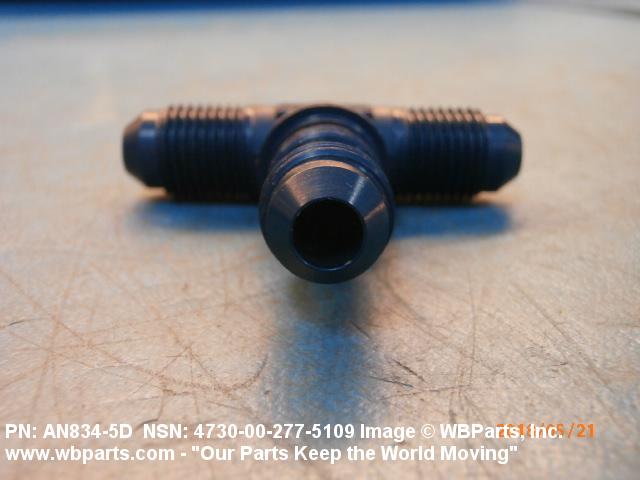

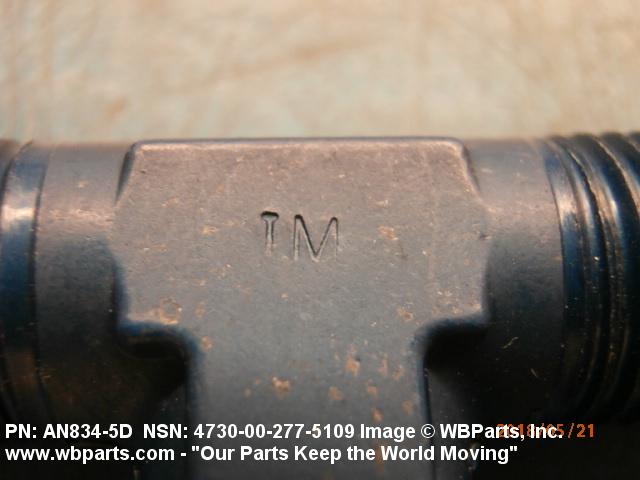

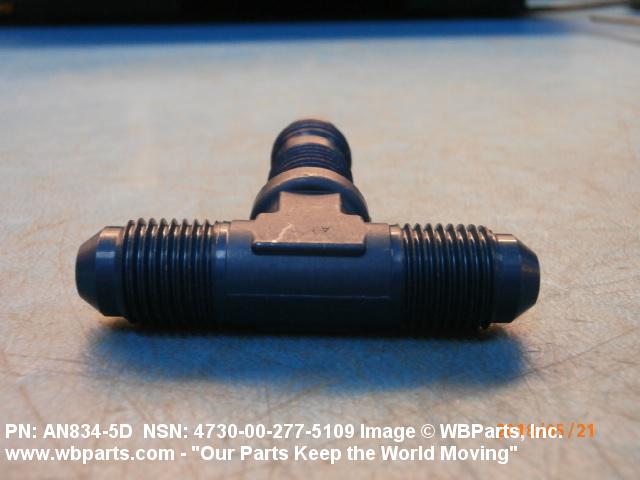

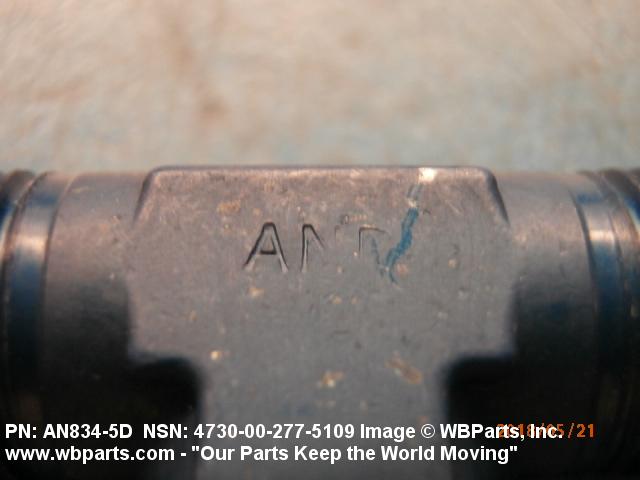

Drawings & Photos | NSN 4730-00-277-5109
Demand History | NSN 4730-00-277-5109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-277-5109 | 2023-06-177 | 60 | DIBBS |
| 4730-00-277-5109 | 2023-06-166 | 60 | DIBBS |
| 4730-00-277-5109 | 2022-11-317 | 43 | DIBBS |
| 4730-00-277-5109 | 2018-07-197 | 21 | DIBBS |
| 4730-00-277-5109 | 2018-05-136 | 1 | United States |
| 4730-00-277-5109 | 2011-12-355 | 30 | DIBBS |
| AS4841 | 2011-03-69 | 8 |
Cross Reference | NSN 4730-00-277-5109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN830-5D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN834-5D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS1039D050505 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS1039F | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-5109
Related Products | NSN 4730-00-277-5109
Technical Data | NSN 4730-00-277-5109
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |

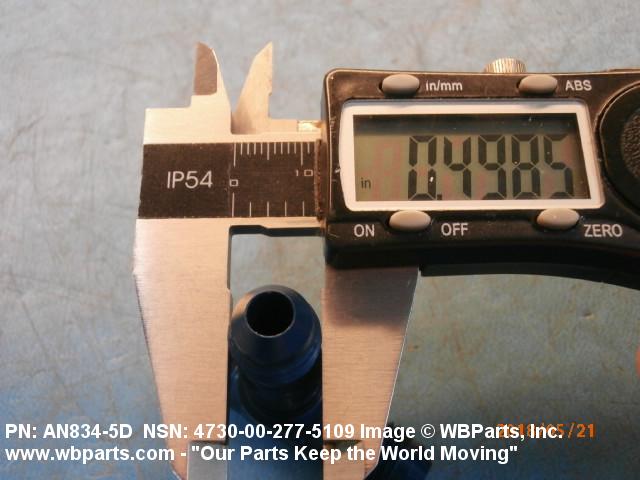

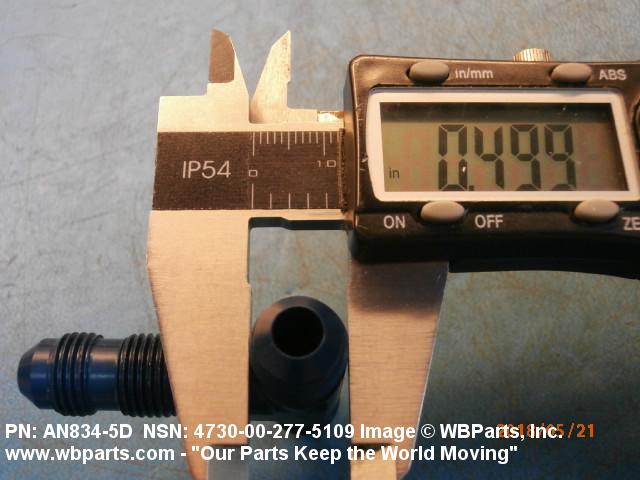

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 3RD END BULKHEAD |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS 0.500 INCHES 3RD END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 3RD END BULKHEAD |

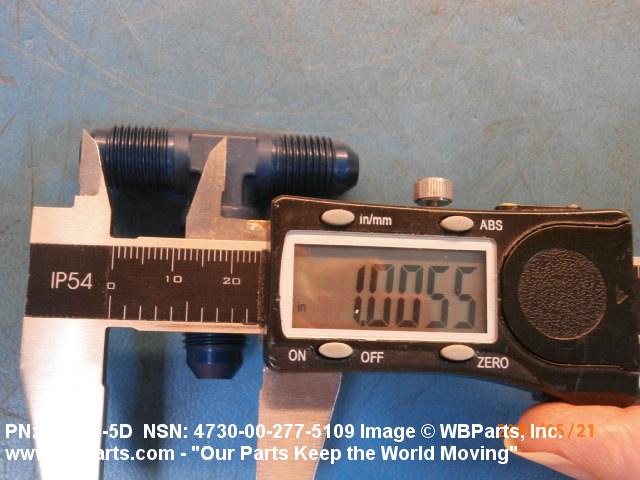

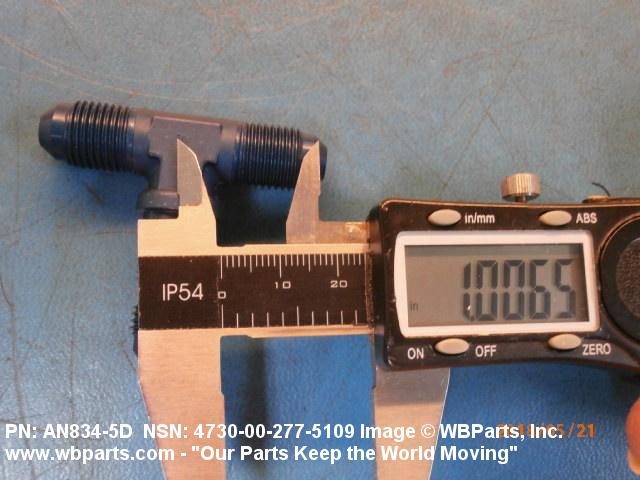

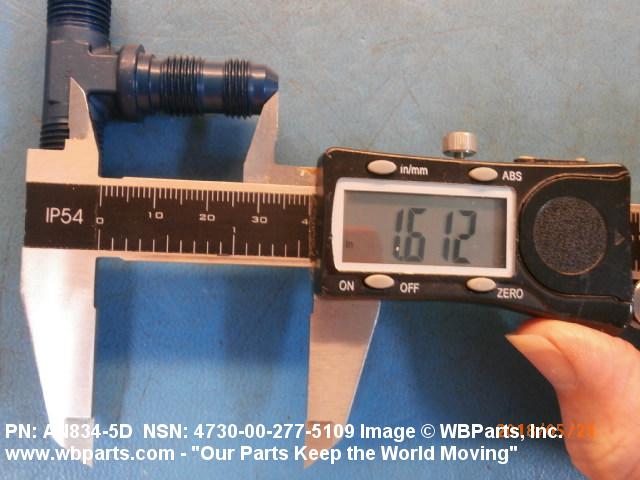

| LEG LENGTH | 1.016 INCHES NOMINAL 1ST END 1.016 INCHES NOMINAL 2ND END 1.609 INCHES NOMINAL 3RD END |
| SPECIFICATION/STANDARD DATA | 88044-AN834 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN834-5D |
