NSN 4520-01-499-8448 B4033331001, B4033331-001, 01-499-8448
Product Details | AIR CONDITIONING-HEATING COLLAR
4520-01-499-8448 A straight formed fitting with identical internal ends, used to form a connection of two air conditioning-heating fittings.
Part Alternates: B4033331001, B4033331-001, 4520-01-499-8448, 01-499-8448, 4520014998448, 014998448
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 06 AUG 2002 | 01-499-8448 | 15679 ( COLLAR, AIR CONDITIONING-HEATING ) |
Drawings & Photos | NSN 4520-01-499-8448
Cross Reference | NSN 4520-01-499-8448
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B4033331-001 | 56996 | DEPARTMENT OF THE ARMY HQ UNITED STATES ARMY COMMUNICATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-499-8448
Related Products | NSN 4520-01-499-8448
Technical Data | NSN 4520-01-499-8448
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 17.310 INCHES NOMINAL |
| OVERALL HEIGHT | 11.250 INCHES NOMINAL |
| OVERALL DEPTH | 2.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/11,ALLOY 6061-T6, 0.062 THICK |
| SURFACE TREATMENT | WASH; PRIME 1 COAT USING RUSTOLEUM 108 ETCHING SOLUTION; TOPCOAT PER RUSTOEUM 9400, 10.1 COLOR 17875 PER FED-STD-595 |
| SHEET METAL GAGE SIZE | 15 |

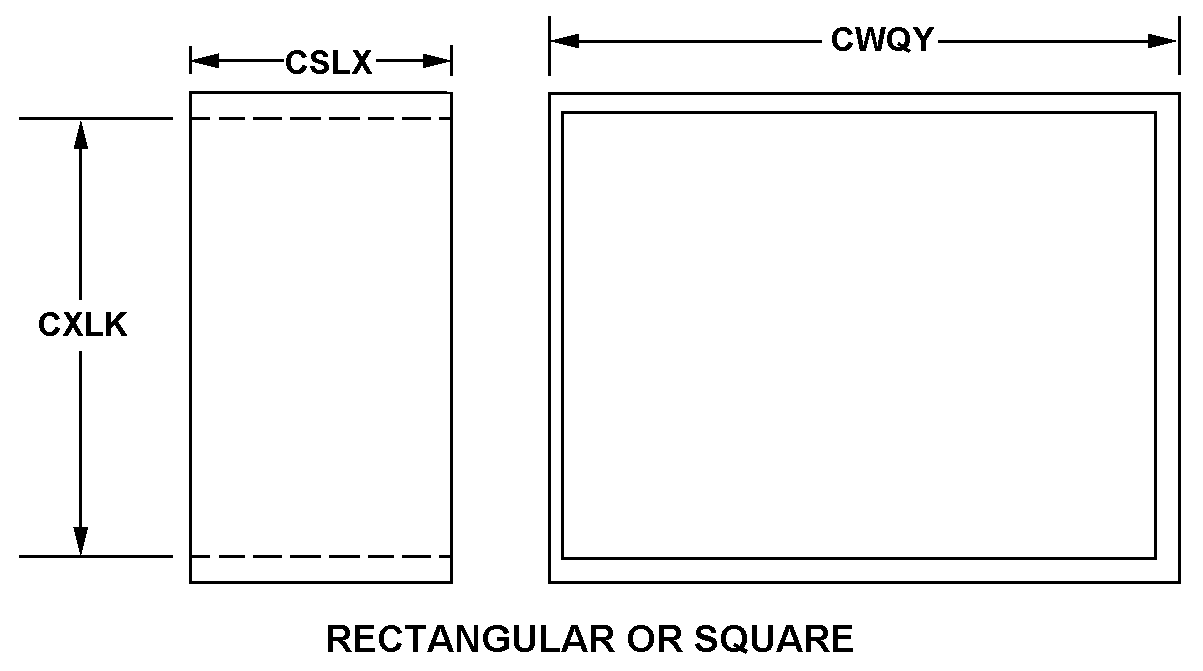

| STYLE DESIGNATOR | F3 RECTANGULAR OR SQUARE |
| FITTING OVERALL LENGTH | 13.810 INCHES NOMINAL |
| FITTING INSIDE HEIGHT | 7.750 INCHES NOMINAL |
| FITTING INSIDE WIDTH | 2.000 INCHES NOMINAL |
| SPECIAL FEATURES | HAS 2 HOLES .221-.226 DIA 100 DEG CSK .355 DIA CENTERED 1.342 FROM EACH SIDE EDGE AND 5.630 FROM BOTTOM EDGE; ALSO HAS 6 HOLES .250 DIA CENTERED .25 FROM TOP AND BOTTOM EDGES AND 0.250, 8.650 AND 17.060 FROM LEFT EDGE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ADAPTER, AIR DUCT |
Restrictions/Controls & Freight Information | NSN 4520-01-499-8448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051590 | PIPE/DUCT(AIR/SMOKE)D/ELBOWS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-499-8448
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
