Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-500-5165 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: 13228E42584, 13228E4258-4, 4520-01-500-5165, 01-500-5165, 4520015005165, 015005165
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 28 AUG 2002 | 01-500-5165 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-500-5165
Cross Reference | NSN 4520-01-500-5165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13228E4258-4 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-500-5165
Technical Data | NSN 4520-01-500-5165
| Characteristic | Specifications |
|---|---|

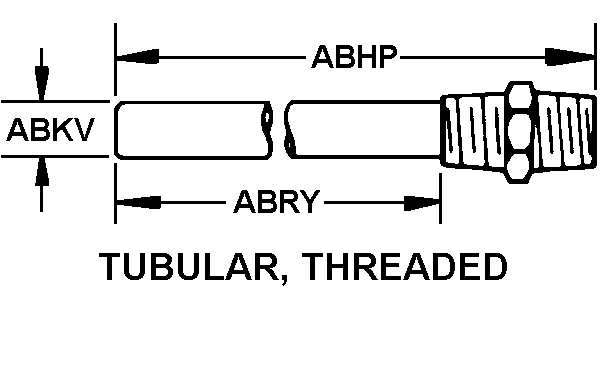

| BODY STYLE | 48 TUBULAR, THREADED |
