NSN 4520-01-499-9757 155073098006, 155-073098-006, 155-073098-006 REV 1
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-499-9757 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: 155073098006, 155-073098-006, 155-073098-006 REV 1, 155073098006REV1, 4520-01-499-9757, 01-499-9757, 4520014999757, 014999757
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 08 AUG 2002 | 01-499-9757 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-499-9757
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-499-9757
Technical Data | NSN 4520-01-499-9757
| Characteristic | Specifications |
|---|---|

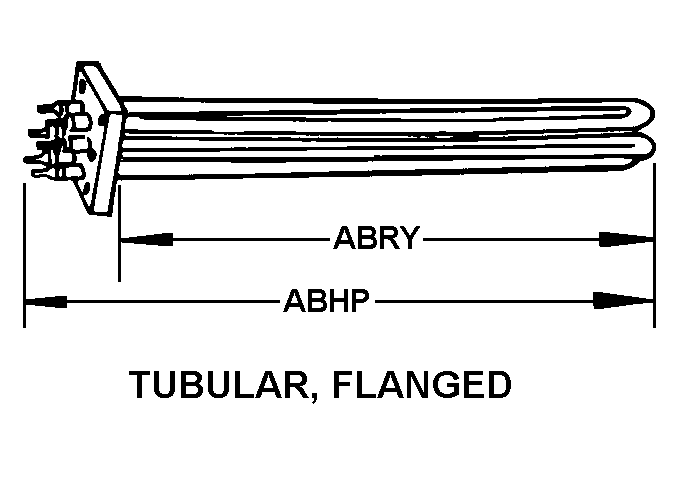

| BODY STYLE | 65 TUBULAR, FLANGED |
| OVERALL LENGTH | 36.563 INCHES NOMINAL |
| LENGTH | 30.000 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL CHROMIUM, COMP E PER QQ-R-175 OR ASTM B344 RESISTANCE WIRE |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE OR TWO OR THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 17000.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | 18.0 PER SQUARE INCH SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 19 IRREGULAR |
| TERMINAL BOX ENVIRONMENTAL PROTECTION | EXPLOSION RESISTANT AND MOISTURE RESISTANT |
| MOUNTING METHOD STYLE | 4 FLANGE TYPE MOUNTING FACILITY |
| HOLE DIAMETER | 0.875 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 9.250 INCHES NOMINAL |
| FLANGE DIAMETER | 11.000 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | 11.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 9.500 INCHES NOMINAL |
| MOUNTING FACILITY WIDTH | 11.000 INCHES NOMINAL |
| HOLE OR SLOT QUANTITY | 8 |
| FLANGE THICKNESS | 1.000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | HEATER, IMMERSION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | IMMERSION HEATER, FLANGED, SSGTG FUEL SERVICE HEATER |
