Product Details | VENTILATION DUCT TERMINAL

4520-01-500-2543 A fabricated device, generally constructed with a flared end and a straight or elbow type body. It may contain a damper and is designed to be used at the end of a ventilating duct to control the quantity and/or the direction of air flow.205156000001680000020400030Marine Hardware and Hull Items45200033Space and Water Heating Equipment56700034Building Components, Prefabricated

Part Alternates: B4033537001, B4033537-001, 4520-01-500-2543, 01-500-2543, 4520015002543, 015002543

Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment

Supply Group (FSG) NSN Assign. NIIN
45 19 AUG 2002 01-500-2543

Drawings & Photos | NSN 4520-01-500-2543


Cross Reference | NSN 4520-01-500-2543

Part Number Cage Code Manufacturer
B4033537-001 56996 DEPARTMENT OF THE ARMY HQ UNITED STATES ARMY COMMUNICATIONS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4520-01-500-2543

Technical Data | NSN 4520-01-500-2543

Characteristic Specifications
OVERALL LENGTH 7.700 INCHES NOMINAL
OVERALL WIDTH 3.340 INCHES NOMINAL
OVERALL HEIGHT 7.200 INCHES NOMINAL
MATERIAL ALUMINUM ALLOY

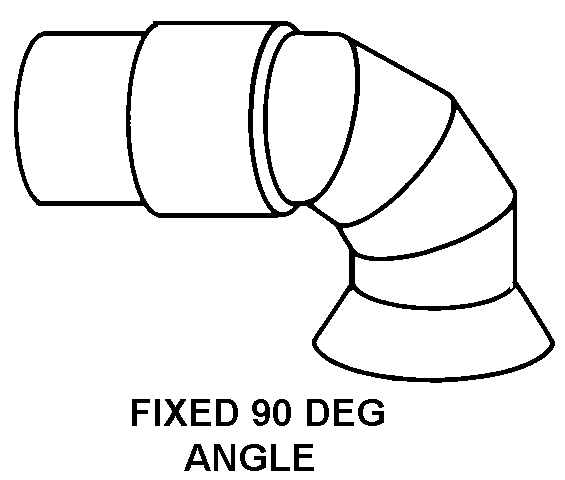

STYLE DESIGNATOR B3 FIXED 90 DEGREE ANGLE
DAMPER NOT INCLUDED
SPECIAL FEATURES MTL QQ-A-250/8 OR /11 IF DIP BRAZE PER MIL-B-7883 USING AL ALY SH 6061-T6, SEE DRAWING FOR ADDITIONAL DETAILS
SPECIFICATION/STANDARD DATA MIL-STD-454 REQT 9 GOVERNMENT STANDARD
III PART NAME ASSIGNED BY CONTROLLING AGENCY ADAPTER EXHAUST
