NSN 4520-01-490-3148 RD5552OP, RD-5552-OP, 72R2140
Product Details | VENTILATION DUCT TERMINAL
4520-01-490-3148 A fabricated device, generally constructed with a flared end and a straight or elbow type body. It may contain a damper and is designed to be used at the end of a ventilating duct to control the quantity and/or the direction of air flow.205156000001680000020400030Marine Hardware and Hull Items45200033Space and Water Heating Equipment56700034Building Components, Prefabricated
Part Alternates: RD5552OP, RD-5552-OP, 72R2140, 75R2140, 13502871, 4520-01-490-3148, 01-490-3148, 4520014903148, 014903148
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 25 SEP 2001 | 01-490-3148 | 15042 ( TERMINAL, VENTILATION DUCT ) |

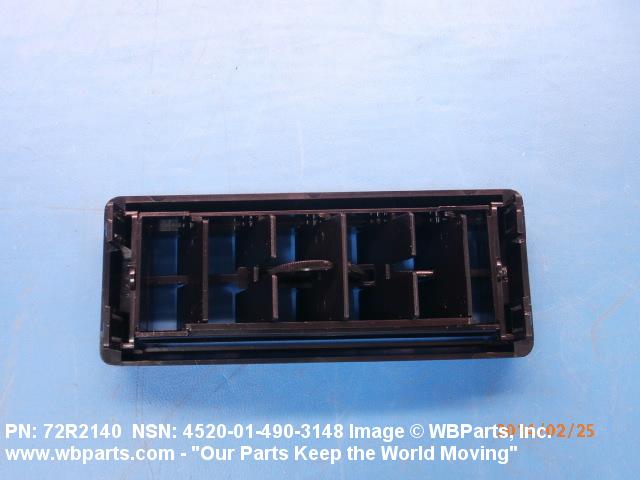

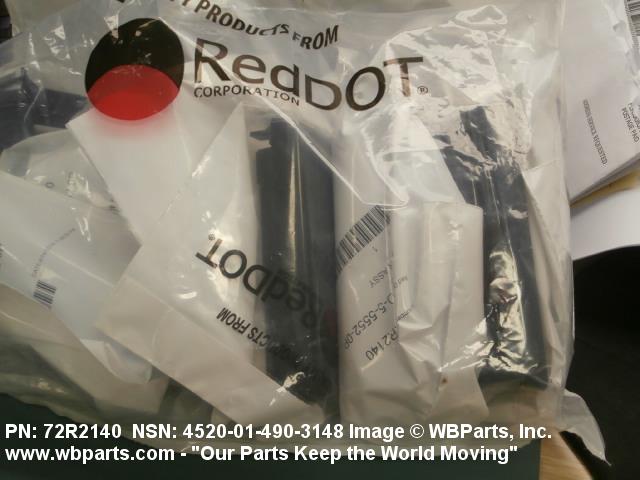

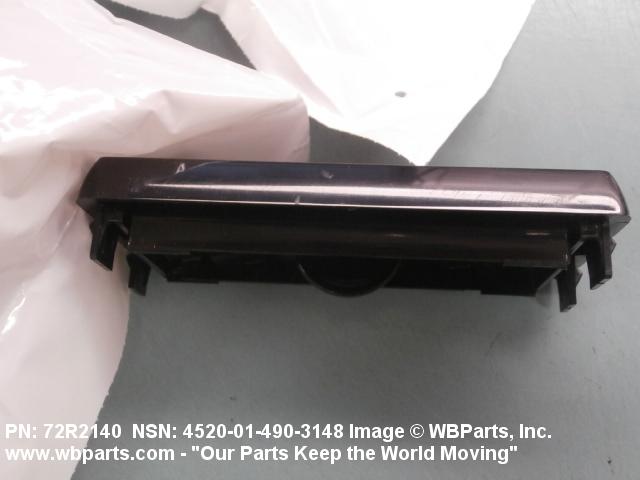

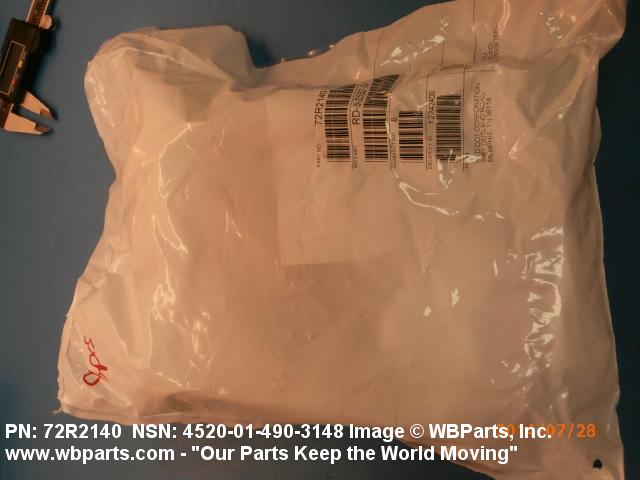

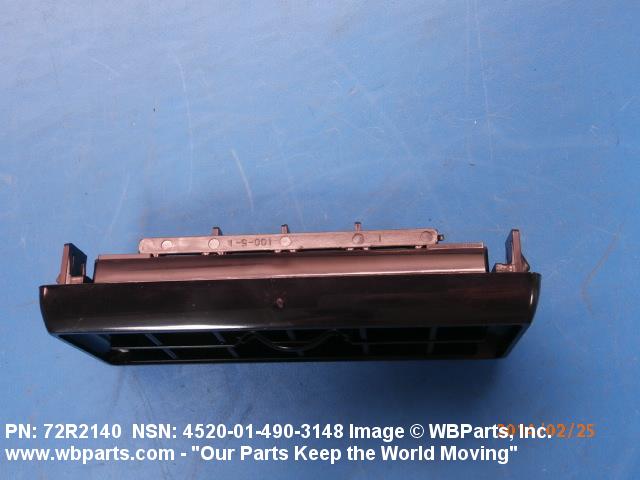

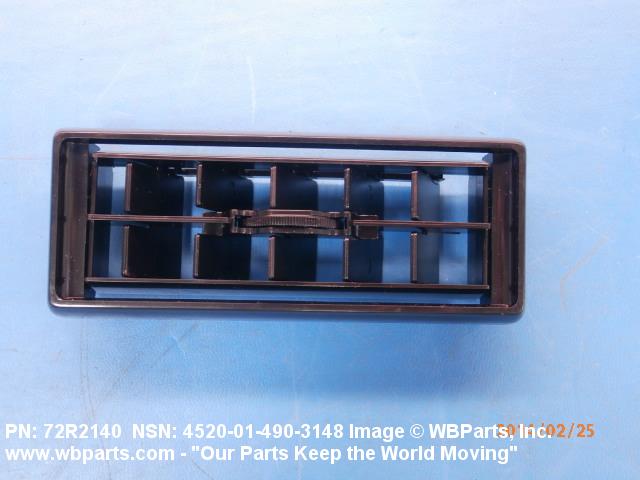

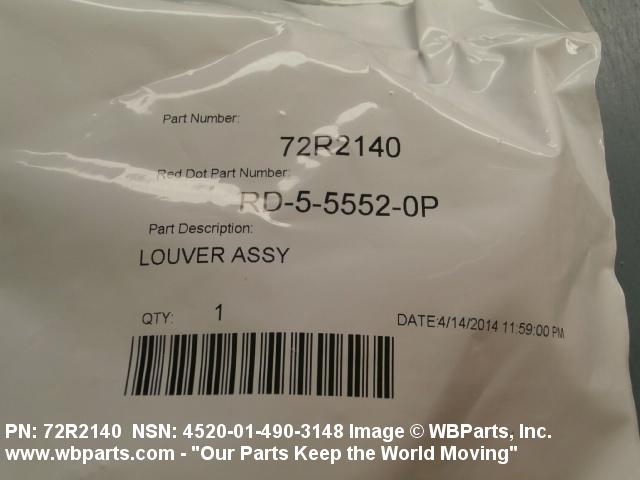

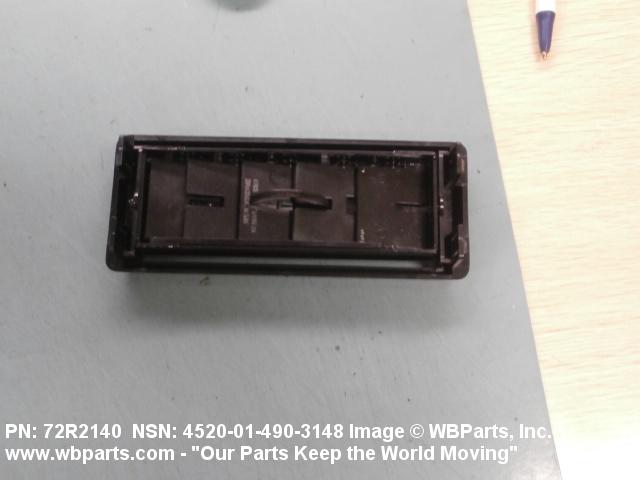

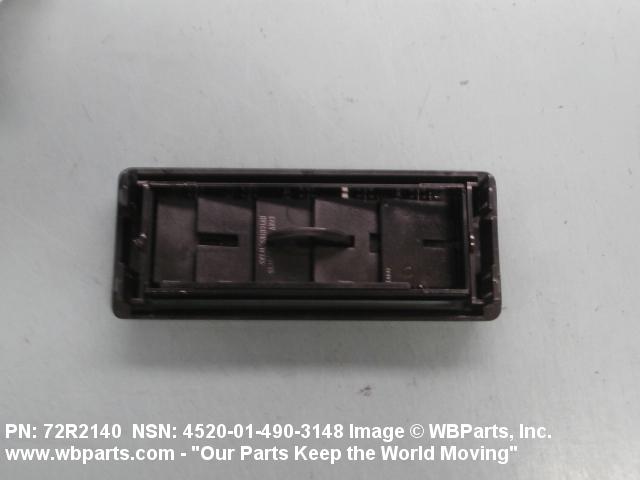

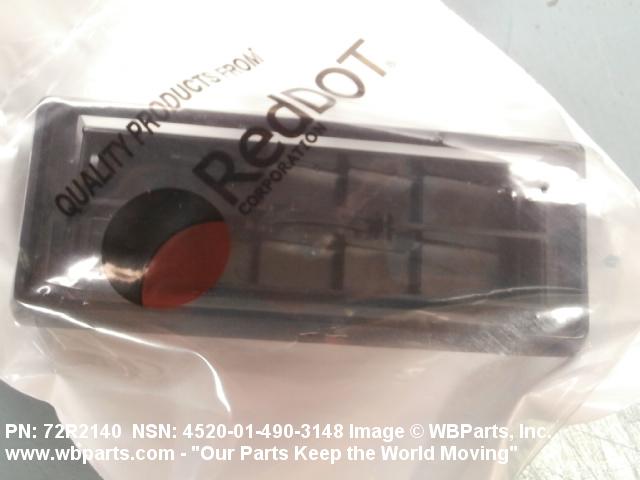

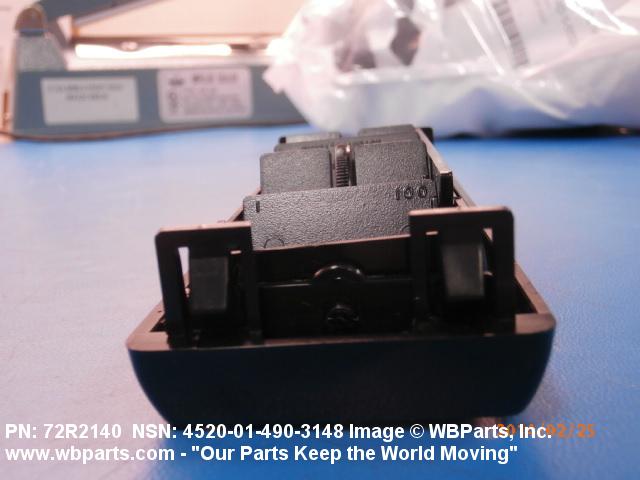

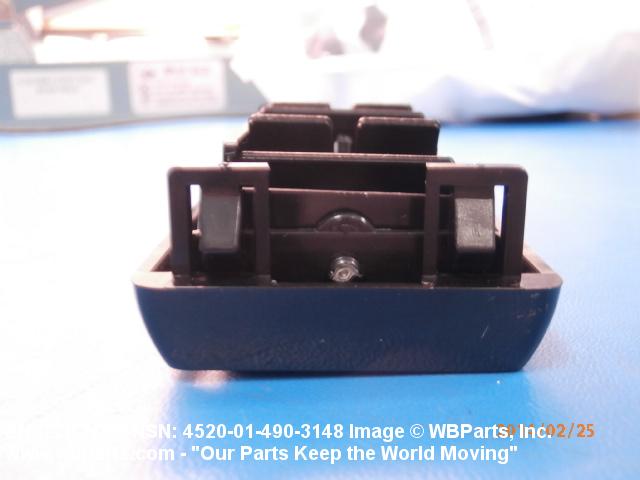

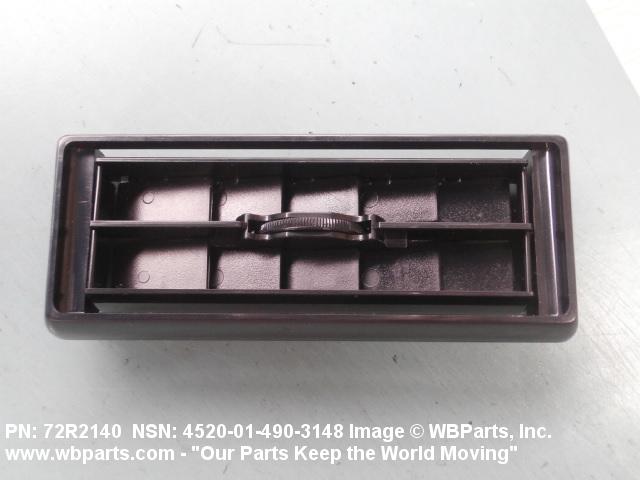

Drawings & Photos | NSN 4520-01-490-3148
Demand History | NSN 4520-01-490-3148
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 72R2140 | 2020-01-29 | 104 | DIBBS |
| RD-5552-OP | 2020-01-29 | 104 | DIBBS |
| 72R2140 | 2019-10-06 | 104 | DIBBS |
| RD-5552-OP | 2019-10-06 | 104 | DIBBS |
| 72R2140 | 2019-09-30 | 1 | DIBBS |
| RD-5552-OP | 2019-09-30 | 1 | DIBBS |
| 72R2140 | 2019-09-03 | 2 | DIBBS |
| 72R2140 | 2019-09-03 | 10 | DIBBS |
| RD-5552-OP | 2019-09-03 | 2 | DIBBS |
| RD-5552-OP | 2019-09-03 | 10 | DIBBS |
| 4520-01-490-3148 | 2018-11-20 | 5 | DIBBS |
| 4520-01-490-3148 | 2018-11-14 | 5 | United States |
| 4520-01-490-3148 | 2018-02-13 | 1 | DIBBS |
| 72R2140 | 2014-07-17 | 8 | United States |
| 72R2140 | 2014-04-11 | 8 | United States |
| 13502871 | 2014-04-09 | 8 | United States |
| 13502871 | 2014-02-10 | 14 | United States |
| 4520-01-490-3148 | 2012-11-26 | 8 | DIBBS |
| 4520-01-490-3148 | 2010-07-29 | 16 | DIBBS |
| 4520-01-490-3148 | 2010-03-06 | 9 | DIBBS |
| 4520-01-490-3148 | 2010-01-28 | 4 | DIBBS |
| 4520-01-490-3148 | 2010-01-18 | 2 | DIBBS |
| 4520-01-490-3148 | 2010-01-04 | 2 | DIBBS |
| 4520-01-490-3148 | 2009-12-18 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-490-3148
Related Products | NSN 4520-01-490-3148
Technical Data | NSN 4520-01-490-3148
| Characteristic | Specifications |
|---|---|

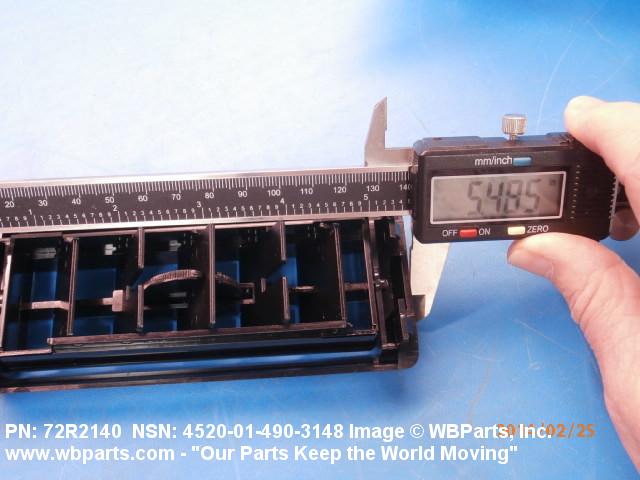

| OVERALL LENGTH | 5.400 INCHES NOMINAL |

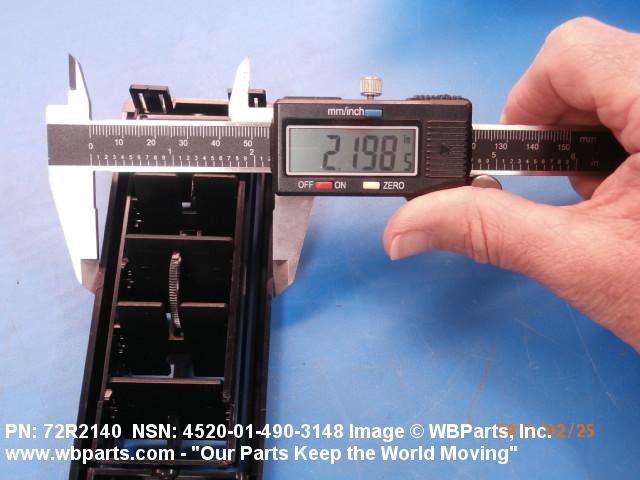

| OVERALL WIDTH | 2.200 INCHES NOMINAL |

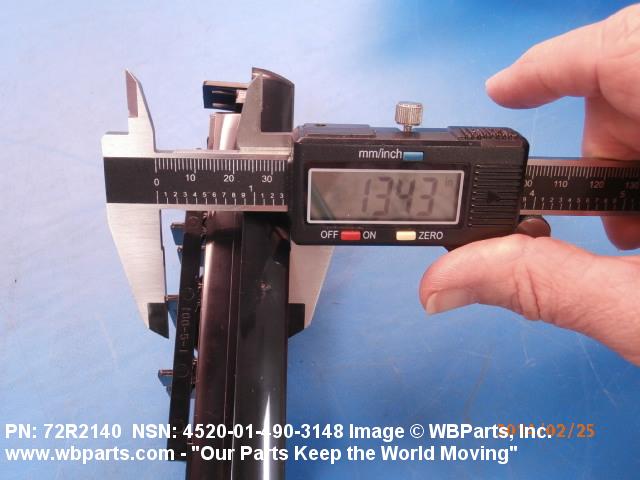

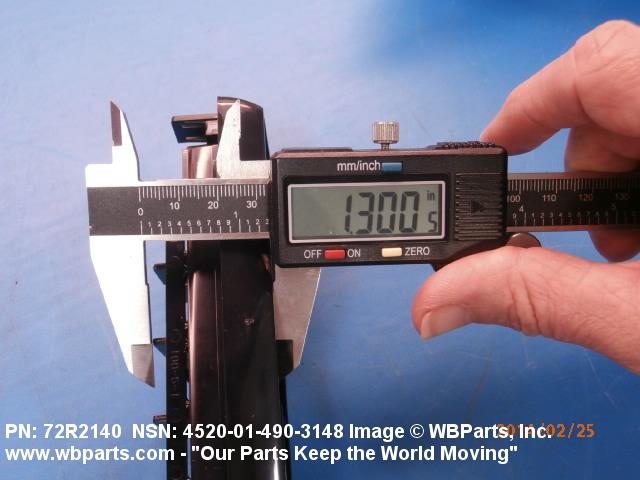

| OVERALL THICKNESS | 1.350 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | B4 STRAIGHT |
| DAMPER | NOT INCLUDED |
| SPECIAL FEATURES | BLACK IN COLOR |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | LOUVER, FRONT |
| III END ITEM IDENTIFICATION | 1430-01-378-6963 GUIDED MISSLE BATTERY CONTROL CENTER; MISSLE, VEHICLE MOUNTED STINGER (AVENGER) |
Restrictions/Controls & Freight Information | NSN 4520-01-490-3148
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-490-3148
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
