NSN 4030-00-958-8039 009588039
Product Details | SWAGING ROPE TERMINAL

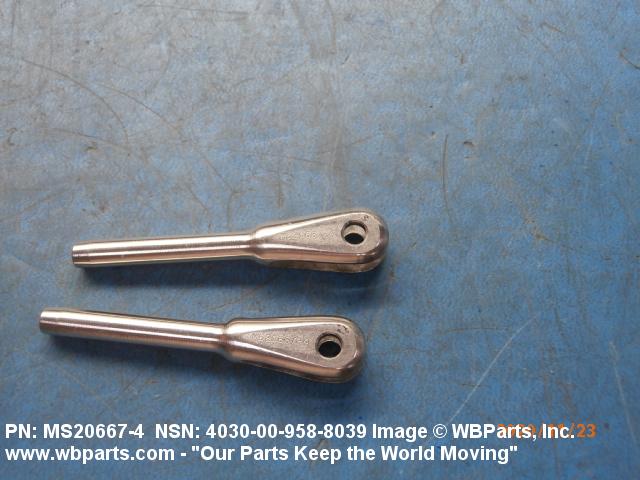

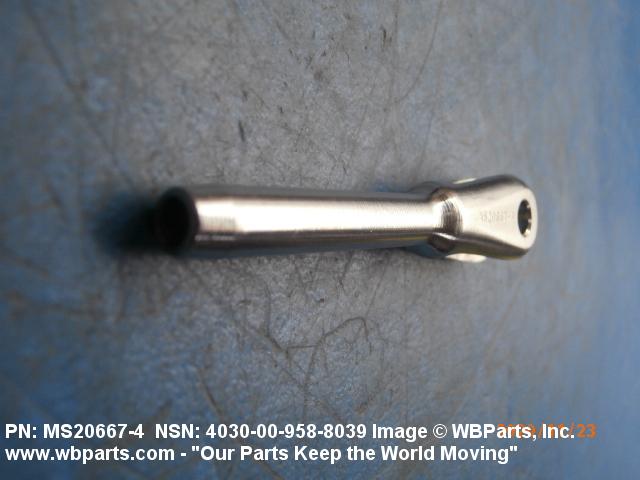

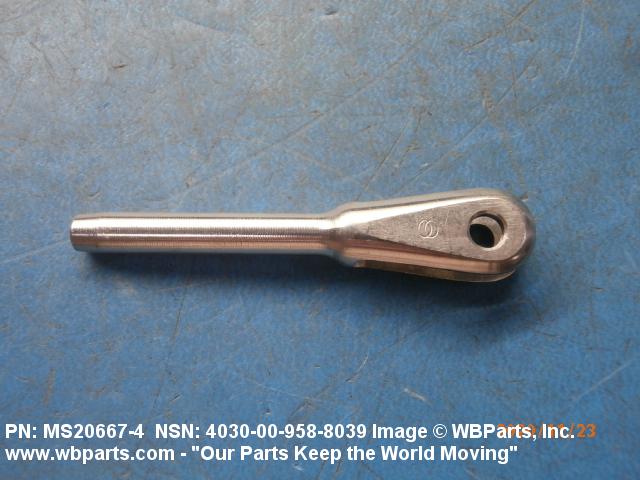

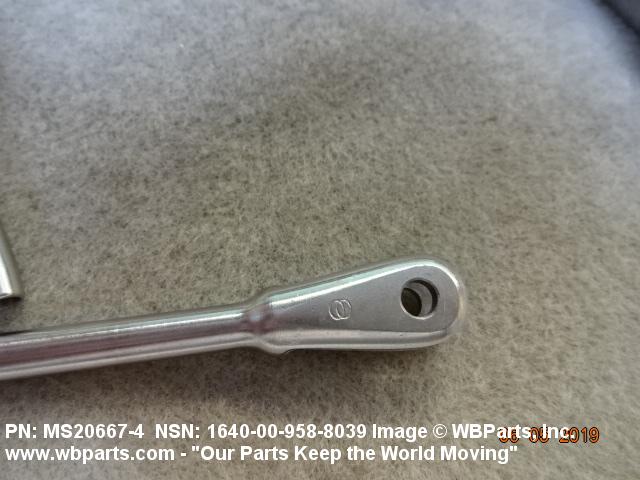

4030-00-958-8039 An item designed for swaging to a ROPE, FIBROUS or ROPE, WIRE as an end termination. One end is a cylindrical sleeve and the opposite end is formed in the shape of a fork, eye, slot, and the like, for attaching to another part. For items specifically designed for aviation, see TERMINAL, ROPE, SWAGING, AVIATION.
Part Alternates: 009588039
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-958-8039 | 41823 ( TERMINAL, ROPE, SWAGING ) |
Demand History | NSN 4030-00-958-8039
Part Number | Request Date | QTY | Origin |
---|---|---|---|
1640-00-958-8039 | 2018-12-352 | 10 | US |

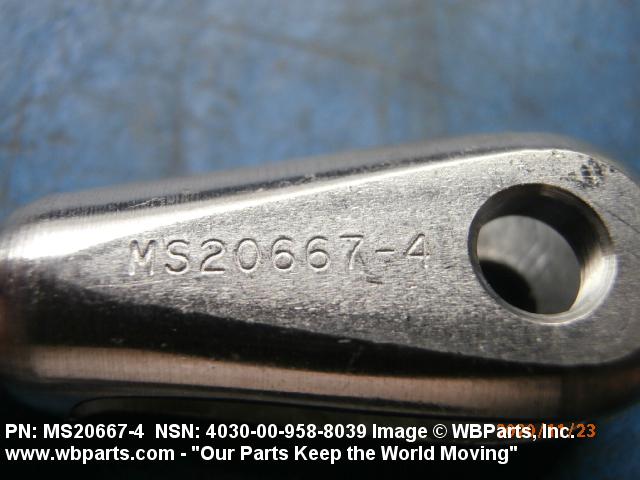

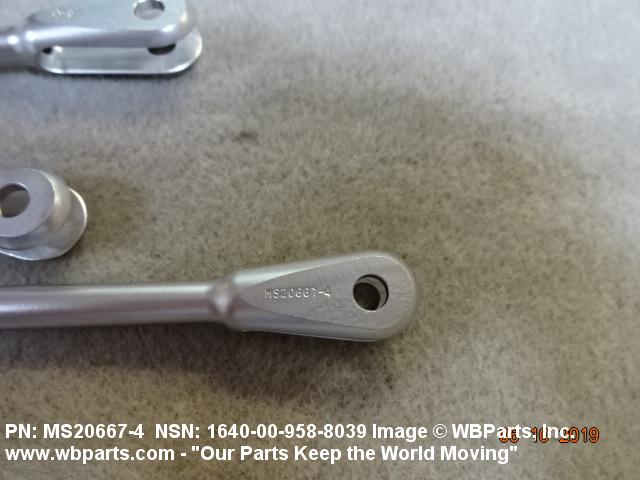

MS206674 | 2015-04-107 | 340 | United States |
MS206674 | 2015-02-33 | 25 | United States |
MS206674 | 2011-04-109 | 30 | United Kingdom |
1640-00-958-8039 | 2009-08-232 | 138 | DIBBS |
1640-00-958-8039 | 2009-04-99 | 65 | US |
MS206674 | 2007-07-192 | 15 | India |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-958-8039
Related Products | NSN 4030-00-958-8039
Technical Data | NSN 4030-00-958-8039
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-DTL-781 MIL STD SINGLE MATERIAL RESPONSE |

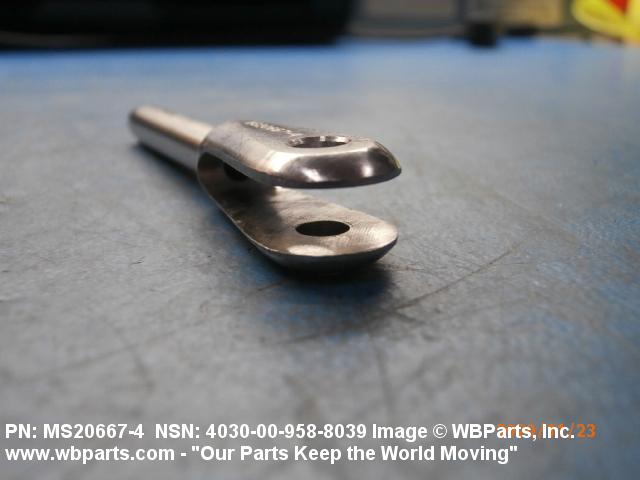

STYLE DESIGNATOR | 173 FORK |

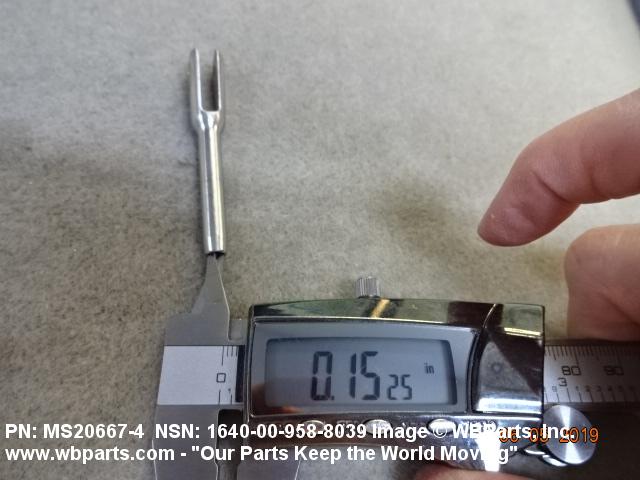

INSIDE DIAMETER | 0.154 INCHES NOMINAL |

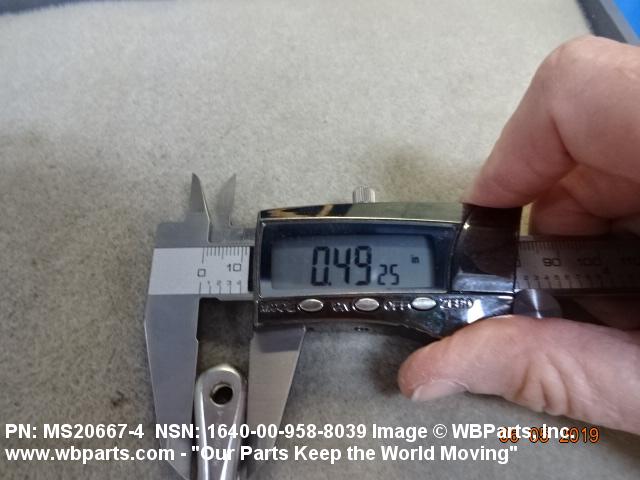

OVERALL WIDTH | 0.547 INCHES NOMINAL |

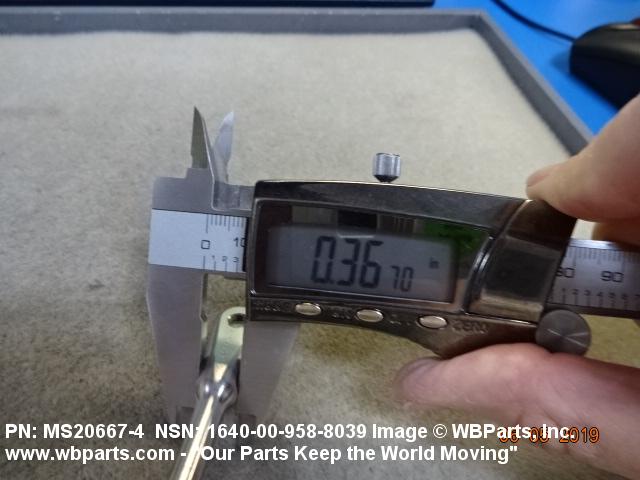

OPENING WIDTH | 0.383 INCHES NOMINAL |
LENGTH FROM PINHOLE CENTER TO END | 2.352 INCHES NOMINAL |
BOLT HOLE DIAMETER | 0.190 INCHES NOMINAL |
OVERALL HEIGHT | 0.195 INCHES NOMINAL |
PLAIN SHANK DIAMETER | 0.250 INCHES NOMINAL |
ACCOMMODATED MATERIAL DIAMETER | 0.125 INCHES NOMINAL |
BREAKING STRENGTH | 2000.0 POUNDS NOMINAL |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-781 |
Restrictions/Controls & Freight Information | NSN 4030-00-958-8039
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
