NSN 4030-00-641-2973 RA2611, 5317220052, 53-1722-0052
Product Details | SWAGING WIRE ROPE TERMINAL
4030-00-641-2973 An item designed for swaging to a ROPE, FIBROUS or ROPE, WIRE as an end termination. One end is a cylindrical sleeve and the opposite end is formed in the shape of a fork, eye, slot, and the like, for attaching to another part. For items specifically designed for aviation, see TERMINAL, ROPE, SWAGING, AVIATION.
Part Alternates: RA2611, 5317220052, 53-1722-0052, 4030-00-641-2973, 00-641-2973, 4030006412973, 006412973
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-641-2973 | 41823 ( TERMINAL, ROPE, SWAGING ) |

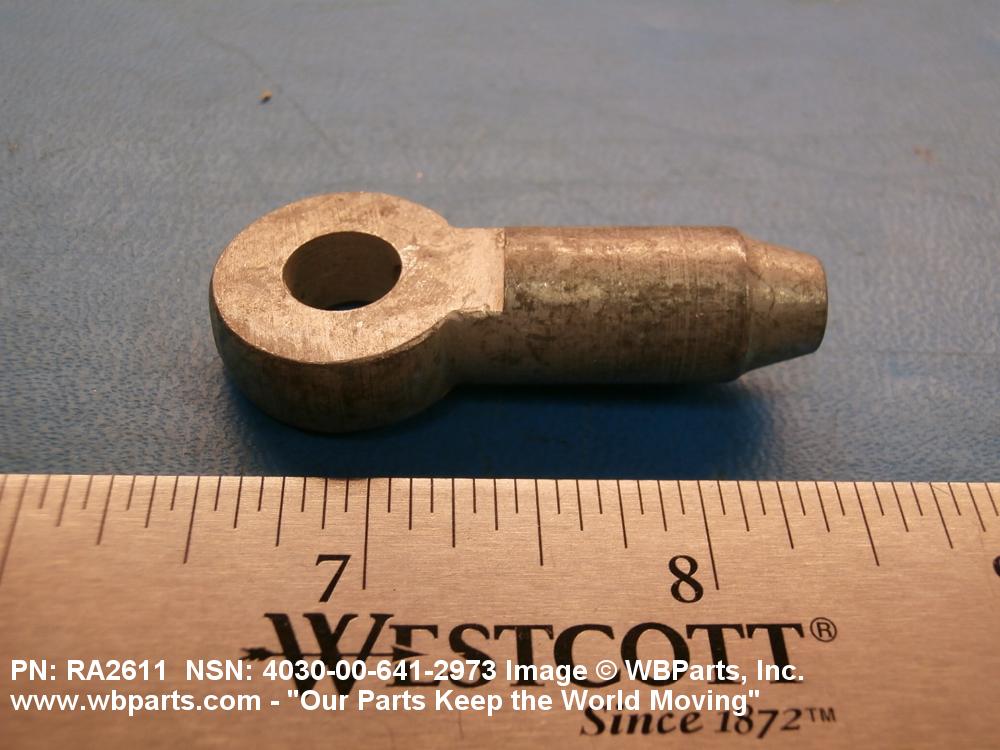

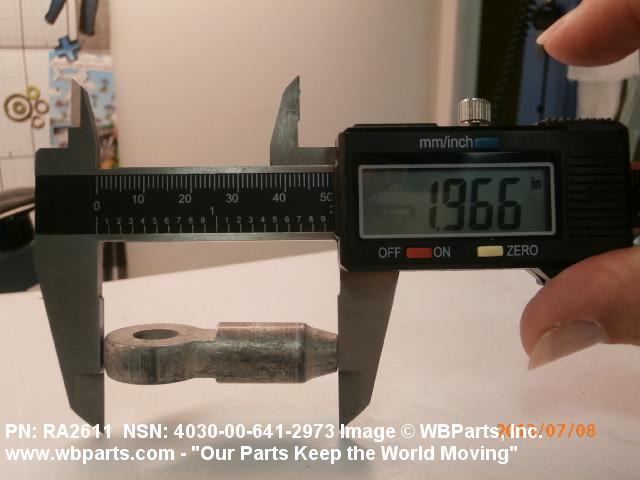

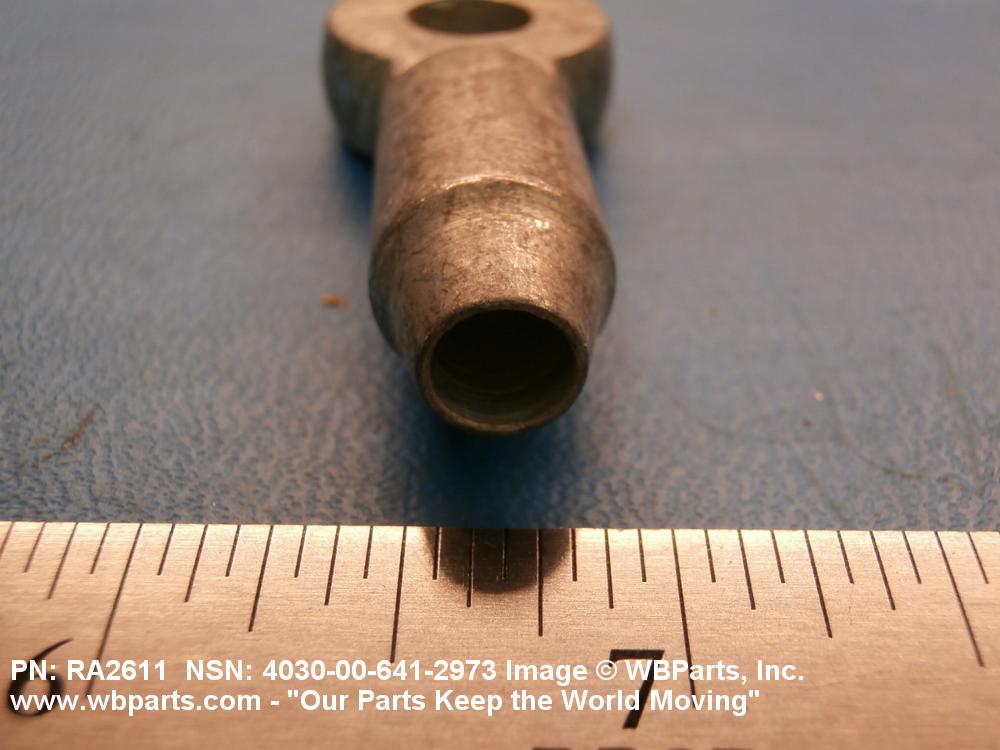

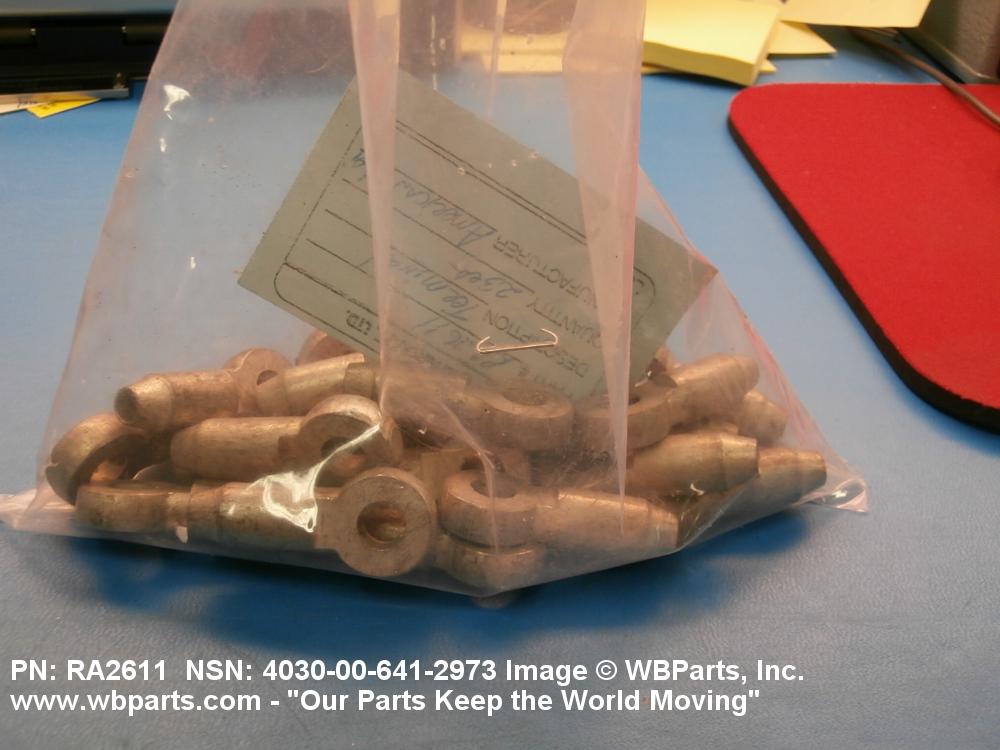

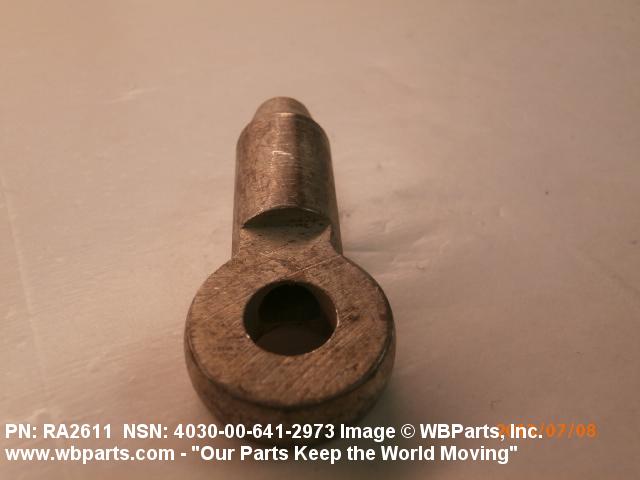

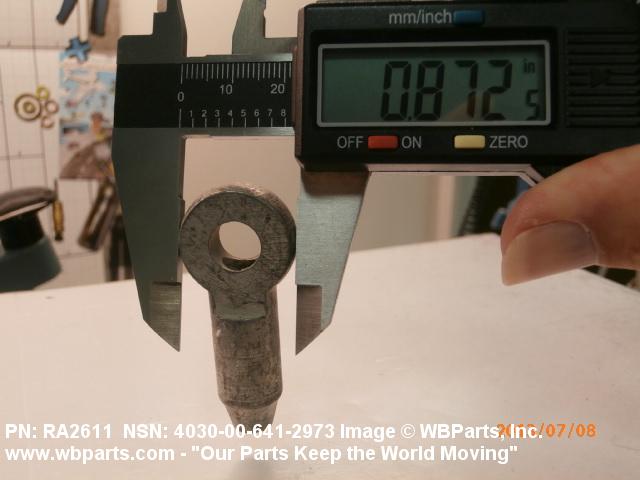

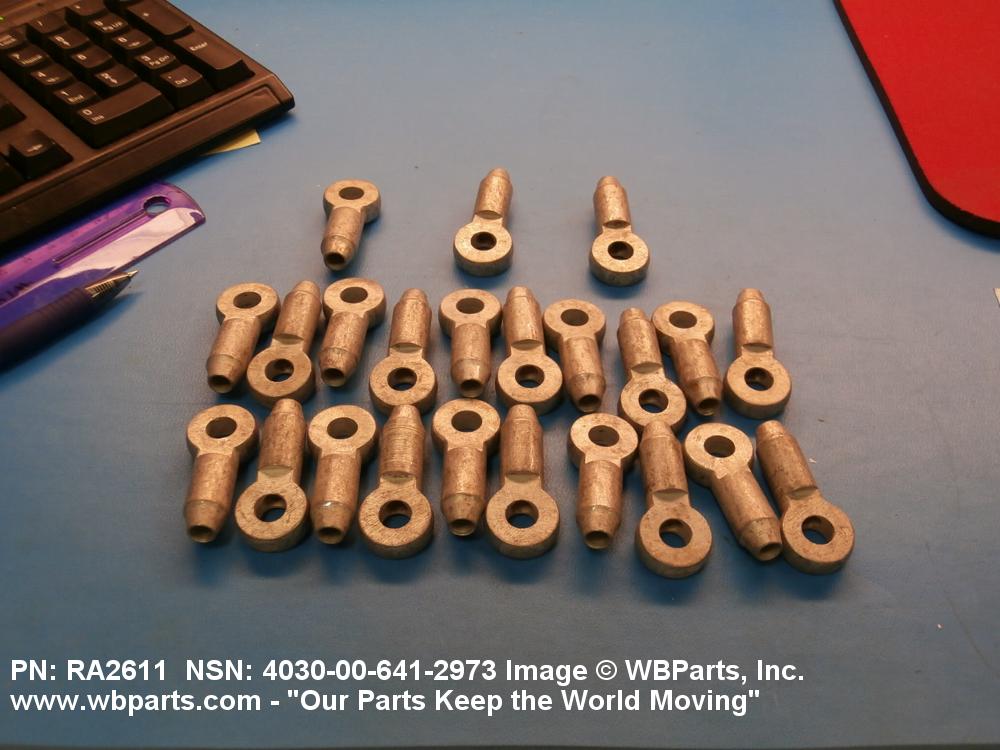

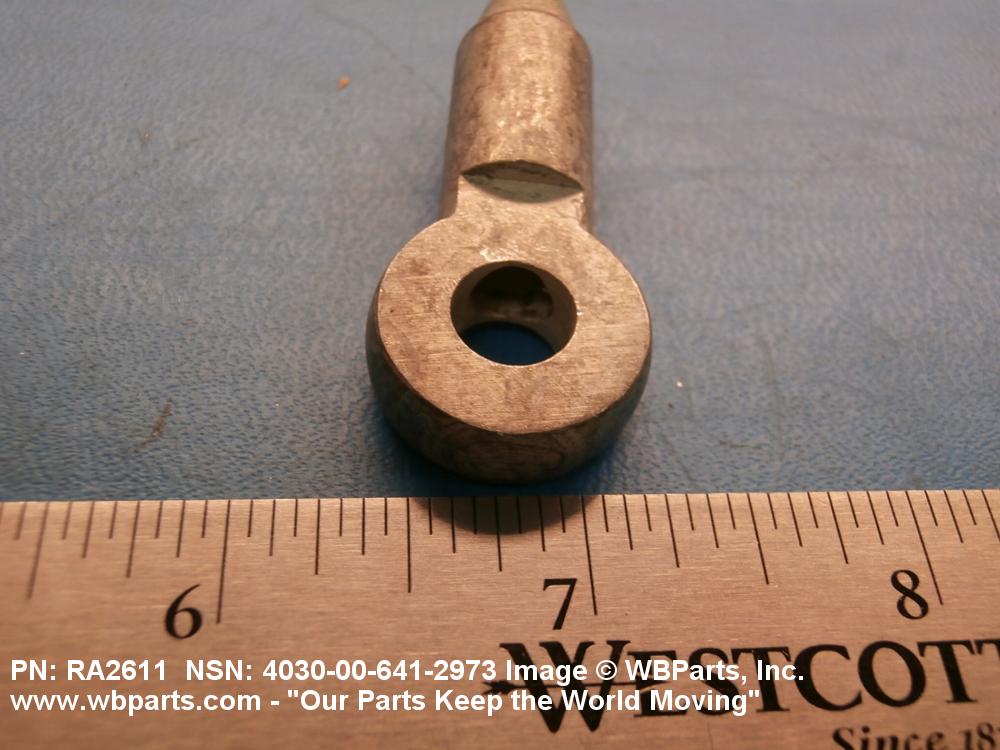

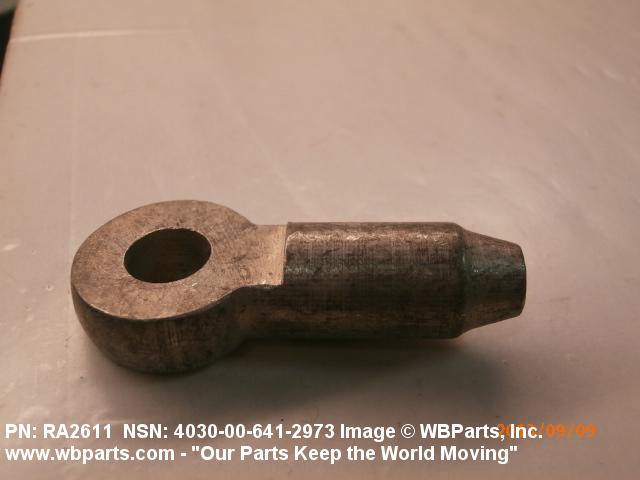

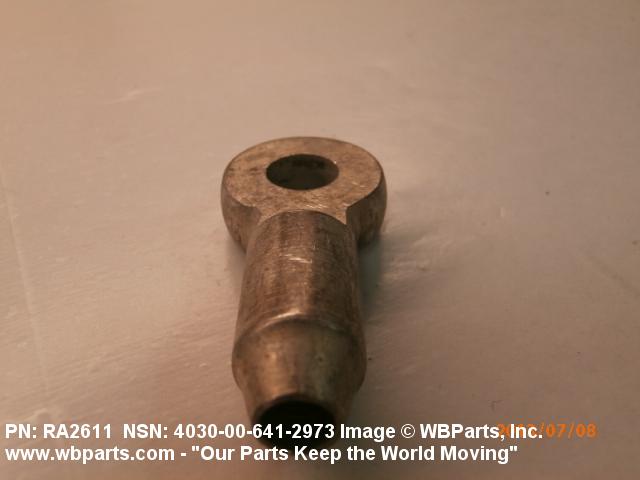

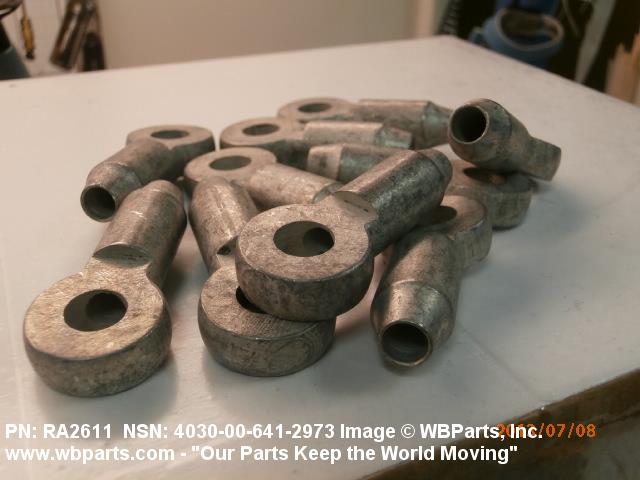

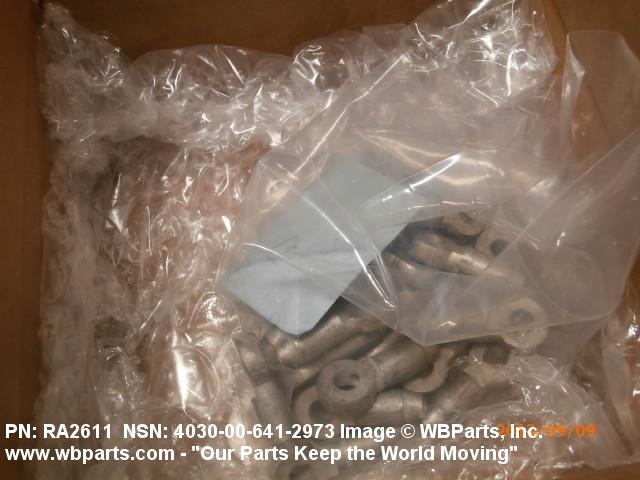

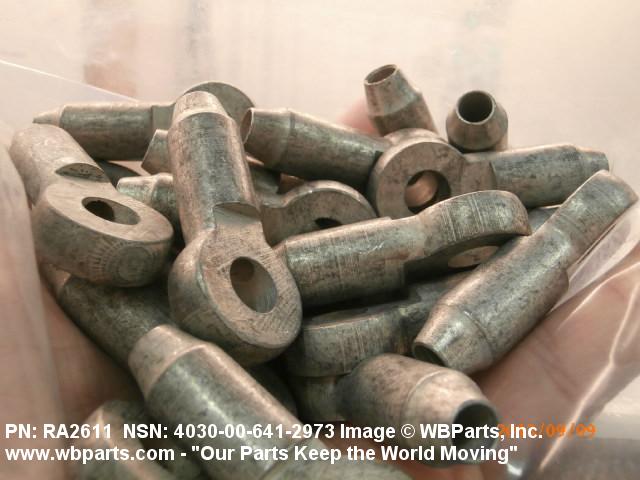

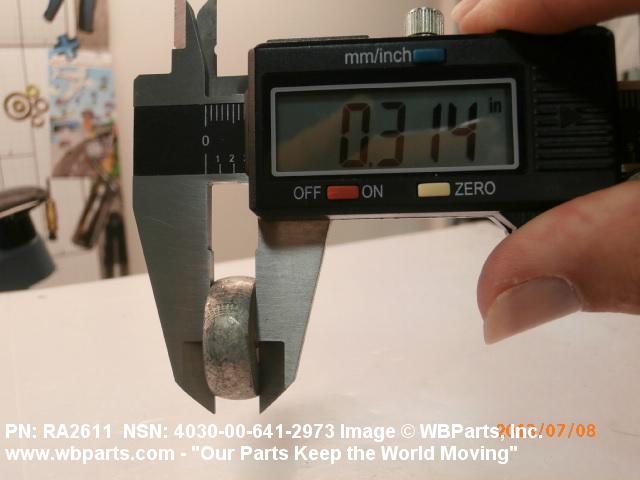

Drawings & Photos | NSN 4030-00-641-2973
Demand History | NSN 4030-00-641-2973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-641-2973 | 2020-04-106 | 37 | United States |
| 4030-00-641-2973 | 2015-12-356 | 60 | us |
| RA2611 | 2014-10-286 | 35 | United States |
| 4030-00-641-2973 | 2013-08-241 | 25 | United States |
| 4030-00-641-2973 | 2013-05-142 | 10 | United States |
| 4030-00-641-2973 | 2012-09-263 | 23 | United States |
| 4030-00-641-2973 | 2012-06-153 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-641-2973
Related Products | NSN 4030-00-641-2973
Technical Data | NSN 4030-00-641-2973
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 172 CLOSED |

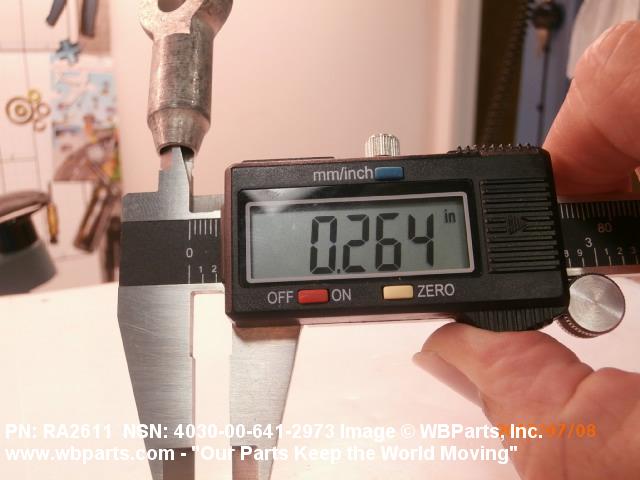

| INSIDE DIAMETER | 0.266 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| TONGUE THICKNESS | 0.312 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

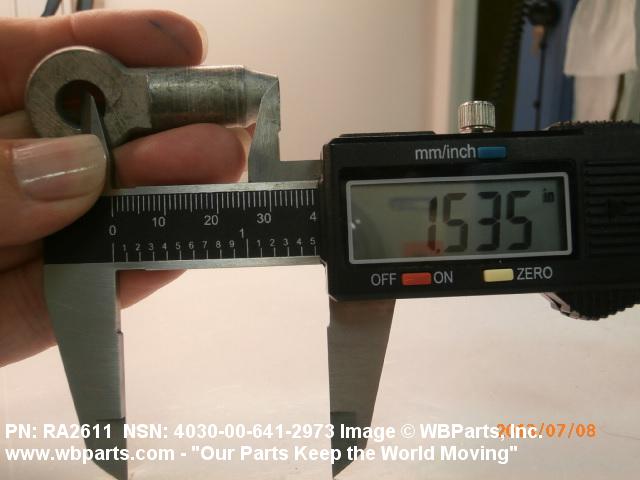

| LENGTH FROM PINHOLE CENTER TO END | 1.531 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.375 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.312 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

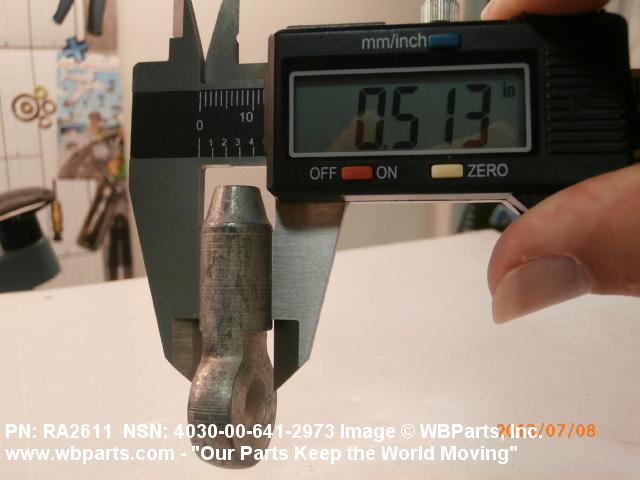

| PLAIN SHANK DIAMETER | 0.516 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.266 INCHES NOMINAL |
| MANUFACTURERS CODE | 5S058 |
| DESIGN CONTROL REFERENCE | 53-1722-0052 |
Restrictions/Controls & Freight Information | NSN 4030-00-641-2973
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-641-2973
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
