Product Details | WIRE ROPE

1640-00-959-1755 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.

Part Alternates: 009591755

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 00-959-1755

Drawings & Photos | NSN 1640-00-959-1755


Demand History | NSN 1640-00-959-1755

Part Number Request Date QTY Origin
1640-00-959-1755 2010-07-197 1 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1640-00-959-1755

Technical Data | NSN 1640-00-959-1755

Characteristic Specifications
MATERIAL STEEL IMPROVED PLOW STRAND
CORE CONSTRUCTION FIBER

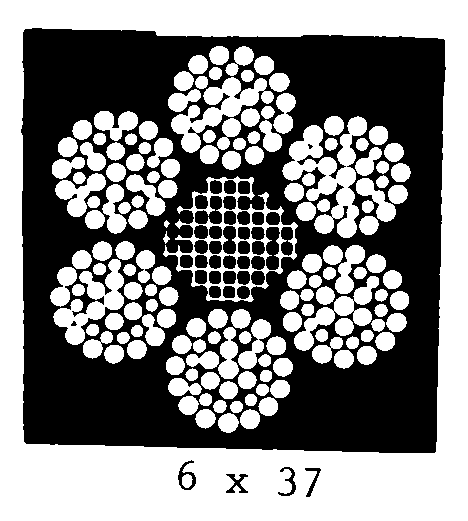

STYLE DESIGNATOR A97 6 X 37
LAY METHOD RIGHT REGULAR ALL LAYERS
PREFABRICATION FORM PREFORMED
DIAMETER 0.750 INCHES MINIMUM AND 0.781 INCHES MAXIMUM ROPE
BREAKING STRENGTH 45200.000 POUNDS NOMINAL
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND 3 CLASS AND 2 CONSTRUCTION
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE RRR571
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE RRW410

Restrictions/Controls & Freight Information | NSN 1640-00-959-1755

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
