NSN 1640-00-967-1786 009671786
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-967-1786 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 009671786
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-967-1786 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Demand History | NSN 1640-00-967-1786
Part Number | Request Date | QTY | Origin |
---|---|---|---|
1640-00-967-1786 | 2013-11-318 | 10 | US |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-967-1786
Related Products | NSN 1640-00-967-1786
Technical Data | NSN 1640-00-967-1786
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING TERMINAL ATTACHMENT FIRST END STEEL CORROSION RESISTING WIRE ROPE STEEL COMP 302 CORE |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-5424 MIL SPEC SINGLE MATERIAL RESPONSE CORE |
CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
STYLE DESIGNATOR | A120 7 X 7 |
LAY METHOD | RIGHT REGULAR ALL LAYERS |
PREFABRICATION FORM | PREFORMED |
OVERALL LENGTH | 6.166 FEET NOMINAL |
DIAMETER | 0.062 INCHES NOMINAL ROPE |
BREAKING STRENGTH | 240.000 POUNDS NOMINAL |
END TYPE | TERMINAL ATTACHMENT FIRST END PLAIN SECOND END |

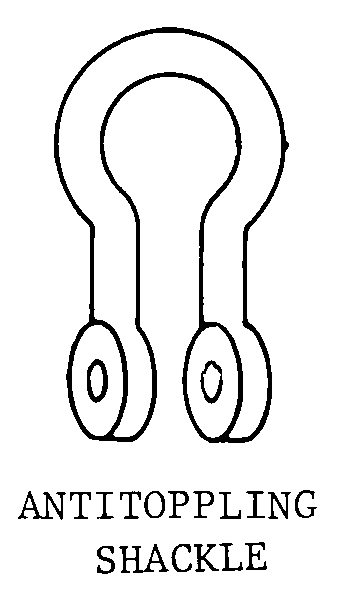

ATTACHMENT STYLE | D120 ANTITOPPLING SHACKLE OVERALL |
MANUFACTURERS CODE | 97499 |
DESIGN CONTROL REFERENCE | 205-030-736-1 |
Restrictions/Controls & Freight Information | NSN 1640-00-967-1786
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
