NSN 4010-00-800-8900 10884613, 00-800-8900, 008008900
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-800-8900 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 10884613, 4010-00-800-8900, 00-800-8900, 4010008008900, 008008900
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1962 | 00-800-8900 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |

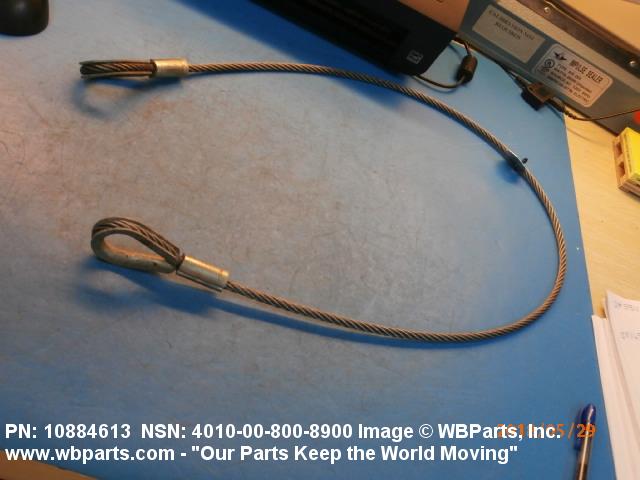

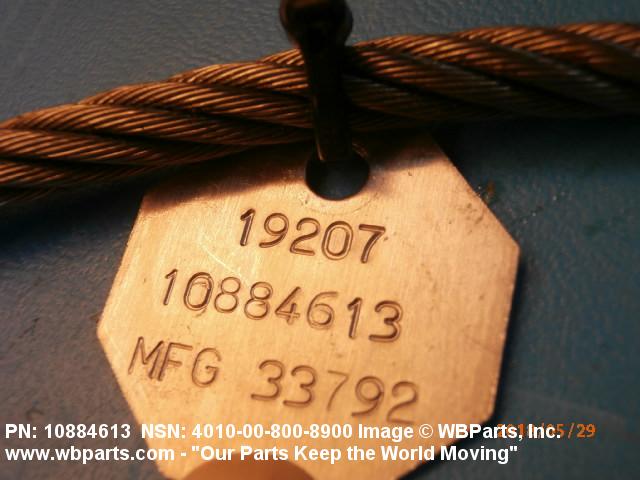

Drawings & Photos | NSN 4010-00-800-8900
Demand History | NSN 4010-00-800-8900
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-00-800-8900 | 2024-05-127 | 1 | United States |
| 10884613 | 2024-04-100 | 48 | DIBBS |
| 4010-00-800-8900 | 2024-04-99 | 1 | United States |
| 10884613 | 2023-10-292 | 36 | DIBBS |
| 10884613 | 2023-10-277 | 36 | DIBBS |
| 10884613 | 2019-11-325 | 91 | DIBBS |
| 10884613 | 2019-11-317 | 91 | DIBBS |
| 4010-00-800-8900 | 2018-09-249 | 57 | DIBBS |
| 4010-00-800-8900 | 2018-05-121 | 1 | United States |
| 4010-00-800-8900 | 2011-05-124 | 92 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-800-8900
Related Products | NSN 4010-00-800-8900
Technical Data | NSN 4010-00-800-8900
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW WIRE ROPE |
| CORE CONSTRUCTION | FIBER |

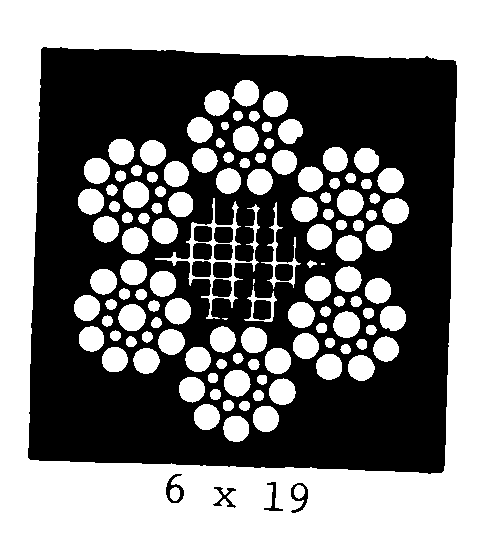

| STYLE DESIGNATOR | A54 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 41.750 FEET MINIMUM AND 42.250 FEET MAXIMUM |

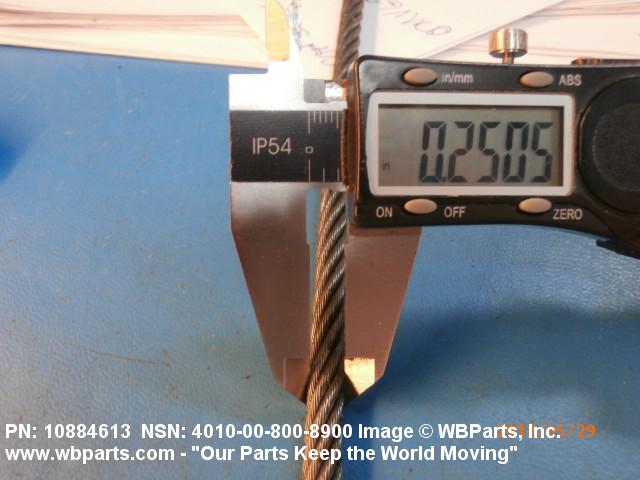

| DIAMETER | 0.250 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 5480.0 POUNDS NOMINAL |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| ATTACHMENT STYLE | D148 CLOSED SOCKET BOTH ENDS |
| LOOP RETENTION METHOD | CLAMP |

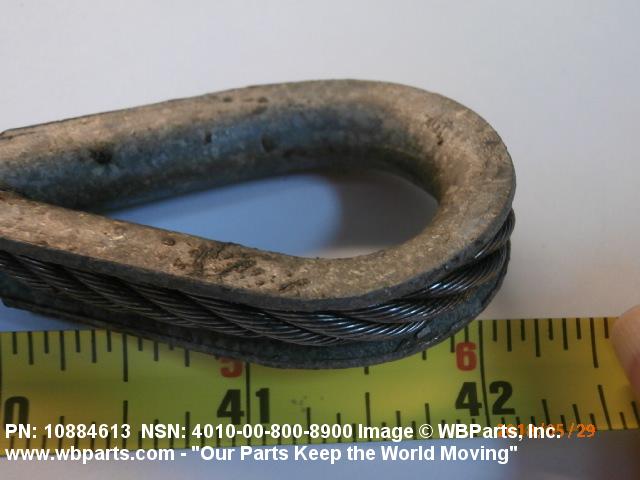

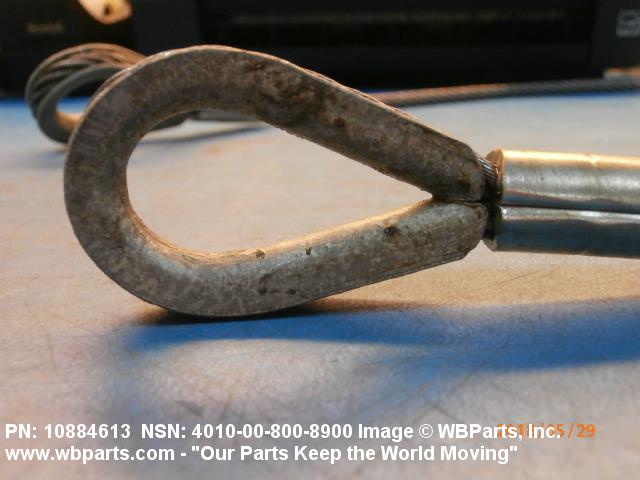

| THIMBLE STYLE | E6 SPLIT OVAL BOTH ENDS |
| THIMBLE QUANTITY | 2 BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 4010-00-800-8900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-800-8900
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PQ | Special Tools (Components) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
