Product Details | SWAGING WIRE ROPE BALL END
4030-00-132-9171 An item designed for attaching to an item and is used with socket terminal. Its physical shape is that of a ball or modified cylinder. The ball type may have a shank on one end, or identical shanks on each end. For items specifically designed for aviation, see BALL END, WIRE ROPE, SWAGING, AVIATION.
Part Alternates: 001329171
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-132-9171 | 16284 ( BALL END, WIRE ROPE, SWAGING ) |

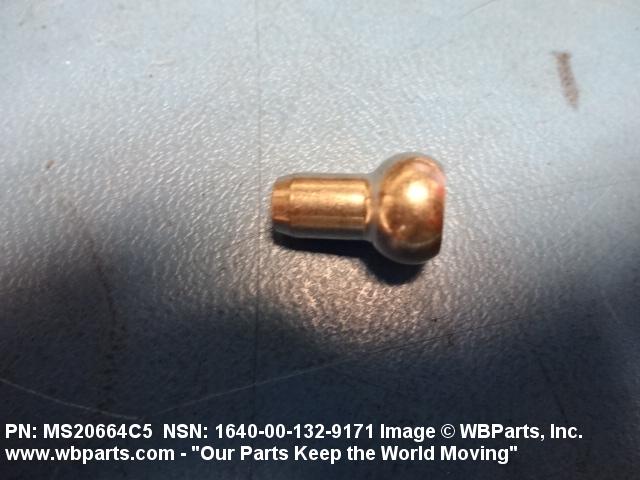

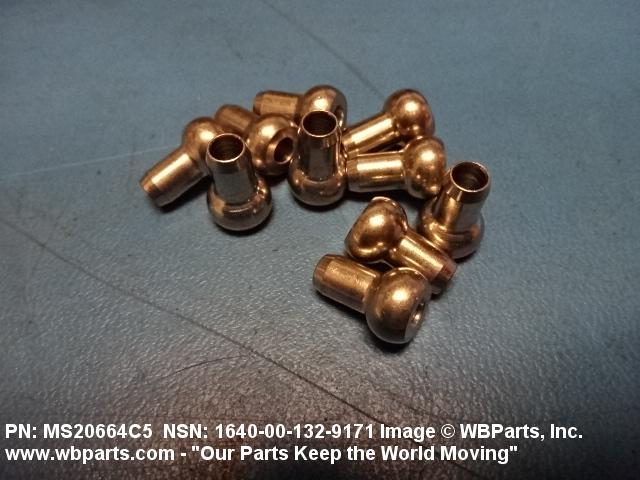

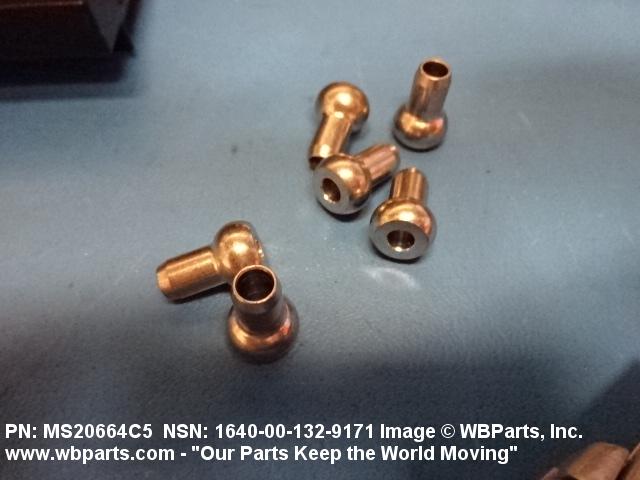

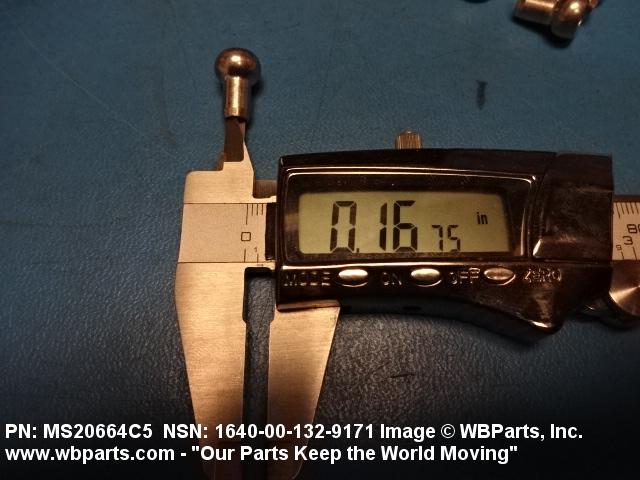

Drawings & Photos | NSN 1640-00-132-9171
Demand History | NSN 4030-00-132-9171
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20664C5 | 2021-02-18 | 2 | United States |
| MS20664C5 | 2019-03-04 | 6 | United States |
| MS20664C5 | 2019-03-01 | 6 | United States |
| MS20664C5 | 2014-07-03 | 200 | Canada |
| MS20664C5 | 2011-03-25 | 20 | United Kingdom |
| MS20664C5 | 2009-02-18 | 75 | United States |
| MS20664C5 | 2009-01-21 | 20 | United States |
| 1640-00-132-9171 | 2007-06-21 | 1559 | DIBBS |
| 1640-00-132-9171 | 2007-03-13 | 593 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4030-00-132-9171
1640-00-132-9172, 1640-00-132-9173, 1640-00-132-9178, 1640-00-132-9179, 1640-00-132-9180
Technical Data | NSN 4030-00-132-9171
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |

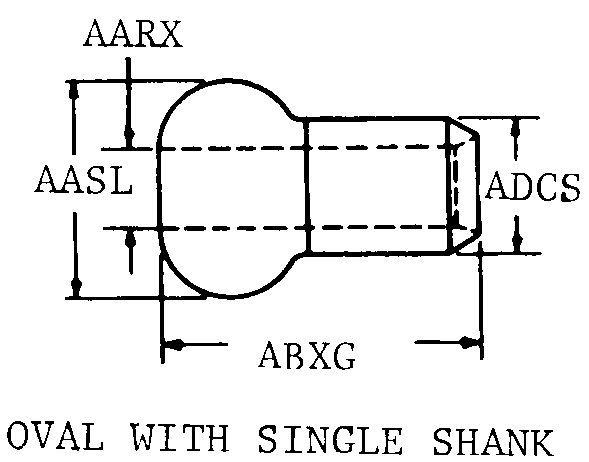

| STYLE DESIGNATOR | 165 OVAL WITH SINGLE SHANK |

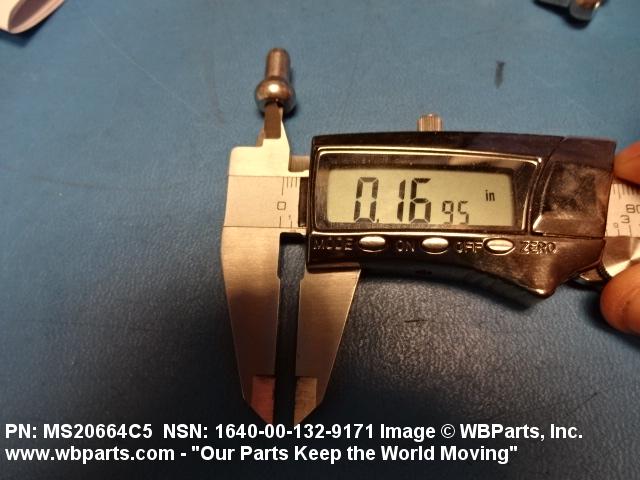

| INSIDE DIAMETER | 0.169 INCHES MINIMUM AND 0.173 INCHES MAXIMUM |

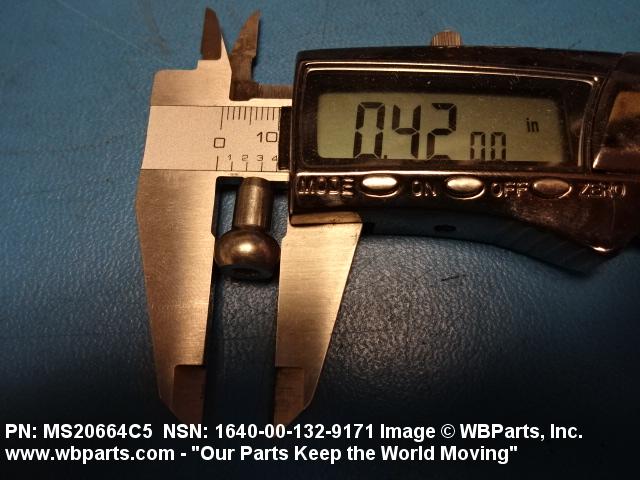

| HEAD DIAMETER | 0.420 INCHES MINIMUM AND 0.424 INCHES MAXIMUM |

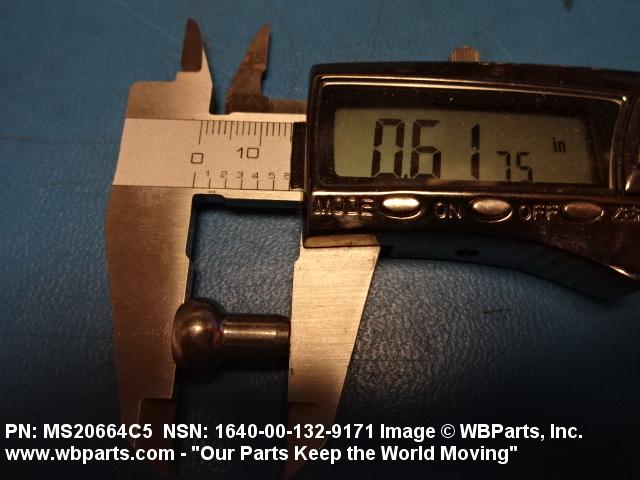

| OVERALL LENGTH | 0.616 INCHES MINIMUM AND 0.621 INCHES MAXIMUM |

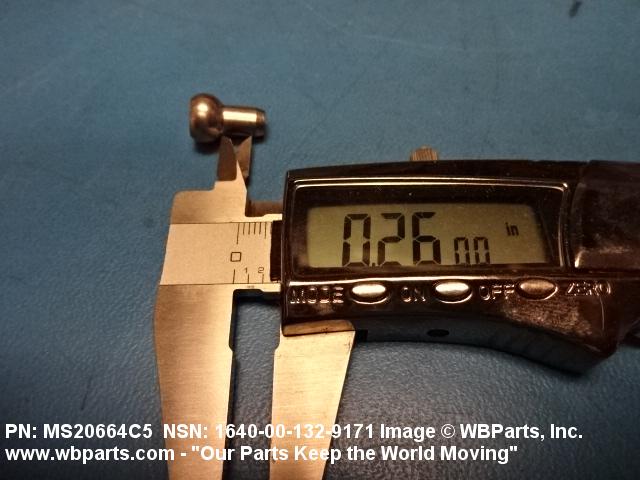

| PLAIN SHANK DIAMETER | 0.255 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 0.156 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-781 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20664C5 |
Restrictions/Controls & Freight Information | NSN 4030-00-132-9171
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
