NSN 1640-00-132-9178 MS206687, MS20668-7, AN6687
Product Details | SWAGING ROPE TERMINAL
1640-00-132-9178 An aircraft control cable system item designed for swaging to a ROPE, FIBROUS or ROPE, WIRE as an end termination. One end is a cylindrical sleeve and the opposite end is formed in the shape of a fork, eye, slot and the like, for attaching another part.
Part Alternates: MS206687, MS20668-7, AN6687, AN668-7, AN668F7, 2049217B7, 6687, 668-7, 66B7, 66B-7, 1640-00-132-9178, 00-132-9178, 1640001329178, 001329178
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-132-9178 | 66951 ( TERMINAL, ROPE, SWAGING, AVIATION ) |

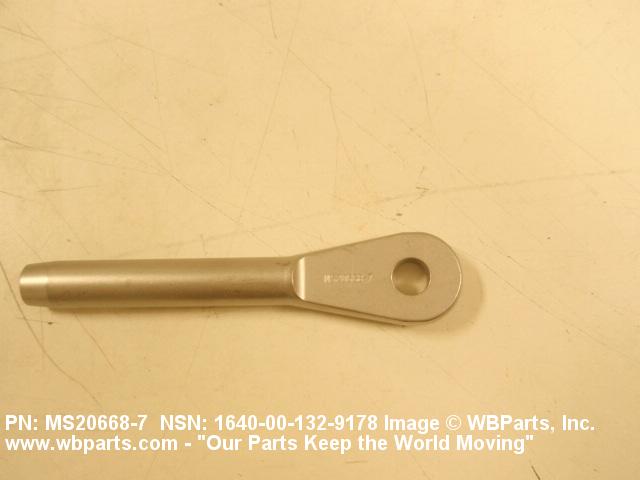

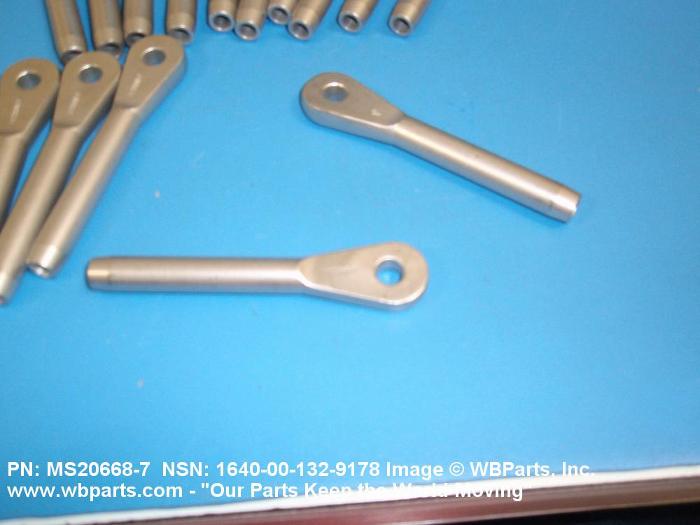

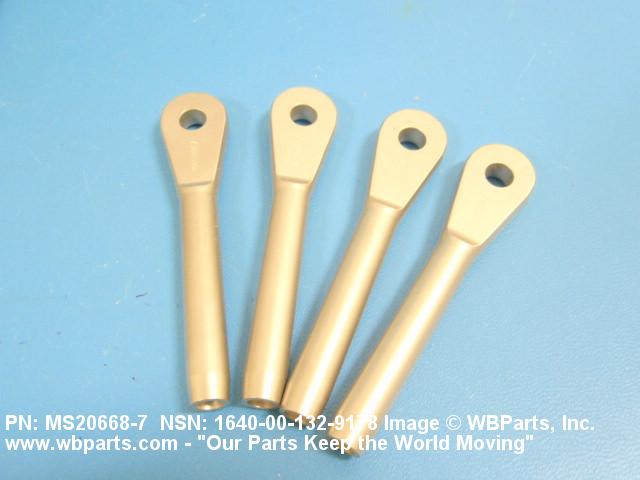

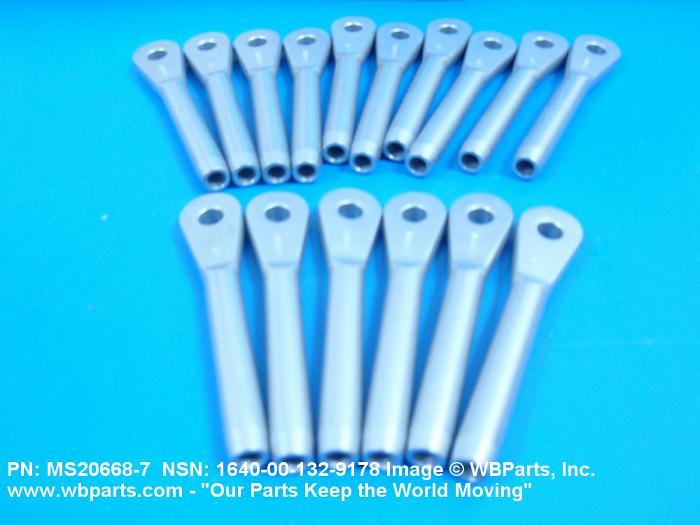

Drawings & Photos | NSN 1640-00-132-9178
Demand History | NSN 1640-00-132-9178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-132-9178 | 2016-02-33 | 1 | DIBBS |
| 1640-00-132-9178 | 2016-01-25 | 1 | DIBBS |
| 1640-00-132-9178 | 2014-04-91 | 14 | DIBBS |
| MS20668-7 | 2013-08-229 | 254 | Canada |
| 1640-00-132-9178 | 2009-01-19 | 10 | Canada |
| 1640-00-132-9178 | 2009-01-07 | 30 | DIBBS |
| 1640-00-132-9178 | 2008-11-325 | 13 | DIBBS |
| 1640-00-132-9178 | 2008-11-325 | 26 | DIBBS |
| 1640-00-132-9178 | 2008-10-288 | 20 | Canada |
Cross Reference | NSN 1640-00-132-9178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2049217B7 | 18355 | BOEING COMPANY, THE DBA BOEING |
| 2049217B7 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 668-7 | 01976 | ACCO INDUSTRIES INC SUB OF BABCOCK INTL INC |
| 668-7 | 84596 | AVIATION MANUFACTURING GROUP, LLC DBA FREEMAN CO, THE |
| 66B-7 | 22277 | BELL MEMPHIS INC |
| AN668-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN668F7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20668-7 | 26590 | HOOD INDUSTRIES |
| MS20668-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-132-9178
Related Products | NSN 1640-00-132-9178
Technical Data | NSN 1640-00-132-9178
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | TERMINAL AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20668-7 |
Restrictions/Controls & Freight Information | NSN 1640-00-132-9178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1640-00-132-9178
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
