Product Details | SWAGING WIRE ROPE BALL END

4030-00-273-3081 An item designed for attaching to an item and is used with socket terminal. Its physical shape is that of a ball or modified cylinder. The ball type may have a shank on one end, or identical shanks on each end. For items specifically designed for aviation, see BALL END, WIRE ROPE, SWAGING, AVIATION.

Part Alternates: 002733081

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 00-273-3081

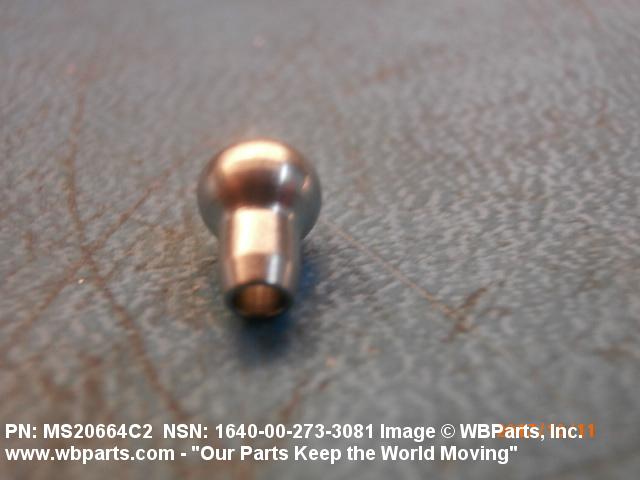

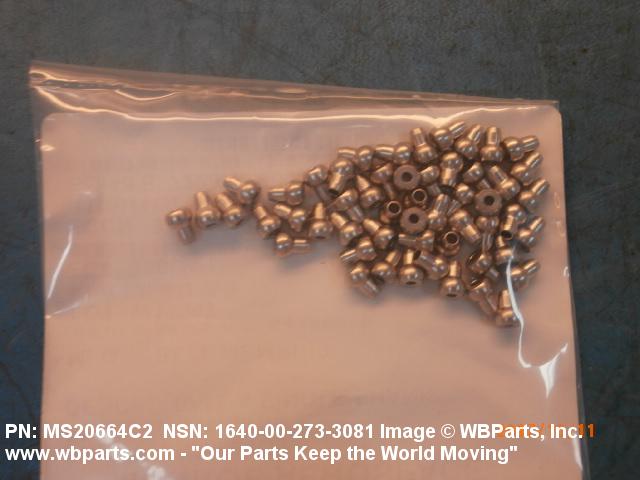

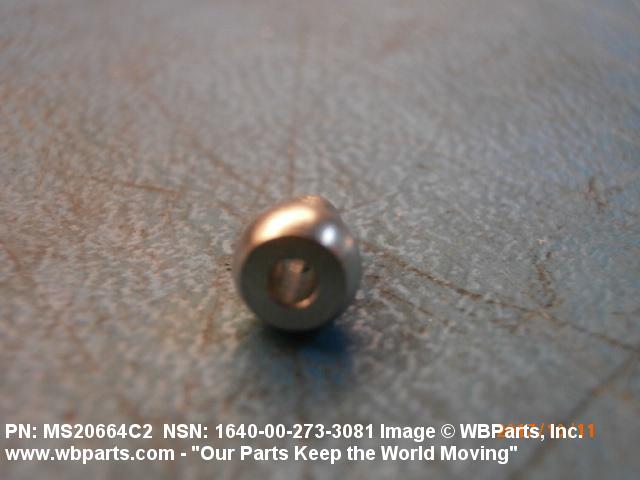

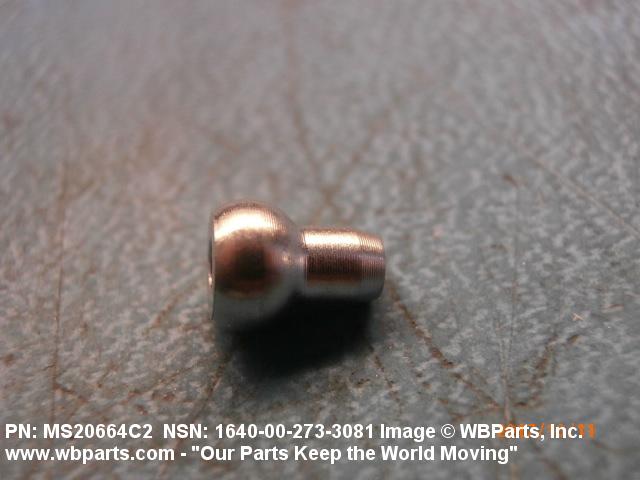

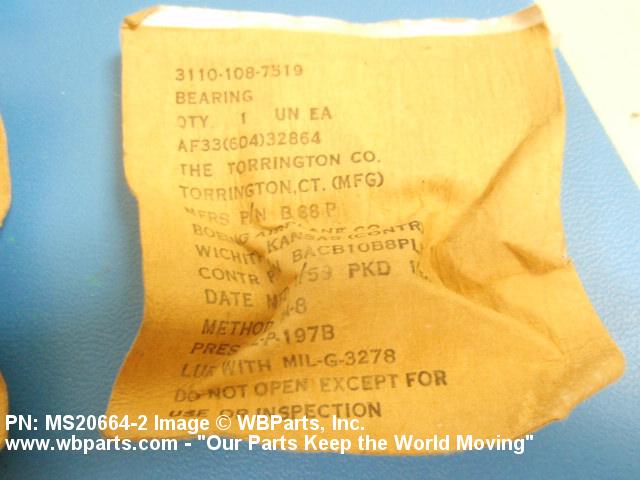

Drawings & Photos | NSN 1640-00-273-3081


Demand History | NSN 4030-00-273-3081

Part Number Request Date QTY Origin
1640-00-273-3081 2017-08-228 10 Malaysia
1640-00-273-3081 2017-08-228 10 Malaysia
1640-00-273-3081 2017-04-109 20 SG
MS20664C2 2015-02-56 100 Ukraine
MS20664C2 2015-02-56 100 Ukraine
MS20664C2 2013-03-79 4 United States
MS20664C2 2013-02-32 50 DE
MS20664C2 2013-02-32 50 DE
MS20664C2 2013-01-22 20 US
1640-00-273-3081 2012-05-151 100 United States
AN6642 2011-03-69 46 US
1640-00-273-3081 2010-07-182 171 DIBBS
1640-00-273-3081 2010-05-133 300 India
1640-00-273-3081 2010-05-126 28 DIBBS
AN664C2 2010-01-20 509 US
MS20664C2 2009-04-118 50 United States
1640-00-273-3081 2009-01-13 10 United States
1640-00-273-3081 2008-06-158 4 DIBBS
MS20664C2 2008-04-94 50 United States
MS20664C2 2008-02-39 50000 US
1640-00-273-3081 2007-10-304 299 DIBBS
1640-00-273-3081 2007-08-239 20 US
1640-00-273-3081 2007-07-198 349 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-273-3081

Technical Data | NSN 4030-00-273-3081

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING
SURFACE TREATMENT PASSIVATE
STYLE DESIGNATOR 165 OVAL WITH SINGLE SHANK

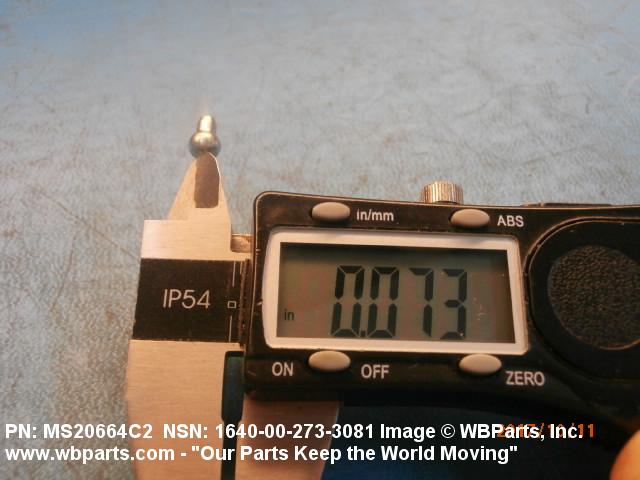

INSIDE DIAMETER 0.073 INCHES MINIMUM AND 0.077 INCHES MAXIMUM

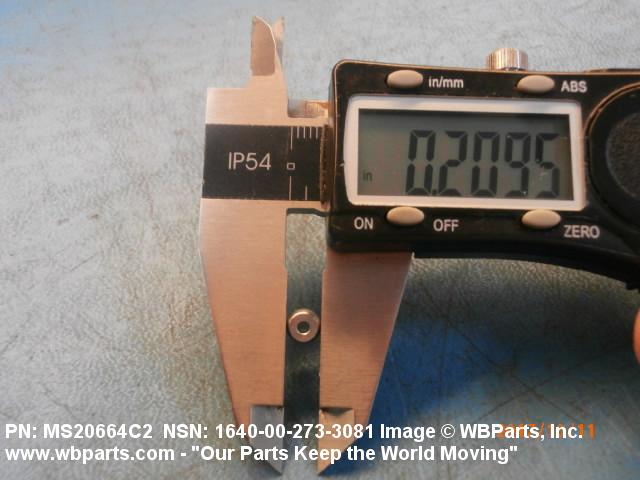

HEAD DIAMETER 0.208 INCHES MINIMUM AND 0.212 INCHES MAXIMUM

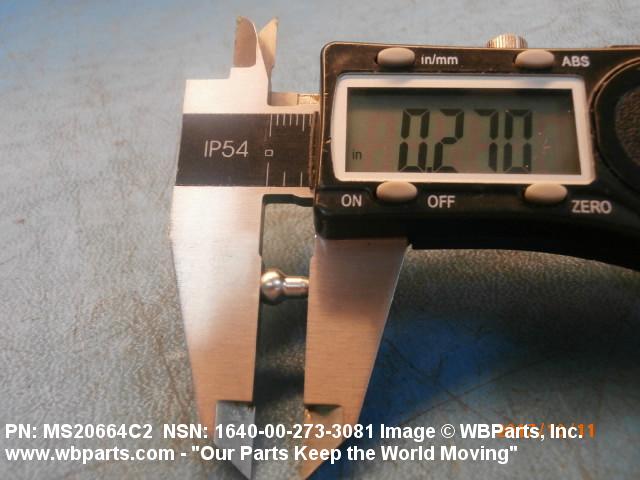

OVERALL LENGTH 0.263 INCHES MINIMUM AND 0.274 INCHES MAXIMUM

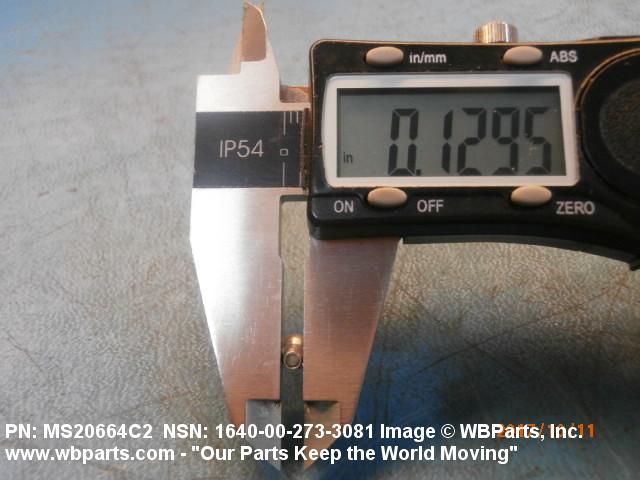

PLAIN SHANK DIAMETER 0.128 INCHES MINIMUM AND 0.132 INCHES MAXIMUM
ACCOMMODATED MATERIAL DIAMETER 0.062 INCHES NOMINAL
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS20664C2

Restrictions/Controls & Freight Information | NSN 4030-00-273-3081

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
