NSN 3110-01-495-4847 MKSP4A5A2922 , MKSP4ASD1002, 3895000903

Product Details | AIRFRAME BALL BEARING

3110-01-495-4847 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MKSP4A5A2922 , MKSP4ASD1002, 3895000903, 38950-00903, 38950-00903-104, 3110-01-495-4847, 01-495-4847, 3110014954847, 3895000903104, 014954847

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	18 MAR 2002	01-495-4847	00041 ( BEARING, BALL, AIRFRAME )

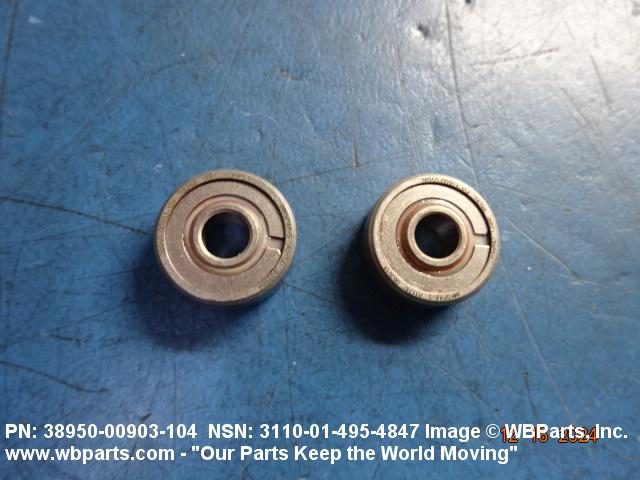

Drawings & Photos | NSN 3110-01-495-4847

Part Number	Request Date	QTY	Origin
3110-01-495-4847	2024-12-339	2	United States
3895-00-090-3104	2019-11-311	2	US
3110-01-495-4847	2018-09-249	175	US
3110-01-495-4847	2017-12-338	1	DIBBS-RFPs
3110-01-495-4847	2017-11-309	798	DIBBS
3110-01-495-4847	2017-09-257	702	DIBBS
3110-01-495-4847	2017-08-214	904	DIBBS
3110-01-495-4847	2017-04-118	32	US
3895-00-090-3104	2016-09-266	8	United States
MKSP4A5A2922	2016-04-109	6	United States
38950-00903-104	2016-03-90	63	KR
38950-00903-104	2015-10-281	7	US
3110-01-495-4847	2015-09-244	110	US
MKSP4A5A2922	2014-06-175	20	US
3110-01-495-4847	2014-06-156	1	DIBBS-RFPs
MKSP4A5A2922	2014-05-149	60	PL
MKSP4A5A2922	2013-03-64	1	United States
3895-00-090-3104	2012-10-299	1	US
3110-01-495-4847	2012-09-261	4	US
3110-01-495-4847	2012-08-239	866	DIBBS
3110-01-495-4847	2012-07-199	328	DIBBS
3110-01-495-4847	2012-04-121	395	DIBBS
MKSP4A5A2922	2012-01-17	7	US
3110-01-495-4847	2011-11-321	608	DIBBS
3110-01-495-4847	2011-10-286	638	DIBBS
3110-01-495-4847	2011-07-193	879	DIBBS
MKSP4A5A2922	2011-04-94	575	US
3110-01-495-4847	2011-03-82	2800	US
MKSP4A5A2922	2010-07-207	136	us
3110-01-495-4847	2010-04-109	166	US
MKSP4ASD1002	2010-01-15	200	US
3110-01-495-4847	2010-01-15	200	US
MKSP4A5A2922	2009-11-322	4	us
3110-01-495-4847	2009-11-316	3244	DIBBS
3110-01-495-4847	2009-11-313	2115	DIBBS
3110-01-495-4847	2009-11-307	2864	DIBBS
3895-00-090-3104	2009-10-293	200	US
3110-01-495-4847	2009-10-278	747	DIBBS
3110-01-495-4847	2009-09-247	919	DIBBS
3110-01-495-4847	2009-08-232	560	DIBBS
3110-01-495-4847	2009-07-182	455	DIBBS
3110-01-495-4847	2009-06-180	645	DIBBS
3110-01-495-4847	2009-06-180	1076	DIBBS
3110-01-495-4847	2009-05-146	645	DIBBS
3110-01-495-4847	2009-04-106	363	DIBBS
MKSP4A5A2922	2009-03-72	2	US
MKSP4A5A2922	2009-03-72	2	US
MKSP4A5A2922	2009-03-61	2	US
3895-00-090-3104	2008-02-58	50	US

Cross Reference | NSN 3110-01-495-4847

Part Number	Cage Code	Manufacturer
38950-00903	78286	SIKORSKY AIRCRAFT CORPORATION
38950-00903-104	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
38950-00903-104	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
38950-00903-104	78286	SIKORSKY AIRCRAFT CORPORATION
MKSP4ASD1002	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-495-4847

Compare

Related Products | NSN 3110-01-495-4847

3110-01-495-4869, 3110-01-495-4893, 3110-01-495-4914, 3110-01-495-5049, 3110-01-495-5527

Technical Data | NSN 3110-01-495-4847

Characteristic	Specifications
MATERIAL	STEEL OVERALL RUBBER SYNTHETIC SEAL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	0.7496 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM
OUTER RING WIDTH	0.2500 INCHES NOMINAL
INNER RING WIDTH	0.2810 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
III END ITEM IDENTIFICATION	FLEET COMBAT
III PART NAME ASSIGNED BY CONTROLLING AGENCY	PRECISION BEARING SELF-ALIGNING TYPE

Restrictions/Controls & Freight Information | NSN 3110-01-495-4847

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-495-4847

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
