NSN 3110-01-360-7610 SSMKP8A, 01-360-7610, 013607610
Product Details | AIRFRAME BALL BEARING
3110-01-360-7610 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: SSMKP8A, 3110-01-360-7610, 01-360-7610, 3110013607610, 013607610
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 JUN 1992 | 01-360-7610 | 00041 ( BEARING, BALL, AIRFRAME ) |

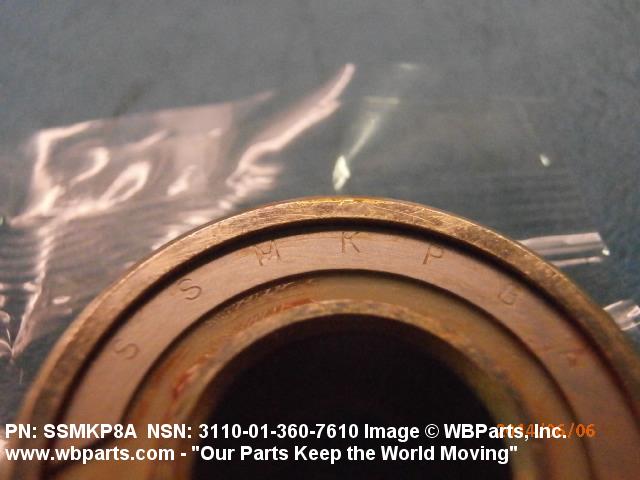

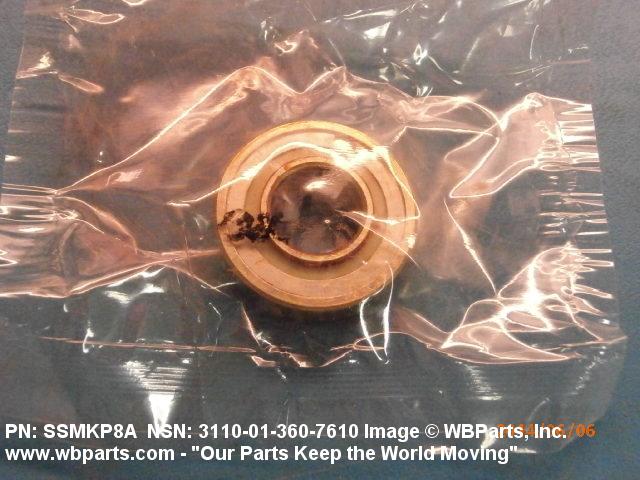

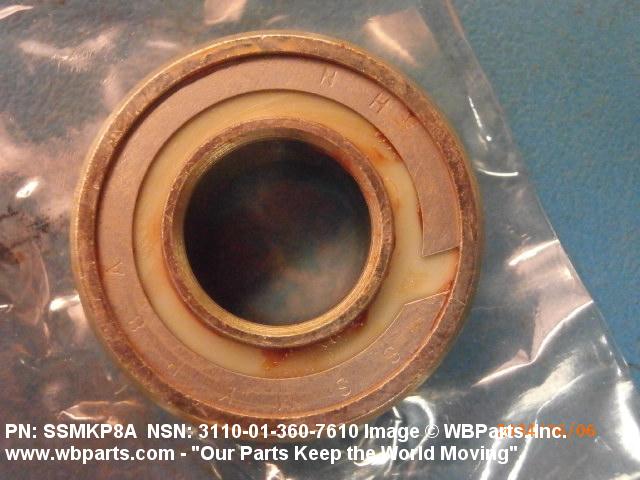

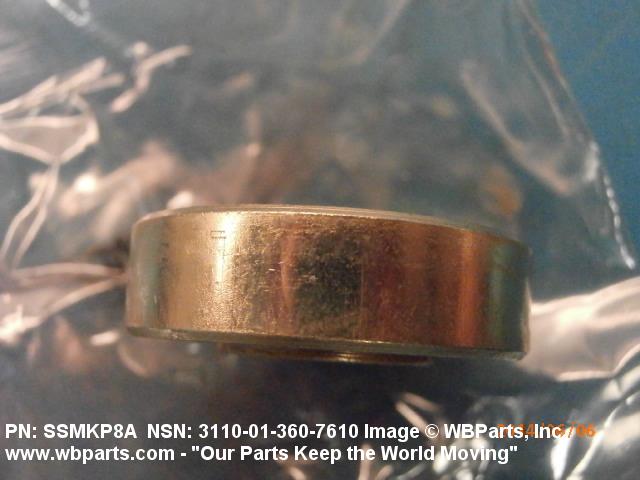

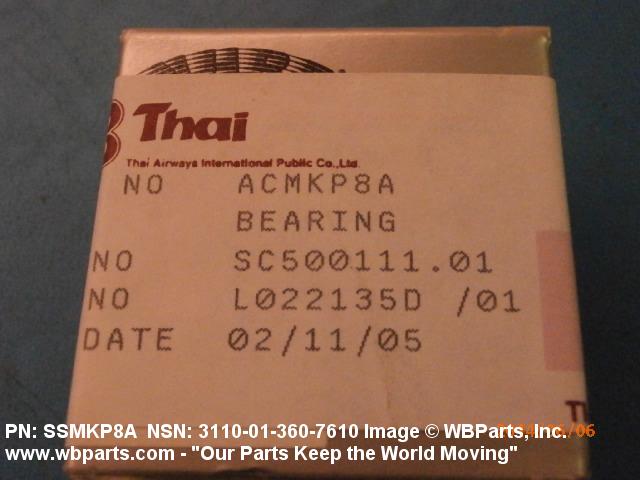

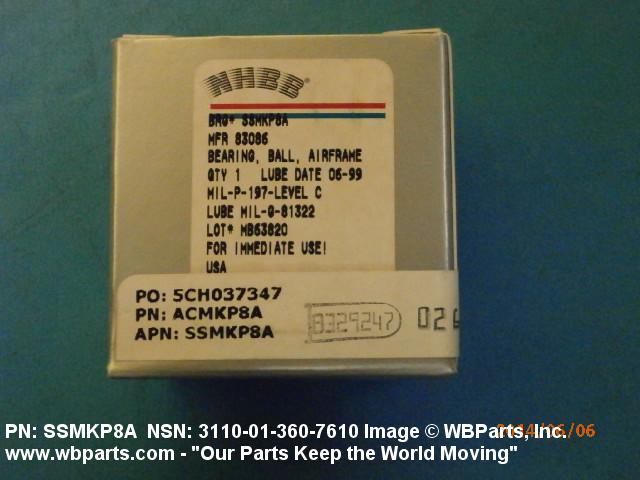

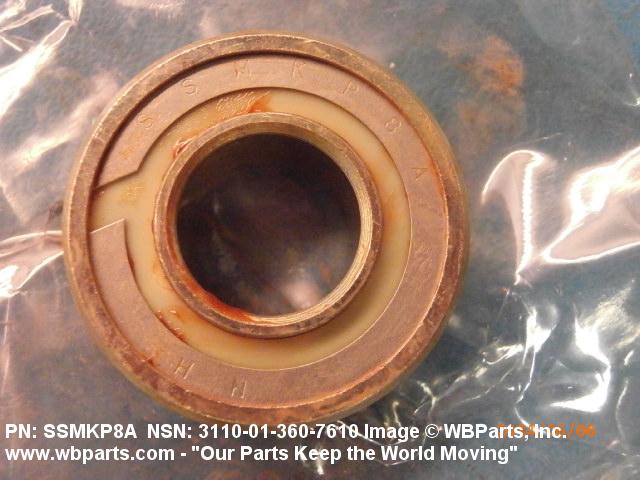

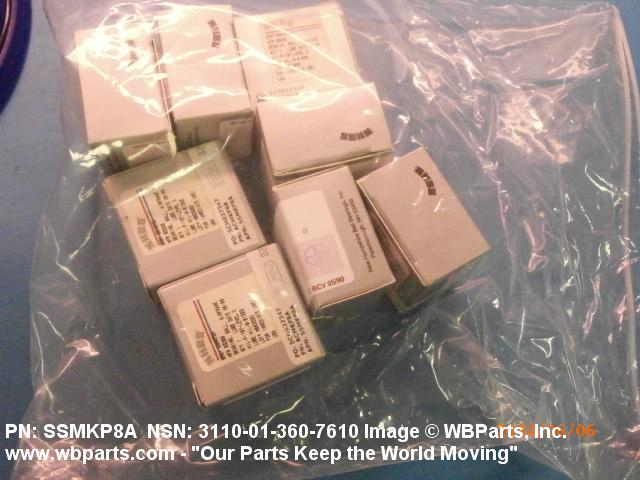

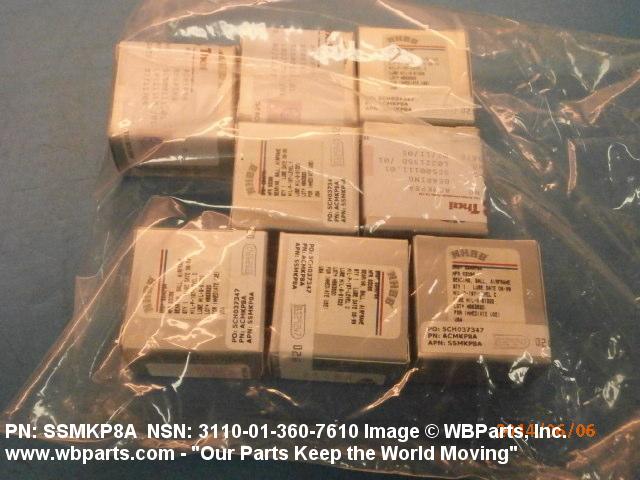

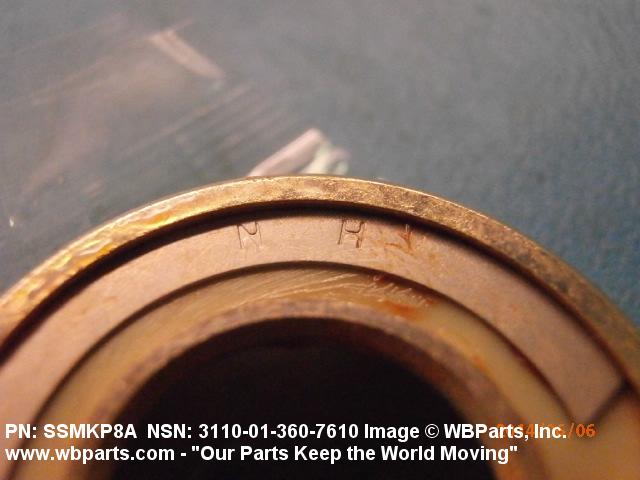

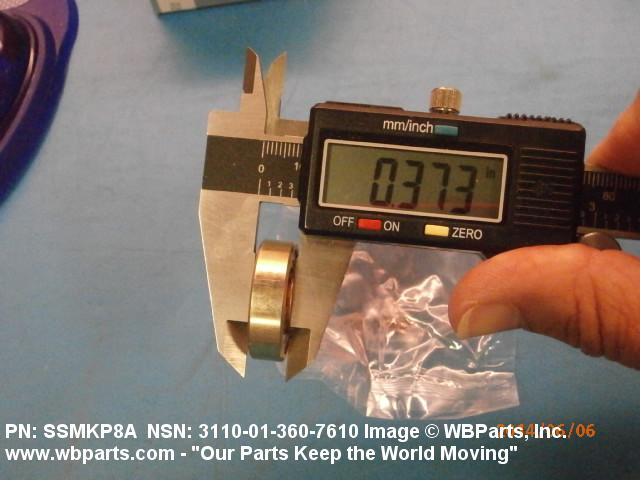

Drawings & Photos | NSN 3110-01-360-7610
Demand History | NSN 3110-01-360-7610
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SSMKP8A | 2023-11-318 | 39 | DIBBS |
| SSMKP8A | 2023-05-141 | 15 | DIBBS |
| SSMKP8A | 2022-12-349 | 7 | DIBBS |
| SSMKP8A | 2022-07-198 | 7 | DIBBS |
| SSMKP8A | 2022-04-107 | 8 | DIBBS |
| SSMKP8A | 2021-12-353 | 7 | DIBBS |
| SSMKP8A | 2021-07-196 | 10 | DIBBS |
| SSMKP8A | 2020-11-309 | 25 | DIBBS |
| SSMKP8A | 2020-10-293 | 7 | DIBBS |
| SSMKP8A | 2020-10-281 | 7 | DIBBS |
| SSMKP8A | 2019-12-337 | 10 | DIBBS |
| SSMKP8A | 2019-08-240 | 10 | DIBBS |
| SSMKP8A | 2019-08-232 | 10 | DIBBS |
| SSMKP8A | 2019-03-78 | 12 | DIBBS |
| SSMKP8A | 2019-03-68 | 12 | DIBBS |
| SSMKP8A | 2019-01-21 | 14 | DIBBS |
| 3110-01-360-7610 | 2016-08-221 | 26 | DIBBS |
| 3110-01-360-7610 | 2016-07-189 | 15 | DIBBS |
| 3110-01-360-7610 | 2015-03-90 | 14 | DIBBS |
| 3110-01-360-7610 | 2015-03-82 | 14 | DIBBS |
| 3110-01-360-7610 | 2015-02-48 | 16 | DIBBS |
| 3110-01-360-7610 | 2015-02-40 | 16 | DIBBS |
| 3110-01-360-7610 | 2014-11-321 | 45 | DIBBS |
| 3110-01-360-7610 | 2014-10-289 | 14 | DIBBS |
| 3110-01-360-7610 | 2014-10-281 | 14 | DIBBS |
| SSMKP8A | 2014-05-133 | 8 | Australia |
| 3110-01-360-7610 | 2014-02-35 | 1 | DIBBS-RFPs |
| 3110-01-360-7610 | 2010-04-97 | 100 | US |
| 3110-01-360-7610 | 2009-05-148 | 52 | DIBBS |
| 3110-01-360-7610 | 2009-05-132 | 23 | DIBBS |
| 3110-01-360-7610 | 2008-04-119 | 56 | DIBBS |
| 3110-01-360-7610 | 2008-02-36 | 8 | DIBBS |
| SSMKP8A | 2006-11-312 | 32 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-360-7610
Related Products | NSN 3110-01-360-7610
Technical Data | NSN 3110-01-360-7610
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY1,CL2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |

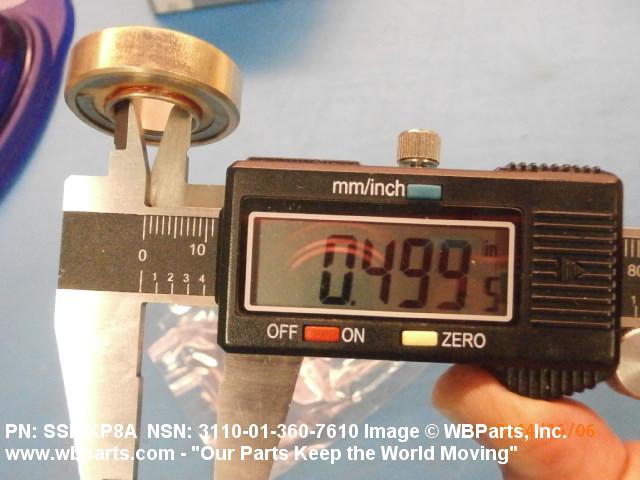

| BORE DIAMETER | 0.4997 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

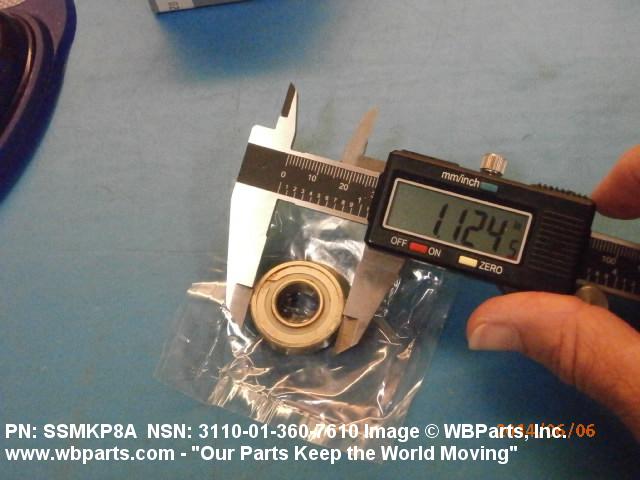

| OVERALL OUTSIDE DIAMETER | 1.1246 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |

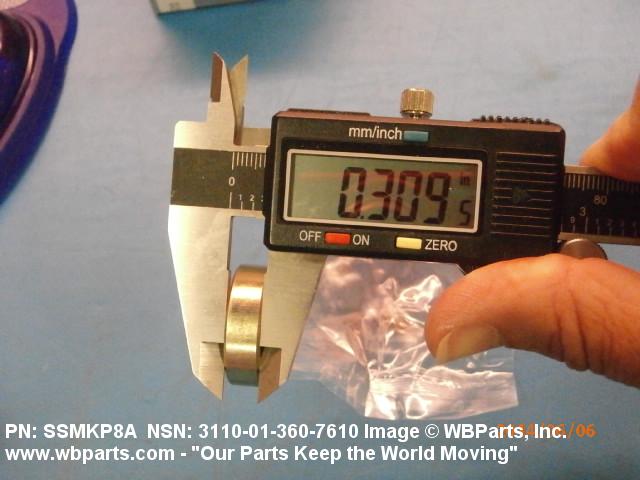

| OUTER RING WIDTH | 0.3080 INCHES MINIMUM AND 0.3130 INCHES MAXIMUM |
| INNER RING WIDTH | 0.3725 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-01-360-7610
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-360-7610
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
