Product Details | AIRFRAME BALL BEARING
3110-01-356-7238 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS2764837G, MS27648-37G, 3110-01-356-7238, 01-356-7238, 3110013567238, 013567238
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 APR 1992 | 01-356-7238 | 00041 ( BEARING, BALL, AIRFRAME ) |

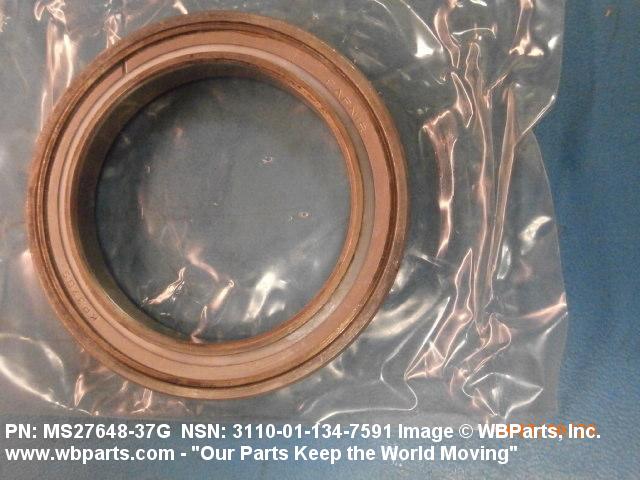

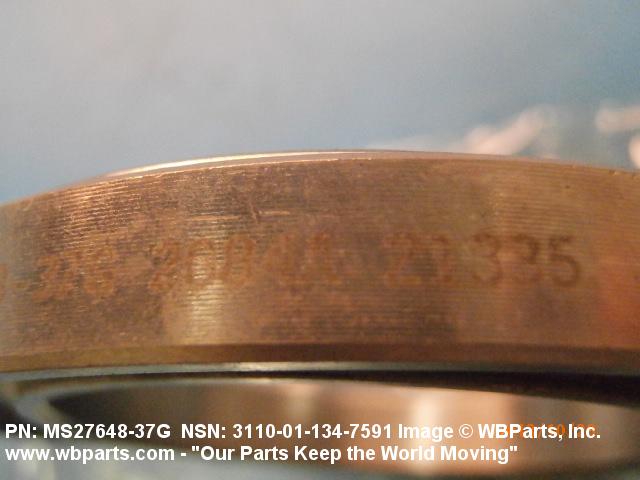

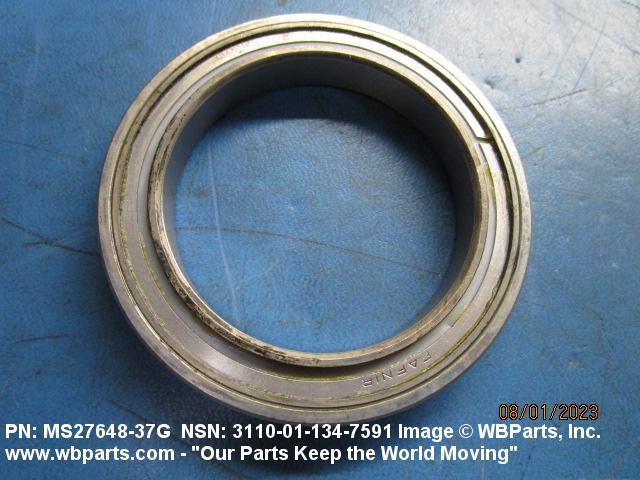

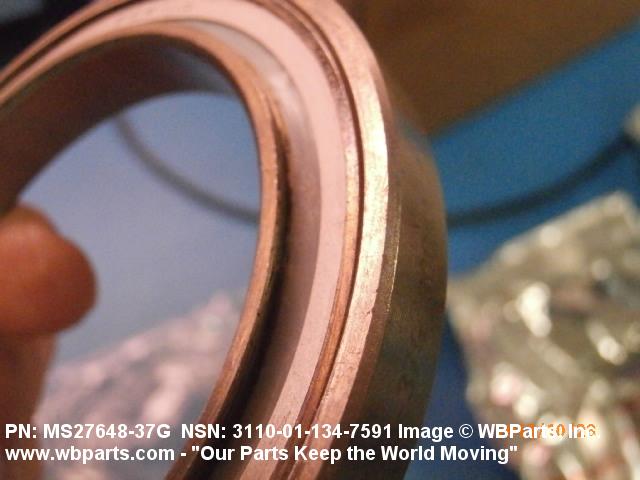

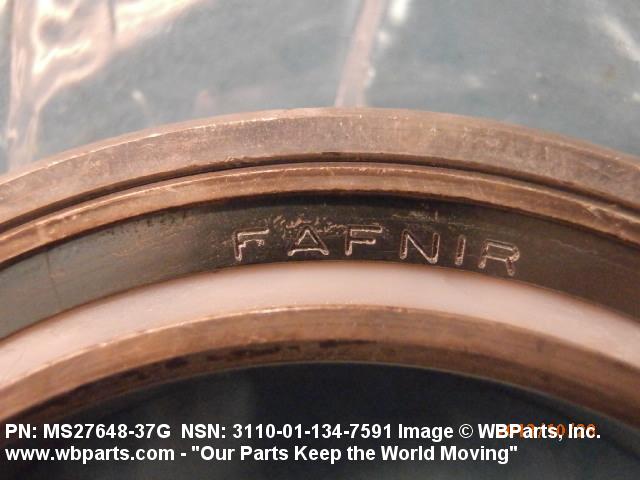

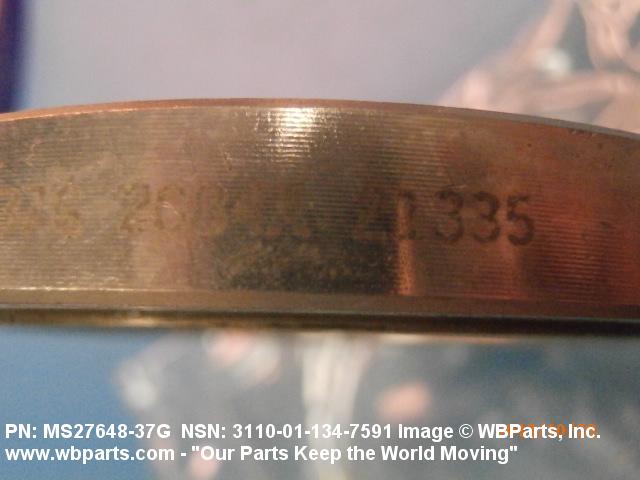

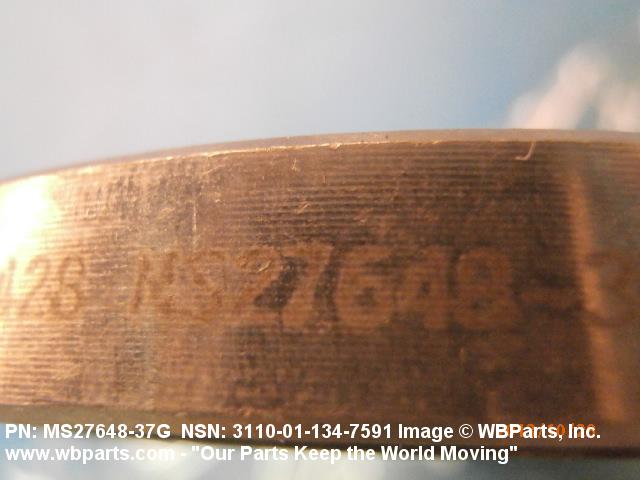

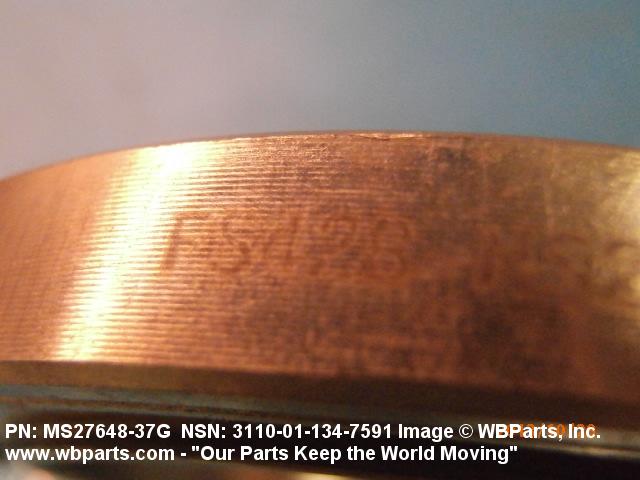

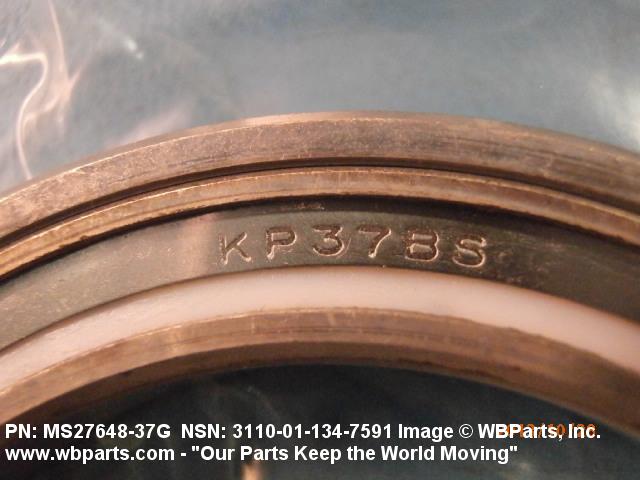

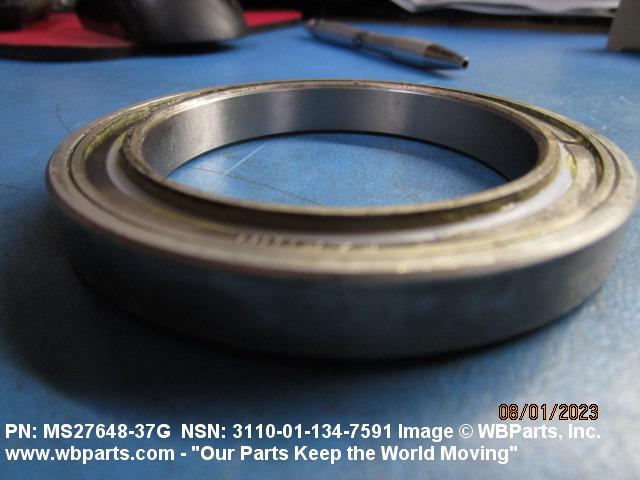

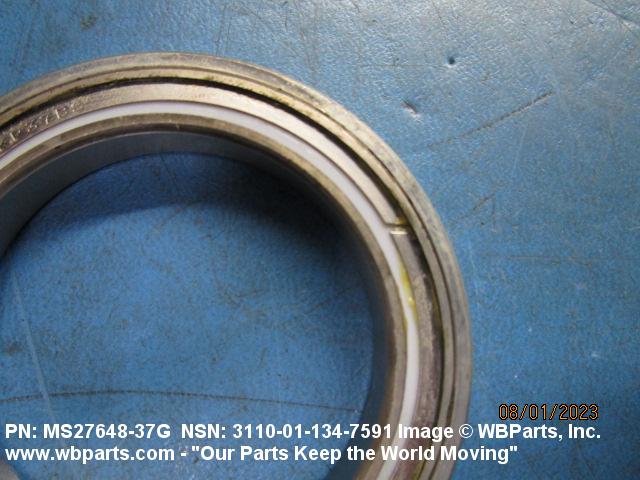

Drawings & Photos | NSN 3110-01-356-7238
Cross Reference | NSN 3110-01-356-7238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27648-37G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-356-7238
Related Products | NSN 3110-01-356-7238
Technical Data | NSN 3110-01-356-7238
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE OR PLASTIC SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3652 FED SPEC SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD 2ND MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY1,CL2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 200 SINGLE ROW, EXTERNAL SELF ALIGNING, WITH ALIGNING RING |

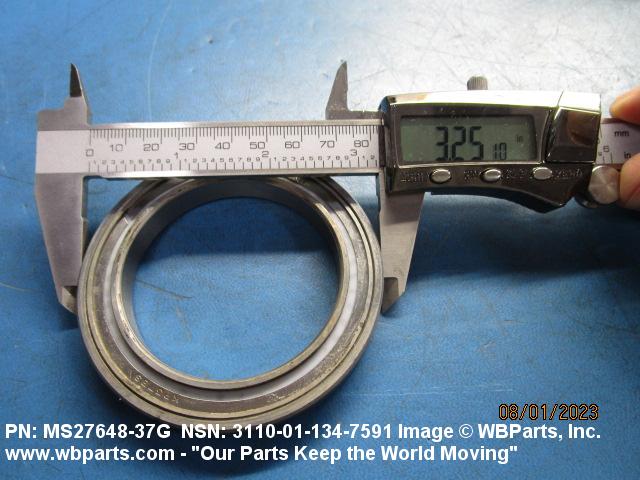

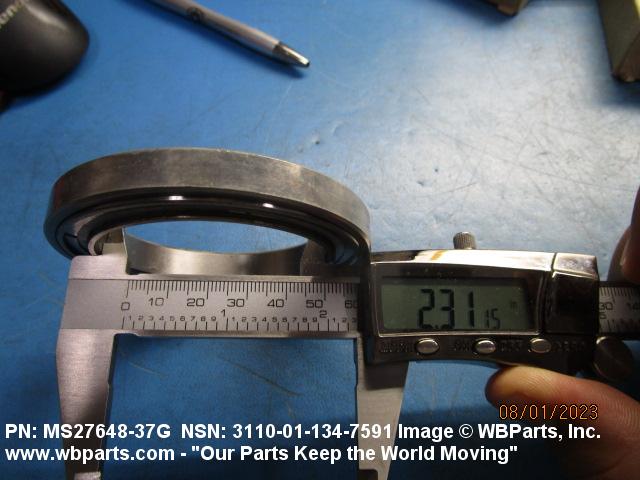

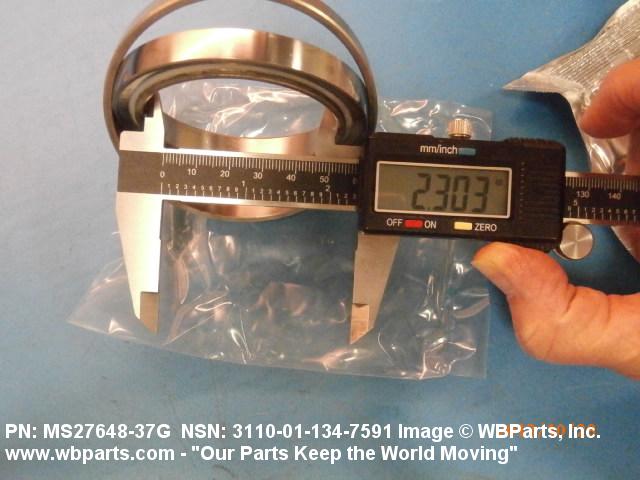

| BORE DIAMETER | 2.3130 INCHES NOMINAL |

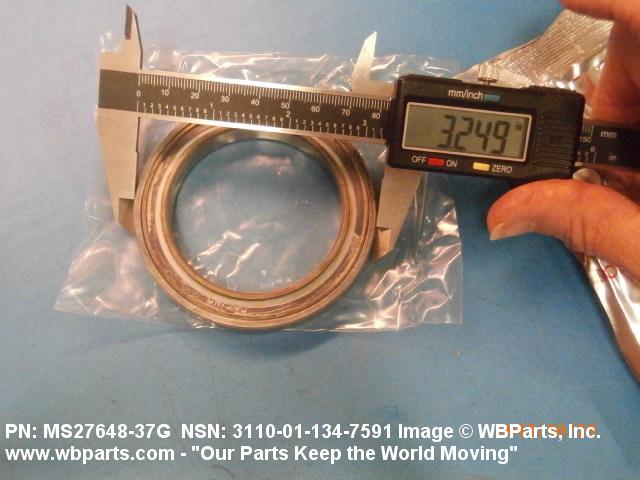

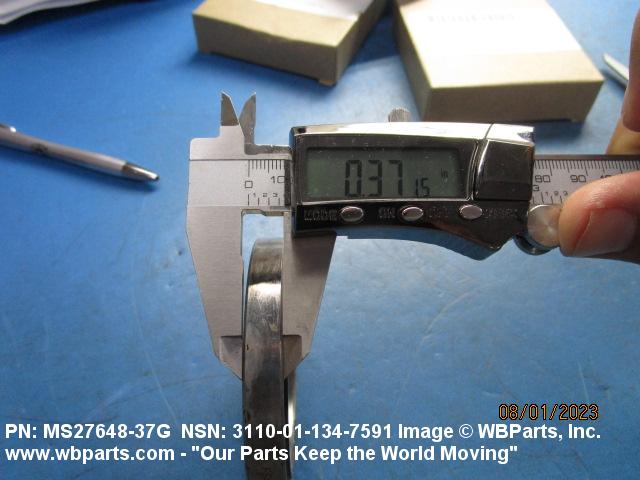

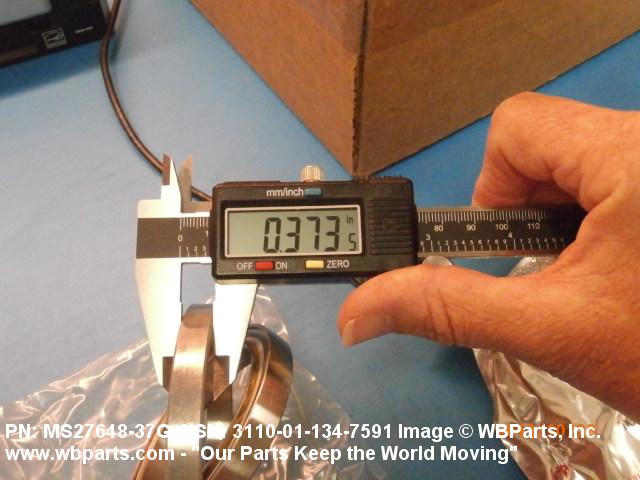

| OVERALL OUTSIDE DIAMETER | 3.2500 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3750 INCHES NOMINAL |

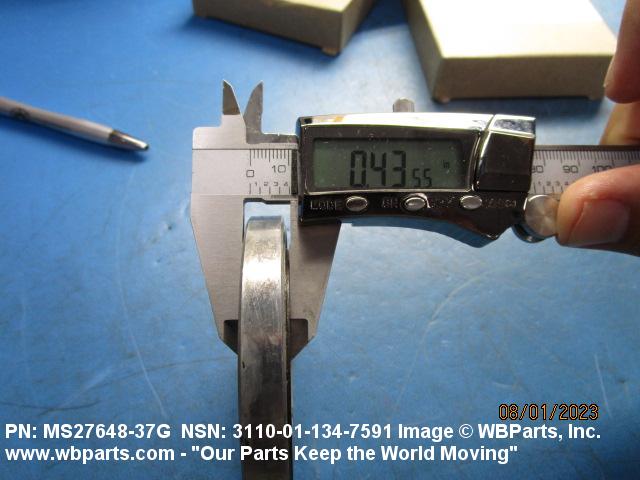

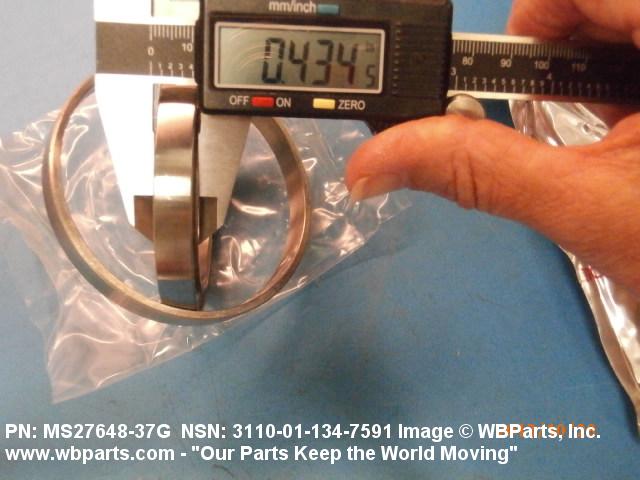

| INNER RING WIDTH | 0.4370 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | ANGULAR |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | 80 PCT FULL OF SPECIFIED GREASE,0.0003 IN. TO 0.0010 IN. RADIAL CLEARANCE,4 DEG 30 MIN SELF ALIGNMENT IN EITHER DIRECTION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27648-37G |
