NSN 3110-01-271-5982 MS2764639G, MS27646-39G, AJ9800103

Product Details | AIRFRAME BALL BEARING

3110-01-271-5982 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764639G, MS27646-39G, AJ9800103, AJ9800-10-3, AS27646, AS7949, B539DD, B539DDFS160, B539DDMILG3278, BACB10A35DD, 1371390702, 137-139-0702, 1465484, 146548-4, 4M8512, 4M85-12, 6157P53, 6157P5312, 6157P53-12, 615P53, 3110-01-271-5982, 01-271-5982, 3110012715982, 012715982

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	28 JAN 1988	01-271-5982	00041 ( BEARING, BALL, AIRFRAME )

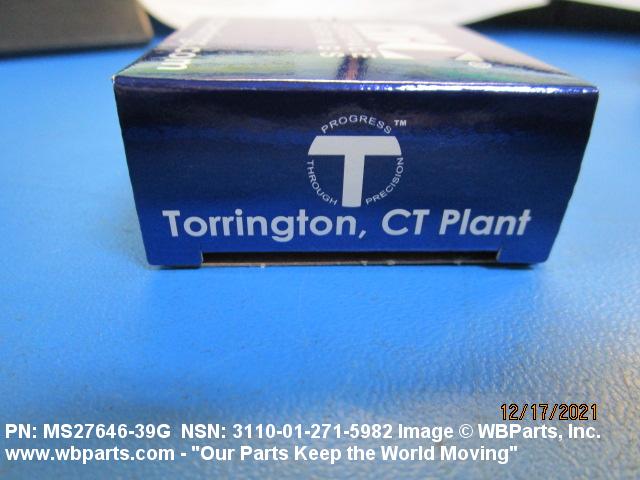

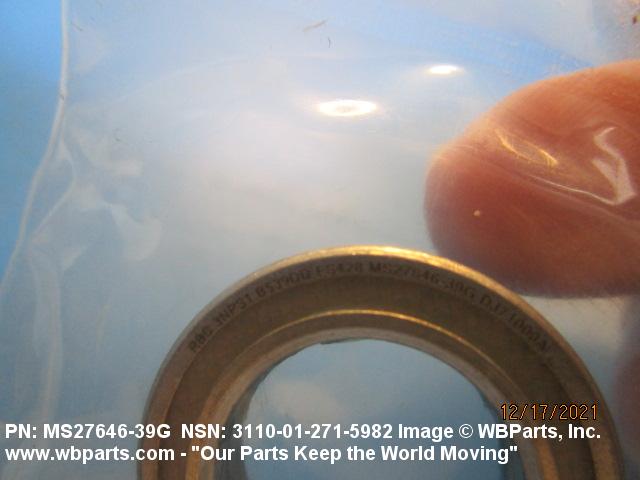

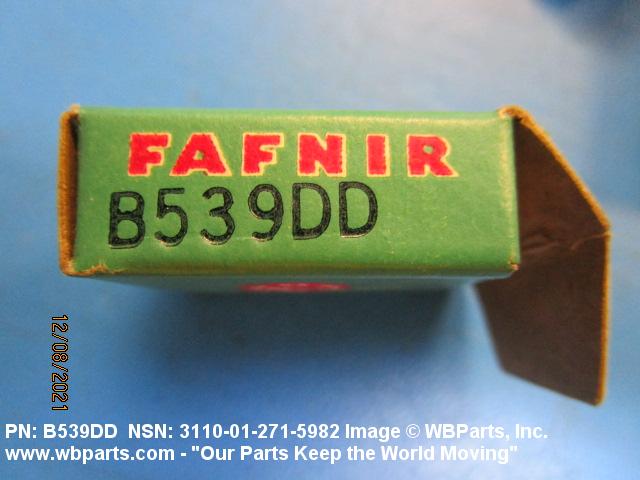

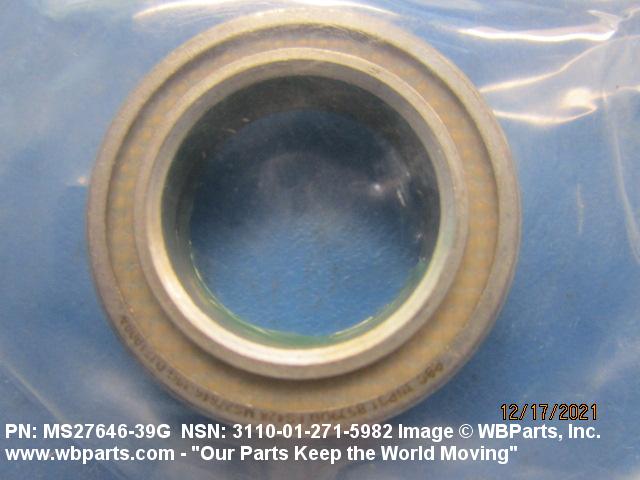

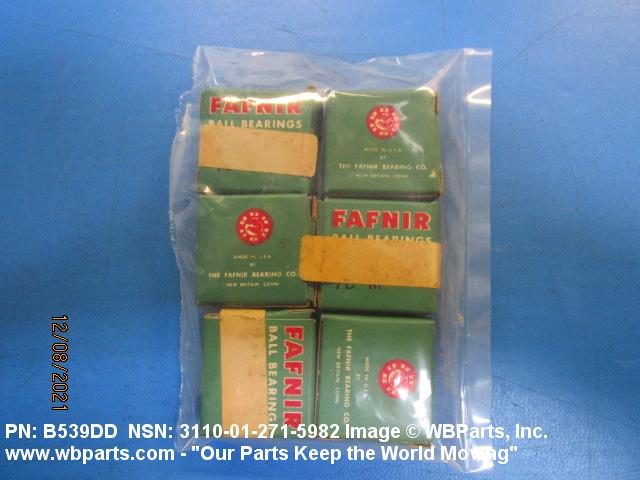

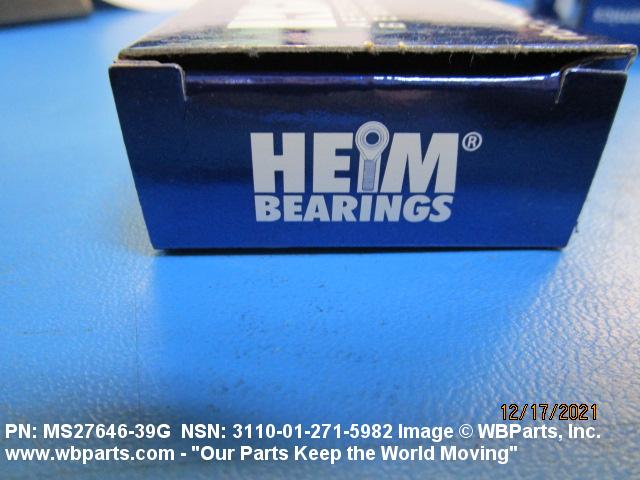

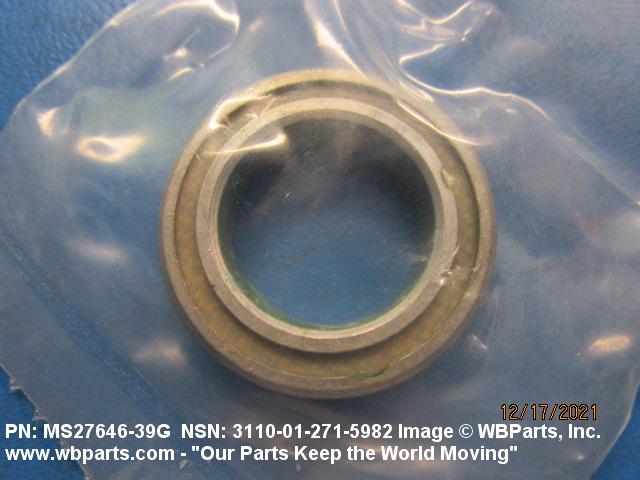

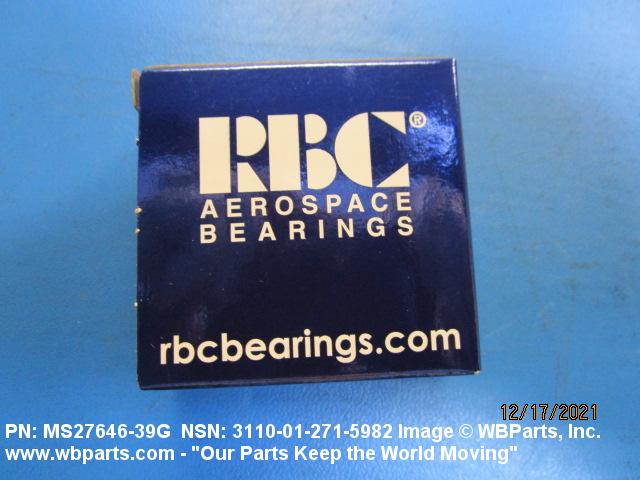

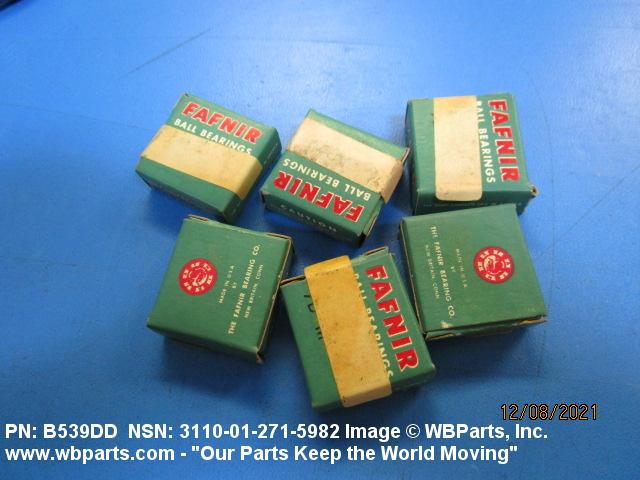

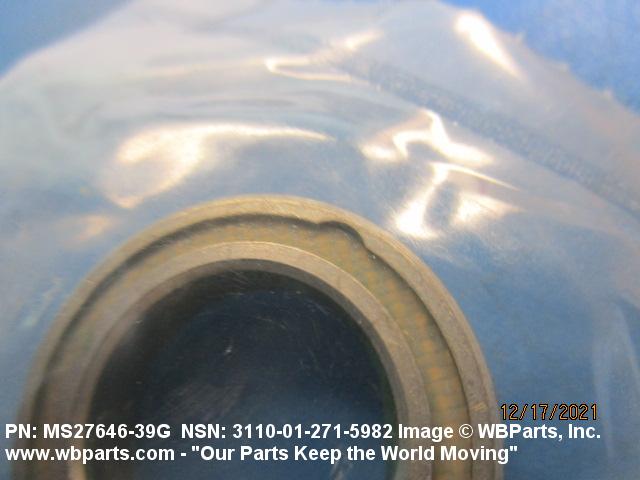

Drawings & Photos | NSN 3110-01-271-5982

Part Number	Request Date	QTY	Origin
3110-01-271-5982	2024-10-304	50	Germany
3110-01-271-5982	2023-10-289	6	Germany
3110-01-271-5982	2023-09-257	16	Germany
3110-01-271-5982	2023-03-89	6	Germany
3110-01-271-5982	2023-03-68	6	Germany
3110-01-271-5982	2023-01-26	2	United States
3110-01-271-5982	2022-11-332	2	Germany
3110-01-271-5982	2022-11-318	2	Germany
3110-01-271-5982	2022-10-301	4	Germany
3110-01-271-5982	2022-09-249	8	Germany
3110-01-271-5982	2022-04-102	8	Germany
3110-01-271-5982	2021-12-350	14	Germany
3110-01-271-5982	2021-12-342	4	Germany
3110-01-271-5982	2021-11-328	6	Germany
3110-01-271-5982	2021-08-225	22	Germany
3110-01-271-5982	2021-02-35	1	Germany
MS2764639G	2020-01-07	2	United States
3110-01-271-5982	2019-10-283	59	DIBBS
3110-01-271-5982	2019-06-178	15	TH
3110-01-271-5982	2019-05-134	720	DIBBS
3110-01-271-5982	2018-08-238	1050	DIBBS
3110-01-271-5982	2018-02-42	408	DIBBS
AJ9800103	2018-02-33	10	Taiwan
3110-01-271-5982	2017-04-103	277	DIBBS
3110-01-271-5982	2017-04-95	277	DIBBS
3110-01-271-5982	2017-02-39	88	DIBBS
3110-01-271-5982	2016-09-251	55	DIBBS
3110-01-271-5982	2016-08-215	115	DIBBS
3110-01-271-5982	2016-07-189	62	DIBBS
AJ9800103	2016-05-133	10	CO
3110-01-271-5982	2016-04-96	40	DIBBS
3110-01-271-5982	2016-03-77	79	DIBBS
3110-01-271-5982	2013-12-353	396	DIBBS
3110-01-271-5982	2013-08-238	182	DIBBS
B539DD	2013-07-199	6	United States
3110-01-271-5982	2010-12-353	5	HK
3110-01-271-5982	2010-11-319	10	United States
3110-01-271-5982	2010-05-125	200	United States
AJ9800103	2009-06-170	20	DE
AJ9800103	2009-06-170	20	DE
B539DD	2009-06-153	30	US
3110-01-271-5982	2009-05-148	2	MX
3110-01-271-5982	2009-05-147	78	DE
3110-01-271-5982	2008-11-316	141	DIBBS
3110-01-271-5982	2008-10-284	141	DIBBS
3110-01-271-5982	2008-01-09	250	DIBBS
3110-01-271-5982	2007-10-278	32	DIBBS
3110-01-271-5982	2007-07-186	826	DIBBS
3110-01-271-5982	2007-05-134	117	DIBBS
3110-01-271-5982	2007-02-36	262	DIBBS

Cross Reference | NSN 3110-01-271-5982

Part Number	Cage Code	Manufacturer
137-139-0702	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
146548-4	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
146548-4	49956	RAYTHEON COMPANY DBA RAYTHEON
4M85-12	76301	BOEING COMPANY, THE DBA BOEING
6157P53	98889	AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS
6157P53-12	98889	AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS
615P53	98889	AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS
AJ9800-10-3	08484	BREEZE-EASTERN CORPORATION
AS27646	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B539DD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B539DD	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
B539DDFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B539DDMILG3278	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BACB10A35DD	81205	THE BOEING COMPANY DBA BOEING
MS27646-39G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27646-39G	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-271-5982

Compare

Related Products | NSN 3110-01-271-5982

3110-01-271-6349, 3110-01-271-6350, 3110-01-271-6351, 3110-01-271-6352, 3110-01-271-6353

Technical Data | NSN 3110-01-271-5982

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	202 SINGLE ROW, TORQUE TUBE TYPE, WITH OR WITHOUT CLOSURE

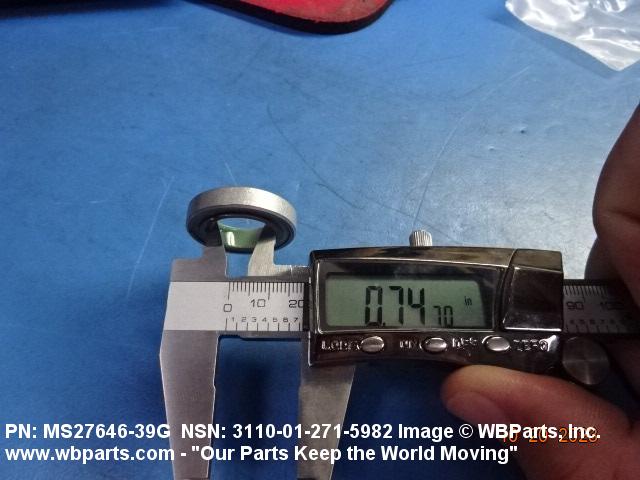

BORE DIAMETER	0.7493 INCHES MINIMUM AND 0.7507 INCHES MAXIMUM

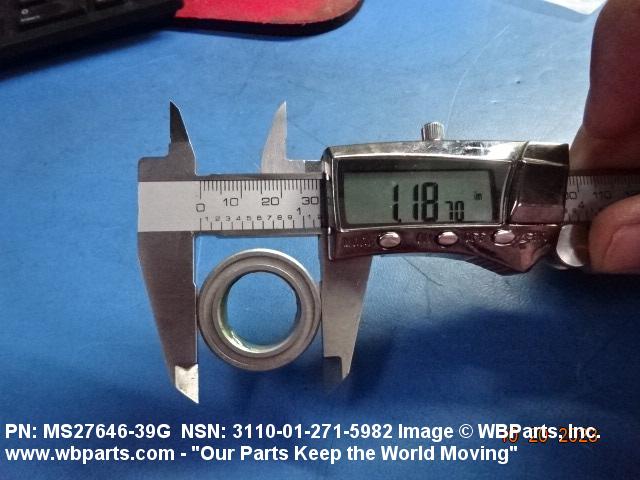

OVERALL OUTSIDE DIAMETER	1.1865 INCHES MINIMUM AND 1.1875 INCHES MAXIMUM

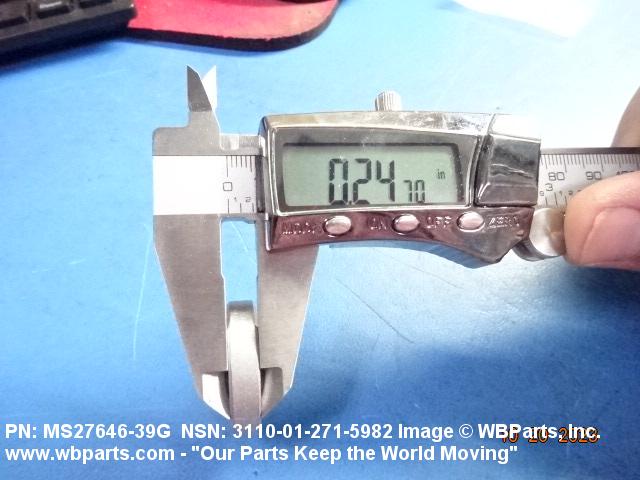

OUTER RING WIDTH	0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

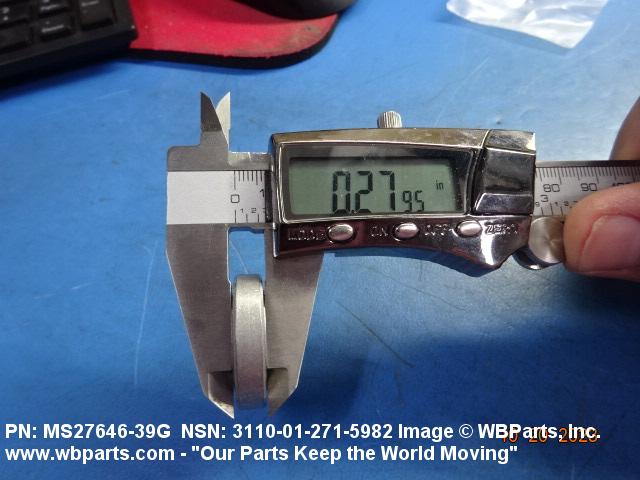

INNER RING WIDTH	0.2760 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	RIGID
LOAD DIRECTION	RADIAL
INTERNAL CLEARANCE	0.0008 INCHES MINIMUM RADIAL AND 0.0018 INCHES MAXIMUM RADIAL
SPECIFICATION/STANDARD DATA	96906-MS27646 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 3110-01-271-5982

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-271-5982

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
