NSN 3110-01-037-6209 MS2764641G, MS27646-41G, AS27646
Product Details | AIRFRAME BALL BEARING
3110-01-037-6209 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS2764641G, MS27646-41G, AS27646, B5410D, B541DDFS428, B541ZZ, BACB10A29DD, BACB10A29DDH, BACB10CF17PP, 3110-01-037-6209, 01-037-6209, 3110010376209, 010376209
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 MAR 1977 | 01-037-6209 | 00041 ( BEARING, BALL, AIRFRAME ) |

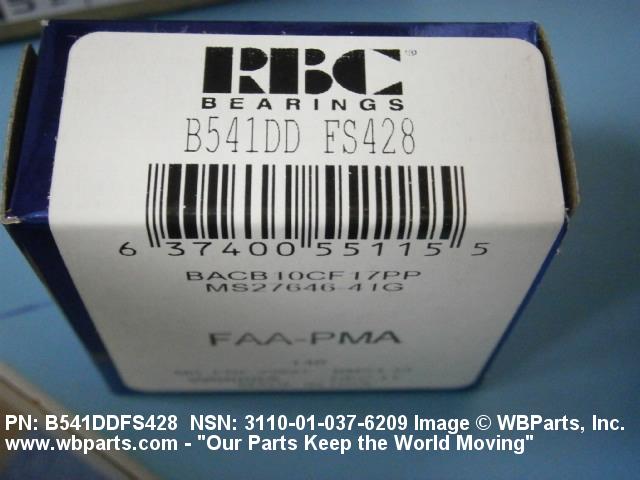

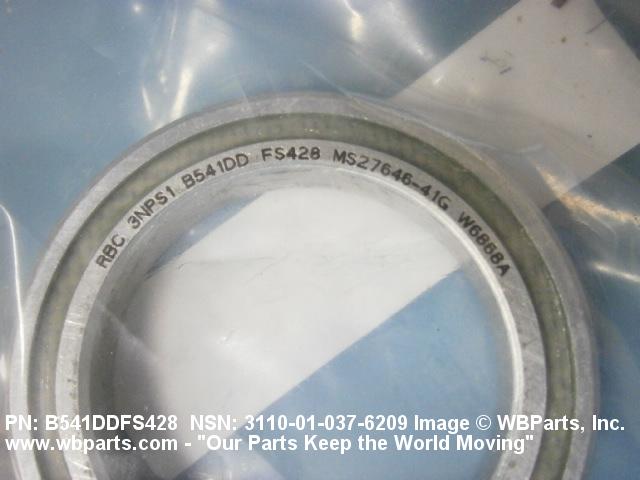

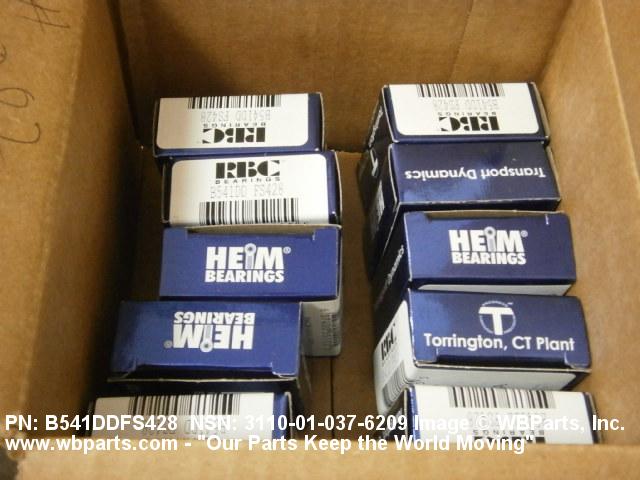

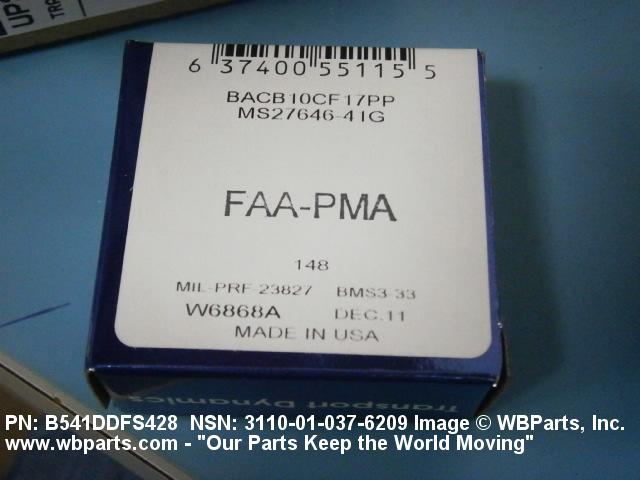

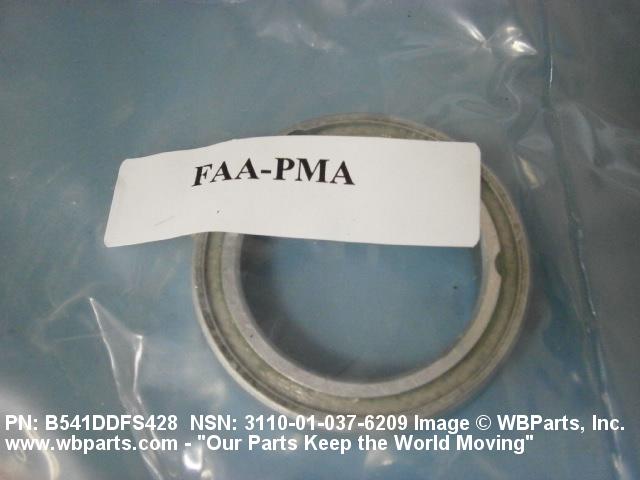

Drawings & Photos | NSN 3110-01-037-6209
Demand History | NSN 3110-01-037-6209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-037-6209 | 2025-01-15 | 2 | us |
| BACB10A29DDH | 2024-04-121 | 2 | US |
| BACB10A29DDH | 2024-04-121 | 8 | US |
| MS2764641G | 2023-03-60 | 18 | CN |
| MS2764641G | 2021-03-90 | 2 | US |
| B5410D | 2020-06-178 | 5 | US |
| 3110-01-037-6209 | 2018-09-269 | 4 | US |
| 3110-01-037-6209 | 2018-01-25 | 1 | DIBBS-RFPs |
| BACB10A29DD | 2016-11-307 | 3 | United States |
| BACB10A29DDH | 2014-03-85 | 4 | United States |
| 3110-01-037-6209 | 2012-04-102 | 53 | US |
| B541ZZ | 2012-02-38 | 16 | us |
| B541DDFS428 | 2012-02-38 | 16 | us |
| B541ZZ | 2011-08-242 | 3 | United States |
| 3110-01-037-6209 | 2009-08-240 | 20 | US |
| 3110-01-037-6209 | 2009-05-147 | 156 | DIBBS |
| BACB10CF17PP | 2008-08-214 | 1 | US |
| 3110-01-037-6209 | 2008-06-175 | 1026 | DIBBS |
| 3110-01-037-6209 | 2007-12-352 | 627 | DIBBS |
| 3110-01-037-6209 | 2007-09-247 | 1330 | DIBBS |
| 3110-01-037-6209 | 2007-06-177 | 110 | DIBBS |
| 3110-01-037-6209 | 2007-05-127 | 583 | DIBBS |
| 3110-01-037-6209 | 2006-05-150 | 1360 | us |
| 3110-01-037-6209 | 2006-05-150 | 1360 | us |
Cross Reference | NSN 3110-01-037-6209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS27646 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| B5410D | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| B541DDFS428 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| B541DDFS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| B541DDFS428 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| B541ZZ | 16071 | IEC CORPORATION |
| B541ZZ | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| BACB10A29DD | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB10A29DDH | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB10CF17PP | 81205 | THE BOEING COMPANY DBA BOEING |
| MS27646-41G | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27646-41G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-037-6209
Related Products | NSN 3110-01-037-6209
Technical Data | NSN 3110-01-037-6209
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC TETRAFLUOROETHYLENE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 1.0618 INCHES MINIMUM AND 1.0632 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.4990 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.2760 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | 80 PCT FULL OF SPECIFIED LUBRICANT |
Restrictions/Controls & Freight Information | NSN 3110-01-037-6209
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-037-6209
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
