NSN 3110-01-015-6682 AMVW539WODMTSDBFS171, SR539PT10C51ABEC7, SR539PT10C5-1ABEC7
Product Details | AIRFRAME BALL BEARING
3110-01-015-6682 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: AMVW539WODMTSDBFS171, SR539PT10C51ABEC7, SR539PT10C5-1ABEC7, 3TACOS1219SUDB1015, 3TACOS12-19SUDB10-15, 9018141C, 901814-1C, 3110-01-015-6682, 01-015-6682, 3110010156682, 010156682
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 JAN 1976 | 01-015-6682 | 00041 ( BEARING, BALL, AIRFRAME ) |
Drawings & Photos | NSN 3110-01-015-6682
Demand History | NSN 3110-01-015-6682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SR539PT10C51ABEC7 | 2008-10-291 | 25 | Hong Kong |
Cross Reference | NSN 3110-01-015-6682
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-015-6682
Technical Data | NSN 3110-01-015-6682
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEPARATOR SLUG STEEL CORROSION RESISTING SHIELD |

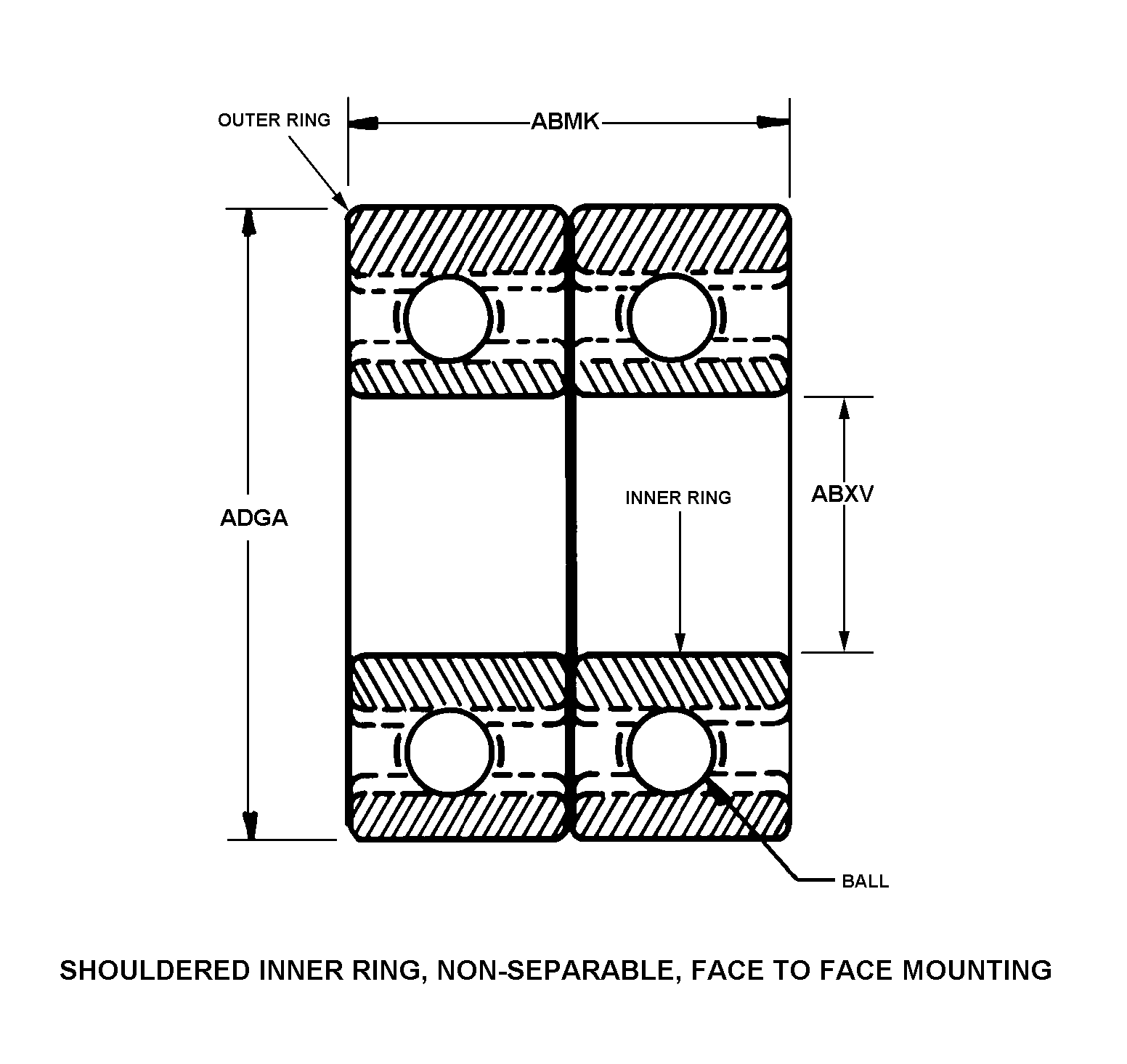

| STYLE DESIGNATOR | 92F SHOULDERED INNER RING, NON-SEPARABLE, FACE TO FACE MOUNTING |
| OVERALL WIDTH | 0.5620 INCHES NOMINAL |
| BORE DIAMETER | 0.7500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.1875 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| RETAINER FABRICATION METHOD | MACHINED |
| SHIELD QUANTITY | 1 |
| LOAD DIRECTION | RADIAL |
| SPECIAL FEATURES | PRELOAD 10 TO 15 LBS. BACK TO BACK MTG,RADIAL CLEARANCE 0.0003 IN. MIN TO 0.0008 IN. MAX,INNER RACE BREAKOUT |
Restrictions/Controls & Freight Information | NSN 3110-01-015-6682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-015-6682
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
