NSN 3110-00-522-7106 K65945825, K659458-25, KP12AE8454
Product Details | AIRFRAME BALL BEARING
3110-00-522-7106 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: K65945825, K659458-25, KP12AE8454, KP12AFS464, KP12A-FS464, 3110-00-522-7106, 00-522-7106, 3110005227106, 005227106
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 AUG 1974 | 00-522-7106 | 00041 ( BEARING, BALL, AIRFRAME ) |

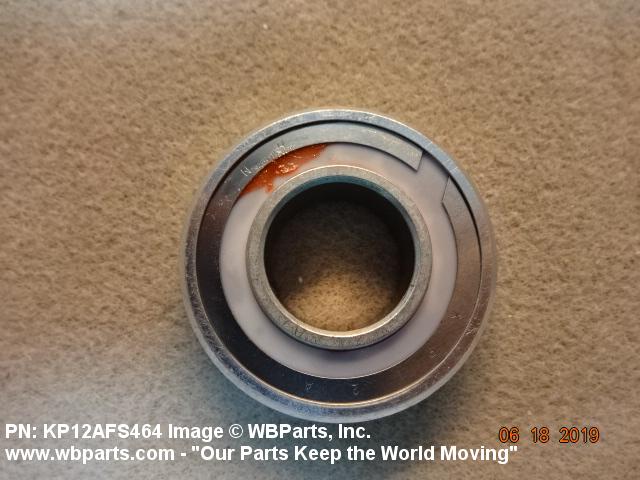

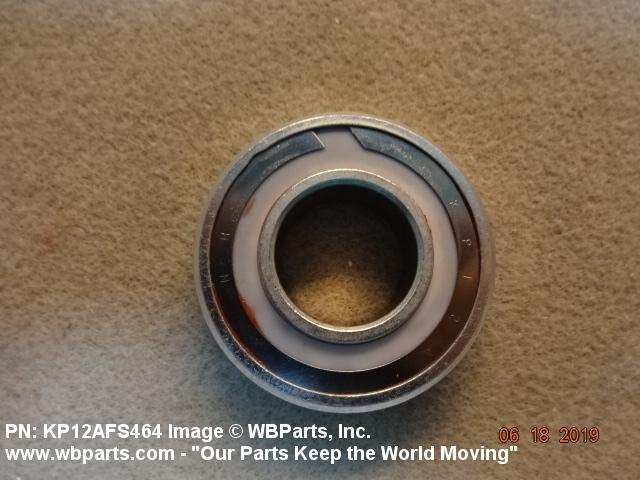

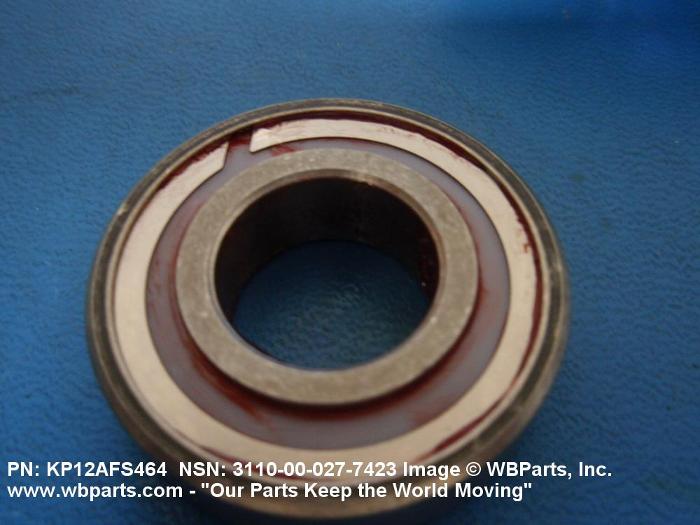

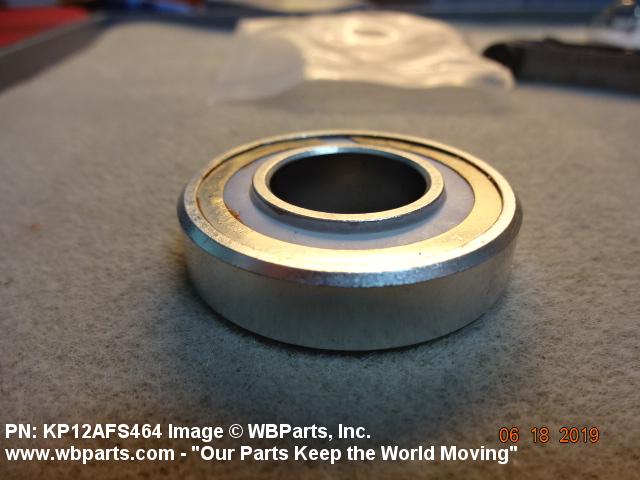

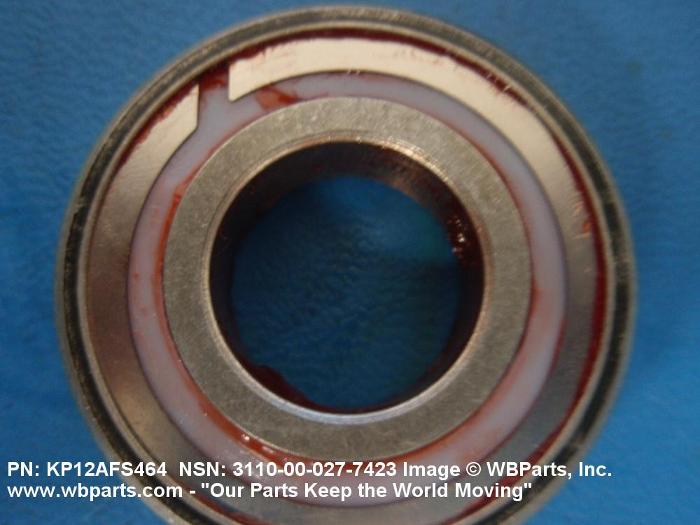

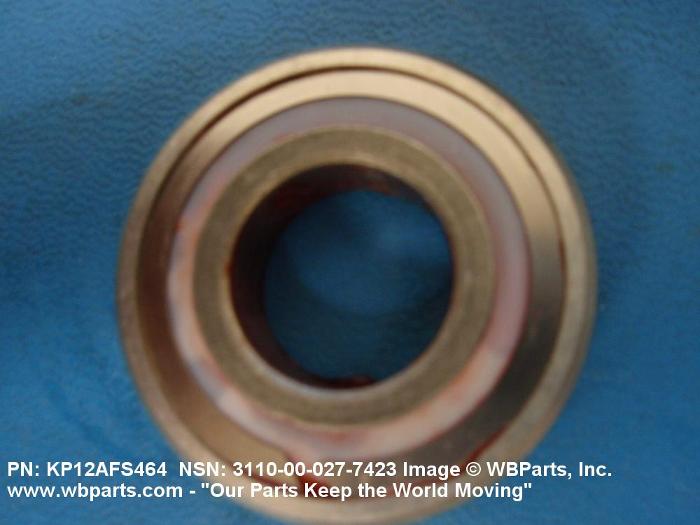

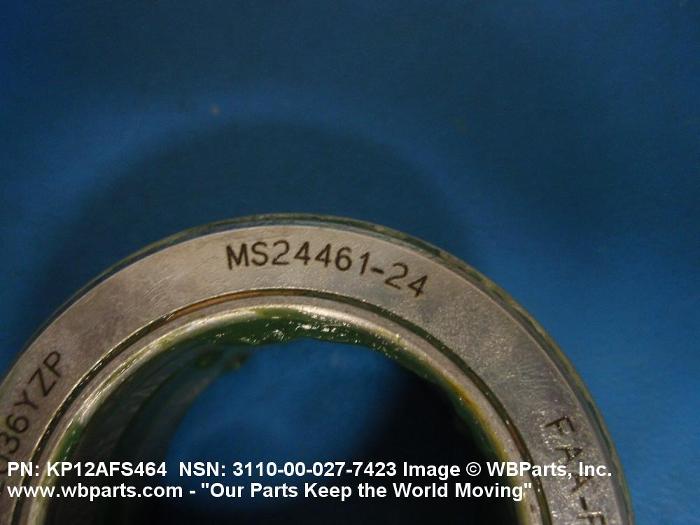

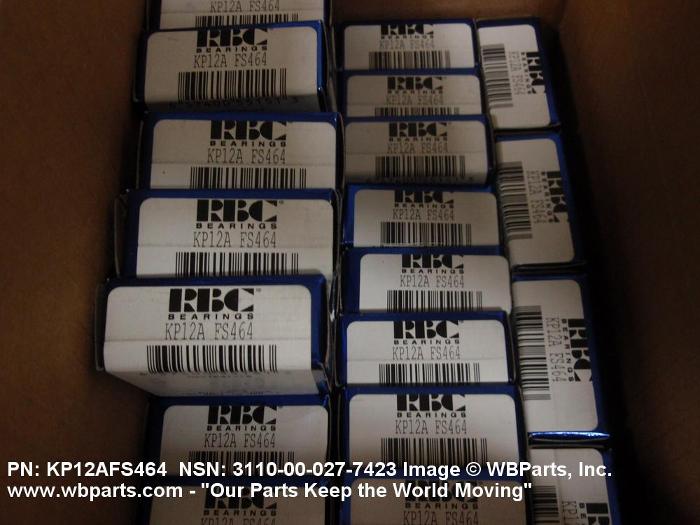

Drawings & Photos | NSN 3110-00-522-7106
Demand History | NSN 3110-00-522-7106
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KP12AFS464 | 2021-12-343 | 36 | Vietnam |
| KP12AFS464 | 2020-07-202 | 10 | Vietnam |
| 3110-00-522-7106 | 2019-06-158 | 30 | Vietnam |
| KP12AFS464 | 2019-03-77 | 40 | Vietnam |
| KP12AFS464 | 2011-05-130 | 100 | US |
| KP12AFS464 | 2009-09-260 | 12 | US |
| 3110-00-522-7106 | 2009-09-259 | 12 | US |
| KP12AFS464 | 2009-09-259 | 12 | US |
| KP12AFS464 | 2009-08-236 | 4 | US |
| KP12AFS464 | 2009-08-236 | 4 | US |
| KP12AFS464 | 2009-08-236 | 4 | US |
| KP12AFS464 | 2008-09-245 | 56 | US |
| KP12AFS464 | 2007-09-248 | 50 | US |
Cross Reference | NSN 3110-00-522-7106
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K659458-25 | 84955 | KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION |
| KP12A-FS464 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP12A-FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP12AE8454 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP12AE8454 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-522-7106
Technical Data | NSN 3110-00-522-7106
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING RUBBER SYNTHETIC SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |

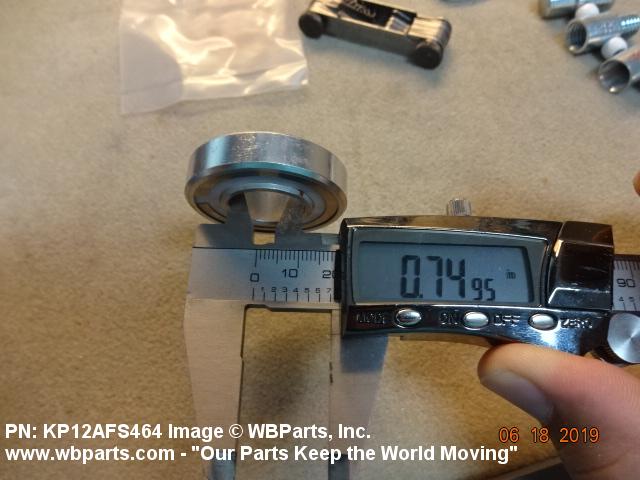

| BORE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |

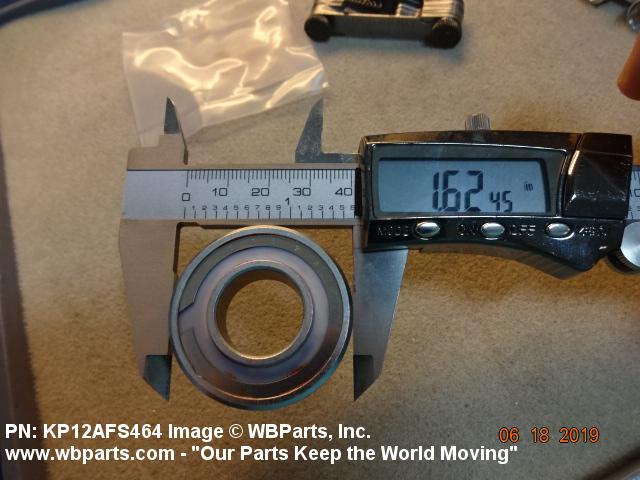

| OVERALL OUTSIDE DIAMETER | 1.6245 INCHES MINIMUM AND 1.6250 INCHES MAXIMUM |

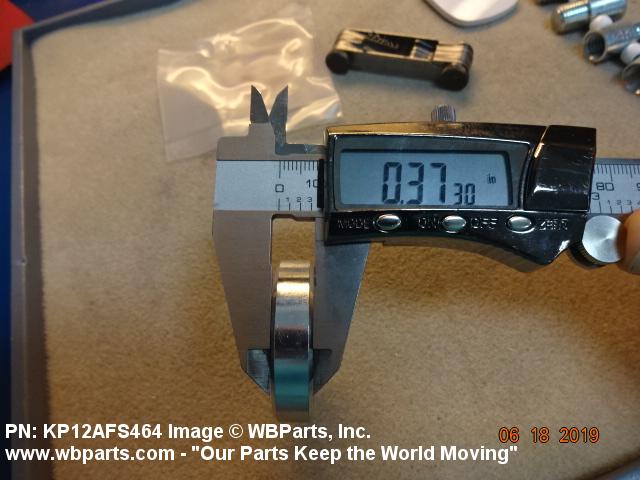

| OUTER RING WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |

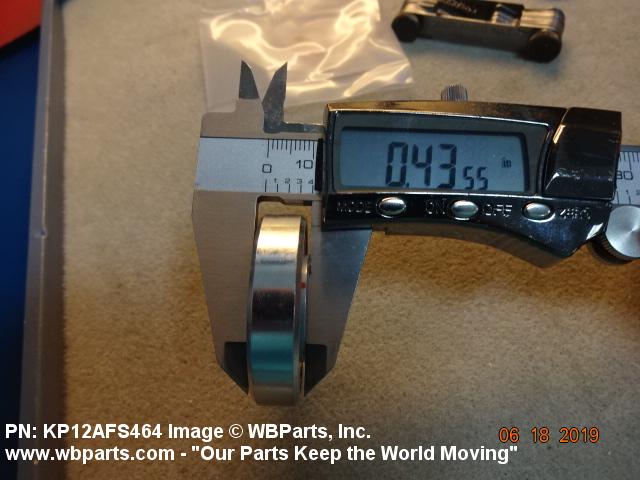

| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| MANUFACTURERS CODE | 84955 |
| MFR SOURCE CONTROLLING REFERENCE | K659458-25 |
Restrictions/Controls & Freight Information | NSN 3110-00-522-7106
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-522-7106
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | BH | HELICOPTERS(H2) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
