NSN 3110-00-316-7977 MS276454R, MS27645-4R, MKSP4

Product Details | AIRFRAME BALL BEARING

3110-00-316-7977 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS276454R, MS27645-4R, MKSP4, MKSP4.2TS, MKSP42TS, MKSP4FS464, AS27645, AS276454R, AS27645-4R, 4130612B10, 3110-00-316-7977, 00-316-7977, 3110003167977, 003167977

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	11 NOV 1973	00-316-7977	00041 ( BEARING, BALL, AIRFRAME )

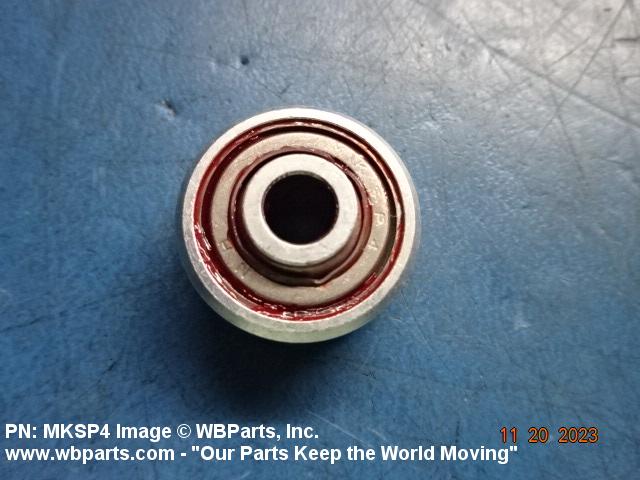

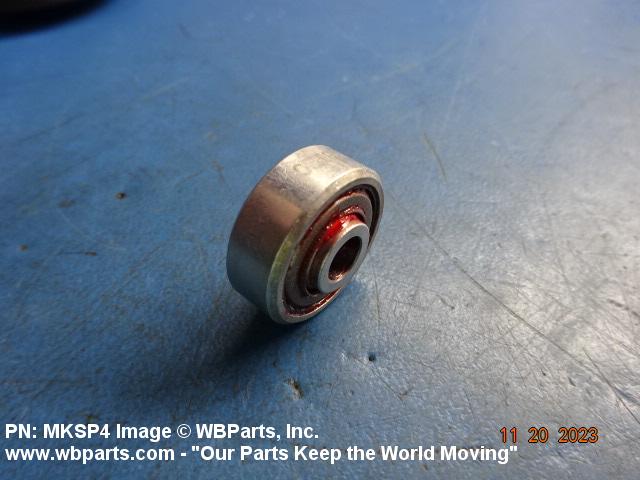

Drawings & Photos | NSN 3110-00-316-7977

Part Number	Request Date	QTY	Origin
4130612B10	2024-03-84	272	DIBBS
MKSP4	2023-11-307	4	United States
MS276454R	2023-08-226	300	US
3110-00-316-7977	2023-06-177	300	US
3110-00-316-7977	2023-01-05	10	US
4130612B10	2022-09-270	721	DIBBS
MKSP4	2022-02-41	20	Canada
3110-00-316-7977	2021-06-152	20	Canada
MKSP4	2021-05-146	20	Canada
4130612B10	2021-03-60	721	DIBBS
MKSP4	2019-04-116	12	Canada
3110-00-316-7977	2018-12-364	432	DIBBS
MKSP4FS464	2014-09-273	60	United States
3110-00-316-7977	2014-04-99	223	DIBBS
MS276454R	2014-03-77	2	UM
3110-00-316-7977	2013-11-311	394	DIBBS
3110-00-316-7977	2011-12-346	6	FR
3110-00-316-7977	2011-09-257	45	DIBBS
3110-00-316-7977	2010-04-116	15	DIBBS
3110-00-316-7977	2010-04-106	15	DIBBS
3110-00-316-7977	2009-05-126	81	DIBBS
3110-00-316-7977	2009-04-104	56	DIBBS
3110-00-316-7977	2008-05-122	95	DIBBS
3110-00-316-7977	2007-10-278	229	DIBBS
3110-00-316-7977	2007-06-157	162	DIBBS
3110-00-316-7977	2007-03-72	302	DIBBS
3110-00-316-7977	2007-02-53	63	DIBBS
3110-00-316-7977	2007-02-37	28	DIBBS

Cross Reference | NSN 3110-00-316-7977

Part Number	Cage Code	Manufacturer
4130612B10	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
4130612B10	81039	WHIPPANY ACTUATION SYSTEMS LLC
AS27645	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS27645-4R	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MKSP4	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MKSP4.2TS	43991	FAG BEARINGS CORPORATION
MKSP42TS	43991	FAG BEARINGS CORPORATION
MKSP4FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MKSP4FS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MS27645-4R	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-316-7977

Compare

Related Products | NSN 3110-00-316-7977

3110-00-317-2349, 3110-00-317-2456, 3110-00-317-3884, 3110-00-317-3911, 3110-00-317-3914

Technical Data | NSN 3110-00-316-7977

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES

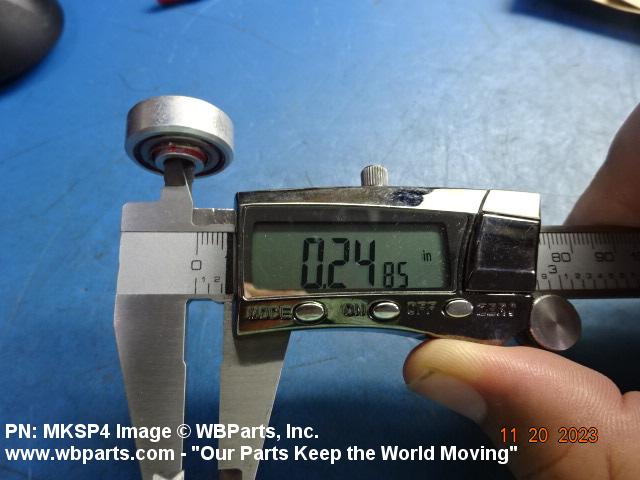

BORE DIAMETER	0.2500 INCHES NOMINAL

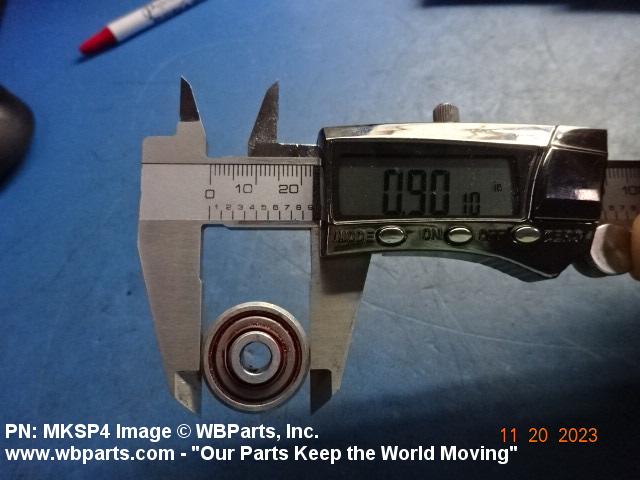

OVERALL OUTSIDE DIAMETER	0.9014 INCHES NOMINAL

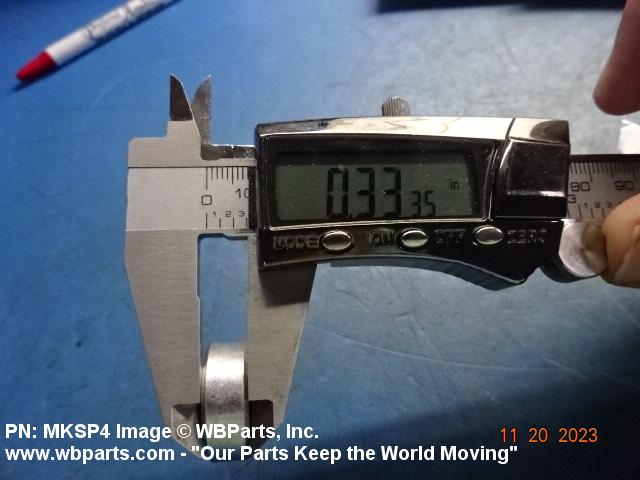

OUTER RING WIDTH	0.3350 INCHES NOMINAL

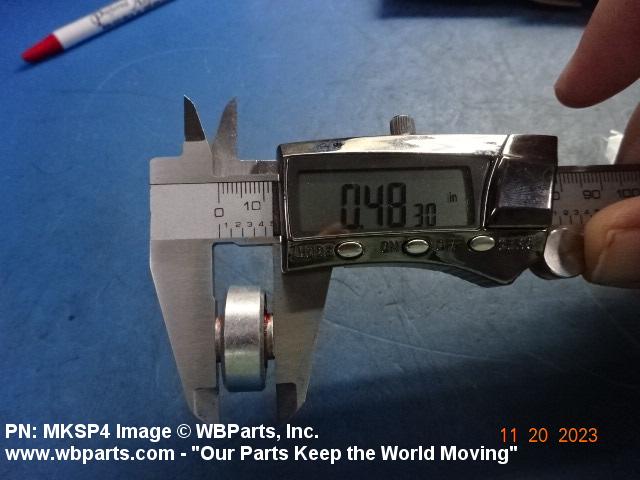

INNER RING WIDTH	0.4840 INCHES NOMINAL
