NSN 3110-00-293-9192 237903, 00-293-9192, 002939192
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-293-9192 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 237903, 3110-00-293-9192, 00-293-9192, 3110002939192, 002939192
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 JAN 1967 | 00-293-9192 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-293-9192
Demand History | NSN 3110-00-293-9192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-293-9192 | 2011-10-301 | 1 | DIBBS |
| 3110-00-293-9192 | 2011-10-294 | 1 | DIBBS |
| 3110-00-293-9192 | 2011-10-289 | 1 | DIBBS |
Cross Reference | NSN 3110-00-293-9192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 237903 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-293-9192
Related Products | NSN 3110-00-293-9192
Technical Data | NSN 3110-00-293-9192
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER STEEL COMP E52100 ROLLER |

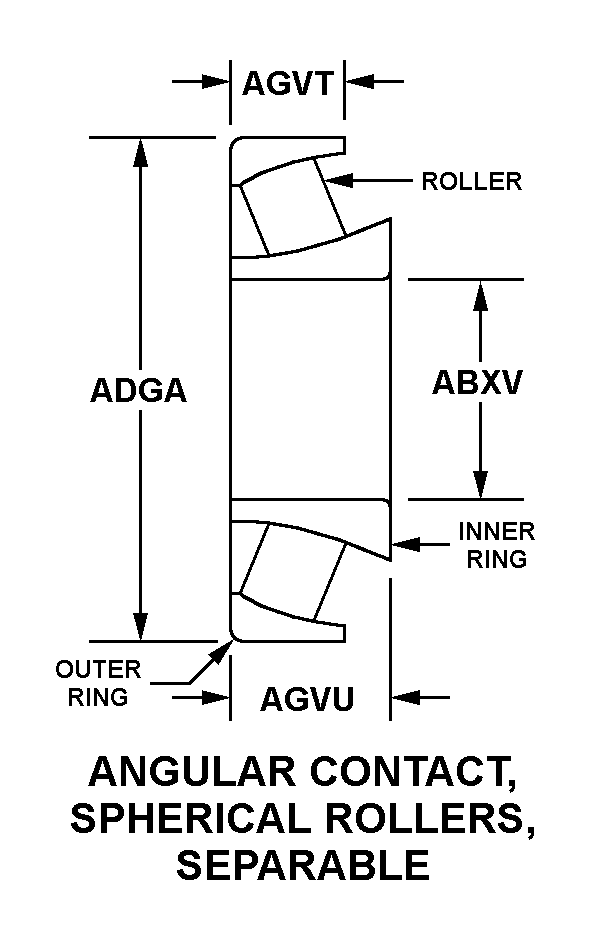

| STYLE DESIGNATOR | 284 ANGULAR CONTACT, SPHERICAL ROLLERS, SEPARABLE |
| BORE DIAMETER | 2.7556 INCHES MINIMUM AND 2.7759 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.3304 INCHES MINIMUM AND 4.3307 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.9761 INCHES MINIMUM AND 0.9811 INCHES MAXIMUM |
| INNER RING WIDTH | 1.1761 INCHES MINIMUM AND 1.1811 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0030 INCHES MINIMUM RADIAL AND 0.0045 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | FLANGED OUTER RING 4.6100 IN. FLANGE OD 0.1260 IN. FLANGE WIDTH |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 237903 |
Restrictions/Controls & Freight Information | NSN 3110-00-293-9192
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-293-9192
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RV | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | FN | JET ENGINES(J57) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
