NSN 3110-00-184-5418 1023421PC16, 102-342-1PC16, 1024361PC16
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-184-5418 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 1023421PC16, 102-342-1PC16, 1024361PC16, 102-436-1PC16, 102742PC16, 102-742PC16, 11409, 114091, 11409-1, 515, 3110-00-184-5418, 00-184-5418, 3110001845418, 001845418
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-184-5418 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

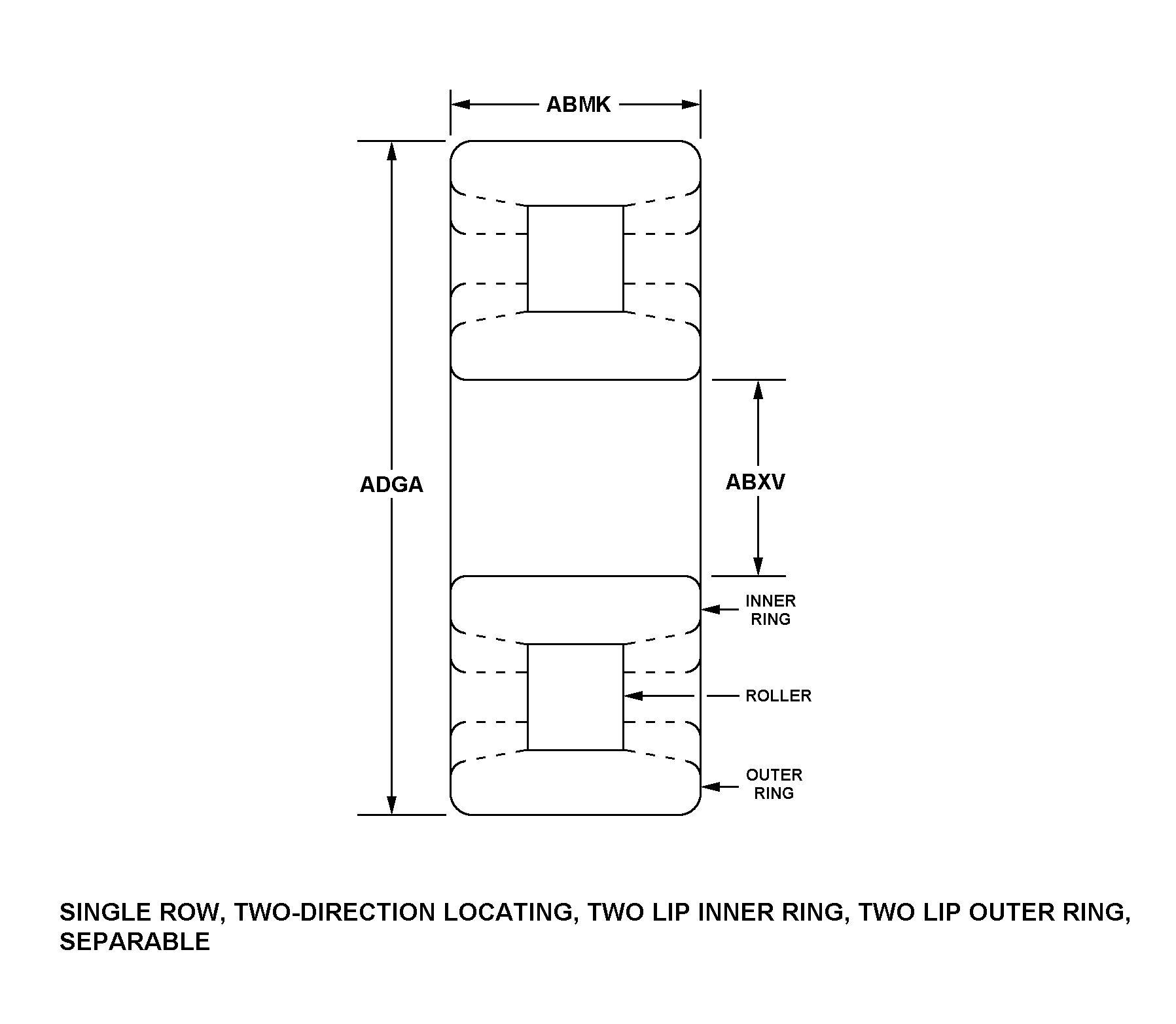

Drawings & Photos | NSN 3110-00-184-5418
Demand History | NSN 3110-00-184-5418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11409 | 2018-01-29 | 11 | |
| 515 | 2014-05-149 | 2 | US |
| 515 | 2012-11-310 | 12 | |
| 515 | 2011-12-338 | 1 | US |
Cross Reference | NSN 3110-00-184-5418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102-342-1PC16 | 58265 | STRUTHERS WELLS CORP |
| 102-436-1PC16 | 58265 | STRUTHERS WELLS CORP |
| 102-742PC16 | 58265 | STRUTHERS WELLS CORP |
| 11409 | 39820 | MESSINGER BEARINGS CORPORATION |
| 11409 | 58265 | STRUTHERS WELLS CORP |
| 11409-1 | 39820 | MESSINGER BEARINGS CORPORATION |
| 515 | 58265 | STRUTHERS WELLS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-184-5418
Technical Data | NSN 3110-00-184-5418
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING STEEL ROLLER |
| STYLE DESIGNATOR | 252H SINGLE ROW, TWO-DIRECTION LOCATING, TWO LIP INNER RING, TWO LIP OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 1.1190 INCHES MINIMUM AND 1.1240 INCHES MAXIMUM |
| BORE DIAMETER | 1.2490 INCHES MINIMUM AND 1.2495 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8730 INCHES MINIMUM AND 2.8740 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | TWO DIRECTION |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-184-5418
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-184-5418
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
