NSN 3110-00-152-5215 R1909E3, 21C6020, 21C6020P01
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-152-5215 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: R1909E3, 21C6020, 21C6020P01, 3110-00-152-5215, 00-152-5215, 3110001525215, 001525215
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 AUG 1972 | 00-152-5215 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

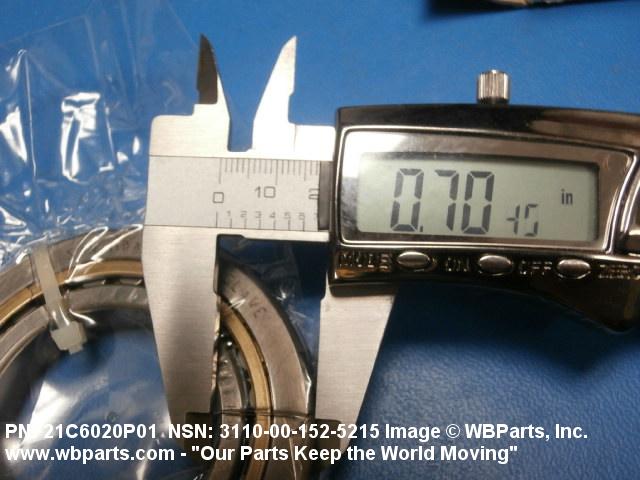

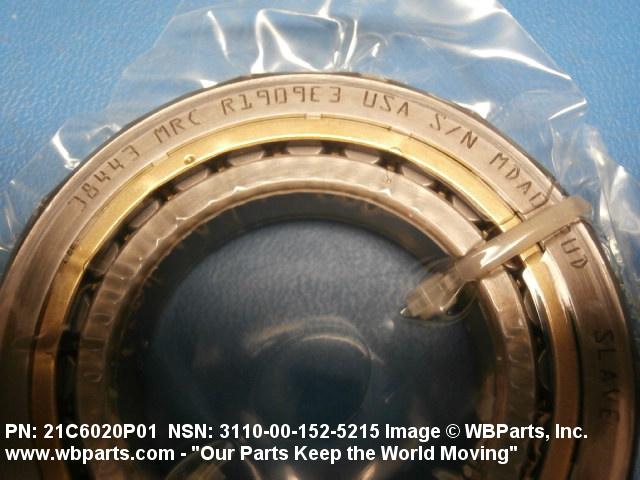

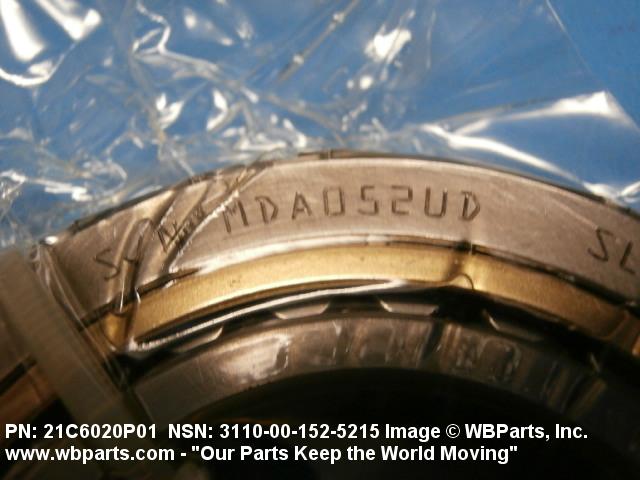

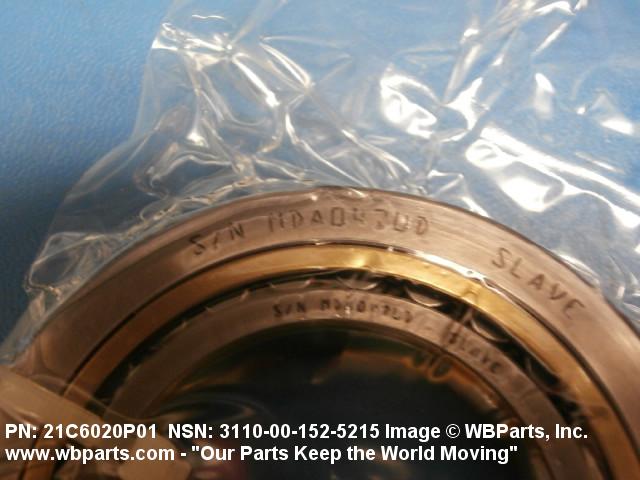

Drawings & Photos | NSN 3110-00-152-5215
Demand History | NSN 3110-00-152-5215
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-152-5215 | 2015-11-314 | 1 | United States |
| 3110-00-152-5215 | 2015-09-245 | 2 | United States |
| 3110-00-152-5215 | 2015-04-97 | 1 | United States |
| 3110-00-152-5215 | 2013-09-253 | 1 | CL |
| 21C6020P01 | 2012-12-340 | 1 | TH |
| 21C6020P01 | 2012-08-228 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-152-5215
Related Products | NSN 3110-00-152-5215
Technical Data | NSN 3110-00-152-5215
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER STEEL COMP E52100 ROLLER |
| STYLE DESIGNATOR | 252A SINGLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |

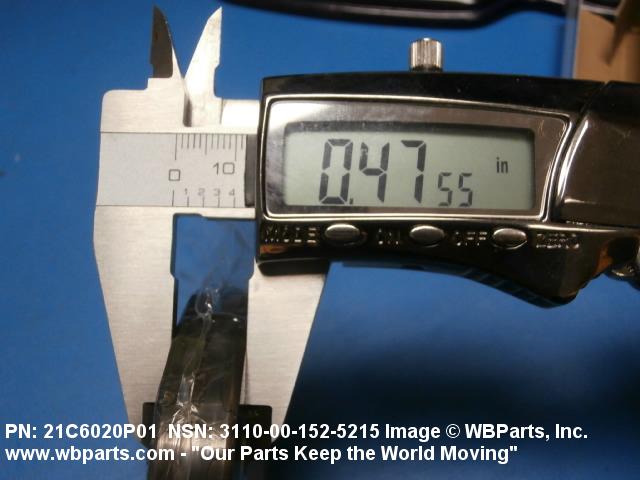

| OVERALL WIDTH | 0.4674 INCHES MINIMUM AND 0.4724 INCHES MAXIMUM |
| BORE DIAMETER | 1.7731 INCHES MINIMUM AND 1.7733 INCHES MAXIMUM |

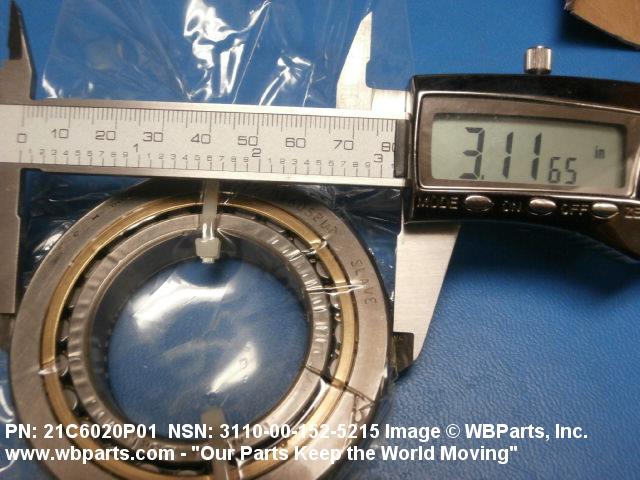

| OVERALL OUTSIDE DIAMETER | 3.1099 INCHES MINIMUM AND 3.1102 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| III END ITEM IDENTIFICATION | CRADLE21C6004G01 WHEN BALANCING COMPR ROTOR ASSY |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 21C6020P01 |
Restrictions/Controls & Freight Information | NSN 3110-00-152-5215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 3110-00-152-5215
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | X | The current standard price has been validated and the previous price was erroneous.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
