NSN 3110-00-152-5272 6778667720, 67786-67720, 00-152-5272
Product Details | TAPERED ROLLER BEARING
3110-00-152-5272 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 6778667720, 67786-67720, 3110-00-152-5272, 00-152-5272, 3110001525272, 001525272
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 OCT 1971 | 00-152-5272 | 00021 ( BEARING, ROLLER, TAPERED ) |

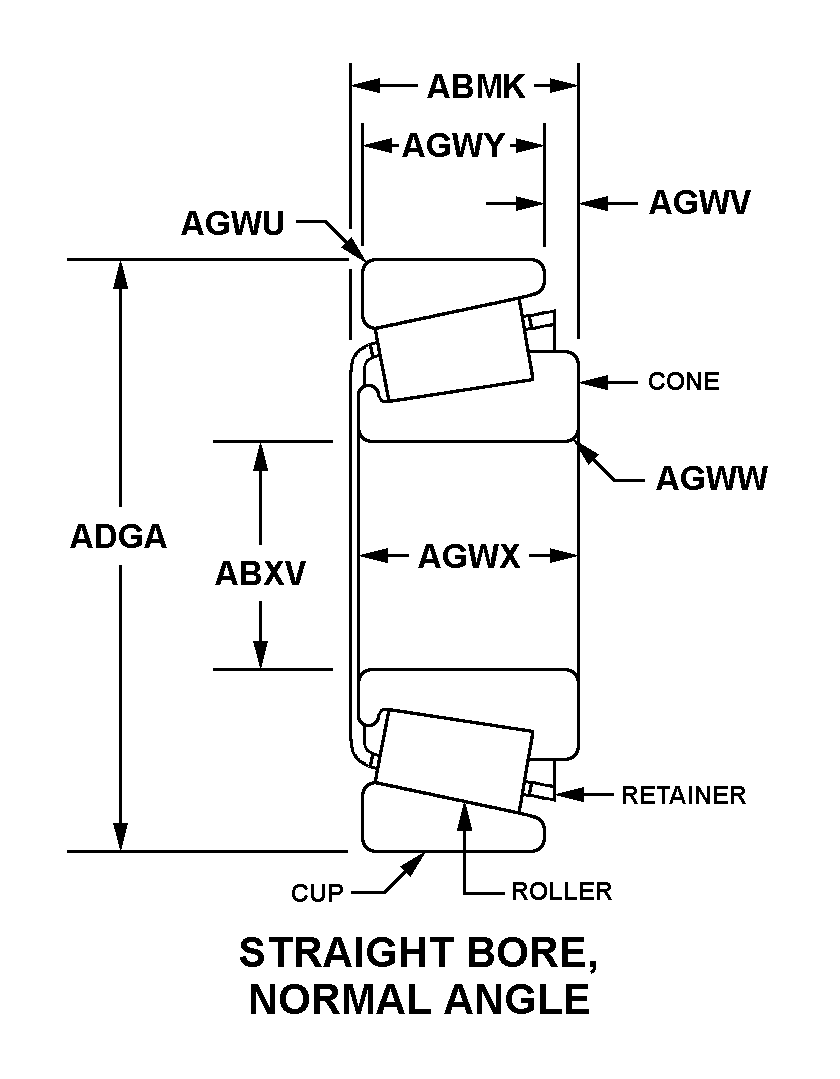

Drawings & Photos | NSN 3110-00-152-5272
Demand History | NSN 3110-00-152-5272
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6778667720 | 2012-05-143 | 2 | United States |
| 3110-00-152-5272 | 2007-08-234 | 40 | Canada |
Cross Reference | NSN 3110-00-152-5272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 67786-67720 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-152-5272
Technical Data | NSN 3110-00-152-5272
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 350 STRAIGHT BORE, NORMAL ANGLE |
| OVERALL WIDTH | 1.8750 INCHES NOMINAL |
| BORE DIAMETER | 6.8750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 9.7500 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.1300 INCHES NOMINAL |
| STANDOUT WIDTH | 0.3750 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.3100 INCHES NOMINAL |
| CONE WIDTH | 1.8750 INCHES NOMINAL |
| CUP WIDTH | 1.5000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
| RETAINER FABRICATION METHOD | PRESSED |
Restrictions/Controls & Freight Information | NSN 3110-00-152-5272
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-152-5272
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
