Product Details | AIRFRAME BALL BEARING

3110-00-277-8348 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS276474, MS27647-4, AS7949, DW4KFAFNIR, DW4KFS464, DW4K, 10107371 , 3110-00-277-8348, 00-277-8348, 3110002778348, 002778348

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	08 AUG 1973	00-277-8348	00041 ( BEARING, BALL, AIRFRAME )

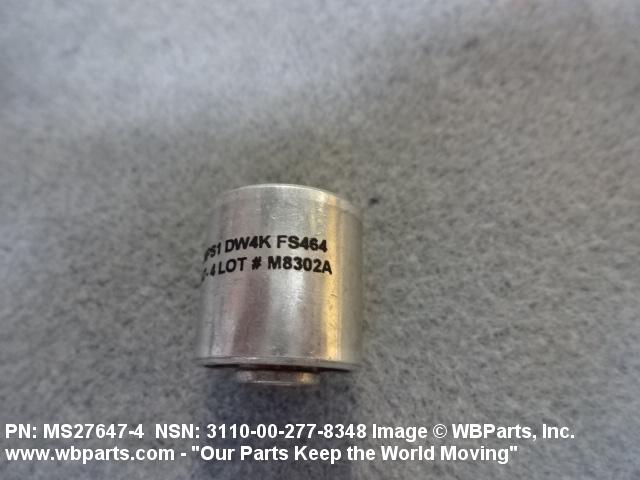

Drawings & Photos | NSN 3110-00-277-8348

Part Number	Request Date	QTY	Origin
3110-00-277-8348	2024-10-291	38	DIBBS
3110-00-277-8348	2024-09-254	38	DIBBS
MS276474	2021-05-125	6	United States
3110-00-277-8348	2019-02-37	173	DIBBS
3110-00-277-8348	2018-12-338	51	DIBBS
MS276474	2017-03-89	2	Korea
DW4K	2016-09-266	50	US
MS276474	2015-12-338	1	US
MS276474	2015-08-222	5	United States
MS276474	2015-07-203	42	United States
3110-00-277-8348	2015-05-132	6	United States
3110-00-277-8348	2015-04-119	10	United States
3110-00-277-8348	2015-03-77	50	MX
MS27647-4	2015-03-76	4	TH
3110-00-277-8348	2013-12-351	4	China
3110-00-277-8348	2012-03-83	2	United States
3110-00-277-8348	2011-08-213	761	DIBBS
MS276474	2010-04-119	60	United States
DW4K	2010-03-83	10	US
3110-00-277-8348	2009-10-301	338	DIBBS
3110-00-277-8348	2008-07-199	50	US
3110-00-277-8348	2008-06-157	246	DIBBS
3110-00-277-8348	2008-05-128	226	DIBBS
MS276474	2008-04-115	1000	US
3110-00-277-8348	2007-11-320	612	DIBBS
3110-00-277-8348	2007-08-232	10	US
3110-00-277-8348	2007-06-178	160	United States
MS276474	2006-06-156	1	France
MS276474	2006-05-146	48	US

Cross Reference | NSN 3110-00-277-8348

Part Number	Cage Code	Manufacturer
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
DW4K	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
DW4KFAFNIR	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DW4KFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DW4KFS464	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MS27647-4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27647-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-277-8348

Compare

Related Products | NSN 3110-00-277-8348

3110-00-277-8356, 3110-00-277-8381, 3110-00-277-9341, 3110-00-277-9363, 3110-00-277-9365

Technical Data | NSN 3110-00-277-8348

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	204 DOUBLE ROW

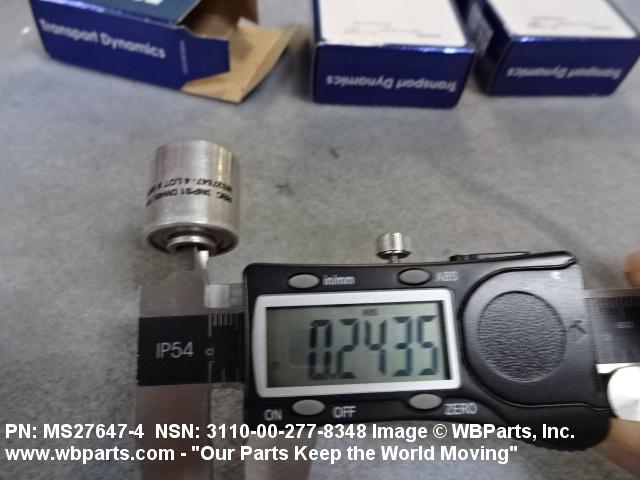

BORE DIAMETER	0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

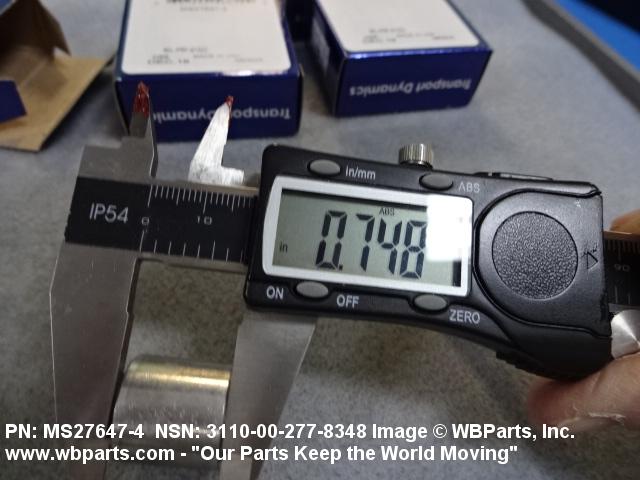

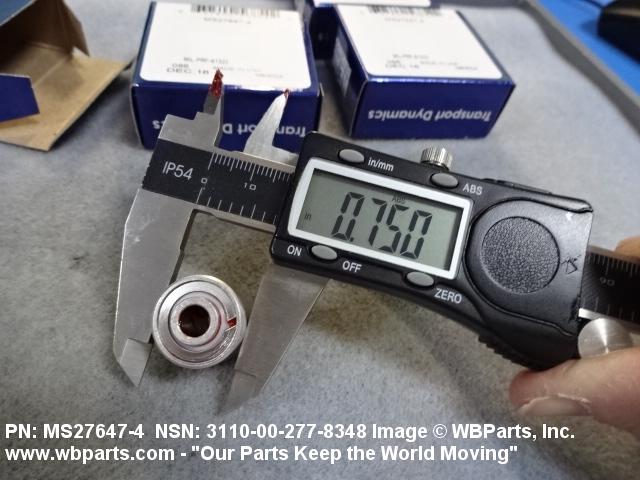

OVERALL OUTSIDE DIAMETER	0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM
OUTER RING WIDTH	0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM

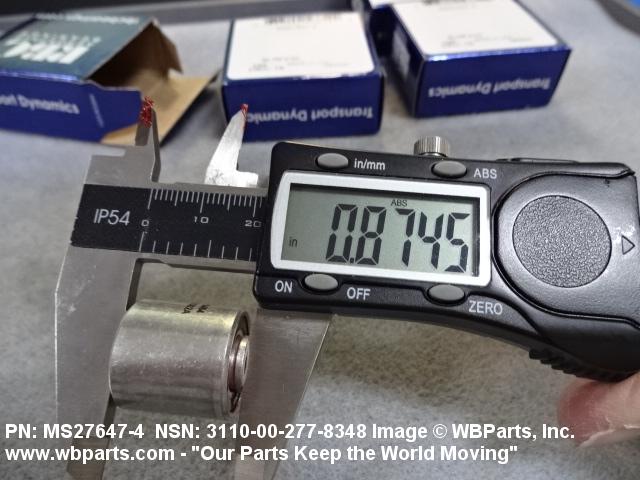

INNER RING WIDTH	0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM
