NSN 3110-00-275-0137 MS2764823, MS27648-23, AKP23BSE8510
Product Details | AIRFRAME BALL BEARING
3110-00-275-0137 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS2764823, MS27648-23, AKP23BSE8510, AKP23BSE-8510, AS27648, BACB10A559, KP23BS, KP23BSFS464, KP23BSST3, KP-23-BS-ST-3, 3110-00-275-0137, 00-275-0137, 3110002750137, 002750137
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-275-0137 | 00041 ( BEARING, BALL, AIRFRAME ) |

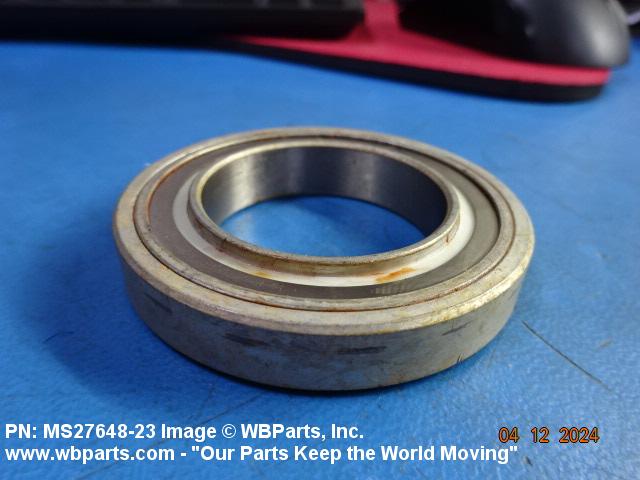

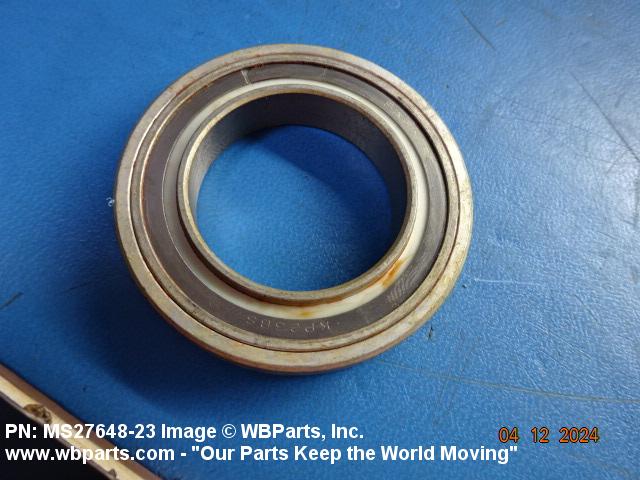

Drawings & Photos | NSN 3110-00-275-0137
Demand History | NSN 3110-00-275-0137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2764823 | 2024-02-59 | 9 | China |
| AS27648 | 2020-11-323 | 2 | UK |
| 3110-00-275-0137 | 2017-07-186 | 167 | DIBBS |
| 3110-00-275-0137 | 2016-12-355 | 58 | DIBBS |
| 3110-00-275-0137 | 2012-11-324 | 142 | DIBBS |
| AS27648 | 2010-10-279 | 10 | CN |
| 3110-00-275-0137 | 2008-11-318 | 7 | US |
| MS2764823 | 2008-05-151 | 100 | Canada |
| 3110-00-275-0137 | 2008-03-72 | 12 | Indonesia |
| MS2764823 | 2008-01-25 | 16 | China |
| KP23BS | 2006-09-264 | 2 | US |
Cross Reference | NSN 3110-00-275-0137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AKP23BSE-8510 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| AS27648 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACB10A559 | 81205 | THE BOEING COMPANY DBA BOEING |
| KP-23-BS-ST-3 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KP23BS | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP23BSFS464 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| KP23BSFS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MS27648-23 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27648-23 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-275-0137
Related Products | NSN 3110-00-275-0137
Technical Data | NSN 3110-00-275-0137
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OR STEEL COMP E51100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 200 SINGLE ROW, EXTERNAL SELF ALIGNING, WITH ALIGNING RING |

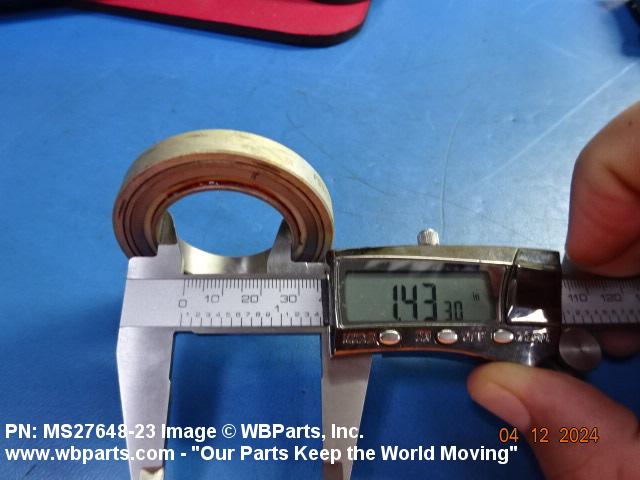

| BORE DIAMETER | 1.4380 INCHES NOMINAL |

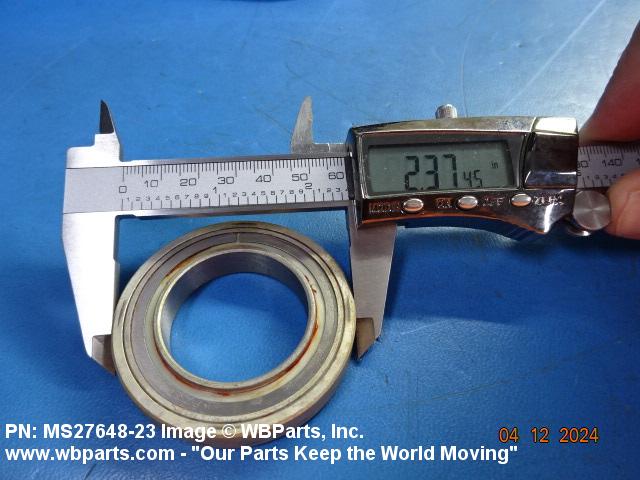

| OVERALL OUTSIDE DIAMETER | 2.3750 INCHES NOMINAL |

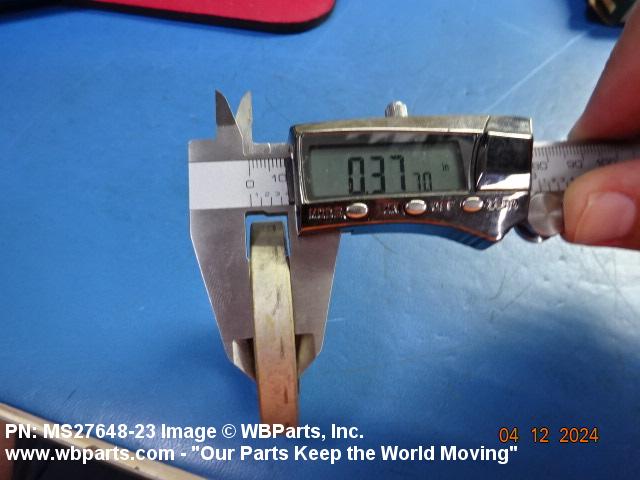

| OUTER RING WIDTH | 0.3750 INCHES NOMINAL |

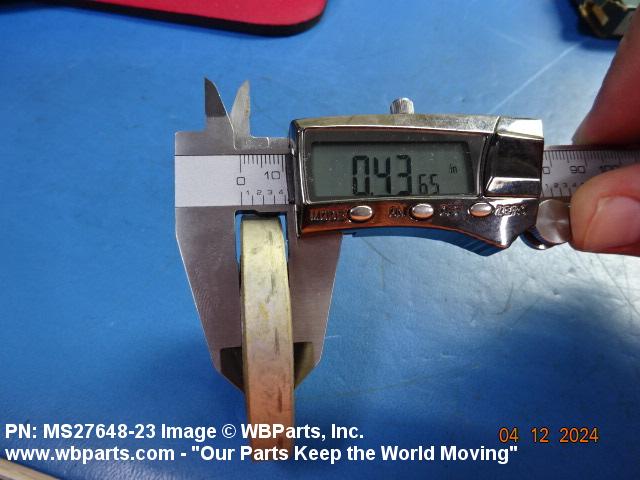

| INNER RING WIDTH | 0.4730 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | RADIAL |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | 80 PCT MIN FULL SPECIFIED LUBRICANT,6 DEG MISALIGNMENT EITHER DIRECTION |
Restrictions/Controls & Freight Information | NSN 3110-00-275-0137
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-275-0137
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
