NSN 3110-00-198-1156 PD5ANG25, PD5FS160, PD5FS160A

Product Details | AIRFRAME BALL BEARING

3110-00-198-1156 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: PD5ANG25, PD5FS160, PD5FS160A, PD5KFS10160S3, PD5KFS160, PD5KFS50160S3, PD5KMILG3278, PD5MILG3278A, 7528270, PD5, PD5K, 3110-00-198-1156, 00-198-1156, 3110001981156, 001981156

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-198-1156	00041 ( BEARING, BALL, AIRFRAME )

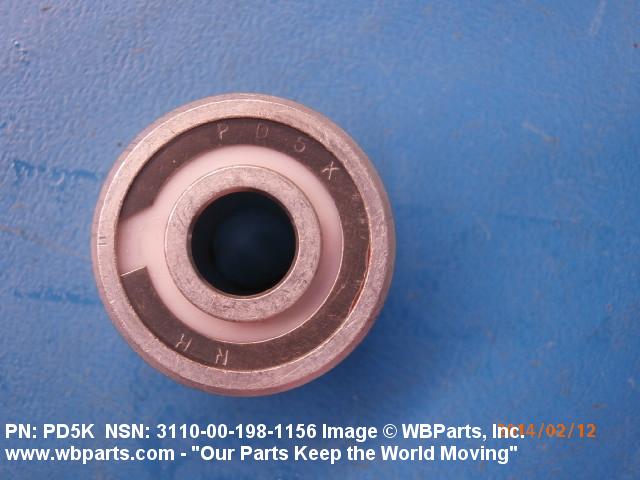

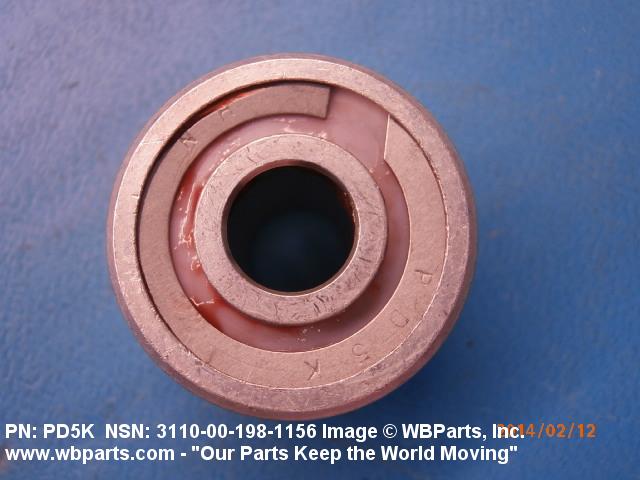

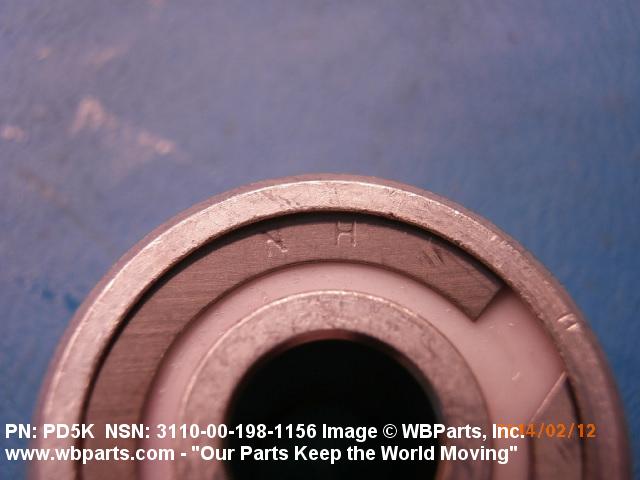

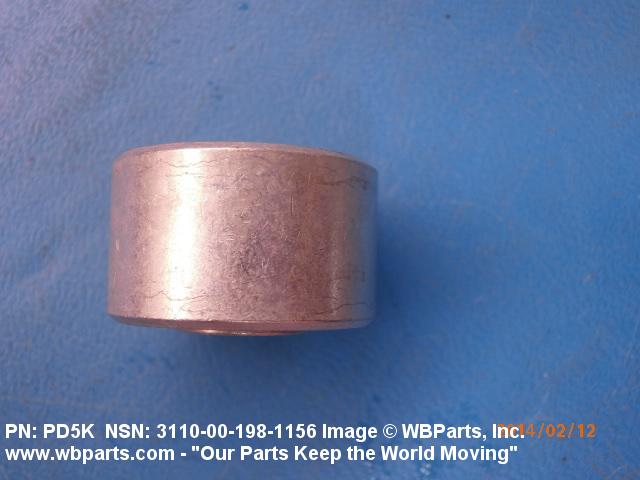

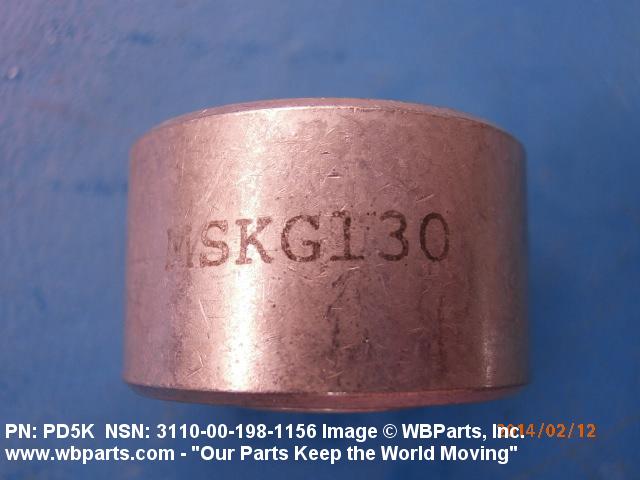

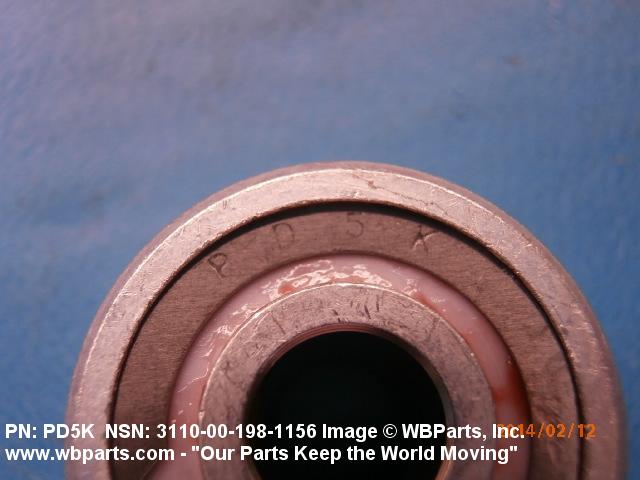

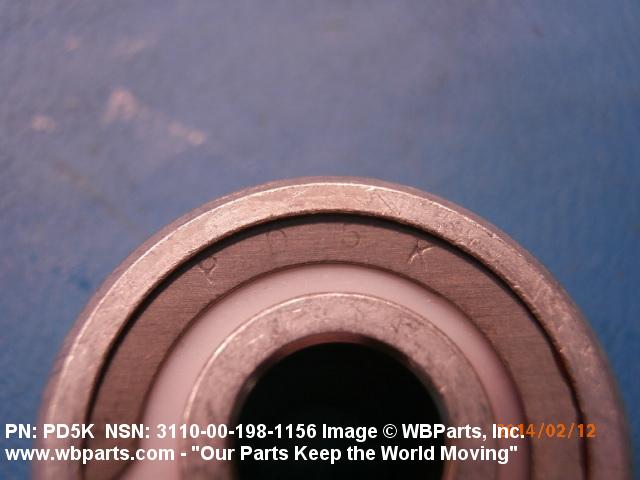

Drawings & Photos | NSN 3110-00-198-1156

Part Number	Request Date	QTY	Origin
3110-00-198-1156	2022-09-265	200	US
3110-00-198-1156	2019-03-71	50	TR
PD5	2013-11-332	5	India
PD5KFS160	2011-09-257	15
PD5KFS160	2011-08-231	15
3110-00-198-1156	2010-04-98	12	US
3110-00-198-1156	2009-05-147	12	US
PD5K	2007-09-247	150	DE

Cross Reference | NSN 3110-00-198-1156

Part Number	Cage Code	Manufacturer
7528270	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
PD5	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5ANG25	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5FS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5FS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
PD5FS160A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5FS160A	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
PD5K	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5K	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
PD5KFS10160S3	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5KFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5KFS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
PD5KFS50160S3	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5KFS50160S3	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
PD5KMILG3278	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
PD5MILG3278A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-198-1156

Compare

Related Products | NSN 3110-00-198-1156

3110-00-198-1158, 3110-00-198-1162, 3110-00-198-1167, 3110-00-198-1168, 3110-00-198-1182

Technical Data | NSN 3110-00-198-1156

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	204 DOUBLE ROW

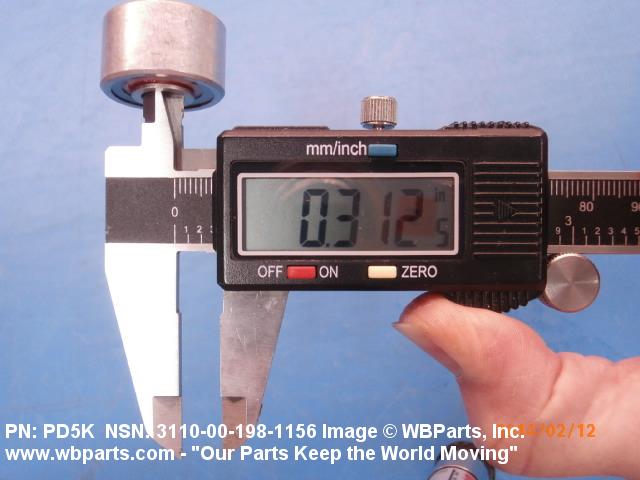

BORE DIAMETER	0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM

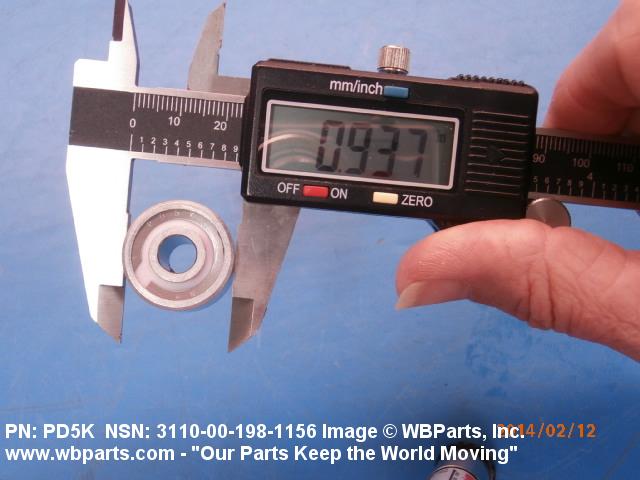

OVERALL OUTSIDE DIAMETER	0.9370 INCHES MINIMUM AND 0.9375 INCHES MAXIMUM

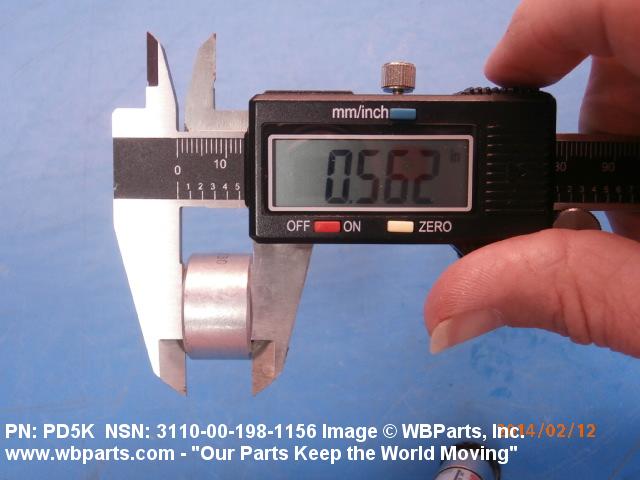

OUTER RING WIDTH	0.5575 INCHES MINIMUM AND 0.5625 INCHES MAXIMUM

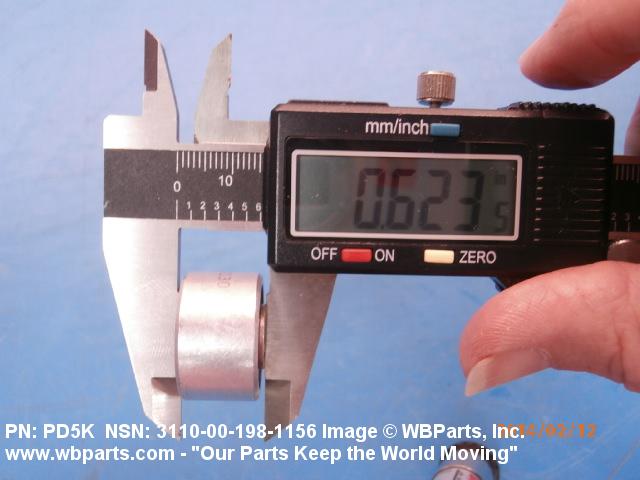

INNER RING WIDTH	0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
