NSN 3110-00-184-8655 RNU1024, 0506 WBG, 0506WBG
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-184-8655 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: RNU1024, 0506 WBG, 0506WBG, 1024UMR101, 1024-UMR-101, 25100930285, 6763777, 7521459, 7707765, 8350523, 3110-00-184-8655, 00-184-8655, 3110001848655, 001848655
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-184-8655 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-184-8655
Demand History | NSN 3110-00-184-8655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8350523 | 2024-10-290 | 30 | DIBBS |
| 3110-00-184-8655 | 2024-09-255 | 68 | Israel |
| 8350523 | 2024-04-116 | 96 | DIBBS |
| 8350523 | 2024-04-108 | 96 | DIBBS |
| 8350523 | 2024-03-81 | 19 | DIBBS |
| 8350523 | 2024-03-73 | 19 | DIBBS |
| 8350523 | 2024-01-04 | 19 | DIBBS |
| 8350523 | 2022-05-144 | 14 | DIBBS |
| 8350523 | 2021-05-136 | 30 | DIBBS |
| 3110-00-184-8655 | 2020-10-304 | 1 | DIBBS-RFPs |
| 8350523 | 2020-10-296 | 186 | DIBBS |
| 8350523 | 2019-02-52 | 100 | DIBBS |
| 3110-00-184-8655 | 2018-11-333 | 50 | KR |
| 3110-00-184-8655 | 2018-06-156 | 91 | DIBBS |
| 3110-00-184-8655 | 2018-04-99 | 31 | DIBBS |
| 3110-00-184-8655 | 2018-04-99 | 46 | DIBBS |
| 3110-00-184-8655 | 2018-04-94 | 34 | DIBBS |
| 3110-00-184-8655 | 2018-03-84 | 46 | DIBBS |
| 3110-00-184-8655 | 2018-03-81 | 31 | DIBBS |
| 3110-00-184-8655 | 2018-01-24 | 35 | DIBBS |
| 3110-00-184-8655 | 2016-03-69 | 29 | DIBBS |
| 3110-00-184-8655 | 2016-01-27 | 23 | DIBBS |
| 3110-00-184-8655 | 2015-07-200 | 18 | DIBBS |
| 3110-00-184-8655 | 2015-01-30 | 181 | KR |
| 3110-00-184-8655 | 2013-08-242 | 50 | South Korea |
| 3110-00-184-8655 | 2012-10-284 | 170 | DIBBS |
| 3110-00-184-8655 | 2012-09-261 | 106 | DIBBS |
| 3110-00-184-8655 | 2011-07-182 | 95 | DIBBS |
| 3110-00-184-8655 | 2011-04-102 | 137 | DIBBS |
| 3110-00-184-8655 | 2011-03-82 | 100 | DIBBS |
| 3110-00-184-8655 | 2010-04-106 | 30 | DIBBS |
| 3110-00-184-8655 | 2010-03-85 | 70 | DIBBS |
| 3110-00-184-8655 | 2010-01-07 | 124 | DIBBS |
| 3110-00-184-8655 | 2009-08-240 | 114 | DIBBS |
Cross Reference | NSN 3110-00-184-8655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0506 WBG | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 1024-UMR-101 | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
| 3110001848655 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6763777 | 24617 | GENERAL MOTORS CORP |
| 6763777 | 73342 | ALLISON TRANSMISSION, INC. |
| 7521459 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7707765 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8350523 | 05527 | GWILLIAM COMPANY INC DIV BALL & ROLLER BEARING DIVISION |
| 8350523 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8350523 | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
| 8350523 | 52676 | SKF USA INC. |
| 8350523 | 73342 | ALLISON TRANSMISSION, INC. |
| RNU1024 | 52676 | SKF USA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-184-8655
Related Products | NSN 3110-00-184-8655
Technical Data | NSN 3110-00-184-8655
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OUTER RING COPPER ALLOY RETAINER STEEL ROLLER |

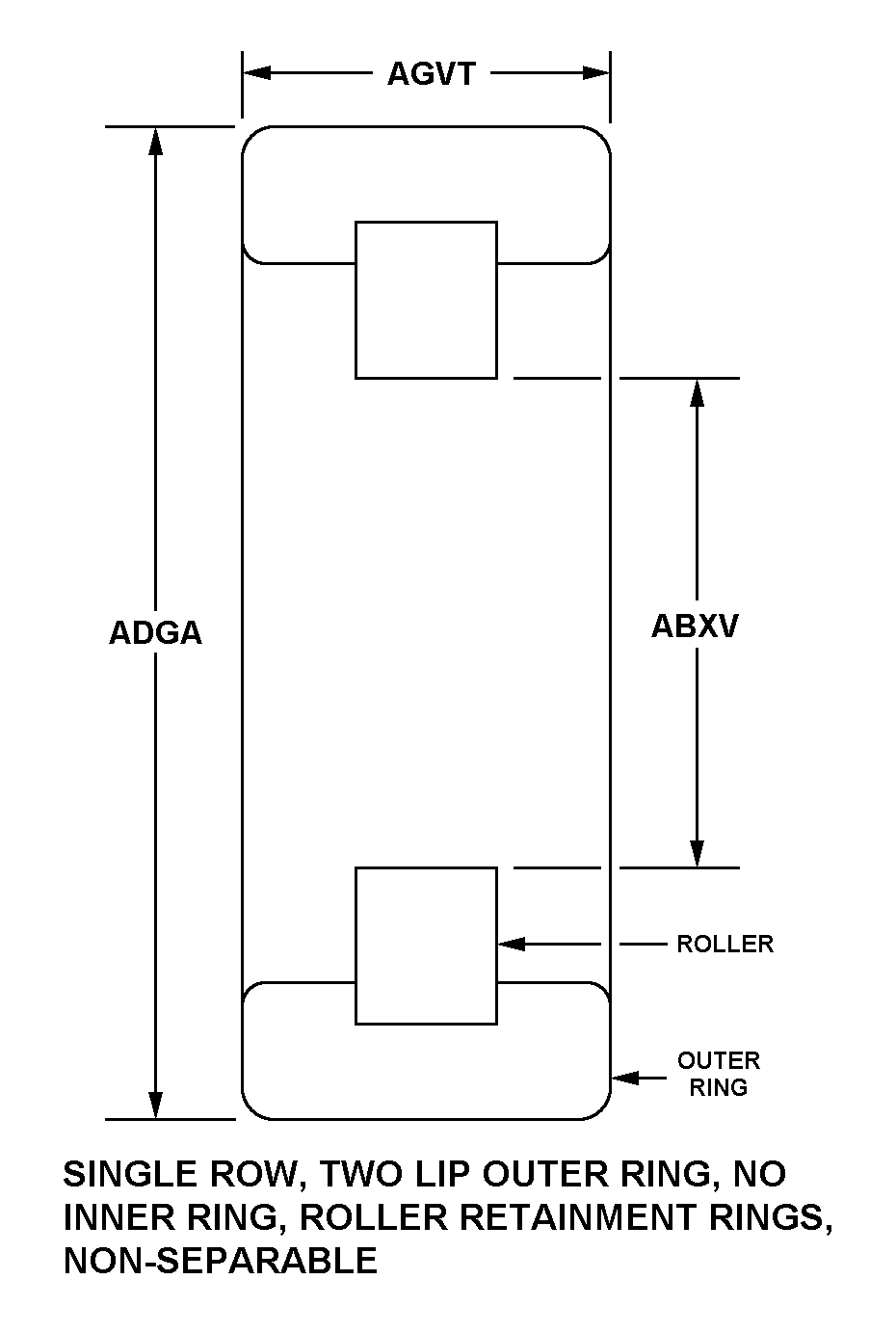

| STYLE DESIGNATOR | 264A SINGLE ROW, TWO LIP OUTER RING, NO INNER RING, ROLLER RETAINMENT RINGS, NON-SEPARABLE |
| BORE DIAMETER | 135.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 180.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 28.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | OUTER RING AND ROLLER ASSEMBLY,NO INNER RING |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 8350523 |
Restrictions/Controls & Freight Information | NSN 3110-00-184-8655
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-184-8655
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
